CAN Analyzer

This 2 channel CAN analyzer has a function of adjustable CAN filter. It is assembled on CORTEX-M3 STM32F105 CPU by ST. The terminator allows to receive and transmit messages even when working with one device. It is essential developing devices communicating with other vehicle units via CAN bus, verious emulators, antitheft systems, etc.

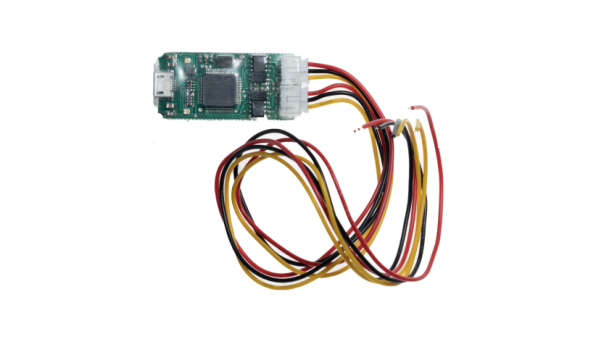

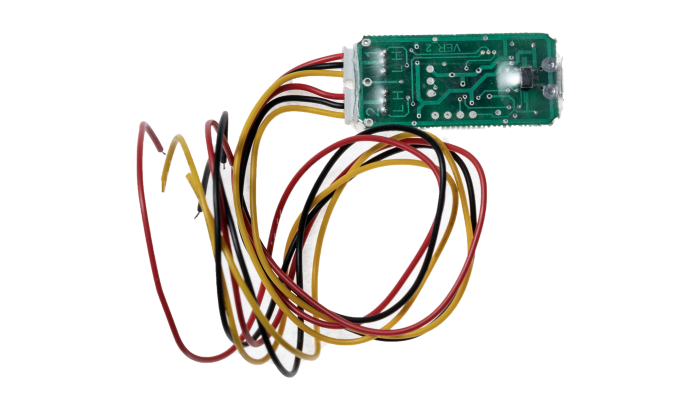

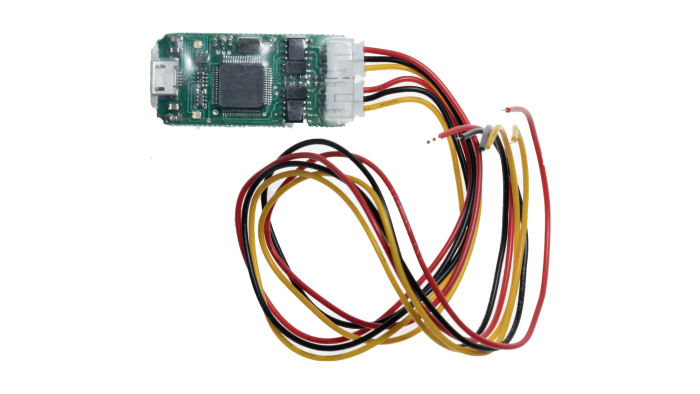

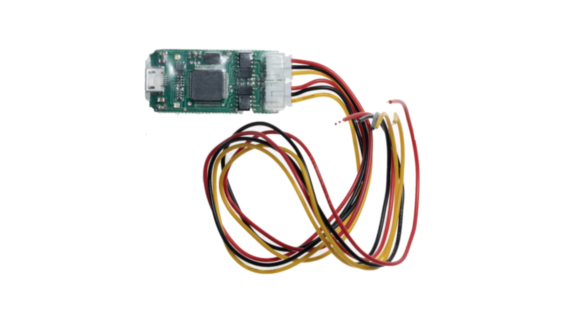

The board is equipped with:

• USB socket;
• 2 sockets for connecting CAN bus cables;
• 2 switches (ON/OFF) for the 120Ω terminator for each channel separately;
• LEDs for CAN bus RX and TX. You can work with 2 channels simultaniously and separately.

The data stream will be saved in 2 separate windows or will be united in one file linked to the temporary file.

The analyzer can be used as a CAN filter. The software has a special tab where it is possible to customize the parameters, skipping or blocking selected messages or replacing them. In the appropriate window you can set the operating algorithm for the device.
