VolvoCarTool (VCTS)
Item no.: 40V2000

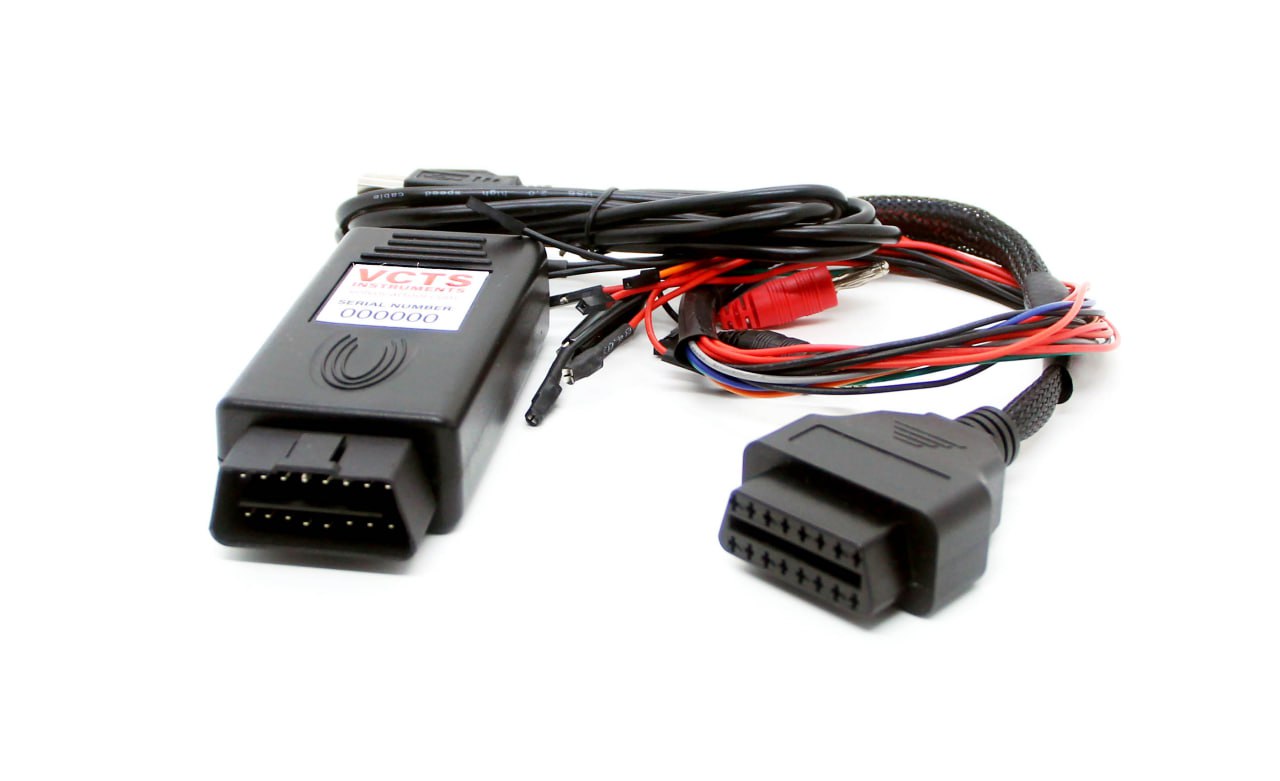

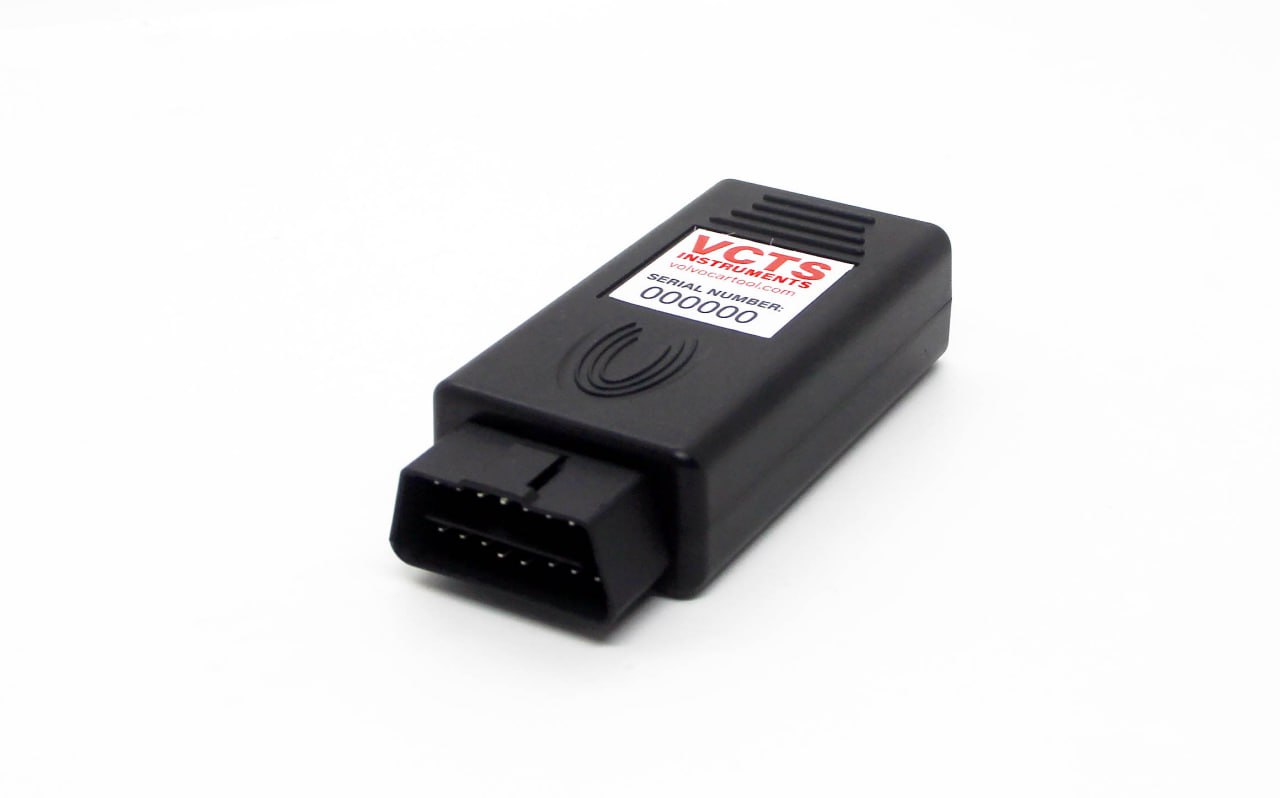

- VCTS adapter
- USB cable
- Bench cable
- VCTS Instruments software
VolvoCarTool (VCTS) is a programming tool for Volvo vehicles using the SPA platform. It works with the module based VCTS Instruments software. The modules are to be purchased separately.
Available modules:
- MVBM License: errors reading and reset, CRASH RESET on the bench;
- HCM(L/R) License: HCM reading/writing in the BENCH mode (on the bench without opening the unit), change of the light working side, linking the unit according to the factory number on the light sticker;
- BSCM Repair License: errors reading and reset, CRASH RESET via OBD;
- SRS TMS570 License: CRASH DATA erasing in SRS unit (connection both on the bench and via OBD);
- CEM Configuration(R/W) License: CEM configuration reading/writing, VIN-based configuration database included;
- Key functions License: adding/deleting keys via OBD-II using the VCTS adapter connected to the PC;
- Diagnostic Service License: diagnostics and service functions;
- Mileage Editor License: mileage reset and correction in ABS, CEM, DIM, ECM, SRS, VCM. The VCTS adapter must be connected to the computer. The license works only with the files and makes changes to them. Connection to the vehicle is not needed;
You can work both via OBDII and on the bench using the bench cable from the kit. Connection diagrams can be found in the software.
Technical support is provided by the developer.
Errors reading and reset via OBD-II, CRASH RESET on the bench according to the connection diagram via the VCTS adapter. USA, EU made units are supported.
CRASH statuses can be reset in both SECURED MCUs and open ones.
Supported ECUs: P31476261, P32246116, P32269179, P32315746, P32315772, P32315799, etc with the RH850 processor.
Brands/models: POLESTAR, POLESTAR2, VOLVO S60, XC40, etc with this SRS unit.
Model range: VOLVO SPA platform from 2017 till 2024 (present), POLESTAR/POLESTAR2
Errors reading and reset via OBD-II, CRASH RESET, SRS AIRBAG TMS570 unit reading on the bench according to the connection diagram via the VCTS adapter. USA, EU made units are supported.
Supported ECUs: P31451568, P31451730, P31658126, P31658130, P31681216, P31681525, P31681532, P32221372.
Brands/models: VOLVO S60, S90, V60, V90, V90CC, XC40, XC60, XC90.
Model range: SPA platform from 2017 till present.
HCM reading/writing in the BENCH mode (on the bench without opening the unit) according to the connection diagram via the VCTS adapter (included in the software), change of the light working side, linking the unit according to the factory number on the light sticker.
Supported ECUs: till 2021. The ECUs made after 2021 have a limited support: only the working side change is available.
Brands/models: VOLVO S60, S90, V60, V90, V90CC, XC40, XC60, XC90.
Errors reading and reset via OBD-II, CRASH RESET on the bench.
Brands/models: VOLVO S60, S90, V60, V90, V90CC, XC40, XC60, XC90.
Model range: SPA platform from 2017 till present.
CEM configuration reading/writing via OBD-II using the VCTS adapter connected to the PC.
Supported numbers/types: SPC5646B, SPC5748G.
Brands/models: VOLVO S60, S90, V60, V90, V90CC, XC40, XC60, XC90.
Model range: SPA platform from 2017 till present.
Errors reading and reset via OBD-II, CRASH RESET via OBD-II.
BSCM supported numbers/types: all models.
Brands/models: VOLVO S60, S90, V60, V90, V90CC, XC40, XC60, XC90.
Model range: SPA platform from 2017 till present.
The license allows reading and writing immobilizer data in the CEM unit in OBD-II mode, via the VCTS adapter.
Supported numbers/types: all numbers with the MPC5748G processor.
Car brands/models: VOLVO
Model range: VOLVO SPA from 2017 to 2024.
CEM error reading/erasing, reading/saving/editing/writing the vehicle configuration.
Description: The license allows reading/deleting errors, reading/saving to file/editing in the program configurator window/writing the configuration in the vehicle, via the VCTS adapter in OBD-II mode.
Supported numbers/types: CEM MPC5748G.
Vehicle brands/models: VOLVO SPA PLATFORM
Model range: S60, V60, S90 V90, XC60, XC90, XC40 and etc.
Errors reading and reset via OBD-II, CRASH RESET, reading of SRS AIRBAG ML3T-14B321-XX in the bench mode.
The license allows to read/delete errors and to reset crash data in FORD SRS AIRBAG LV4T-14B321XX via VCTS adapter on the BENCH.
Supported numbers/types: LV4T-14B321XX.
Brands/models: FORD
Model: FORD KUGA.
The license allows reading/writing errors, configuration reading/writing, erasing/resetting crash info (CLEAR CRASH) in FORD SRS AIRBAG PJ6T-14B321XX units via VCTS adapter in the BENCH mode.
Supported numbers/types: PJ6T-14B321XX.
Brands/models: FORD
Model: FORD ESCAPE.
