FEMTO OBD Flasher is a software solution for Bosch MDG1 ECUs family chip-tuning. With this tool you can easily make real and virtual Read of MDG1 ECU directly from the OBD socket. No need to remove or disassemble the ECU. All operations are easy and safe.

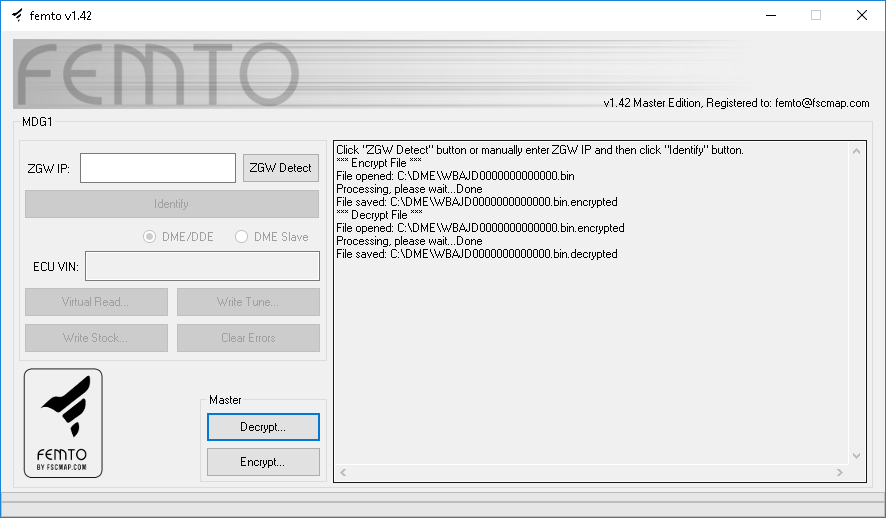

The software is available in three different versions: standard, master and slave. You need the Master version if you plan to work with your remote branches. With this version you can Encrypt / Decrypt files for your slaves. OBD readout protection is included. Master supports up to 5 slaves by default. Additional 5 slaves are available for an additional fee.
No need to think about checksum calculation. Everything is done automatically. Virtual reading is available for all software variants. If we don’t have the file for your car on our server — we will add it in within 24 hours.
Supported ECUs DDE / DME based on TC1797:
- Bosch EDC17C41
- Bosch EDC17C50
- Bosch EDC17C56
- Bosch EDC17CP45
- Bosch EDC17CP49
- Bosch MEVD17.2.4
- Bosch MEVD17.2.5
- Bosch MEVD17.2.6
- Bosch MEVD17.2.9
- Bosch MEVD17.2.G
- Bosch MEVD17.2.8
- Bosch MEVD17.2.H
Supported ECUs EGS 8HP:
- GSB23TU
- GSB231
- GSZFB1
Benefits:
- FEMTO calculates all checksums inside FLASH (also known as CS);
- CVN and CALID will be automatically corrected to match stock;
- Dealer program ID number remains the same as the original;
- Date of programming will not be changed;
- Open standard .BIN file after Virtual Reading (VR);
- Technical support 24/7.
Supported ECUs:
- Bosch MDG1, Motorola MPC5777, PPC (MC);
- Bosch MDG1, Infeneon AURIX TC27xxx (MC).
Requirements to start flashing:
- FEMTO OBD Flasher software;
- Windows OS 7,8,10×32/x64;
- Laptop with Ethernet port RJ-45 (DHCP should be enabled);
- Standard BMW ENET cable;
- Stable internet connection;
- Car battery charger with sufficent power (like GYSFLASH 100.12 HF or CTEK MXTS 40).
FEMTO is a software only solution. You will receive your executable files and licenses by e-mail.
Supported ECU list:
BMW F-SERIES
Engine, ECU, Model code:
B38 (B38A15A), DME 83T1, F45, F46, F48, F55, F56, F57;
B46 (B46B20B), DME 840, F20, F21, F22, F23, F30, F31, F32, F32, F33, F34, F35, F36;
B48 (B48A20A), DME 841H, F45, F46, F48, F55, F56, F57;
B48 (B48B20A), DME 840, F30, F31, F32, F34, F35, F36, F45, F46;
B48 (B48B20A), DME 841, F20, F21, F22, F23, F30, F31, F32, F32, F33, F34, F35, F36;
B58 (B58B30A), DME 860, F30, F31, F32, F34, F35, F36.
G-SERIES
Engine, ECU, Model code:
B46 (B46B20B), DME 840, G30, G31, G32, G11, G12, G01;
B47 (B47D20A), DDE 802, G30, G31, G01;
B48 (B48B16A), DME 840, G01, G30, G31;
B57 (B57D30A), DDE 840, G30, G31, G32, G11, G12, G01;
B57 (B57D30A), DDE 832, G30, G31, G32, G11, G12, G01;
B57 (B57D30C), DDE 832, G30, G31, G32, G11, G12, G01;
B58 (B58B30A), DME 860, G01, G11, G12, G30, G31, G32;
N63 (N63B44C), DME 880, G11, G12;
N63 (N63B40B), DME 880, G12;
N74 (N74B66B), DME 8C0, G12;
N74 (N74B68U2), DME 8CT0, Phantom RR11, Phantom RR12;
N74 (N74B68A), DME 8CT0, Phantom RR11, Phantom EWB RR12;
B48 (B48B20B), DME 840H, G30, G38, G11, G12;
B48 (B48B20C), DME 841H, G20 (New 2019 3 series);
S63 (S63B44B), DME 88T0 AURIX, F90 M5;
S63 (S63B44T4), DME 88T0, F90.
