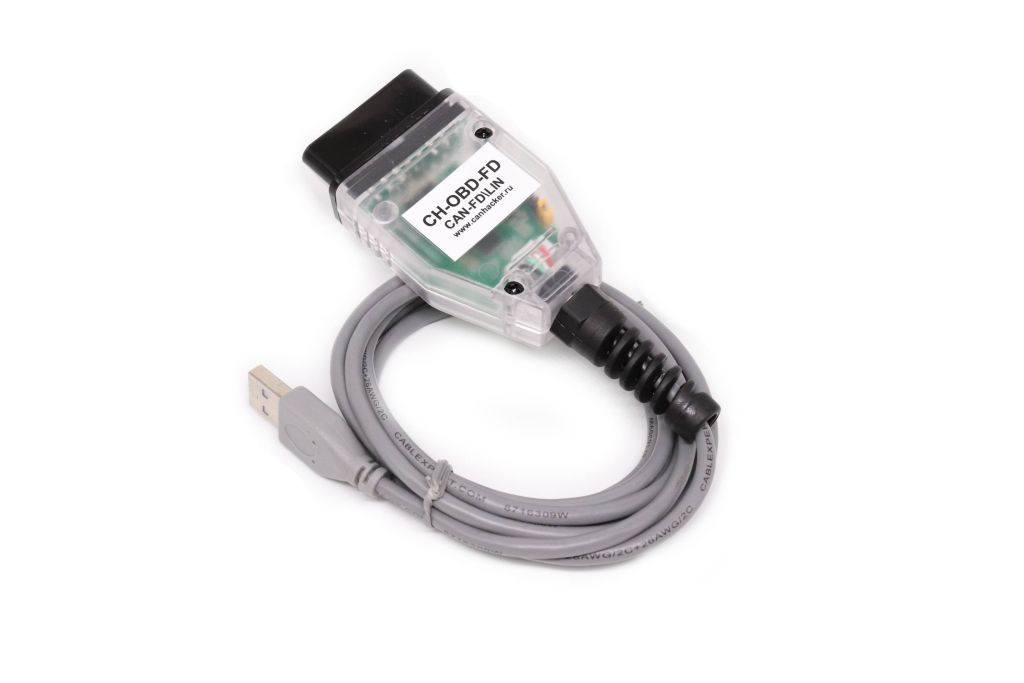

CH-OBD-FD Coder L2

The CAN-FD interface for KIA, HYUNDAI, GENESIS instrument cluster programming.

Important:

• Working via the OBD2,
• CAN-Coder L2 is activated “from the box”,
•  CAN-FD, CAN, LIN Analyzers options need additional activation (+$).
• At the moment, all documentation is only in Russian language.
• Only for professional use.

Specification:

1. CAN-FD, CAN Channels: 1
2. LIN Channels: 1
3. Max. CAN-FD bitrate: 5 Mbit\s
4. CAN-High \ CAN-Low voltage range:  -42….+42 V
5. PC Connection: USB 2.0  Virtual COM Port, CDC
6. Recommended OS: Windows 10, Windows 11

Compectation:

• Interface CAN-Hacker CH-OBD-FD

Supported Software:

• CAN-Coder L2 (Default)
• CARBUS Analyzer (Additional option)
