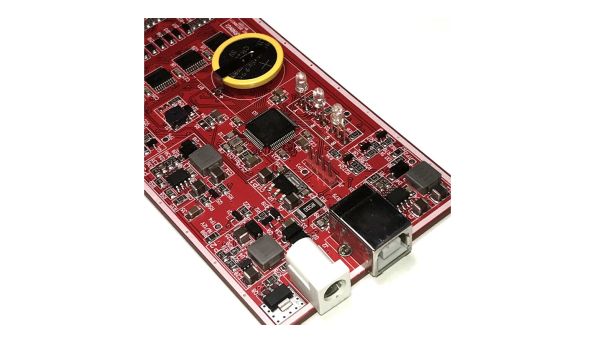

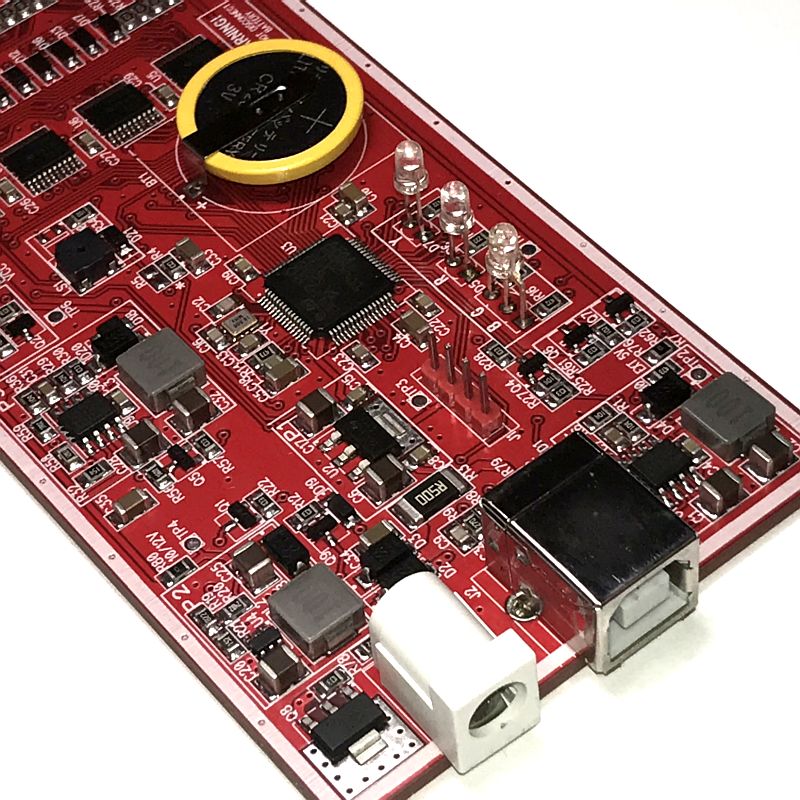

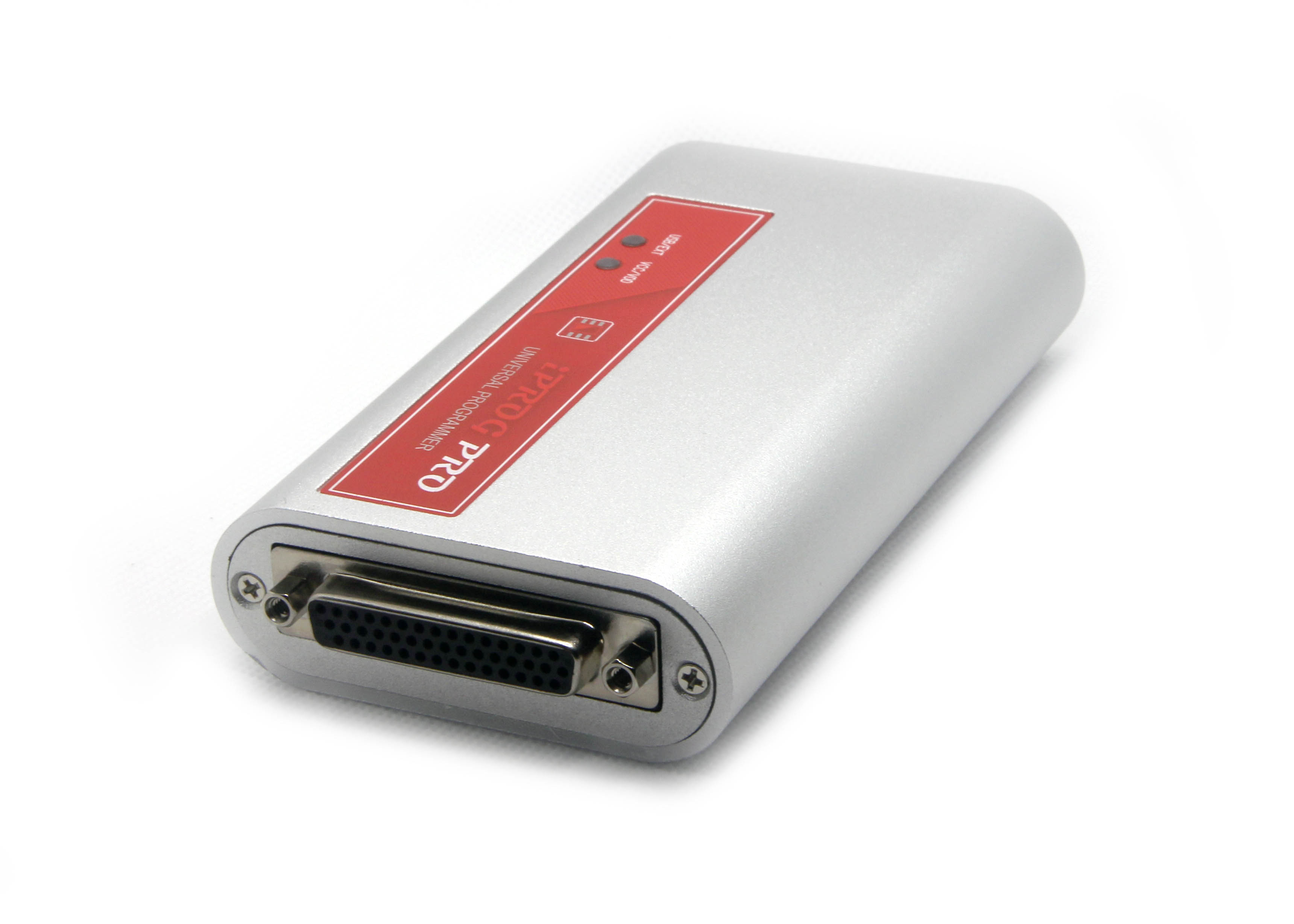

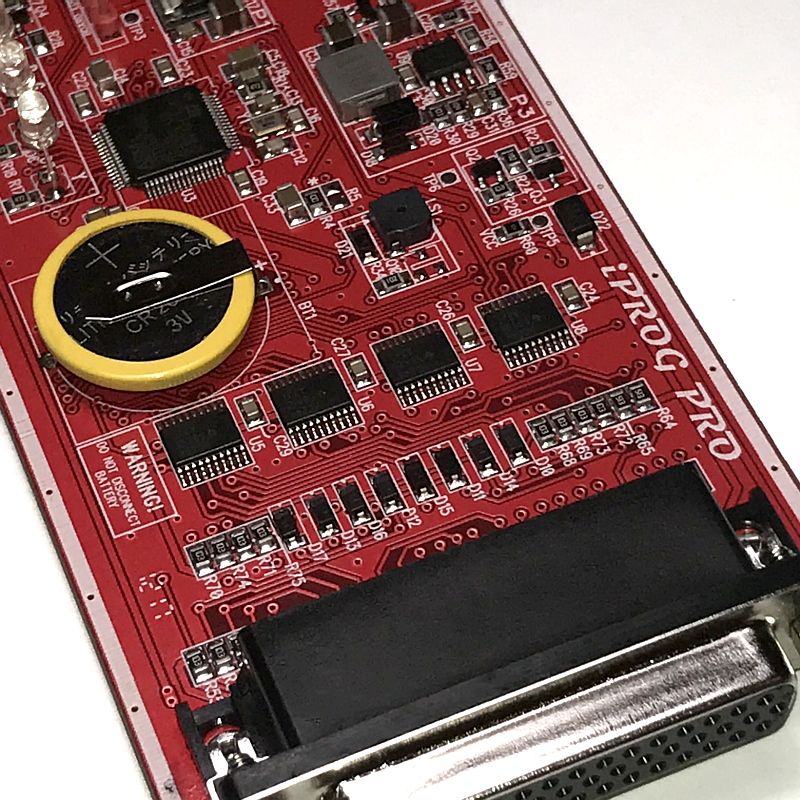

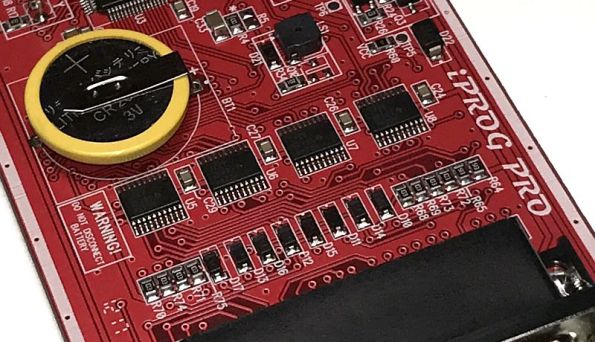

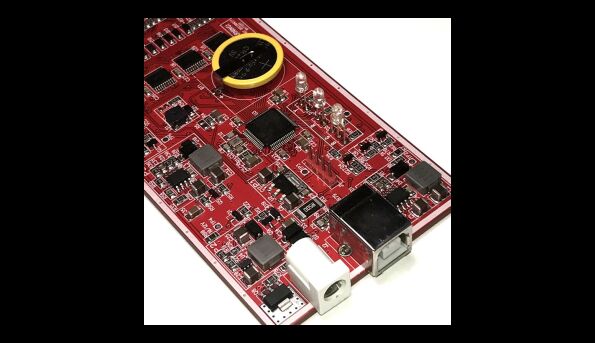

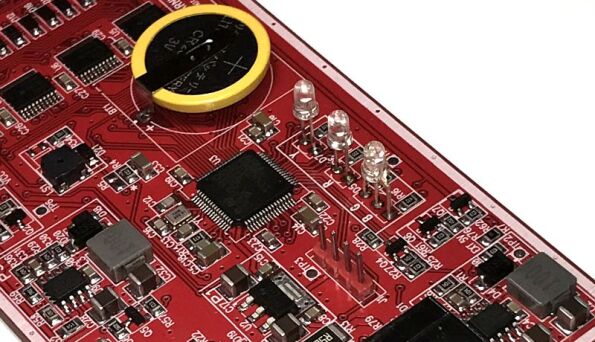

The original iProg Pro programmer is designed to program control units and automotive electronics. Its functionality allows you to work with odometers, crash data, immobilizer, support transponders (registering new keys and deleting old ones), has a huge coverage of vehicles.
Main functions of iProg RRO:
- Odometer correction via OBDII connector
- Odometer correction on the bench via adapters
- Unlocking radios
- Working with keys (IMMO, Transponders), copying, preparing, unlocking
- Working with IMMO dumps
- Working with SRS airbag ECUs, deleting crash data
- Converting readings from miles to KM
- Reading and writing processors and EEPROM used in cars
- Deleting a particulate filter in a dump
- Working with intercom keys
- Calculating PIN from a dump
Supports the EEPROM area reading/writing, as well as reading/writing/erasing the incremental area in 35080 6, 35080V6, 35080VP, 080D0WQ, 160D0WQ chips.
Supports the ability to read/write the EEPROM area, as well as reading/writing/erasing the incremental area in 35080 6, 35080V6, 35080VP, 080D0WQ, 160D0WQ chips.
Possibility of manual switching of operating modes, as well as automatically (with implemented control from the script via pin18)
Script for programming ATMEL APACEATIC65V71 power drivers for HONDA / MAZDA / VAG / Mercedes-Benz / FIAT / Citroёn / KIA / Hyundai vehicles! The adapter board is not included and is purchased separately.
This is a unique technical solution that is not available in other devices and programmers on the market
Applied in SRS units such as:
- 77960-SWA-G220-M4
- 77960-SWA-G214-M4
- GS1D-57K30 etc….
The script is for advanced users only.
MANY have encountered a problem when the unit stopped communicating after a crash or battery drain, or non-erasable errors appeared (U3000, B1000, errors that other auto electricians have encountered 53–82 and 51–42 are also possible). Usually this leads to replacing the APACEATIC65V71 power driver.
1) The script programs only New APACEATIC65V71 power drivers, since the OTP area is disposable.
2) For the script to work, it is better to use a TQFP44 soldering socket with a pitch of 0.8 or a QFP44-0.8-TRON (TRO1N) socket. There is a photo of the connection in the script.
3) The script determines the driver status new or programmed, checks the correctness of the connection, reads the driver configuration to determine the programming mode and programs it, checking the programming status after.
The script is designed to adjust the mileage of Audi Q5 A4 S5 A5 panels from Magneti Marelli using the EEprom 95320 dump.
Restrictions:
1) Internet access
2) Saving changes twice a day
The script is designed to read/write DSM EEPROM on Mercedes cars with FBS4 access authorization system. Allows reading the full contents of EEPROM in bin (non-encrypted type) and writing EEPROM, with the help of the script it is possible to reset the counter of operations/transfer hashes/write vin, etc., in general any changes in EEPROM. With a certain skill it is possible to change FBS4/FBS3 using the vediamo+script bundle (there will be no manual). This DSM was installed on many Mercedes with W166/W447/W212 models with a 7-speed gearbox.
Please note that the script does not support working with DSM222 (even identification is not possible)
The script only works with iPROG and was tested with MCP2515. The script does not work with SJA1000.
The script is designed to unlock 48V batteries LIB48_222 from Mercedes 205/213/222/167 on the bench without opening the battery (if the battery itself is not damaged). The script was tested on a homemade MCP2515 CAN adapter and no problems arose, the unlocking time is about 5-6 seconds.
The script has only 2 buttons:
1) Lock Status (to read the current state locked / not locked)
2) Unlock (the name speaks for itself)
Video of the script in action: https://www.youtube.com/watch?v=ckcRq-_EfWQ
The script is designed to read/write the EEPROM of the MM9Z1J638 processor, which was installed in the BMS battery controllers of Porsche Taycan/Porsche Carrera 911 vehicles.
The script allows you to read the processor ID (always 02070207 regardless of the battery number)
- Reading EEPROM (5 sec)
- Writing EEPROM (18 sec)
- Editing the EEPROM dump to unlock the battery (the button edits the dump in the EEPROM buffer)
The script works with the new BDM adapter !!DO NOT USE THE OLD BDM!! EITHER A HOME-MADE OR A NEW BDM!!
The cleaning algorithm has been tested on 9J1915105K and 9Y0915107H
A script for the iPROG PRO programmer.
The script is designed to restore Lithium batteries after a voltage drop or after a car accident.
There are two scripts in the package:
- Porsche - the script has a crash removal and recovery
- Audi (and in some VW) recovery. Subsequently in the car, you just need to enable it through the diagnostic function.
This universal adapter based on MCP2515 and is designed to connect cars and panels via OBD connector to IProgPRO.
It contains a switched two-wire CAN (standard 6-14 bus and 3-11 bus), single-wire CAN (1 contact of OBD connector) and K-line (7 contact of OBD connector). The cable length is 130 cm +/- 5 cm.
Attention!! Script only for IprogPro programmer!!!
A script for correcting mileage in the dashboards of KTM Duke motorcycles made on the Freescale(NXP) SPC5645S microcontroller. The script supports reading/writing mileage. The script works via OBD2 adapter (CAN-BUS). Video
This script allows to read/write EEPROM, read/write FLASH of Motorola MCU in Volvo dashboards via CAN-bus. The script has the built-in mileage calculator. Automatic recognition of dashboard type (5 types of dashboard supported). Script support work with dashboard "on a table", and through OBDII.
The list of the supported dashboards:
Volvo S80 1999-2000 with HC08 1H56A MCU (only EEPROM);
Volvo S60, V70, S80 2000-2001 HC912 4F73K MCU;
Volvo S60, V70, S80, XC70, XC90 2001-2004 HC912 3K91D MCU;
Volvo S40, V40, S50, S60, V70, S80, XC90 2004-2007 9S12 0L85D MCU;
Volvo V50, C30, 40, 50 2007+ 9S12 3L16Y MCU;
Video of script work
The script works only at IprogPro!!!!
This script allows to write mileage in Kia/Hyundai dashboards with MB91F061, MB91F062, MB91F067 MCU via OBD2 (CAN-bus). Automatic recognition of dashboard MCU and save readed Flash in backup folder. Script support work with dashboard "on the bench", and through OBD2.
This script allows to write mileage in Suzuki MB91F061BS OBD2 (CAN-BUS).
Script work with the dashboards through OBD2.
During the work the script automatically recognize dashboard type.
The script has Recovery function if panel is dead. The flash files in script folder is necessary for recovery.
Approximate list of cars:
Suzuki Hustler, Jimny, Wagon-R
The script works only at IprogPro!!!!
This script allows to write mileage in Honda MB91F061BS, MB91F060BS OBD2 (CAN-BUS).
Script work with the dashboards only through OBD2.
The script has Recovery function if panel is dead. The backup file readed durning the work is necessary for recovery.
Approximate list of cars:
Honda FIT, Honda FIT Hybrid, Honda Vezel, Honda HRV
Video of script work with MB91F061BS (time of script work is 3.5 min)
Video of script work with MB91F060BS (time of script work is 7 min)
This script allows to write mileage in Ford OBD2 (CAN-BUS). Script work with the dashboards only via OBD2.
List of supported cars:
1. Bantam (NEC+24c16) Read/Write KM
2. Ecosport 2013+ (MC9S12XEQ384) Read/Write EEPROM, Read/Write KM
3. Expedition 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
4. Explorer 2011+ (NEC+93C86+2xLCD) Read/Write KM
5. Explorer 2015+ V1 (SPC5606S+93C86+2xLCD) Denso Read/Write KM
6. Explorer 2015+ V2 (SPC5606S+93C86+2xLCD) Denso Read/Write KM
7. F150 2013+ (MPC5604S+24C32) Read/Write KM
8. F150 2015+ (MPC5606S+24C32) Read/Write KM
9. Fiesta 2006+ (MC9S12H256) Read/Write EEPROM, Read/Write KM
10. Fiesta 2008+ (MC9S12HZ256) Read/Write EEPROM, Read/Write KM
11. Fiesta 2013+ (MC9S12XEQ384) Read/Write EEPROM, Read/Write KM
12. Figo 2015+ V1 (R5F10DPJJ) Read/Write KM
13. Figo 2015+ V2 (R5F10DPJJ) Read/Write KM
14. Figo 2017+ (R5F10DPJJ) Read/Write KM
15. Focus 2 2005+ (MC9S12H256) Read/Write EEPROM, Read/Write KM
16. Focus 2 2008+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
17. Focus 2 2008+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
18. Focus 3 2011+ (NEC+95320) Read/Write KM
19. Fusion 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
20. Fusion 2015+ (SPC5606S+93C86+2xLCD) HYBRID Denso Read/Write KM
21. Galaxy 2006+ Lo (MC9S12H256) Read/Write EEPROM, Read/Write KM
22. Galaxy 2010+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
23. Galaxy 2010+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
24. Galaxy Convers+ (MAC7116+24C16) Read/Write KM
25. KA 2015+ V1 (R5F10DPJJ) Read/Write KM
26. KA 2015+ V2 (R5F10DPJJ) Read/Write KM
27. KA 2017+ (R5F10DPJJ) Read/Write KM
28. Kuga 2008+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
29. Kuga 2008+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
30. Kuga 2 2013+ (MPC5606S+24C32) Read/Write KM
31. Kuga 2 2013+ (MPC5645S+24C32) Read/Write KM
32. Mondeo 2007+ Lo (MC9S12H256) Read/Write EEPROM, Read/Write KM
33. Mondeo 2010+ Hi (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
34. Mondeo 2010+ Lo (MC9S12XHZ512) Read/Write EEPROM, Read/Write KM
35. Mondeo Convers+ (MAC7116+24C16) Read/Write KM
36. Mondeo 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
37. Mondeo 2015+ (SPC5606S+24C32) Visteon Read/Write KM
38. Mondeo 2015+ (SPC5606S+93C86+2xLCD) HYBRID Denso Read/Write KM
39. Mustang 2015+ Read/Write KM
40. Ranger 2015+ (SPC5606S) Continental Read/Write DFLASH, Read/Write KM
41. Ranger 2015+ (SPC5645S+93C86+2xLCD) Denso Read/Write KM
42. Transit 2006+ (NEC 70F3325+93C76) Write KM
43. Transit 2009+ (NEC 70F3421+93C76) Write KM
44. Transit 2011+ (NEC+95320) Read/Write KM
45. C-Max 2015+ HYBRID (SPC5606S+93C86+2xLCD) Denso Read/Write KM
46. F150 2010+ (TMS470+24C16) Read/Write KM
47. F250 2011+ (MB91F037+93C86) Read/Write KM
48. Focus EV 2013+ (SPC5606S+93C86+2xLCD) Denso Read/Write KM
49. Fusion USA 2011+ (NEC3423+93C86+2xLCD) Read/Write KM
50. Lincoln MKZ 2011+ (NEC3423+93C86+2xLCD) Read/Write KM
51. Lincoln MKZ 2015+ (SPC5606S+93C86+2xLCD) Denso Read/Write KM
52. Mustang 2010+ (TMS470+24C16) Read/Write KM
53. Mustang 2013+ (SPC5606S+24C32) Read/Write KM
54. Transit MK8 2016+ (NEC70F3525) Read/Write KM
A package of scripts for working with Mazda 2, 6, CX-3, CX-5, CX-9 and Scion IA instrument panels by Calsonic Kansei.
The scripts work via the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench.
The package includes:
1. Mazda2_CX3_(Scion_IA)_93C86_OBD2 script. Supported cars:
- Mazda 2 (93c86) 2016
- Mazda CX-3 (93c86) 2018
- Scion IA (93c86) 2016
2. Mazda6_CX5_CX9_93C86_OBD2 script. Supported cars:
- Mazda 6 Color Display (93c86) 2016+
- Mazda CX-5 Color Display (93c86) 2016+
- Mazda CX-9 Color Display (93c86) 2016+
The script is only for the IprogPro programmer!!!
Script for correcting mileage in dashboards of Subaru Legacy/Outback 2015+ cars made on NEC uPD70F3529 microcontroller.
The script supports reading / writing EEPROM, read FLASH, have mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car.
Script package for working with Fujitsu/Cypress/Spansion microcontrollers
The scripts work only on IprogPro.
1) Denso S6J3001LSJ 2018+ (Toyota Camry V70, RAV4, Corolla, Altis, Lexus LS, Honda Accord, Hyundai Kona, Hyundai Kona Electric)
This script allows you to adjust the mileage of Denso panels with MCU S6J3001LSJ in Toyota Camry V70, RAV4, Corolla, Altis, Lexus LS, Honda Accord, Hyundai Kona, Hyundai Kona Electric (UART) cars.
The script reads/writes the WorkFlash dump, the built-in calculator automatically determines the mileage.
2) HONDA HYUNDAI KIA TOYOTA SUZUKI MB91F06X
This script allows you to adjust the mileage of the panels:
Honda FIT/Jazz/HRV Hybrid 2015- MB91F060BS
Honda FIT/Jazz/HRV 2014- MB91F061BS
Kia Picanto/Carens/Carnival/Ceed/Cerato MB91F061BS
Hyundai I30/I40/Tucson/SantaFe MB91F062BS
KIA Sorento MB91F067BS
Toyota RAV4 MB91F060BS 2015-
Toyota Avanza/Veloz/Innova MB91F061BS 2015-
SUZUKI Hustler/Jimny MB91F061BS 2015-
3) Toyota MB96F0xx
This script allows you to adjust the mileage of Toyota/Perodua panels with MCU MB96F001YB, MB96F016YB
4) MB91Fxxx
Scripts for reading/writing Fujitsu MB91F0xx microcontrollers
Supported microcontrollers:
MB91F011, MB91F013, MB91F016, MB91F037, MB91F038, MB91F047, MB91F058, MB91F59A, MB91F59B, MB91F060, MB91F061, MB91F062, MB91F067, MB91F526, MB91F575, MB91F57, MB91F578, MB91F579, MB91F591, MB91F592, MB91F594, MB91F596, MB91F597, MB91F599
5) MB90Fxxx
Scripts for reading/writing Fujitsu MB90F0xx microcontrollers
Supported microcontrollers:
MB90F020, MB90F022, MB90F025, MB90F026, MB90F035, MB90F394H, MB90F395H, MB90F423GA_GC, MB90F427GA_GC, MB90F428GA_GC, MB90F922, MB90F931, MB90F946, MB90F947, MB90F949
6) MB96Fxxx
Scripts for reading/writing Fujitsu MB96Fxxx microcontrollers
Supported microcontrollers:
MB96F001YB, MB96F6A5A_R, MB96F6A6R, MB96F6B5A_R, MB96F6B6R, MB96F6C5A_R, MB96F6C6R, MB96F016YB, MB96F119RB, MB96F313A_R_Y, MB96F315A_R_Y, MB96F326A_R_Y, MB96F346A_R_Y, MB96F347A_R_Y, MB96F356A_R_Y, MB96F385R_Y, MB96F386R_Y, MB96F387R_Y, MB96F613A_R, MB96F615A_R, MB96F657R, MB96F673A_R, MB96F675A_R, MB96F683A_R, MB96F685A_R, MB96F693A_R, MB96F695A_R, MB96F696R
7) S6J_Traveo
Scripts for reading/writing Spansion S6J microcontrollers
Supported microcontrollers:
S6J32A9_B9_C9_D9, S6J32AA_BA_CA_DA, S6J300BKSE, S6J311AHAA, S6J311BJAB_BHAB_BJBB_BHBB, S6J311CJAB_CHAB_CJBB_CHBB, S6J311DJAB_DHAB_DJBB_DHBB, S6J311EJAA_EHAA, S6J311EJAB_EHAB_EJBB_EHBB, S6J312AHAA, S6J320CQXA, S6J323C_4C_5C_6C_7C_8C, S6J324CLS_CKS, S6J326CLS_CKS, S6J329CLS_CKS, S6J3001LSJ, S6J331, S6J332, S6J334
The script works only at IprogPro.
Script for mileage correction in diesel Mitsubishi engine control units (ECU) maded on SH7058, SH7059, R4F70580, R4F70590 MCU's.
Supports reading/writing of external EEPROM(93C86) and Flash of the microcontroller, has the built-in mileage calculator.
Script does not calculating checksums so be careful with the write Flash, checksums must be calculated in advance.
The script works only at IprogPro.
Script allows to write mileage in Suzuki dashboards VDO/Continental with MCU NEC70F35xx without external eeprom and NEC70F3421(22)+24С16.
Script reading/writing full dump EEPROM, internal calculator automatically recognize mileage. Script work through OBD2 (CAN-BUS).
List of supported cars:
Grand Vitara (NEC70F3422+24C16)
Kizashi (NEC70F3422+24C16)
SX4 (NEC70F3421+24C16)
Swift (NEC70F3421+24C16)
Swift Monochrome 2017+ (NEC70F3524)
Swift Colour 2017+ (NEC70F3529)
Maruti Swift Monochrome 2017+ (NEC70F3524)
Maruti Ertiga (NEC70F3422+24C16)
Scripts work only on IprogPro.
A package of scripts for mileage correction in GAZ, MAZ, UAZ, KAMAZ, URAL instrument clusters based on MB96F693(696)RB and MB96F673AB processors.
The scripts support reading/writing the full memory capacity of the microcontroller and have a built-in mileage calculator. The scripts work in-circuit via the service connector of the cluster.
Video of the script in action
Update 1: a script for 2015 clusters has been added, an additional script for 2016 has been added (different mileage addressing), the algorithm for determining mileage and cluster versions has been improved.
Update 2: added scripts for UAZ Patriot dashboards on MB96F693/696RB version 3, GAZ Volga on MB96F696AB, MAZ8090-4 on MB96F973AB version 2.
Update 3: added scripts for MAZ, UAZ, KAMAZ, LIAZ (8090,-x 8160-x) dashboards. Added scripts for working with MB96F6xx processors.
Update 4: added script for UAZ Patriot 2017+ dashboards with blue display and locked processor.
The script works only at IprogPro!!!!
Scripts package for change mileage in Toyota Camry V70 2018 Continental R7F701406; Toyota Corolla/Auris/CH-R/Tacoma 70F3535; Toyota Corolla/Auris NEC+24C16 dashboards .
Scripts reading/writing full dump EEPROM, internal calculator automatically recognize mileage. Scripts work through OBD2 (CAN-BUS).
Video of script working
The script works only with IprogPro!!!!
Script for change mileage in Renault Logan2/Duster2, Renault Kaptur/Captur/Clio4, Lada X-Ray, Nissan Terrano 3 Visteon dashboards with MCU Freescale 9S12XHY256.
Script support reading/writing mileage, reading/writing FLASH. The script has Patch and Unpatch function. Script work through OBD2 (CAN-BUS).
Added Renault BOSCH ABS/ESP by OBD2. Supports automatic EEPROM detection (95320, 95640, 95128). Read/Write EEPROM, set 0km in ABS.
Video of updated script work
Attention!!!! The following ABS are not supported:
0265 261 127
0265 243 681
0265 245 742
The script works only with IprogPro!!!!
Script for changing mileage in Renault Megane3/Fluence dashboards with MB96F386(387)+95160 and NEC70F3424+24C16
Script supports reading/writing EEPROM, reading/writing FLASH, internal calculator automatically recognizes mileage. the script hasPatch and Unpatch functions. Works via OBD2 (CAN-BUS).
The script works only with IprogPro!!!!
The scripts support reading/writing CodeFlash and DataFlash of Renesas RH850 microcontrollers (R7F7010xxxx) via UART. When reading DataFlash, the scripts also create a DataFlash map (MAP) which is useful when analyzing a dump or writing DataFlash back to the microcontroller.
Script for the read/write DataFlash of the R5F10Dxxx microcontrollers used in dashboards of the bikes/scooters and cars. Script works only with IprogPro.
Please note: Renesas RL78/D1A microcontrollers don't have reading commands of DataFlash and CodeFlash, only writing ones. But with this script it is possible to read DataFlash.
The script works through TOOL0 (dedicated single-line UART). The scheme of a cable will be in the instruction to a script (the scheme not difficult: DB44, diode and 4 wires).
THE CALCULATOR WAS REMOVED FROM SCRIPT!!!
Supported microcontrollers :
• 48-pin: R5F10CGxJ, R5F10DGxJ, R5F10CGxL, R5F10DGxL (x = B, C, D)
• 64-pin: R5F10CLDJ, R5F10DLxJ, R5F10CLDL, R5F10DLxL (x = D, E)
• 80-pin: R5F10CMxJ, R5F10CMxL (x = D, E),R5F10DMxJ, R5F10DMxL (x = D, E, F, G, J)
• 100-pin: R5F10DPxJ, R5F10DPxL (x = E, F, G, J), R5F10TPJJ, R5F10TPJL
These microcontrollers are used in dashboards (the list not full):
1. Bajaj Pulsar 220
2. Bajaj Pulsar 200RS
3. Bajaj New Avenger
4. Hero Passion Pro
5. Mahindra Kuv100
6. Maruti Suzuki Brezza
7. Mitsubishi Colt T120SS
8. Piaggio Vespa
9. Proton Saga
10. Suzuki Access
11. Suzuki Carry Futura
12. TVS Star City+
13. TVS Victor
14. TVS Star City
15. TVS Apache RTR150
16. TVS Apache RTR200
17. Yamaha YZF-R125, MT-125
Video of script working
Script for working with MAZ/KAMAZ/UAZ instrument panels:
- PA8046-1
- PA8046-2
- PA8046-3
- PA8046-4
Attention!! The script is only for IprogPro programmer!!!
Script for working with instrument panels made on ATTINY2313/AT90S2313 microcontrollers, has a built-in calculator. The script works through the ISP connector of the speedometer (it is necessary to disassemble the speedometer and solder 6 wires). For PA8046-3, PA8046-4 instrument panels, the firmware HAS a sensor calibration function!!!
The script for mileage correction of Chevrolet Aveo MB90Fxxx+93C56 works via the panel connector.
As you know, to get to the EEPROM in these panels, you need to remove the arrows, unsolder the display or drill a hole in the plastic under the silkscreen.
With this script, you don't need to do this.
The script for mileage correction Tagaz Tager/SsangYong Korando MB90F428G+93LC56 works via the ISP connector located on the board under the rear panel cover.
As you know, to get to the EEPROM in these panels, you need to remove the arrows, solder the display.
With this script, you do not need to do this.
These scripts allow you to adjust the mileage on Kia/Hyundai NEC+24C16 and NEC D70F35xx/R7F7014xx OBD2 (CAN-BUS) vehicles. The script works only with IprogPro.
Scripts define CAN-ID of the instrument cluster, built-in calculator automatically defines mileage. Reading/Writing full EEPROM dump, or writing only mileage area.
List of supported cars
- Ceed 2009+, 2012+, 2014+ (NEC+24C16)
- Rio 2011+ (NEC+24C16)
- Sorento 2009+, 2012+ (NEC+24C16)
- Soul 2010+ (NEC+24C16)
- Magentis/Optima 2012+ (NEC+24C16)
- Sportage 2010+, 2015+ (NEC+24C16)
- Accent 2010+ (NEC+24C16)
- Genesis 2014+ (NEC+24C16)
- I20 2010+ (NEC+24C16)
- Solaris 2010+, 2013+ (NEC+24C16)
- SsangYong Action/Korando Sport (NEC+24C16)
- SsangYong Tivoli (NEC70F35xx)
- Stinger (NEC70F35xx) 2018+
- Sportage (NEC70F35xx) 2014+, 2016+
- Ceed (NEC70F35xx) 2015+
- Optima (K5) (NEC70F35xx) 2014+
- Sorento (NEC70F35xx) 2015+
- Soul (NEC70F35xx) 2014+
- Mohave (NEC70F35xx) 2017+
- Rio (NEC70F35xx) 2017+
- Azera (NEC70F35xx) 2016+
- Genesis (NEC70F35xx) 2014+
- Genesis G70 (NEC70F35xx)
- I20 (NEC70F35xx) 2014+
- Creta (NEC70F35xx)
- Tucson (NEC70F35xx) 2015+
- Solaris (NEC70F35xx) 2017+
- Sonata (NEC70F35xx) 2015+
- Veloster (NEC70F35xx) 2015+
The list is not complete, in theory all Kia/Hyundai panels on NEC+24C16 and NEC D70F35xx/R7F7014xx should be supported.
Script only for IprogPro programmer!!!
The script allows you to read/write mileage in YAZAKI panels of the Kia Sportage 2016+ car via CAN-bus. Automatic detection of the panel type (YAZAKI or VDO). The script supports work with the panel both "on the table" and via OBD2
The script works only with IprogPro!!!!
The package include 4 scripts:
1. Script Mitsubishi Outlander NEC70F342x+93C76 OBD2 allows to read/write mileage in Mitsubishi Outlander III 2012-, Pajero Sport IV , Triton/L200 2016-, Fiat Fullback 2016- dashboards via CAN-bus. Support Colour and Monochrome display type of dashboards. The script supports working with dashboard "on the bench", and through OBDII.
The list of the supported dashboards:
- Mitsubishi Outlander III monochrome display dashboard with NEC UPD70F3421 + 93C76 OBD2.
- Mitsubishi Outlander III colour display dashboard with NEC UPD70F3425 + 93C76 OBD2.
- Mitsubishi Pajero Sport IV colour display dashboard with NEC UPD70F3425 + 93C76 OBD2.
- Mitsubishi Triton/L200 monochrome display dashboard with NEC UPD70F3421 + 93C76 OBD2.
- Fiat Fullback monochrome display dashboard with NEC UPD70F3421 + 93C76 OBD2.
Video of script work
2. Script ASX/Lancer X/Outlander MB91F223+93C76(86) OBD2 allows to read/write mileage in Mitsubishi ASX/Lancer X/Outlander, Citroen C-Crosser, Peugeot 4007 dashboards via CAN-bus. Support Nippon Seiki (NS) dashboard with colour display and MB91F223+93C76(86) Video of the script working
3. Script ASX NEC70F352x OBD2 allows to read/write EEPROM, calculate mileage in Mitsubishi ASX 2014+ dashboards via CAN-bus. Support Continental eepromless dashboards with NEC70F3529 and NEC70F3523 MCU's.
4. Script Eclipse NEC70F352x OBD2 allows to read/write EEPROM, calculate mileage in Mitsubishi Eclipse 2017+ dashboards via CAN-bus. Support Continental eepromless dashboards with NEC70F3529 MCU.
5. Script Eclipse R7F701404 OBD2 allows to read/write EEPROM, calculate mileage in Mitsubishi Eclipse 2019+ dashboards via CAN-bus. Support Continental eepromless dashboards with Renesas R7F701404 MCU.
Script only for IprogPro programmer!!!
Script for mileage correction in Dacia Logan2/Duster2 dashboards made on MB96F6A6 or MB96F385+95160.
The script supports mileage reading/writing, FLASH reading/writing. The processor type is determined automatically. When you press the Write KM button, the script checks whether the panel patch has already been used and if not, it offers to patch the panel to change the mileage. Also, the script has the Patch FLASH function (patch the FLASH panel to unbind from ABS). In order to patch the panel, you must first read FLASH (Read FLASH) or open the original FLASH file (Open FLASH), press the Patch FLASH button and then write FLASH (Write FLASH).
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car.
Script only for IprogPro programmer!!!
Script for mileage correction in Visteon instrument clusters of Renault KWID cars made on the Spansion MB96F119RB microcontroller.
The script supports mileage reading/writing, FLASH reading/writing. When you press the Write KM button, the script checks whether the panel patch has already been used and if not, it offers to patch the panel to change the mileage. Also, the script has the Patch FLASH function (panel FLASH patch for unbinding from ECU/ABS). In order to patch the panel, you must first read FLASH (Read FLASH) or open the original FLASH file (Open FLASH), press the Patch FLASH button and then write FLASH (Write FLASH).
The script works via the OBD2 (CAN-BUS) diagnostic connector of the car.
Video of the script in action
Script only for IprogPro programmer!!!
The script allows you to disable the immobilizer in the ECU of Nissan/Infinity cars manufactured in 2001-2010. Supported ECUs are Hitachi GEN1 K-line/CAN based on SH705x microcontrollers (SH705415N, SH705507N, SH705513N, SH705519N, SH705520N, SH705524N, SH705529N, SH705821N, SH705823N, SH705826N). The script works with Flash dumps read via OBD2, JTAG, AUD.
Script only for IprogPro programmer!!!
The script allows reading data (identification, hours, errors), reading/writing the processor EEPROM area (automatic detection of EEPROM size when reading) and saving it in .bin format, built-in calculator of operating hours, number of starts, etc., erasing errors.
Script only for IprogPro programmer!!!
Script for mileage correction in Hyundai Kona 2018+ dashboards made on Spansion S6J300BKSE or S6J32BAKSE microcontrollers. The script supports mileage reading/writing. The script works via the OBD2 (CAN-BUS) diagnostic connector of the car.
Script only for IprogPro programmer!!!
Script for mileage correction in Kia Cerato, Cadenza, Carens, Carnival, Sedona, Quoris dashboards made on Fujitsu MB90F025 or MB90F037 microcontrollers and external EEPROM 93C66. The script supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car.
List of supported cars:
Equus (Centennial) 2013-2015 Full TFT LCD (mb91F037+93C66)
Cadenza 2013-2016 7in TFT LCD (mb91F037+93C66)
Carens 2012-2016 SuperVision TFT LCD (mb91F037+93C66)
Carens 2012-2016 Small LCD (mb90F026+93C66)
Carnival (Sedona) 2014+ Small segment LCD (mb91F047+93C66)
Cerato (K3, Forte) 2012-2016 Segment LCD (mb90F025+93C66)
Cerato (K3, Forte) 2012-2017 SuperVision Monochrome (mb91F037+93C66)
Cerato (K3, Forte) 2012-2017 SuperVision TFT LCD (mb91F037+93C66)
Quoris 2012-2014 SuperVision Full TFT LCD (mb91F037+93C66)
Quoris 2012-2014 SuperVision TFT LCD (mb91F037+93C66)
Quoris 2015-2017 SuperVision Full TFT LCD (mb91F037+93C66)
Script for working with CEM module of cars:
- LandRover Discovery 3, LR3 (2004-2010)
- RangeRover Sport (2005-2010)
Attention!! The script is only for the IprogPro programmer!!!
In these cars, the CEM module contains a PIC18F6620 microcontroller that is closed from reading. The script allows you to read/write the EEPROM of the microcontroller for subsequent addition of a transponder, or modification of the EEPROM contents. At the moment, the script supports reading/writing EEPROM, outputting transponder IDs to the table, and generating transponders on CN3.
Attention!! Script only for IprogPro programmer!!!
Package of scripts for working with Renesas V850E2/Dx,Fx,Sx and V850E2/Fx-L processors
The scripts support reading/writing/erasing CodeFlash, DataFlash of Renesas V850E2 microcontrollers via Single-wire UART. The scripts automatically determine the microcontroller name and the volume of CodeFlash and DataFlash.
Video of the script in action
List of supported microcontrollers: 70F3505, 70F3506, 70F3507, 70F3508, 70F3509, 70F3522, 70F3523, 70F3524, 70F3525, 70F3526, 70F3529, 70F3532, 70F3535, 70F3536, 70F3537, 70F3548, 70F3549, 70F3550, 70F3551, 70F3552, 70F3553, 70F3554, 70F3555, 70F3556, 70F3557, 70F3558, 70F3561, 70F3564, 70F3570, 70F3571, 70F3572, 70F3573, 70F3574, 70F3575, 70F3576, 70F3577, 70F3578, 70F3579, 70F3580, 70F3582, 70F3583, 70F3584, 70F3585, 70F4000, 70F4001, 70F4002, 70F4003, 70F4004, 70F4005, 70F4006, 70F4007, 70F4008, 70F4009, 70F4010, 70F4013, 70F4014, 70F4015, 70F4016, 70F4017, 70F4018, 70F4019
Attention!! Script only for IprogPro programmer!!!
Script for working with Dacia Duster2/Logan2/Sandero2, Renault Arkana RH850 (R7F701400) OBD2(CAN-BUS) instrument clusters.
ABS SUPPORT ADDED VIA OBD2!!!
Script for mileage correction in Dacia Duster2/Logan2/Sandero2, Renault Arkana instrument clusters made on Renesas RH850 (R7F701400). Script supports reading/writing EEPROM and mileage, reading FLASH. Script works via OBD2 (CAN-BUS) diagnostic connector of the car or on the table (connection is available in the pdf help file).
Video of the script in action
Script for changing the panel settings (coding) Subaru Impreza/XV/Crosstrek 2017 via OBD2 (CAN-BUS). The script is relevant for swappers, as well as if any unit is damaged and its replacement is not financially profitable (or there was a replacement for a cheap option, such as adaptive headlights for simple headlights).
Activate / Deactivate EyeSight, Auto Start & Stop, SI-X, SI-DriveDMS, LED Headlights, TMPS and other settings. In the future, it is planned to add scripts for other models and years.
Video of the script working
Added: script for changing the configuration of the dashboards SubarLegasy/Outback 2015 Dashboard Coding OBD2(CAN-BUS).
Attention!! Scripts only for the IprogPro programmer!!!
A script for mileage correction in the NS instrument panels of Suzuki SX4, Baleno cars made on the Fujitsu MB91F577BHS microcontroller and external EEPROM 93C86 (MSOP8). The script was created for the convenience of working with these panels. In these panels, not only is the EEPROM in the MSOP8 case and it is located on the arrow side, but there are also arrows a la Mazda, which are not everyone's favorite, which are better not to approach without a special arrow puller.
1. The script supports reading/writing EEPROM, has a built-in mileage calculator. Work with the panel is carried out through dots on the back side of the printed circuit board.
2. Also added a script for mileage correction in NS instrument panels of Suzuki SX4, Baleno cars made on Fujitsu MB91F579CHS microcontroller and external EEPROM 93C86 (MSOP8)
Attention!! Scripts only for the IprogPro programmer!!!
Scripts for mileage correction in the NS instrument clusters of Suzuki Vitara/Ignis/XL7 cars made on Fujitsu MB91F579CHS or MB91F577BHS microcontrollers and external EEPROM 25C320 (TSOP8). The script was created for the convenience of working with these panels.
There is NO in-circuit access to EEPROM in the Suzuki Vitara panel, i.e. to read/write EEPROM, you need to remove 4 arrows, and they are usually Mazda ones, and with large arrows, the arrow remover is useless due to the arrow design. Because of this, a script was created that works with EEPROM through the MB91F579 processor.
In Suzuki Ignis EEPROM is under the back cover, the script is made to avoid the hassle of pogopins or soldering, work with EEPROM is carried out through the MB91F577 processor. The script supports reading/writing EEPROM, has a built-in mileage calculator. Work with the panel is carried out through dots on the back side of the printed circuit board.
Script only for IprogPro programmer!!!
The script allows you to read/write mileage in Suzuki SX4, Vitara (NEC70F3425+93c86) panels via OBD2 (CAN-bus).
Supported firmware versions:
- 34100-54PA
- 34100-61MA
- 34100-65MA
- 34100-67MA (added 09/22/2024)
- 34100-84RA
Video of script working
Script for mileage correction in BOSCH instrument panels of Chery Tiggo 5 and Chery Tiggo 7 cars made on Fujitsu MB91F594BS microcontroller. The script supports reading/writing WorkFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
DO NOT TRY to work with this panel with programmers such as UPA, VVDIPROG - you will get problems with resetting the mileage.
Script for working with car dashboards:
- SsangYong Rexton 2018- R7F701412 OBD2 (CAN-BUS)
- SsangYong Korando 2018- R7F701412 OBD2 (CAN-BUS)
- SsangYong Korando 2019- R7F701404 OBD2 (CAN-BUS)
- Mahindra Alturas 2018- R7F701412 OBD2 (CAN-BUS)
Script for mileage correction in Continental dashboards of SsangYong Rexton/Korando cars made on the Renesas R7F701412 microcontroller. The script supports reading/writing the EEPROM of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through the OBD2 diagnostic connector (CAN-BUS).
DO NOT try to work with R7F7014xx processors via UART programmers - you will get a dead panel.
The package contains 2 scripts: Mazda_Universal_OBD2 and Mazda_6_Hitachi_93C66_OBD2.
The first script is universal, supports panels made on Fujitsu microcontrollers with external EEPROM 93C56/66/76. The second script is designed for Mazda 6 instrument panels 2007-2012 made on Hitachi microcontroller with external EEPROM 93C66. The scripts support reading/writing EEPROM, have a built-in mileage calculator. Work with the panel is carried out through the OBD2 diagnostic connector (CAN-BUS) or on the table. Information for connecting on the table is available in the help file.
List of supported cars:
Mazda 2 (Demio) 93C66
Mazda 3 2005-08 (93С56)
Mazda 3 2009-13 (93С66)
Mazda 3 2014+ (93C76)
Mazda 6 2002-2006 (93C56)
Mazda 6, CX5 2013+ MB91Fxxx+93c76
Mazda 6, CX5 2013+ MB90Fxxx+93c76
Mazda CX-7 2007 (93C56)
Mazda CX-7 2009-2012 (93C66)
Mazda CX-9 2007-2009 (93C56)
Mazda Biante 2009 (93C56)
Mazda Premacy 2010 (93C56)
Mazda Premacy 2012 (93C66)
Mazda Tribute 2004 (93C56)
Ford Escape 2006-2008 (93C56)
Nissan Lafesta 2011 (93C66)
Mazda 6 2019+ Big Display (93c76)
Mazda 6 2007-2012 (93C66)
Script for mileage correction in Chevrolet Captiva dashboards made on Motorola/Freescale 9S12HZ128. The script supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (GMLAN) diagnostic connector of the car or on the table (the connection is in the pdf help file).
The script works ONLY with the adapter since it uses GMLAN, which is not available in other adapters!!!
Video of the script in action
Script for mileage correction in Chevrolet Captiva dashboards made on Fujitsu MB90F394 and external EEPROM 93C86. The script supports mileage recording. The script works through the OBD2 (GMLAN) diagnostic connector of the car or on the table (the connection is in the pdf help file).
The script works ONLY with the adapter from @_UnderTakeR_ since it uses GMLAN, which is not available in other adapters!!!
Video of the script in action
Script for working with Ford Visteon/Sony 6000CD 2011+ radios made on the NEC70F3357 microcontroller and EEPROM 24C16. The script supports reading/writing EEPROM, reading/changing the radio code, restoring from the "LOCKED" status (resetting input attempts).
The script is only for IprogPro!!!
Video of the script in action
Script for working with Ford Visteon/Sony 6000CD/6CD radios based on TMS470R1VF48BPGEA/TMS470R1VF288PZA/TMS470AVF688APZA microcontrollers and 24C16 EEPROM. The script supports reading/writing EEPROM, reading/changing/disabling the radio code, restoring from the "LOCKED" status (resetting entry attempts).
The script is only for IprogPro!!!
Video of script 1
Video of script 2
Video of script 3
Script for working with ABS/ESC/CDC/ESP units manufactured by ATE of Renault cars. The script automatically determines the size of the EEPROM (95160,95320,95640), supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench (connections are available in the pdf help file).
The list of models on which ATE units were installed:
- Renault Megane IV, Talisman, Trafic III, Scenic IV
- Renault Latitude, Fluence, Scala, Scenic III, Laguna III, Megane III
- Dacia Duster, Dokker, Sandero II
Video of the script in action
The Fiat OBD2 package includes scripts:
1) Fiat Doblo/Ducato/Albea -2011 MagnetiMarelli NEC+95040 OBD2(CAN-BUS)
2) Fiat Ducato/Citroen Jumper/Peugeot Boxer 2011- MagnetiMarelli NEC+95160 OBD2(CAN-BUS)
3) Fiat 500 (NEC70F3422+95160) OBD2(CAN-BUS). Video of the script in action
4) Fiat 500L 2017- Continental (NEC70F3532) OBD2(CAN-BUS). Video of the script in action
5) Fiat 500X 2015- (NEC70F3529+24С32) OBD2(CAN-BUS). Video of the script in action
6) Fiat Panda 2012- (95160) OBD2(CAN-BUS).
A script package for working with Jeep Cherokee, Grand Cherokee, Renegade OBD2(CAN-BUS) instrument panels.There are 5 scripts in the package:
1. Jeep_Cherokee_2014_(NEC70F3525)_OBD2 Video of the script in action
2. Jeep_Cherokee_2019_(R7F701414)_OBD2 Video of the script in action
3. Jeep_Grand_Cherokee_2015_(70F3524_93C86)_OBD2 Video of the script in action
4. Jeep_Renegade_2015_(NEC70F3525_95320)_OBD2 Video of the script in action
5. Jeep_Grand_Cherokee_2019_(70F3524_93C86)_OBD2 (added 06/22/2023)
6. Jeep_Wrangler_2021_(R7F701422_95320)_OBD2 (added 01/15/2024) Video of the script in action
7. Dodge_Challenger_2021_(R7F701411)_OBD2 (added 01/15/2024) Video of the script in action
8. Dodge_RAM_2019_(R7F701401)_OBD2 (added 02.02.2024) Video of the script in action
9. Dodge_Charger_2017_(NEC70F3525)_OBD2 (added 07.10.2024)
Script for working with dashboards of Nissan Qashqai/X-trail/Rogue cars 9S12XHZ256 OBD2 (CAN-BUS).
Script for mileage correction in dashboards of Nissan Qashqai/X-trail/Rogue 2010+ cars made on Motorola/Freescale 9S12XHZ256. The script supports reading/writing EEPROM, has a built-in mileage calculator. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is available in the pdf help file).
Video of the script in action
This script allows you to adjust the mileage on Honda Accord 2018+ cars with instrument panels made on Spansion S6J3001LSJ microcontrollers without external EEPROM.
The script has a recovery function if for some reason the panel has stopped responding.
A lot of work was done when creating the script, because the panels have a large number of TCFlash varieties. At the moment, the script contains 16 TCFlash files for S6J3001LSJ that are downloaded from the server as needed. The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is in the pdf help file).
Video of the script in action
Script for mileage correction in Continental Haval H6 Coupe dashboards made on the Renesas 70F3529 microcontroller. The script supports reading/writing the microcontroller's EEPROM and has a built-in mileage calculator. The script works via the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is available in the pdf help file).
Video of the script in action
Script package for working with Renault Megane4/Kadjar/Talisman/EspaceV/Koleos (NEC70F3525/NEC70F3532) OBD2(CAN-BUS) instrument clusters
There are 3 scripts in the package:
1. Renault_Talisman_Continental_(NEC70F3525)_OBD2, a script for working with Continental panels made on the NEC70F3525 microcontroller (monochrome display). The script supports reading/writing EEPROM, has a built-in mileage calculator. The script changes the mileage only in the panel, in ABS the mileage must be done.
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench. Video of the script in action
2. Renault_Talisman_Continental_(NEC70F3532)_OBD2, a script for working with Continental panels made on the NEC70F3532 microcontroller (color display). The script supports reading/writing EEPROM, has a built-in mileage calculator. The script changes the mileage only in the panel, in ABS the mileage must be done.
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the bench. Video of the script in action
3. Renault_Talisman_Visteon_(NEC70F3532)_OBD2, a script for working with Visteon/JCI panels made on the NEC70F3532 microcontroller (color display). The script supports reading/writing mileage. The script changes the mileage only in the panel, in ABS the mileage must be done.
The script works through the OBD2 diagnostic connector (CAN-BUS) of the car or on the bench.
Panel appearance:
1) LED scales
2) arrow scales
Script package for working with instrument panels KDBA 402928.001 (PIC16F884) + KD8083 (PIC16F886/876A) + TESM-2YA (PIC16F630)
1) KDBA 402928.001 (PIC16F884)
2) KD8083 (PIC16F886/876A)
3) TESM-2YA (PIC16F630)
1) KDBA 402928.001 (PIC16F884) RIKOR. First, there will be a background story of the creation of this script. About 2 years ago, having decided to save time, I tried to make this panel using an Iprog+ script. Since IprogPro programmer was used, and the script was for Iprog+, then something went wrong and the script crashed the CODE Flash of the microcontroller. Having barely found the same panel, I replaced it for the client (the old-fashioned way, correcting the pickit + knobs) and thought that I should make a script for myself so that such jambs do not happen anymore, and it is much more convenient to work. The script supports reading / writing EEPROM PIC16F884, has a built-in mileage calculator. The script also has a function for restoring the firmware of the PIC16F884 in case of damage to the firmware by other devices or scripts.
Video of the script in action
2) KD8083 (PIC16F886 / 876A). The script was created for ease of use. Tired of reading with a pickit, then counting with your hands. The script supports reading/writing EEPROM PIC16F886/PIC16F876A, has a built-in engine hours calculator. The script also has a function for restoring the PIC16F886 firmware in case of firmware damage by other devices or scripts.
Both scripts work via the ICSP (In-Circuit Serial Programming) connector on the panel board (the connection is in the pdf help file).
CODE Flash in these instrument panels is CLOSED from reading.
Script for mileage correction in Continental dashboards of Haval F7/F7x/Jolion and GreatWall Poer cars made on the Renesas R7F701404 microcontroller.
The script supports reading/writing the microcontroller's EEPROM, has a built-in mileage calculator.
The script works through the OBD2 (CAN-BUS) diagnostic connector of the car or on the table (the connection is available in the pdf help file).
Video of the script in action
Script for mileage correction in Continental dashboards of GreatWall / Haval H9 cars made on the NEC70F3532 microcontroller. The script supports reading / writing the EEPROM of the microcontroller, has a built-in mileage calculator. The script works through the OBD2 diagnostic connector (CAN-BUS) of the car or on the table (the connection is in the pdf help file).
Video of the script in action
Script for mileage correction in BOSCH instrument panels of BRP (Bombardier) equipment manufactured in 2019-2021, made on the Renesas/NEC 70F3554M1 microcontroller.
The script supports reading/writing the microcontroller's DataFlash and has a built-in mileage calculator.
I'll tell you a little about these panels. They are interesting because it is very problematic to disassemble them. The plastic speedometer housing consists of 2 parts glued together. Opening the instrument panel along this seam, we get chips and dents along the seam, and you can also damage the display cable located next to the case seam. Well, no less interesting is the mileage recalculation itself in the dump covered with checksums. Actually, this is why this script was created to make it easier to work with these instrument panels. To work with the script, a small technological hole is cut in the back cover of the case and several wires are soldered to the board. The connection is in the pdf help file. The calculation of the new mileage works ONLY with the instrument panel connected to the programmer.
Video of the script in action
Script for mileage correction in BOSCH instrument panels of Chery Tiggo 7/8 Pro cars made on the Spansion S6J328CKSP microcontroller. The script supports reading/writing WorkFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Calculation of the new mileage works ONLY with the instrument panel connected to the programmer.
Script for mileage correction in dashboards of 2021 Kia Rio cars from Continental made on the Renesas (NEC) 70F3524 microcontroller.
I'll tell you a little about these panels. In principle, these dashboards are no different from the panels of previous years, except that the manufacturer has disabled EEPROM recording if the mileage is more than 100 km. That is, if the mileage on the display is from 0 to 100 km, then EEPROM recording works, if more than 100 km, the panel responds with an error that such a command (EEPROM recording) is not supported.
This script allows you to bypass this problem. The script works completely via OBD2. It may also support other 2021 Kia / Hyundai models with NEC70F3524.
Video of the script in action
Script for mileage correction in Mitsubishi Pajero dashboards made on the Spansion S6J329CLSP microcontroller. The script supports reading/writing WorkFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Calculation of the new mileage works ONLY with the dashboard connected to the programmer. Attention!! The script is only for the IprogPro programmer!!!
The kit includes three scripts for mileage correction in the dashboards of Kia K5/Stonic/Rio 2021 cars from Continental, made on the R7F701418 microcontroller, and Kia K5/Palisade Full LCD 2021 from Continental, made on the R7F701414 microcontroller.
1. Kia K5/Stonic/Rio 2021 (R7F701418) Continental OBD2
2. Kia K5/Palisade Full LCD 2021 (R7F701414) Continental OBD2
3. Kia_Stinger_2021_(R7F701411)_Continental_OBD2
In general, these dashboards are no different from the previous years' dashboards, except that the manufacturer has disabled EEPROM recording if the mileage is more than 100 km. That is, if the mileage on the display is from 0 to 100 km, then EEPROM recording works, if more than 100 km, then the panel responds with an error that such a command (EEPROM recording) is not supported.
This script allows you to bypass this problem. The script works with a connection to the internal CAN bus of the car (bypassing the Gateway) or on the table. It may also support other 2021 Kia / Hyundai models with R7F701418 / R7F701414.
Video of the script in action
Script for mileage correction in the dashboards of Chevrolet Captiva cars (Baojun 530, Wuling Almaz, MG Hector) 2020 model year made on the Spansion S6J324CKSP microcontroller. The script supports reading / writing WorkFlash of the microcontroller, reading TCFlash, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Calculation of the new mileage works ONLY with the dashboard connected to the programmer.
Script for mileage correction in DKNR instrument clusters of Kia/Hyundai 2021 cars made on Renesas R7F7014xx microcontrollers. The script supports reading/writing DataFlash of the microcontroller, has a built-in mileage calculator.
The mileage calculation is accurate to a hundred kilometers, i.e. if you see 26156 km on the display, the calculator will determine the mileage of 26100 km. Accordingly, if you enter 100 km, then the panel display will show a mileage equal to 100 km + the remainder of dividing the old mileage by 100 (26156/100 remainder 56 km) = 156 km. When entering a new mileage of 0, you will get a mileage of 56 km. Of course, this has its own downside, that you cannot accurately set the desired mileage (although usually, few customers need exact numbers). But there is also a plus, that you don’t need to first reset the mileage to 0 via UART and then set the desired mileage via diagnostics as is done in other devices.
List of supported car models:
Kia Cerato 2021+ (R7F701401)
Kia Ceed 2021+ (R7F701401)
Kia Carnival 2021+ (R7F701421)
Hyundai Alcazar 2021+ Full LCD (R7F701421)
Hyundai Staria 2021+ Full LCD (R7F701421)
Hyundai Kona 2021+ Full LCD (R7F701401)
Hyundai Tucson 2021+ (R7F701421)
Hyundai Tucson 2021+ Full LCD (R7F701421)
Attention!! Script only for IprogPro programmer!!!
The set includes two scripts for mileage correction in the dashboards of Toyota Avanza 2022 by Continental, made on the R7F701442 microcontroller, and Toyota Raize 2021 by Continental, made on the R7F701417 microcontroller.
Perdoua Myvi with R7F701417
Toyota Yaris Cross 2025 R7F701442
The scripts support reading/writing the EEPROM memory of the microcontroller, have a built-in mileage calculator.
The kit includes two scripts for mileage correction:
1. Smart W453/Renault Twingo 3 with a panel based on the MB96F696RB processor and a monochrome display
2. Smart W453/Renault Twingo 3 with a panel based on the NEC70F3536 processor and a TFT display.
In general, there is practically nothing to say about these cars. Smart W453 is nothing more than Renault Twingo3 in terms of its internals, so the mileage on these cars is in the instrument cluster and ABS. The scripts correct the mileage in the panel and in ABS via the OBD2 connector. In case of any error, the panel can be restored by backing up the read firmware via the Write Flash button (in the case of the MB96F696RB panel) or the Recovery button (in the case of the NEC70F3536 panel).
Videos of scripts in action:
1. https://www.youtube.com/watch?v=sBV1dWs5N7U
2. https://www.youtube.com/watch?v=QopQdgYLEXU
The kit includes two scripts for mileage correction:
1. Jaguar XF with Visteon panel made on MAC7116+24C64
2. Jaguar XF 2016- with NipponSeiki panel made on 70F3525+93C86
The scripts correct the mileage in the panel via the OBD2 connector. Other Jaguar models with identical panels are probably supported (not verified).
Videos of the scripts in action:
1. https://youtu.be/Da8p8UzyAHY
2. https://youtu.be/EGd6sD0oExw
Script for mileage correction in BOSCH instrument panels of BRP (Bombardier) equipment manufactured in 2019-2021, implemented on the Renesas/NEC 70F3554M1 microcontroller.
The mileage in the panel is changed in 4 steps: 1) reading encodings, 2) writing patched firmware to reset the panel, 3) writing the original firmware, 4) writing mileage and restoring the panel encoding.
Unlike devices such as DP4 or Smok, the script does not spoil the panel data and there is no need to use BUDS2 to restore and bind the panel, since the script pre-reads the necessary encodings and saves them to a file, and after work restores this data. The script works via an OBD2 adapter with a CAN-BUS connection to the instrument panel connector. The connection is available in the pdf help file.
ATTENTION!!! The script does not support all firmware versions, some are not in its database, so if the firmware is unknown to the script, it will need to be read by FLUR0RTX and sent to me to add to the script.
Video of the script in action
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Chevrolet Captiva dashboards (Baojun 530, Wuling Almaz, MG Hector) 2020 model year made on the Spansion S6J324CKSP microcontroller. The script supports reading / writing EEPROM emulation, has a built-in mileage calculator. The script works via an OBD2 adapter (CAN-BUS).
Video of the script in action
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Geely Tugella 2022 instrument clusters - made on Renesas R7F701401/R7F701402 microcontrollers. The script supports reading/writing DataFlash of the microcontroller, has a built-in mileage calculator. Work with the panel is carried out through points on the back side of the printed circuit board.
Attention!! Script only for IprogPro programmer!!!
Script is designed to read data from closed processors of the V850E2 family (70F3505, 70F306, 70F3507, 70F3508, 70F3509, 70F3522, 70F3523, 70F3524, 70F3525, 70F3526, 70F3529, 70F3532, 70F3554, etc.).
Automatic detection of processor, DataFlash and CodeFlash size. Reading/Writing DataFlash and CodeFlash. Erasing both DataFlash and CodeFlash separately, as well as erasing the entire chip. Reading/writing OPBT0 and OCD, setting protection bits.
The script has a specially developed algorithm for bypassing protection, faster, different from other programmers, which allows you to read the contents without errors. The script also reads REAL NATIVE OPBT0 and OCD bytes from closed processors. A special erasing procedure gives a small but chance to erase completely closed processors with the "Disable Chip Erase" protection bit set. The script works with the processor both in-circuit (with the FVDD pin of the processor raised), and on a ZIF adapter (sold separately, made to order).
Video of the script in action
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Bosch instrument panels of Chery Tiggo 7/8 Pro and XCITE XCross 7 cars made on the Spansion S6J328CKSP microcontroller.
In short... The script for this instrument panel has already been made by me, but via UART with soldering of wires. At the same time, I already knew that the panel has access to EEPROM via CAN-BUS, but.... Work on the script was carried out for a long time, and all because the manufacturer Bosch, although left reading / writing EEPROM, but prohibited writing to the mileage area. I had to make a script through a patch of the panel flash. The panel has more than one firmware version, so the script has a firmware database on my server, which will be replenished. At the moment, there are 10 firmware on the server. If you encounter an unknown version, you will need to read TCFlash and WorkFlash via UART and send it to me to add to the database.
The script needs internet to work, download the required FLASH!!!
The script supports reading/writing EEPROM emulation, writing FLASH, has a built-in mileage calculator. The script works via an OBD2 adapter (CAN-BUS).
Video of the script in action
Attention!! Script only for IprogPro programmer!!!
Script for mileage correction in Continental dashboards of Nissan Altima 2019 cars made on Renesas/NEC 70F3532 microcontroller.
The script supports reading/writing EEPROM emulation, reading FLASH, has a built-in mileage calculator. The script works via OBD2 adapter (CAN-BUS). Video of the script in action
Script for working with car dashboards: Great Wall Poer, Haval H5 New R7F701442 (OBD2)
Attention!! The script is only for the IprogPro programmer!!!
Script for mileage correction in the dashboards of Great Wall Poer, Haval H5 New cars made on the Renesas R7F701442 microcontroller. The script supports reading/writing mileage, reading DFLASH/FLASH. The script works via the OBD2 adapter (CAN-BUS). Video of the script
Script for working with steering angle sensors (SAS) of Tokai Rika Toyota/Lexus cars
Attention!! Script only for IprogPro programmer!!!
Script restores the functionality of blocked (twisted more than 3 turns) sensors of Tokai Rika Toyota/Lexus cars. Script works on CAN-bus, connecting directly to the sensor connector. Video of the script
Renesas R5F10PLJL, Renesas R5F2134, NEC+93C66
Sensors with R5F2154 ARE NOT SUPPORTED!!!!
Script only for IprogPro!!!
ATTENTION!!! Script only for professional use!!! This means that you must understand what you are doing and what result you want to get.
If you do not have a sufficient level, then please do not buy this script, so as not to ask me questions later on how to use it.
If you are used to "press the button - the mileage changes" then this script is not for you. It will not have colorful pictures of boards with connections and calculators, you must test the necessary points yourself and connect to them based on the help file with pinouts of processors.
In some cases, you will have to use an oscilloscope or logic analyzer to check the process and adjust the script.
If you are still not scared, and in anticipation of making new cars like MB, Toyota and others with closed processors, then please check the text below:
Now let's move from warnings to a description of the script itself.
1. The script allows you to read/write the DataFlash of the processor in 4-byte mode. As you already know, in many cases, when reading the RH850 and writing back the read
dump, the instrument cluster or other units stopped working normally. Now, with this mode, you can easily write what was previously impossible.
Of course, there are some RH850 families that do not support this mode, so for such processors, reading occurs at 16 bytes. ATTENTION!!! If the DataFlash is read in 16Bytes mode, then write it back at your own risk!!!
2. The script allows you to read both open and closed (Locked) processors. With open ones, I think everything is clear and there is no need to tell much. Read/erased/written.
With the locked ones, everything is much more complicated.
RH850 has several types of protection: No Security (no protection), ID Code protection (protection by 16-byte password), Command Protection Read/Write/Erase (protection from Reading/Writing/Erasing).
In addition, you can also set the Serial Programmer Disable protection.
The script allows you to bypass single protections Serial Programmer Disable and ID Code protection. That is, if you have both Serial Programmer Disable and ID Code protection enabled, then
you definitely need to know the ID Code.
In the case of single protection by ID Code (which you naturally do not know) the script allows reading, but writing and erasing will be unavailable without a known ID Code.
The script also determines the state of ICU-S (enable/disable). Some information about ICU-S can be read here
The script does not encrypt the read dumps, it saves them in normal form.
The adapter used to work with the script is almost identical to the adapter used with VAG scripts from @marchcat, raspberry is also used to form a glitch, but has a small modification for ease of use. The adapter diagram will be given to all participants.
Video of the script in action:
Reading/Writing in 4-byte mode
Reading/writing a processor with Serial Programmer Disable protection installed
Script only for IprogPro!!!
The script was created to reset (Renew) SRS units Haval Jolion 3658112XST01A with a closed (Locked) processor R7F701064. The processor in this unit has protection from reading and writing. With this script, you can make a new control unit that has already been linked and / or has data on a collision (Crash). Subsequently, the new unit can be linked again with diagnostic equipment.
That is, let's say a unit arrived to you that has a Crash and the errors in it are not erased. After applying the script (we disassemble the unit, solder to the points on the board, press Renew), we get a new unit without VIN with the EOL Unlock status.
The script works via UART, photos of the connection are in the help file.
Script for mileage correction in Kawasaki Ninja/Z900 2020 instrument clusters - made on Renesas R7F701442 microcontrollers.
The script supports reading/writing DataFlash of the microcontroller, has a built-in mileage calculator. The panel is operated via points on the back side of the printed circuit board.
Script for mileage correction in Great Wall Poer 2023 car dashboards made on Renesas R7F701428 microcontroller. The script supports mileage reading/writing, DFLASH/FLASH reading. The script works via OBD2 adapter (CAN-BUS).
Script for mileage correction in the dashboards of Jetour X70 Plus 2020-2024 cars made on the Spansion S6J328CKSP microcontroller. The script supports mileage recording.
The script works via a CAN-BUS adapter that must be connected directly to the panel connector. The script DOES NOT WORK via the OBD2 connector in the car!!!
The script is created to reset (Renew) SRS units Haval H6 3658110XKN02A with a closed (Locked) processor R7F701064. The processor in this unit has protection from reading and writing. With this script, you can make a new control unit that has already been linked and / or has data on the collision (Crash). Subsequently, the new unit can be linked again with diagnostic equipment.
The script works via UART, photos of the connection are in the help file.
Script for mileage correction in Continental instrument clusters of Ford cars made on UNPROTECTED Renesas R7F701402, R7F701403, R7F701405 microcontrollers.
The script supports reading/writing mileage, reading/writing EEPROM (CAN-BUS), as well as FLASH patching and FLASH recovery from a previously read backup (UART). In these instrument clusters, writing to some EEPROM cells is blocked. To unlock EEPROM writing, a FLASH patch via UART is required. After the patch, EEPROM writing is unlocked and, accordingly, mileage writing too.
The script works via the OBD2 adapter (CAN-BUS). Approximate list of cars: Escape, Fiesta, Focus 4, Transit, Kuga, Ecosport.
Video of the script in action:
