Script for programming ATMEL APACEATIC65V71 power drivers for HONDA / MAZDA / VAG / Mercedes-Benz / FIAT / Citroёn / KIA / Hyundai vehicles! The adapter board is not included and is purchased separately.
This is a unique technical solution that is not available in other devices and programmers on the market
Applied in SRS units such as:
- 77960-SWA-G220-M4
- 77960-SWA-G214-M4
- GS1D-57K30 etc….
The script is for advanced users only.
MANY have encountered a problem when the unit stopped communicating after a crash or battery drain, or non-erasable errors appeared (U3000, B1000, errors that other auto electricians have encountered 53–82 and 51–42 are also possible). Usually this leads to replacing the APACEATIC65V71 power driver.
1) The script programs only New APACEATIC65V71 power drivers, since the OTP area is disposable.

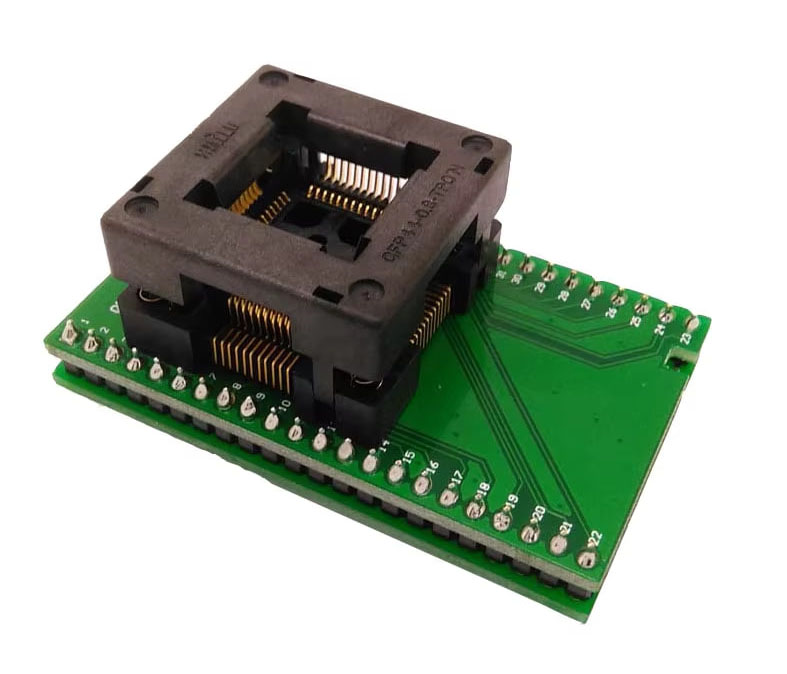

2) For the script to work, it is better to use a TQFP44 soldering socket with a pitch of 0.8 or a QFP44-0.8-TRON (TRO1N) socket. There is a photo of the connection in the script.
3) The script determines the driver status new or programmed, checks the correctness of the connection, reads the driver configuration to determine the programming mode and programs it, checking the programming status after.
