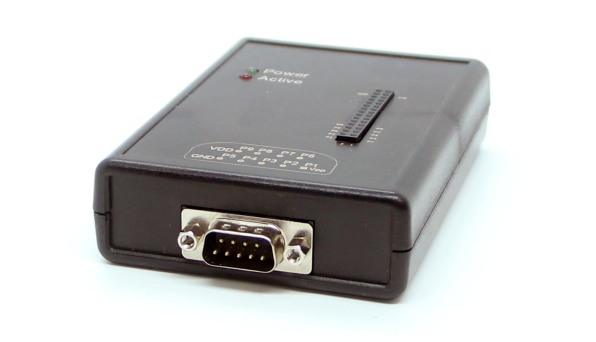

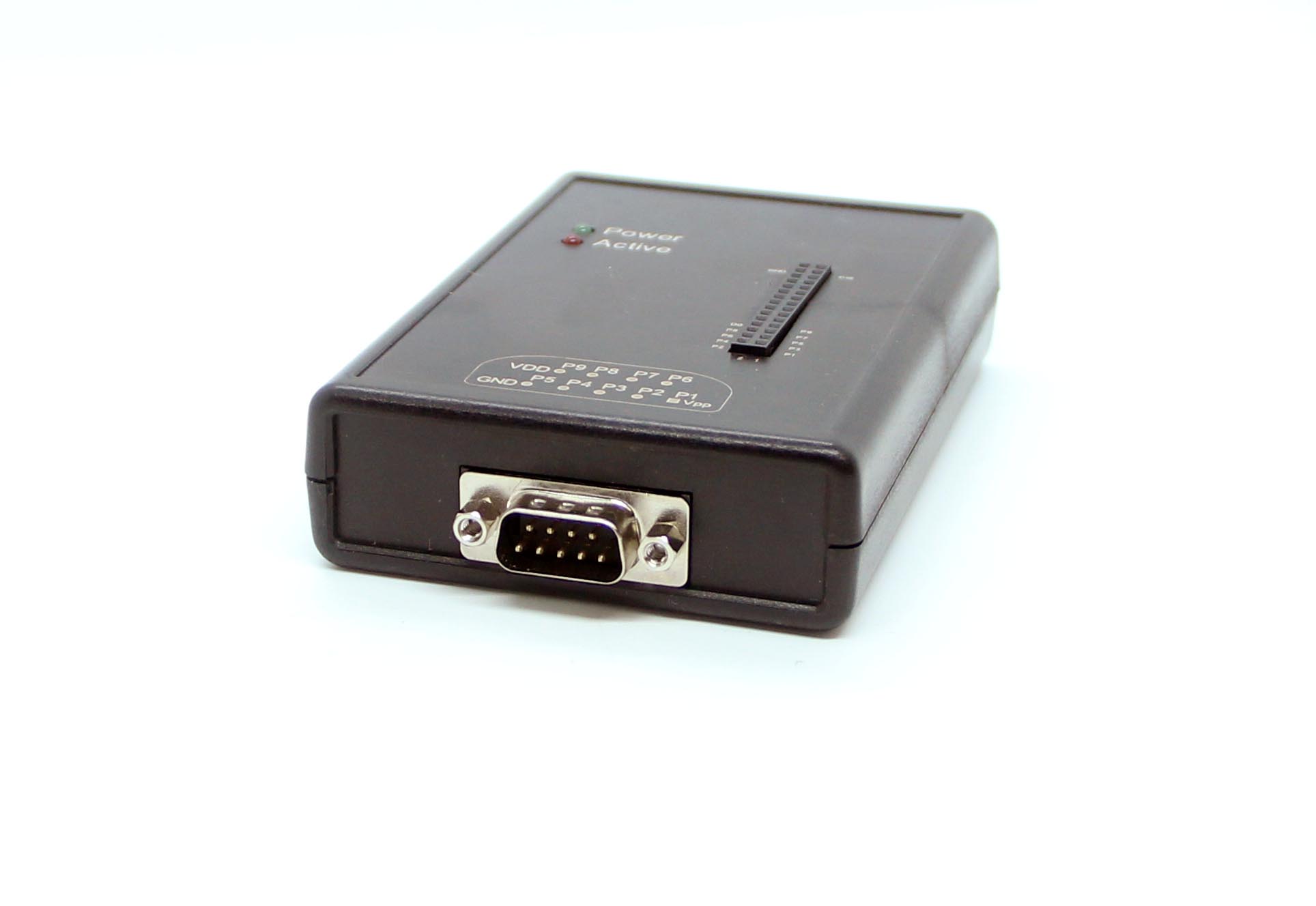

UPA-USB Serial Programmer-S (UUSP-S)

UPA-USB Serial Programmer-S (UUSP-S) is a programmer designed to work with odometers, immobilizers, airbags and other vehicle control units. In addition, the device is used for programming AVR processors and EEPROM memory chips from STMicroelectronics, Motorola, Atmel, NEC, including read-protected BDMs.

Main characteristics of UPA-USB Serial Programmer-S (UUSP-S):

• Compatible with USB 2.0 and USB 3.0;
• No additional power supply required;
• In-circuit connector, including 6 general purpose I/Os, with 40 mA overcurrent protection;
• 30-pin adapter connector;
• One 1.2-5V power supply output, software controlled, with overcurrent (300mA) and overvoltage protection;
• One 8-13V/1mA output with software control;
• Supports Motorola/Freescale HC12, HCS12, HCS12(X), HCS12(XE);
• Supports Renesas/NEC RH850, RL78;
• Supports Cypress/Fujitsu MB90, MB91, MB96;
• Supports EEPROM 24x, 25x, 93x, M35080 and others;
• Supports low voltage devices up to 1.2V;
• Can be used with TMS and BDM Lockout Disable adapters;
• Small dimensions 5.5×11.5cm.

The following types of chips are supported:

Fujitsu: MB90F351, MB90F352, MB90F357, MB90F543, MB90F546, MB90F548, MB90F549, MB90F897, MB91F058, MB91F060, MB91F061, MB91F062, MB91F067, MB91F223, MB91F224, MB91F463C, MB91F464, MB91F465, MB91F467B, MB91F467C, MB91F467D, MB91F467S, MB91F522, MB91F523, MB91F524, MB91F525, MB91F526, MB91F575, MB91F577, MB91F578, MB91F579, MB91F591, MB91F592, MB91F594, MB91F596, MB91F597, MB91F599, 8H, MB96F385, MB96F386, MB96F387, MB96F673, MB96F675, MB96F683, MB96F685, MB96F693, MB96F695, MB96F696, MB96F6A5, MB96F6A6

Renesas V850: UPD70F3237, UPD70F3276, UPD70F33333, UPD70F3334, UPD70F3335, UPD70F3336, UPD70F3340, UPD70F3341, UPD70F3342, UPD70F3343, UPD70F 3344, UPD70F3345, UPD70F3346, UPD70F3347, UPD70F3348, UPD70F3350, UPD70F3351, UPD70F3352, UPD70F3353, UPD70F3354, UPD70F3355, UPD70F3556 UPD70F3357, UPD70F3358, uPD70F3364, uPD70F3365, uPD70F3366, uPD70F3367, uPD70F3368, uPD70F3370A, uPD70F3371, uPD70F3372, uPD70F3373, uPD70F3374, uPD70F3375, , uPD70F3377A, uPD70F3378, uPD70F3379, uPD70F3380, uPD70F3381, uPD70F3382, uPD70F3383, uPD70F3384, uPD70F3385, uPD70F3421, uPD70F3422, uPD 70F3424, uPD70F3425, uPD70F3426A, uPD70F3427, uPD70F3464, uPD70F3465, uPD70F3466, uPD70F3469, uPD70F3470, uPD70F3471, uPD70F3472, uPD70F3505A, uPD70F3506, uPD70F3507, uPD70F3508, uPD70F3509, uPD70F3522, uPD70F3523, uPD70F3524, uPD70F3525, uPD70F3526, uPD70F3529, uPD70F3532, uPD70F3535, uPD70F3536, 0F3537, uPD70F3548, uPD70F3549, uPD70F3550, uPD70F3551, uPD70F3552, uPD70F3553, uPD70F3554, uPD70F3555, uPD70F3556, uPD70F3557, uPD70F3558, uPD70F3559, PD70F3560, uPD70F3561, uPD70F3564, uPD70F3570, uPD70F3571, uPD70F3572, uPD70F3573, uPD70F3574, uPD70F3575, uPD70F3576, uPD70F3577, uPD70F3578, 3579, uPD70F3580, uPD70F3582, uPD70F3583, uPD70F3584, uPD70F3585, uPD70F3592, uPD70F3623, uPD70F3624, uPD70F3625, uPD70F3626, uPD70F3627, uPD70F3628, PD70F3629, uPD70F3630, uPD70F3631, uPD70F3632, uPD70F3633, uPD70F3634, uPD70F3635, uPD70F3636, uPD70F3637, uPD70F3638, uPD70F3736, uPD70F4000, 4001, uPD70F4002, uPD70F4003, uPD70F4004, uPD70F4005, uPD70F4006, uPD70F4007, uPD70F4008, uPD70F4009, uPD70F4010, uPD70F4011, uPD70F4012

Freescale HCS08: MC9S08DZ16, MC9S08DZ32, MC9S08DZ48, MC9S08DZ60, MC9S08AW16, MC9S08AW32, MC9S08AW48, MC9S08AW60, MC9S08GB60
Freescale MAC7200: MAC7241, MAC7242

Infineon XC2300: XC2060N-40 ° F, XC2060M-104 ° F, XC2336B-24 ° F, XC2336B-40 ° F, XC2361A-56 ° F, XC2361A72F, XC2363A-56 ° F, XC2363A-72 ° F, XC2364 A-56 °F, XC2364A-72 °F, XC2364A-104 °F, XC2365A-56 °F, XC2365A-72 °F, XC2365A-104 °F, XC2361B-24 °F, XC2361B-40 °F, XC2363B-24 °F, XC2363B-40 °F, XC2364B-24 °F, XC2364B-40 °F, XC2365B-24 °F, C2365B-40 °F, XC2336A-56 °F, XC2336A-72 °F, XC2265N-16 °F, XC2265N -24 °F, XC2265N-40 °F

Freescale MPC5600: MPC5604C, MPC5604P, MPC5606B, MPC5601P, MPC5602P, MPC5603P, MPC5605B, MPC5607B

Freescale 9S12: MC9S12G48, MC9S12G64, MC9S12G96, MC9S12G128, MC9S12G192, MC9S12G240

STMicroelectronics SPC56P: SPC560P44, SPC560P50, SPC560P34, SPC560P40, SPC560P54, SPC560P60, SPC56AP54, SPC56AP60

STMicroelectronics ST62*: ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05×16, MC68HC05×32
Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A

Motorola/Freescale

9S12(X/E): MC9S12A128, MC9S12B128, MC9S12C128, MC9S12C16, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12D64, MC9S12DG128, MC9S12DG256, MC9S12DP512, MC9S12H128, MC9S12H256, MC9S12HA32, MC9S12HA48, MC9S12HA64, MC9S12HY32, MC9S12HY48, MC9S12HY64, MC9S12HZ128, MC9S12HZ256, MC9S12HZ64, MC9S12P128, MC9S12P32, MC9S12P64, MC9S12P96, MC9S12XA128, MC9S12XA256, MC9S12XA512, MC9S12XB128, MC9S12XB256, MC9S12XD128, MC9S12XD256, MC9S12XD64, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XDQ256, MC9S12XDT256, MC9S12XDT384, MC9S12XDT512, MC9S12XEG128, MC9S12XEP100, MC9S12XEP768, MC9S12XEQ384, MC9S12XEQ512, MC9S12XET256, MC9S12XHY128, MC9S12XHY256, MC9S12XHZ256, MC9S12XHZ384, MC9S12XHZ512, MC9S12XS64, MC9S12XS128, MC9S12XS256

Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253

Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535, ATmega48, ATmega88, ATmega168,ATmega169, ATmega328, ATMEGA32A
Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675

Microchip PIC16:

PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A), PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F87, PIC16F88, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937, PIC16F1938, PIC16F1939, PIC16F1946, PIC16F1947

EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06 °F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01, 24C1024, 24C1025

EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045, 25LC512, 25LC1024

EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A,S-29390A

Serial Flash SPI: M25P05, M25P10, M25P20, M25P40, M25P80, A25L512, A25L010, A25L020, A25L040, A25L080, A25L016, A25L032, SST25VF512A, SST25VF010A, SST25VF020B, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A, M95M01, M95M02

* EEPROM only
** D-Flash only
*** Read only

PC System Requirements:

• PC with Pentium processor
• Windows XP operating system/7/8/10 (32 or 64 bit)
• 1GB of RAM
• 100GB of hard disk space
• USB 2.0 or USB 3.0 connector
