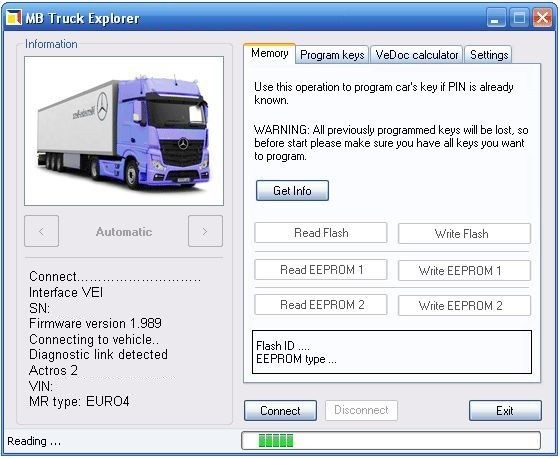

Truck Explorer Standard

Truck Explorer Standard kit consists of most popular functions for trucks. You could work by OBD or by direct connection to the ECU on the table over DirectConnect 2U tool.

Includes Licenses:

1. License MB MR

Function:
PLD (MR) external FLASH & EEPROMs Reading & Writing.
Checksum;
OBD or DirectConnect 2 connection.

Supported:
C167CS, XC2287, XC2288h

Important:
For additional firmware support needed License MR+: 22B; 23E; 24B, 23 °F; 24 °C; 25B, 26x, 30 °C
To unlock MCU XC2287 or XC2288h, License MR+ is needed.

2. License MB KEYS

Function:
Key programming on PLD (MR).
IMMO OFF on MR and FR/CPC

Connection:
OBD or DirectConnect2 connection.

Supported:
C167CS, XC2287, XC2288h

Important:

For additional file support License MR+ is needed: 22B; 23E; 24B, 23 °F; 24 °C; 25B, 26x, 30 °C
XC2287 and XC2288h must be unlocked before performing key operations.

3. License MB CALC

Functions:
Calculates codes for PLD (MR):

• VeDoc (algorithm X1, X2, X8).
• FDOK (XT, XN, XS) algorithms
• DAS password calculation

OBD or DirectConnect2 connection.

Important:
For additional firmware support needed License MR+: 22B; 23E; 24B, 23 °F; 24 °C; 25B, 26x, 30 °C

4. License MR+

MB MR; MB KEYS; MB CALC functionality with PLD MCU XC2287, XC2288H.

Supported ECUs:
1) Continental Euro5 MR: (MCU XC2287 (internal flash 768kB), EEPROM M95640)
2) Continental Euro5 MR2: (MCU XC2287 (internal flash 768kB), EEPROM M95640)
3) Continental Euro5 MR2: (MCU XC2288H (internal flash 1536kB), EEPROM M95640)

Supported Files:

MR: 22B; 23E; 24B, 23 °F; 24 °C; 25B,
MR2: 30 °C
MR2: 25 °C (from v6.16)
MR2: 31B (from v6.17)

5. License pack FR

   1. License FR

Function:
A program module for Reading & Writing FLASH & EEPROMs (C167 and ST10Fxx microprocessors) of drive control modules FR and CPC.

Connection:
Operations are available via OBD connection or thru DirectConnect cable.

Supported:
FR; FR/CPC; CPC1EU; CPC2EU.

Years:
1998- 2021

If your FR/CPC could not be read in DC or OBD mode, you need to read flash and eeprom in BSL mode.

2. License FR BSL

Function:
FR1; FR2 (C167) External Flash (AM29Fx00) & EEPROM Read / Write in BSL mode.

Connection:

BSL mode
Functions available for FR (metal box) and FR (plastic box).
In BSL mode Flash and EEPROM reading available for all version of FR firmware.
Supported all unknown versions and damaged FR versions.
FMR not supported.

Needed:
VEI device
DirectConnect 2 kit
License FR
License FR BSL
DC2-FR/CPC/CP4 cable
DC2-ISP2 cable
1k Ohm resistor

3. License CPC BSL

Function:

CPC0; CPC1 — Flash & EEPROM Read / Write in BSL mode.
ST10Fxx internal FLASH and EEPROM R/W in Boot mode.
Functions available for CPC0 and CPC1.
In BSL mode Flash and EEPROM reading available for all version of CPC firmware.
Supported all unknown (for Truck Explorer license FR) versions and damaged CPC versions.

Note. DirectConnect 2 kit is needed with DC2-FR adapter

4. License ADM BSL

ADM2; ADM3 — Flash & EEPROM Read / Write in BSL mode.
External FLASH (AM29Fx00) and EEPROM R/W in Boot mode.
Via DirectConnect 2 box Automotive port.
Functions available for ADM2 and ADM3. In BSL mode Flash and EEPROM reading available for all versions of ADM2/ADM3/VCU firmware.
Supported all unknown (for Truck Explorer) versions and damaged ADM2, ADM3, VCU versions.

Note!
ADM license works only with V5 WIFI device. V3 and V4 not supported.
DirectConnect 2 kit is needed, not included.
DC2-ADM adapter not included.

6. License SFTP KEYS

EIS/MCM/TCM keys operations added: 'Read keys info'; MCM/TCM 'Unpairing' (Online, DC mode only); MCM/TCM 'Pairing' (Offline, OBD) (600 tokens included). Transponder key programming to MCM (offline)

7. License SFTP CALC

Function:
MB SFTP (MP4) VeDoc/Fdok XS; XT; XN; X1; X2; X8 calculator

Note:
Vedoc Calculator works only on that MCM, which license for MCM MEMO read/write you have.
An MB CALC license is needed.

8. License pack MCM BSL

   1. License MCM/ACM BSL

Supported functions:
— Reading & Writing MCM, MCM2, ACM2, ACM2.1 (without password) control units memory (IntFLASH; IntEEPROM; ExtEEPROM) with DirectConnect 2 tool in BSL MODE.

Supports Continental MCM/ACM:

1. Continental MCM (MCU TC1796-256 °F / TriCore 1 EEPROM M95640).
2. Continental MCM2 (MCU TC1796-256 °F / TriCore 1 EEPROM M95128).
3. Continental ACM2 (MCU TC1796-256 °F / TriCore 1 EEPROM M95128).
4. Continental ACM2.1 (without password) (MCU TC1796-256 °F / TriCore 1 EEPROM M95128).

Important:

In BSL mode Checksum correction of flash file is impossible. Please make the checksum of BIN file before writing to ECU.

The checksum is done in DC or OBD mode. Use BSL mode only in emergency mode.

Keys learning are not supported.

You need DirectConnect 2 and DC2-MCM adapter.

Full Connection:

Laptop -> VEI -> DirectConnect 2 tool -> DC2-MCM adapter -> MCM/ACM ECU

DirectConnect 2 tool not included.
DC2-MCM adapter not included.

Important!

ACM2.1 (with password) is not supported. Need additional license ACM2.1 OBD or ACM2.1 DC.
MCM2.1 is not supported. Need additional License MCM2.1 BSL, or MCM2.1 DC, or MCM2.1 OBD

2. License MCM2.1 BSL
   The license allows to Read / Write MCM2.1 (IntFLASH of TC1797; IntEEPROM; ExtEEPROM) via DirectConnect 2 tool in BSL mode.

Supported MCM2.1 versions:

Without opening ECU:
1: Unlocked (without password) until 2016/4 (HW: D1)

With opening the ECU:
2: Locked (with password) from 2016/4 — 2019/06 (HW: D2.x, D3)
3: Locked (with password) from 2019/6 — up to date (HW:D4)

How to read MCM2.1 HW:D4:

Open ECU
Connect DC2U-ISP7 to PCB of MCM2.1. Manual for BSL connection https://my.autovei.com
Press Unlock
Disconnect
Connect in DC or OBD mode
Read/write flash/eeprom

Note: Read in BSL mode not available! Only write of original flash. Always save a backup!

Important:

In BSL mode Checksum correction of flash file is impossible.
Please make the checksum of BIN file before writing to ECU.
The checksum is done in DC or OBD mode.
Use BSL mode for unlock or emergency/recovery mode.

Requirements:

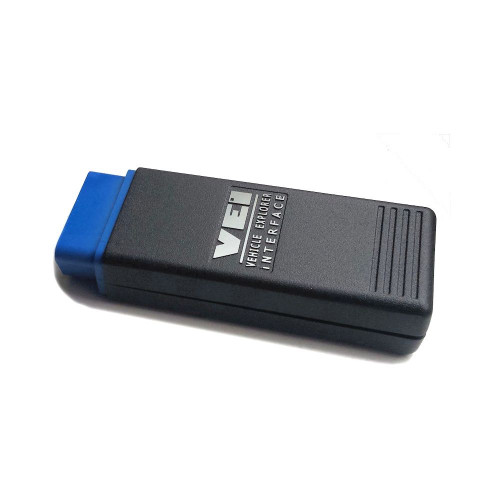

• VEI V6 device
• DirectConnect2U tool
• DC2-ACM/MCM adapter
• DC2U-ISP7 cable
• License MCM2.1 BSL
• License MCM2.1 DC
• Valid Update/support subscription
• Tokens (for unlock)
• Software version from v6.17

9. License pack EXTRA

• License MB EXTRA
• License CPC3 EXTRA
• License ADM EXTRA

Speed limit R/W for PLD and FR; Torque limit R/W; AdBlue error Erase Speed limit R/W for MCM and CPC3; SFTP Speed limit R/W for ADM3.

10. License MB DIAG

Functions:
MB Fault codes DTC Read;
MB Fault codes DTC Erase;
All code descriptions;
Generate Full report in PDF file

Connection types:
Diagnostic by OBD of all truck ECUs.
Diagnostic of separate ECU by DirectConnect 2U tool.

License is free and included in all VEI V6 devices (same as MAN DIAG)

11. License MAN DIAG

MAN Fault codes read;
DTC Read/Erase;
All code descriptions.
Works in OBD and DC2 mode.
Supported EDC7-FFR system.
EDC7-PTM system supported from v6.15

12. License DC2
    Operations by Direct Connection 2 tool (DC2, DC2M, DC2U).

13. License Android

OBD2F-4-MN12 (MAN) adapter for MAN trucks is not included.

Support and updates for 12 months are included.
