AutoScanner Opel CAN (PRO) is a software and hardware solution (also known as OpelScan, Opel-Scan, Opel-Scanner) is intended for diagnostics, chip tuning, odometer correction and special functions activation. Some features of the device excel those of dealer scanners.
OpelSacnnerCAN is a multi-purpose diagnostic scanner. It supports the following models:
- Agila-B (2008-2010);
- Antara (2007-2010);
- Ascona (1987-1989);
- Astra-F (1992-2002);
- Astra-G (1998-2006);
- Astra-H (2004-2010);
- Astra-J (2010-);
- Calibra (1990-1997);
- Corsa-A/Combo (1987-1993);
- Corsa (Vita)-B (1993-2000);
- Corsa (Vita)-C (2001-2010);
- Corsa (Vita)-D (2007-2010);
- Frontera-A (1992-1998);
- Frontera-B (1999-2003);
- Insignia (2009-2010);
- Kadett-E (1987-1991);
- Meriva-A (2003-2009);
- Meriva-B (2010-);
- Omega-A (1987-1994);
- Omega-B (1994-2003);
- Senator-B (1987-1993);
- Sintra (1997-1999);
- Speedster/VX220 (2001-2006);
- Tigra-A (1995-2000);
- Tigra-B (2005-2010);
- Vectra-A (1989-1995);
- Vectra-B (1996-2001);
- Vectra-C/Signum (2002-2010);
- Zafira-A (1999-2005);
- Zafira-B (2005-2010);
- Suzuki Grand Vitara (2005-2010);
- Saab 9-3 CAN (2002-2010);
Diagnostics of ALL electronic systems is supported on most models:
- Engine Management Automatic;
- Transmission Distributor Transmission 4WD;
- ABS — Anti-Lock Brake System and ESP — Electronic Stability Program;
- Traction Control;
- Air Bag Immobilizer and ATWS — Anti-Theft Warning System;
- Central Door Locking System;
- Info Display;
- Power Steering;
- Audio System;
- Air Conditioning System and Climate Control;
- Sliding Roof;
- Electronic Seat Memory;
- Add-On Heater;
- Headlamp Leveling Device;
- And many others...
New models and systems are added regularly.
The following functions are available when working with the systems mentioned above:
- Reading ID parameters of control units: VINs (stored, for example, in the ECU), unit numbers as a spare part, hardware and software (firmware) versions, system type or model (e.g. engine models for the ECU), etc.
- Fault codes reading and clearing. Fault codes definition, error status (current or stored) and conditions under which the control unit registers the fault code.
- Viewing the current parameters of the control system. Besides the list of digital values, one parameter is represented graphically in this mode. In addition, standard values are provided for a number of parameters.
- Enhanced mode of parameters graphic analysis: in this mode you can see up to 4 charts of parameter variations simultaneously.
- Actuators control: valves, nozzles, ignition coils, fans, indicator lamps, relays, controllers, etc. For some tests there are tooltips containing test realization conditions.
- Memory (firmware) reading of some control units.
- Mileage correction for some dashboard types (through the diagnostic link connector) Vectra B 1996-2002. VDO, Astra G VDO, Zafira A (till 2000).
- Transponder keys replacement for immobilizers of the first (IMMO1), second (IMMO2) and third (IMMO3 Vectra C, Astra H, Corsa D) generation (login is required).
- Trip computer (Board Computer) and control system (Check Control) enabling on some GID displays of Astra H and Zafira B
- Programming of different modules configuration (including cruise control activation) and CAN network (low, medium and high speed) for some models.
- Clutch bleeding and engagement point adjustment for robotized MTA of the following models: Astra H, Vectra C, Zafira B, Corsa D.
The device software has friendly interface and is regularly updated.
OpelScannerCAN (PRO) is a special function software working with the OpelScannerCAN adapter and a special dongle (purchased separately).
The software allows:
- To read security codes (PIN) from various control units (ECUs, data displays, dashboards, etc.)
- To reset ECUs To correct the mileage in ECUs
- To change engine hours in ECUs
- To read firmware of a number of ECUs
It functions with the following vehicles and systems:
- Agila-A (1998-2007) (ECU);
- Astra-G (1998-2006) (ECU);
- Astra-H (2004-2010) (ECU and data display);
- Corsa (Vita)-C (2001-2010) (ECU and dashboard);
- Corsa (Vita)-D (2007-2010) (ECU);
- Meriva-A (2003-2009) (ECU and dashboard);
- Omega-B (1994-2003) (ECU);
- Vectra-B (1996-2001) (ECU);
- Vectra-C/Signum (2002-2010) (ECU and data display);
- Zafira-A (1999-2005) (ECU);
- Zafira-B (2005-2010) (ECU and data display);
It functions with the following ECU types:
- Motronic M155;
- Motronic ME155;
- Motornic ME761;
- Motronic ME76x;
- Motronic ME96 (Z28NEx);
- Motronic ME311 (Y26SE, Y32SE);
- Simtec 71 (Z18XE(L));
- Multec H ISO (Y16XE, Z14XE, Z16XE, Z16SE);
- Multec H CAN (Z16XE) Multec SF (X14XE, X16XEL);
- HDRC Multijet 6J0 EDC16 (Z17DTH, Z19DT(H));
- MT35E (Z16XEP, Z16XE1) PSG16 ISO/CAN.
CanPRO features can be extended with the help of additional modules: ODO, SRS, PIN2.
OpelScannerCAN Flasher allows reading and flashing flash memory controllers installed in Opel vehicles. It functions with the OpelScannerCAN adapter and a special dongle (purchased separately). The software has module structure, making it possible to activate any module independently.

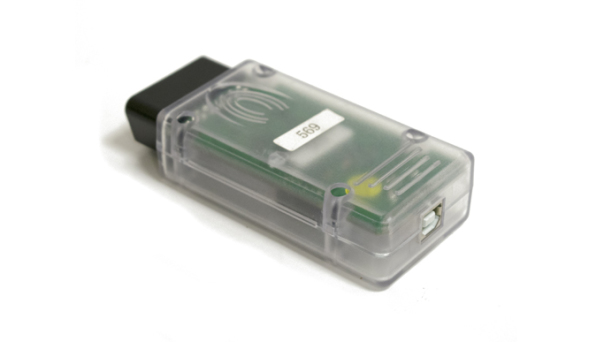

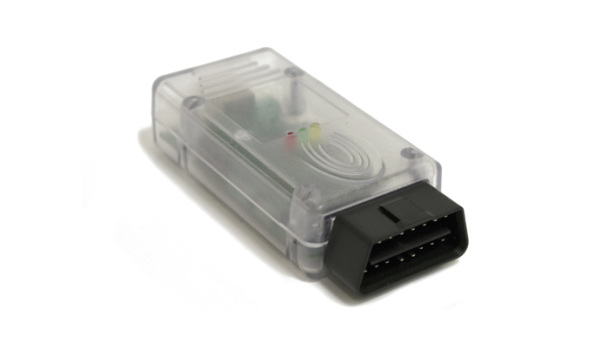

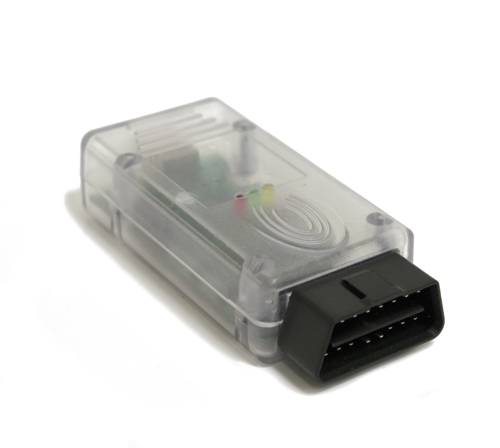

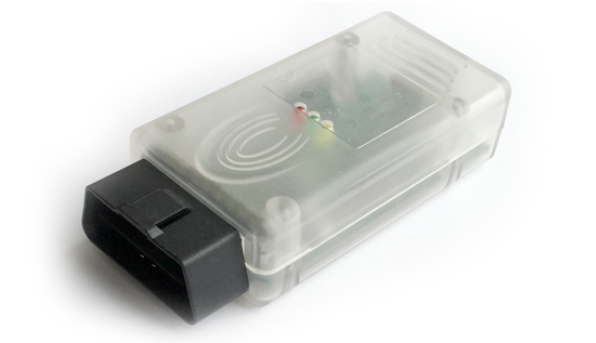

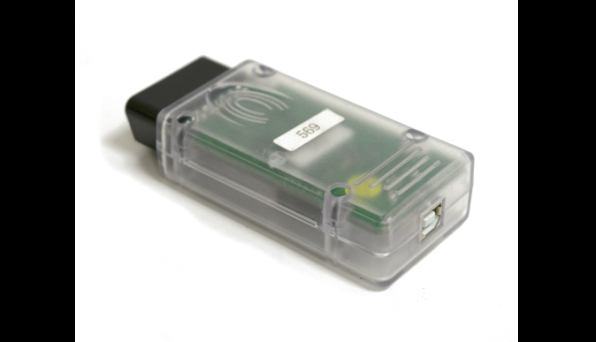

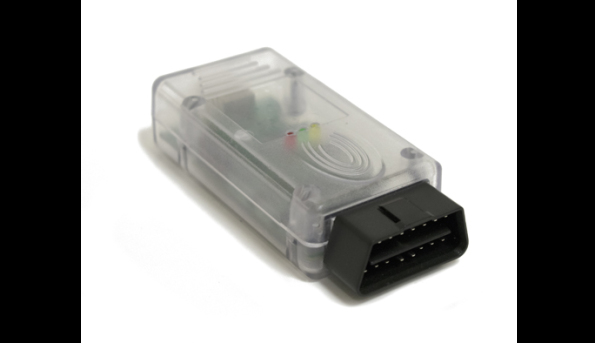

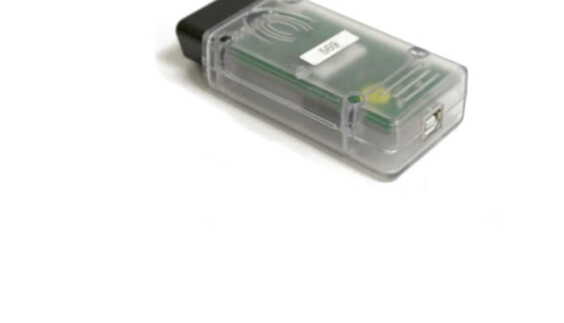

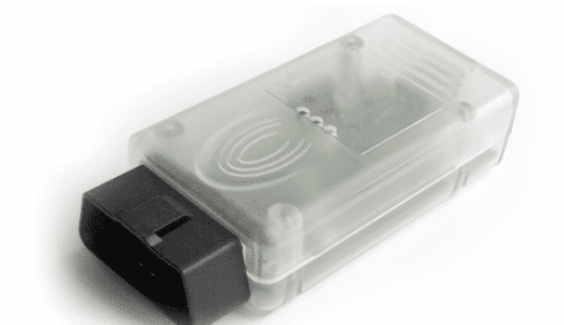

OpelScannerCAN Adapter Technical Specifications
Most ISO and CAN protocols support
Full-speed USB connection to a PC All CAN bus types support (High Speed, MidSpeed, LowSpeed)

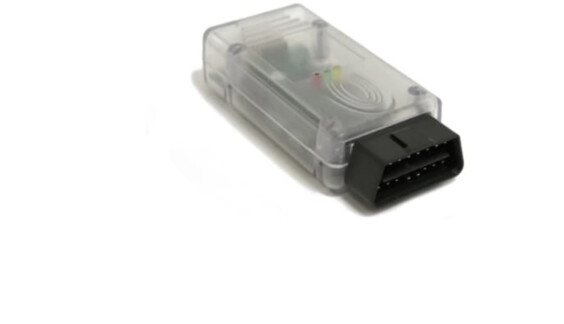

Built-in multiplexer Galvanic separation and short-circuit protection Adapter microcode USB updates The adapter is built in the OBD-II connector case.
for CanPRO and Flasher additional modules activation
CanPRO basic functionality
EEPROM reading and flashing on Astra H/ Zafira B/Corsa D airbags
Odometer correction for Opel Astra J, Insignia, Mokka, Zafira C and Chevrolet Cruze.
PIN code reading for Opel Astra J, Insignia, Zafira C, Mokka, and Chevrolet Cruze, Aveo, Cobalt
Simtec MS56.5: reading, writing
Simtec MS70: reading, writing;
Simtec MS71 (Z18XE and Z22XE): reading, writing;
Simtec MS71 (Y22XE): only writing;
Simtec MS71.5: reading, writing;
Simtec МS71.6: reading, writing;
Simtec МS81: reading, writing;
Simtec МS75.1: reading, writing;
Simtec МS75.5: reading, writing.
Bosch ME1.5.5: reading, writing;
Bosch ME7.6.1 (KWP): only writing;
Bosch ME7.6.2 (CAN): reading, writing;
Bosch ME7.9.9 (CAN): reading, writing;
Bosch M3.1.1: reading, writing;
Bosch MЕ3.1.1 CAN: only writing.
Multec HSFI C, Multec HSFI 2.0, Multec HSFI 2.1, Multec HSFI 2.4, Multec HSFI 2.5: reading, writing
MT35E (CAN), Multec H (Z16XE OVC): reading, writing
HDRC (Y17DT): reading, writing
EDC15M, EDC16C39: only writing
Bosch ME 9.6: map area writing
Multijet CAN: reading, writing
MTA CAN: only writing
PSG16 KWP, PSG16 CAN: only writing;
+ a complete set of the latest firmware.
Simtec76 (Cruze 1.8): reading, writing
ACDelco E83 (A16XER): reading, writing of the map area
ACDelco E78 (A14NET): reading, writing of the map area
ACDelco E39 LDK (A20NHT): reading, writing of the map area
ACDelco E38 Chevrolet Tacho: reading, writing of the map area
ME764 (A16LET): only writing
Astra J/Chevrolet Cruze TCU: FULL reading, writing
1 year subscription
