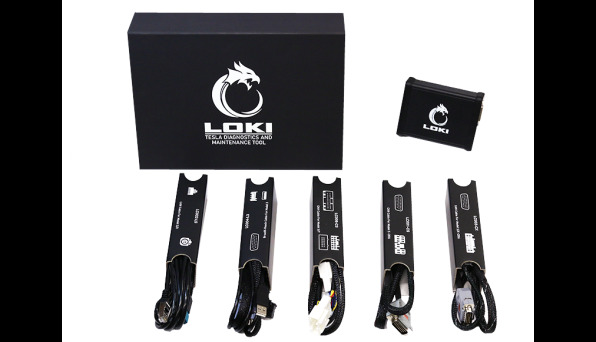

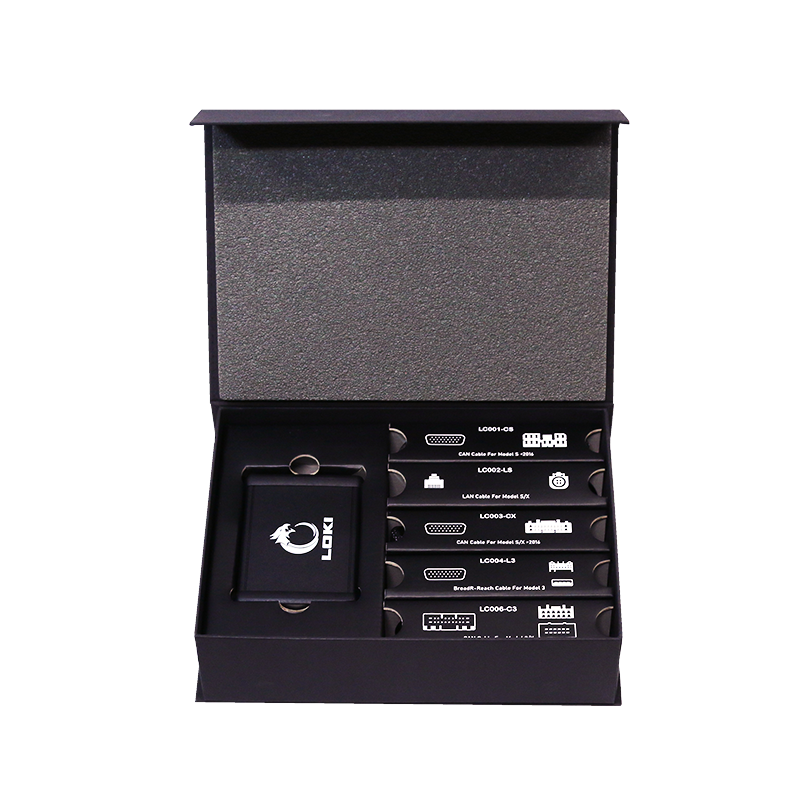

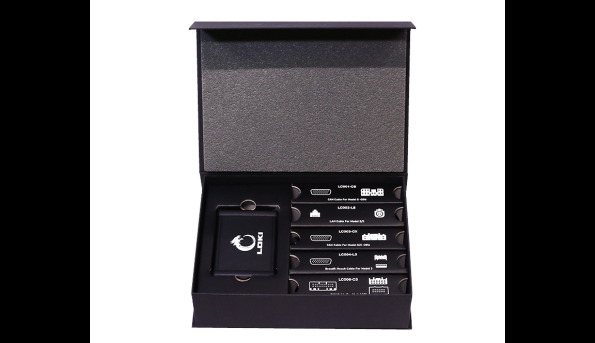

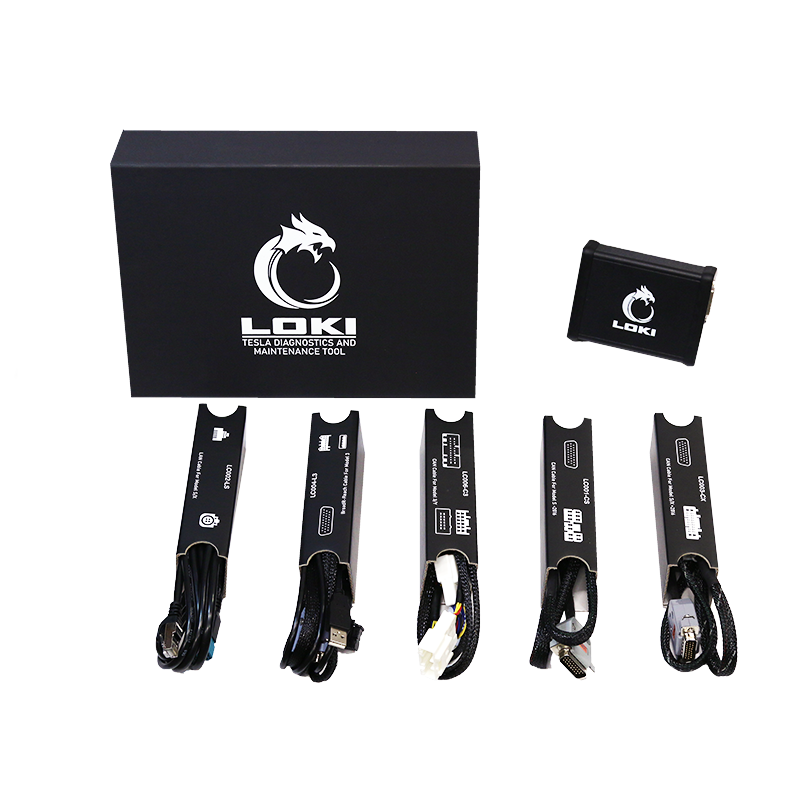

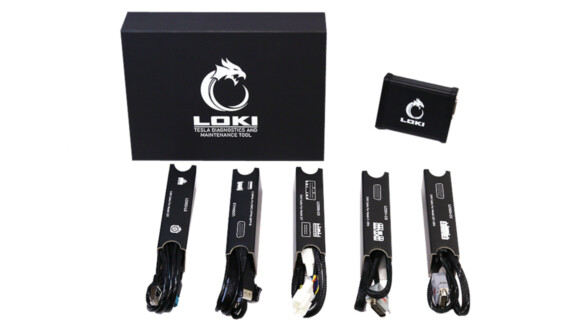

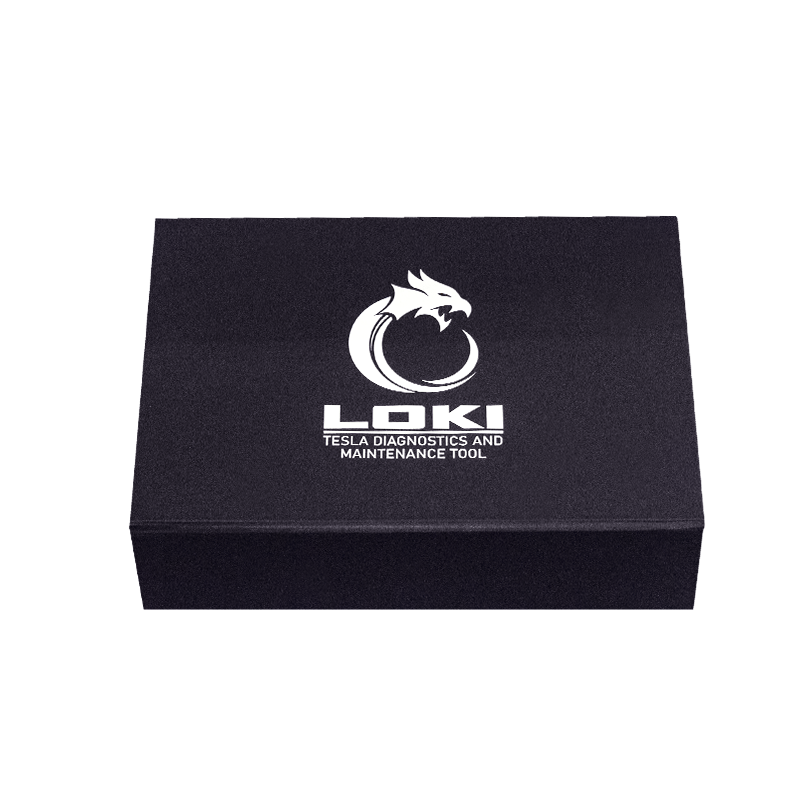

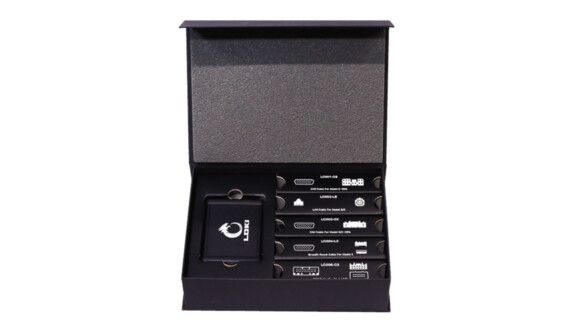

LOKI — Tesla
Item no.:
Manufacturer
Contents of delivery
- LOKI Tesla Diagnostic Tool Module
- LC001-CS – Cable СAN for connection of Tesla Model S Pre-facelift (<2015)
- LC002-LS – cable LAN for Tesla Model S/X
- LC003-CX – Cable CAN for connection of Tesla Model S Facelift, Model X
- LC004-L3 – cable LAN for Tesla Model 3
- LC006-C3 – Cable connects Loki with CAN bus of Tesla Model 3 and Model Y with the usage of cable LC003-CХ
Basic equipment
LOKI — Tesla — 4 752 $
Status: Pre-order
LOKI is a device for diagnostics and maintenance of Tesla vehicles: Model S, Model X, Model 3, Model Y.
The tool provides diagnostic access to the central computer (CID, IC), utility functions of vehicle ECUs, settings, calibration, updates, error codes reading, analyzing, and deleting.
- is easy to mount, connect and operate
- has an intuitive interface
- has free automatic software updates
Loki scanner features:
- Works with Tesla cars: Model S, Model X, Model 3, Model Y.
- Complete diagnostics for Model S/X/3/Y on any firmware.
- Live data from CAN modules (Model 3/Y/S/X).
- Self-tests for various car systems (Model S/X/3/Y on any firmware).
- Update your car with MX/MS/M3/MY firmware available on our server.
- Installation and configuration of navigation on MS, MX (Tegra/Intel), M3, MY (Intel).
- Capability to change standard car configurations for Model S/X (Tegra, Intel).
- Capability to change standard car configurations for Model 3/Y (Intel).
- Partial changing of secure car configurations for Model 3 (Security Configuration)*.
- *Available with the purchase of additional software.
- Access to an alert description database.
- Removal of Diagnostic Trouble Codes (DTC) from specific car modules.
- Deactivation of Vallet Mode and PIN to Drive on all firmware versions.
- Activation of Factory/Diagnostic/Developer Mode (for firmware versions up to 2021.4.12 (Intel) and 2022.8 Tegra).
- Activation of Service mode + (if it is available in current firmware.)
- Pairing of new modules to the car, configuration, adaptation, and calibration of some systems (REDEPLOY, VIN learn).
- Radar calibration for AP2.5/3.0 on MS/MX/M3/MY.
- Removal of CRASH data from BMS, TAS.
- Removal of CRASH data from airbag modules, specifically SDM, RCM, RCM 2 (except for RCM 2 series E).
- Key pairing for Model S, 3, Y, X** (when no key is present).
- ** Available with the purchase of an additional plugin.
- Online functions (launching all service tasks available in the car).
The technical support is provided by the developer directly.
Gallery (3)
LOKI Secured Configuration Plugin
Item no.:
Secured Configuration plug-in for Tesla Model 3 allows to modify the following parameters:
- VIN – Vehicle identification number (VIN) is required when changing the MCU or using donor certificates.
- Carcomputer_pn, carcomputer_sn – MCU Serial Number, required when changing the MCU.
- Country – Change country configuration, necessary for changing headlight flashing algorithms to European standards, adapting cars for the Asian market to European standards.
- Autopilot – Change autopilot type, for example, to FSD.
- SuperchargingAccess – Activation of supercharger access (v1, v2).
- PerformancePackage – Activation of Performance or Acceleration Boost depending on motor types.
- ConnectivityPackage – Lifetime activation of Premium Connectivity.
- SoftRange – Removing software battery capacity restrictions where applicable.
- ImmersiveAudio – Activation of additional audio system features.
- Supply slip includes the cable LC005 for the connection of LOKI to MCU.
* standard equipment set
LOKI Key FOB Pairing for Model X Feature Plugin
Item no.:
PLUGIN FOR KEY FOB PAIRING FOR MODEL X FEATURE
Additional software that extends the functionality of the Loki device and allows you to pair Key Fob to Tesla Model X, even if all the keys are lost.
** additional software
