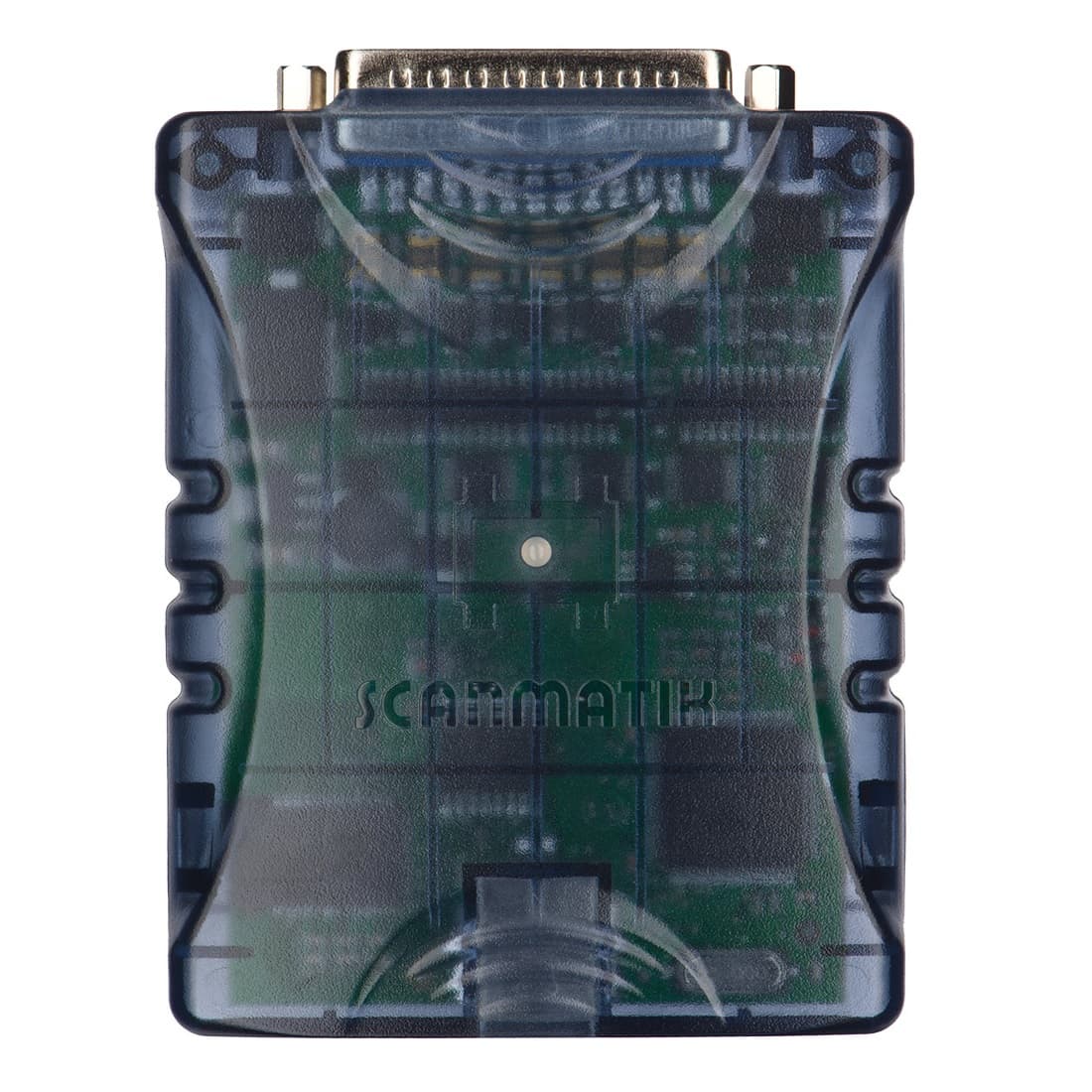

Scanmatik 2 PRO Full

Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

New features of Scanmatik 2 PRO:

• Galvanic isolation of the USB port (with power);
• Redesigned protection of K-lines and CAN buses on a new element base;
• Increased speed of work via Bluetooth by about 20%;
• Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
• Load-Dump power surge protection (when the generator is switched off on a running engine).

The widest support of J2534-1/2 standards:

• Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13, 14;

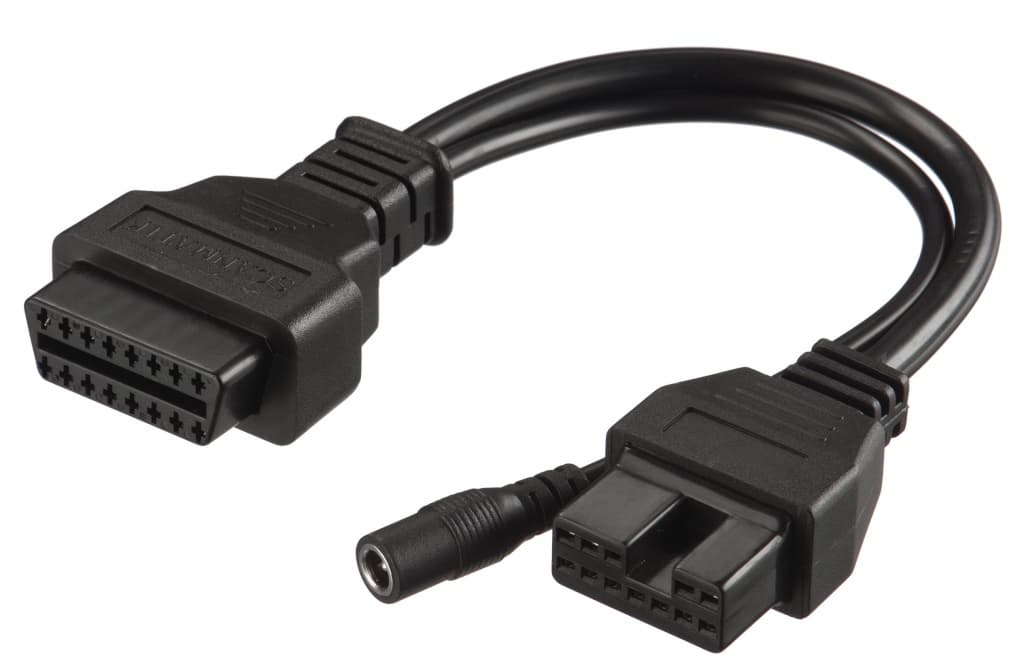

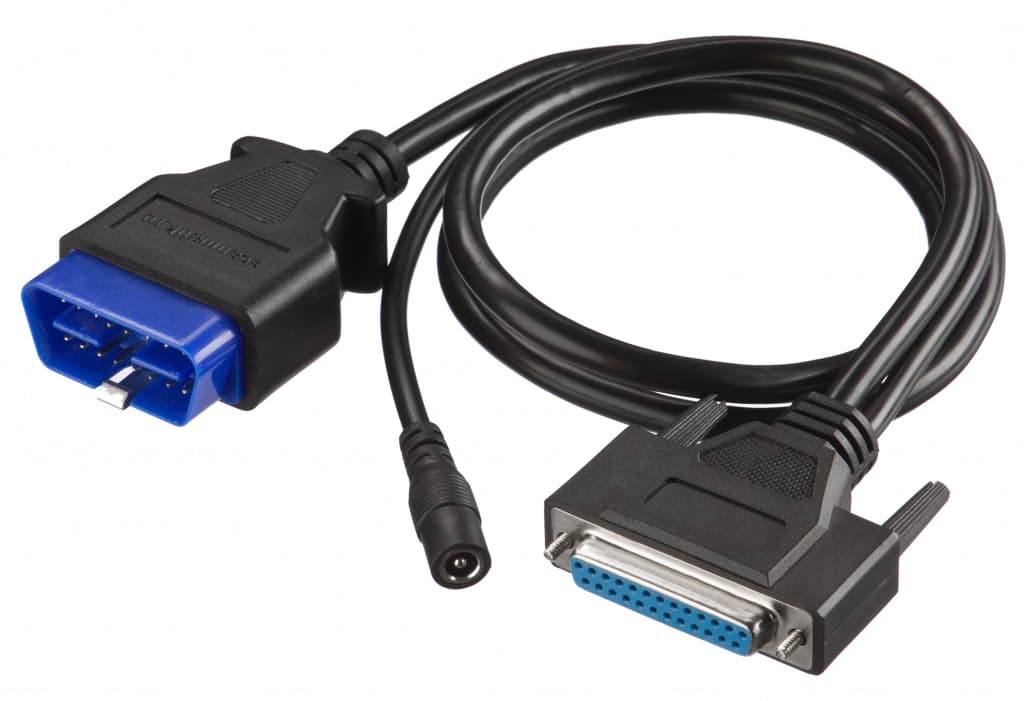

•  AUX programming voltage output (via an additional cable).

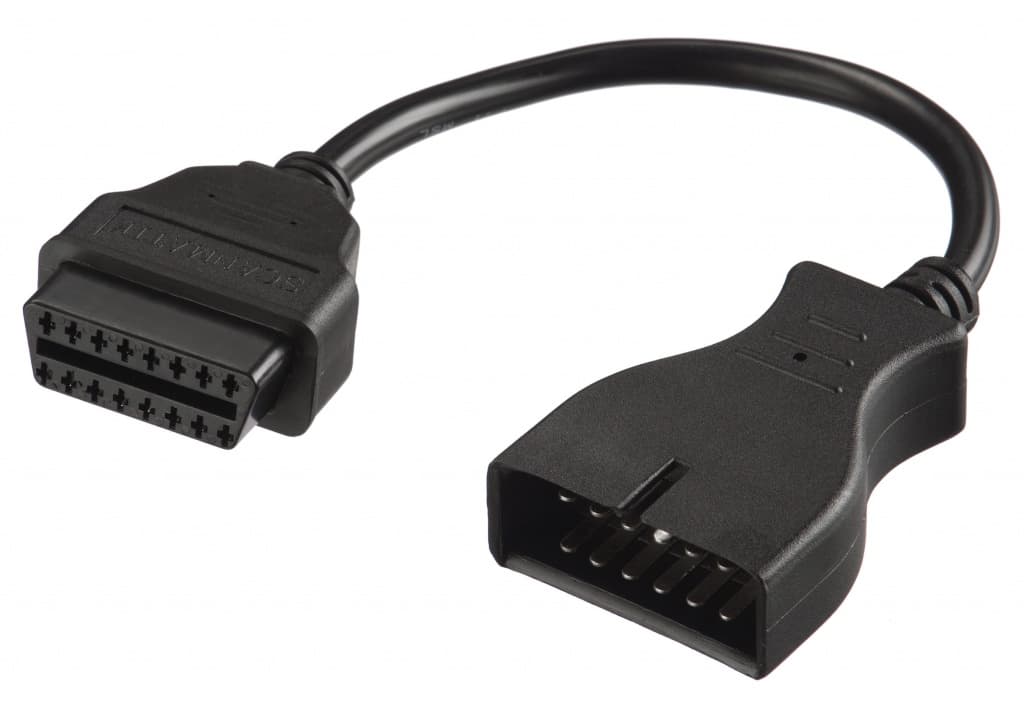

For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:

• An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.

Description

The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

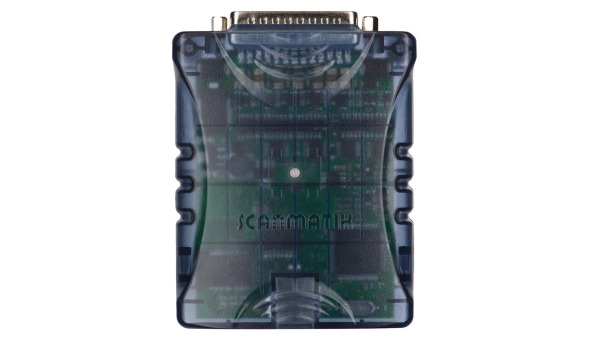

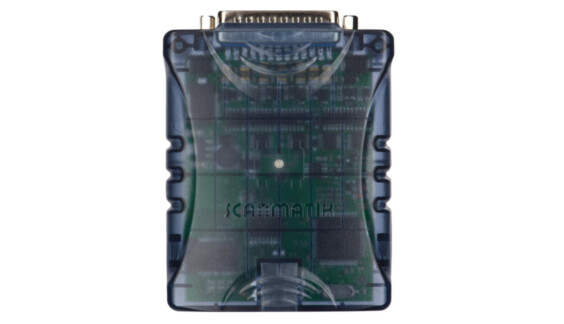

SM2-PRO Adapter Specifications

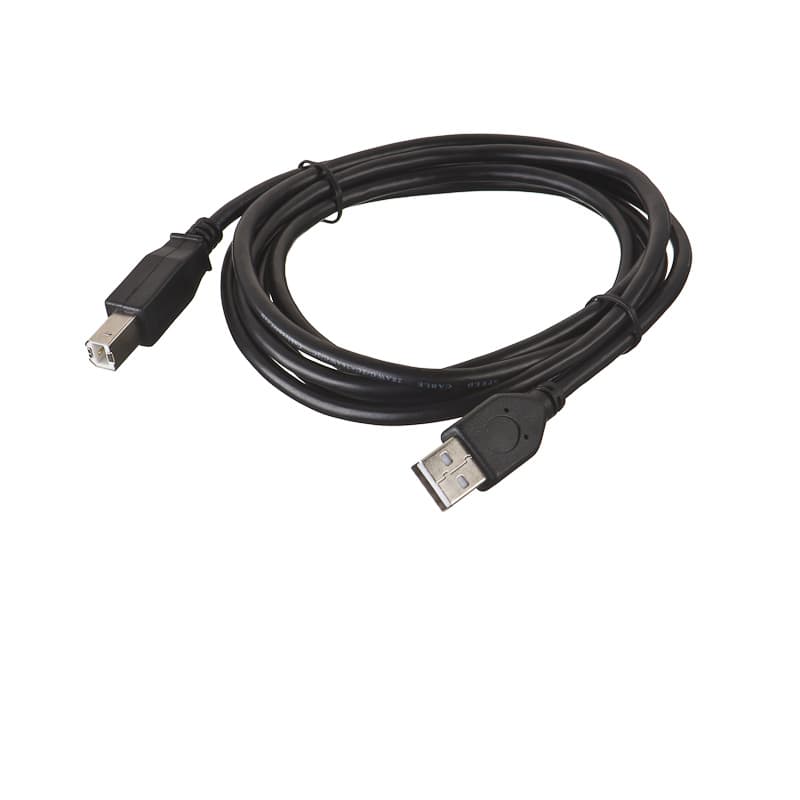

• Interfaces for communication with PC (Tablet, Smartphone) - USB or Bluetooth;

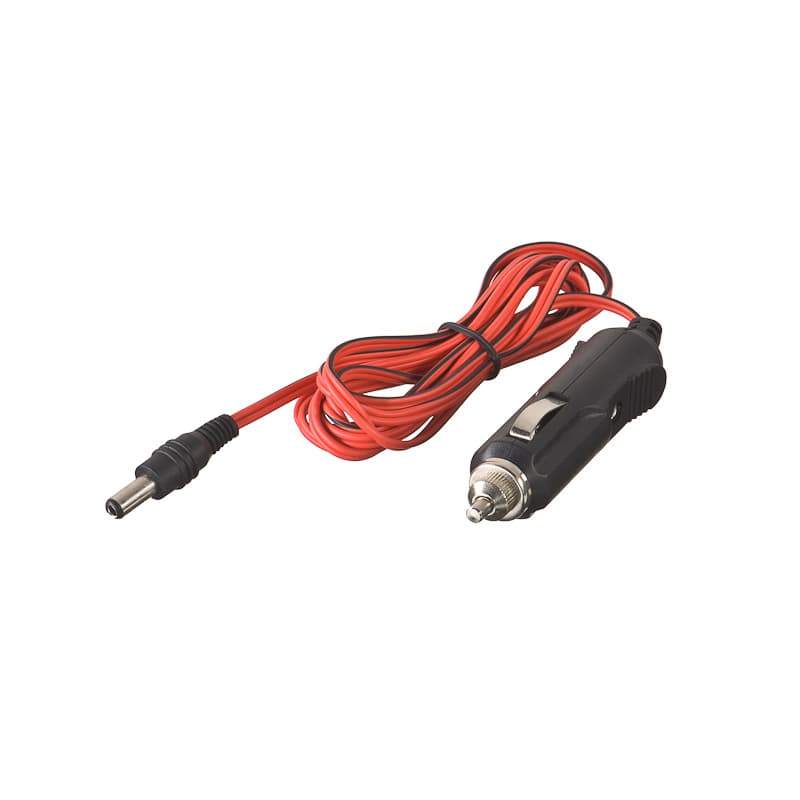

• Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
• Current consumption, not more than 350mA;
• Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
• Load-Dump power surge protection (when the generator is switched off on a running engine).
• Supported data buses:
  • 13 x ISO-9141/ISO-14230 (K-LINE);
  • 1 x J1850VPW;
  • 1 x J1850PWM;
  • 4 x CAN;
  • 1 x Single Wire CAN.
• Built-in multiplexer for switching diagnostic lines;
• The widest support of J2534-1/2 standards;
• Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
• AUX programming voltage output (via an additional cable);
• Bluetooth range, not less than: 10m (Class 2);
• Adapter dimensions (L x W x H), not more than: 970×750×220mm;
• Weight of the device in the basic configuration, not more than: 1 kg.

PC system requirements

• Operating system Windows XP, Vista, Windows 7, Windows 8, Windows 10
• Processor clock speed, not less than (see minimum requirements for OS operation)
• RAM, not less than (see minimum requirements for OS operation)
• Free hard disk space, at least 7 MB

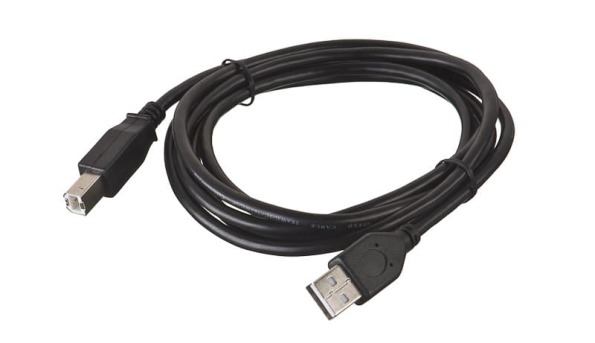

• With USB connection - the presence of a free USB 1.1 port
• When connected via Bluetooth, the presence of a Bluetooth adapter (built-in or external).

System requirements for Tablet / Smartphone

• Operating system - Android 2.1 and higher;
• Supported architecture - all (ARM, X86, MIPS);
• With USB connection - USB-Host;
• With Bluetooth connection - Bluetooth module.
