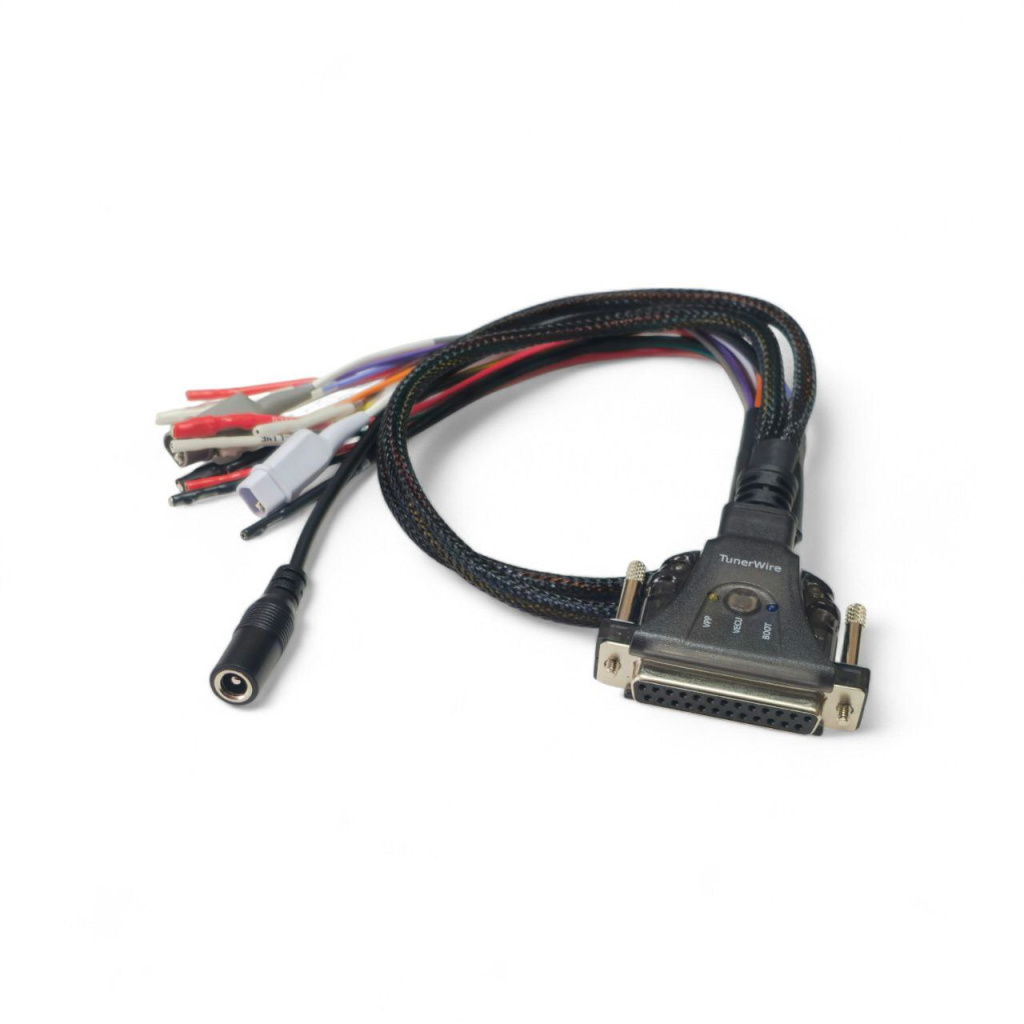

TunerWire cable

Boot-bench connection cable with automatic and manual power control. Compatible with Scanmatik 3 and Scanmatik 2-Pro.

• a unique GPT signals automatic adjustment scheme: there is no need to use external capacitors or resistors to work with EDC ECUs, such as EDC7C32, EDC16CP33, EDC17C49, etc.
• tested with all EDC/Simos ECUs supported in PCMflash, BitBox, Combiloader
• a switch for ECU forced power supply (VECU line) with the state indication
• a powerful CAN bus resistor does not burn and does not lose its functionality in case of incorrect connection to the ECU pins
• short circuit, overvoltage (up to 36V) and inverse polarity protection of all signal and power lines
• a power key allows smooth working with the ECUs requiring high starter current
• BOOT/CNF crocodile clips are comfortable to use
• wire colour code designation according to the PCMflash documentation
• clamps are made of hard heat shrink tube, do not bend when connected to the ECU pins
• BOOT/CNF, Vpp state indication
• supporting leg provides stable positioning on the bench
• adapters for the ECUs with big flat or round clamps are included in the package

Specifications:

• Power voltage: 12...36V
• Wire length: 0,6 m
• Weight: 0.1 kg

Packaging:

• TunerWire cable

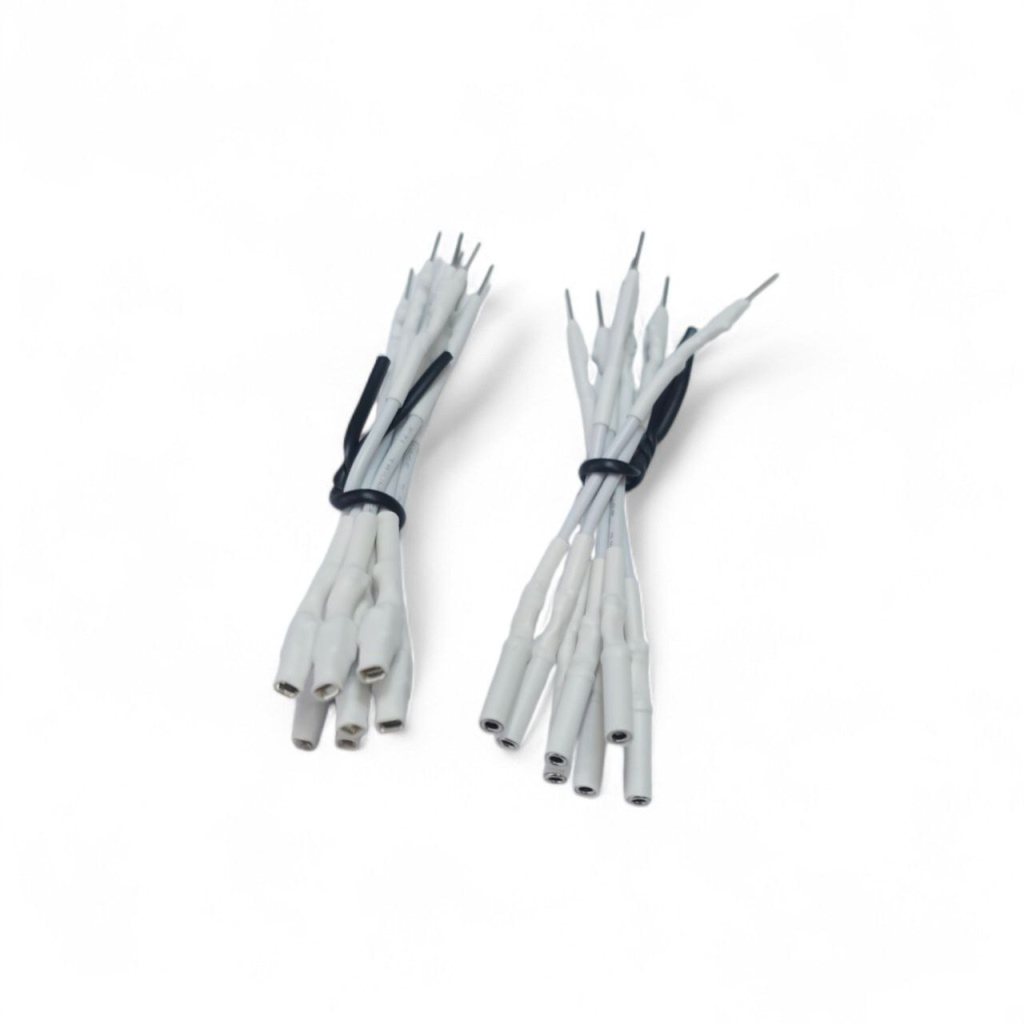

• flat contact adapter set (Lyra 2.1mm) 7 pcs
• round contact adapter set (2mm) 7 pcs
