Attention!! Script for the IprogPro programmer only!!!
This script is designed for programming Mercedes instrument clusters manufactured by VDO:
W205 (LCD), W213 (Strelka), W213 (LCD), W222 (LCD Rest), W463 (LCD) from approximately 2015 to 2018, based on NEC3525(26) processors, via OBD2 in the car or via the CAN bus on the bench.
This script works without any preparation or patching! No need to remove the panel or manipulate the processor!
Simply connect, do what's needed, and disconnect.
After editing, a filter between the lock and the panel is no longer needed!
Those who have worked with these panels know well that the processor in these panels is often protected from erasure. Therefore, when patching it intravenously, the processor had to be replaced with a new one.
This script solves this problem and works via OBD2.
The script also supports working with already patched dashboards. If you still want to patch it yourself, you can also read and write the firmware using a third-party program, and you can purchase the firmware from me.
It is recommended to use an OBDII cable with an MCP2515.

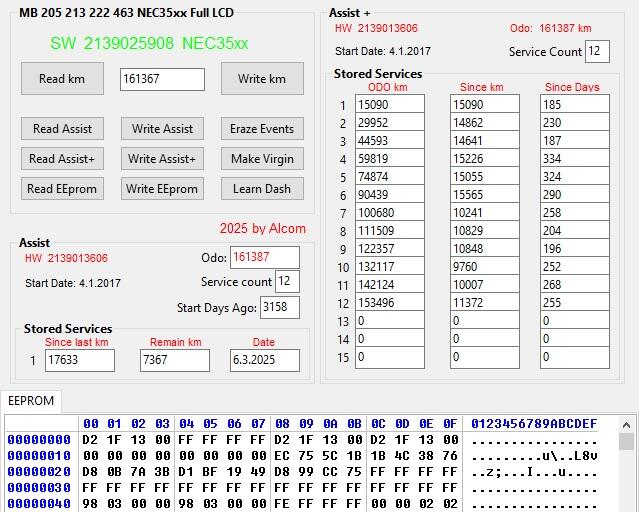

The script supports:
Odometer reading and writing
EEprom reading and writing
Delete all event records
Assist+ reading, editing, and writing. You can write a maximum of 15 services.
Virginize - Create a new dashboard
Learn Dash - Learn the dashboard
