Attention!! This script is for the IprogPro programmer only!!!
This script is designed for programming Mercedes instrument clusters manufactured by VDO:
W205 (LCD), W213 (Arrow), W213 (LCD), W222 (LCD), W463 (LCD) from approximately 2018 to 2021, based on R7F701414 (Locked) processors, via OBD2 in the car or via the CAN bus on the bench.
This script works without any preparation or patching! No need to remove the panel or work with the processor! The processor in these panels is protected.
Simply connect, do what you need to, and disconnect.
After editing, a filter between the lock and the panel is not needed!
The script also supports already patched panels and operates on them using a different algorithm.
If you still want to patch the dashboard yourself, you can use a third-party programmer to read and write the firmware as usual, and you can purchase it from me.
It's recommended to use an OBDII cable with an MCP2515.

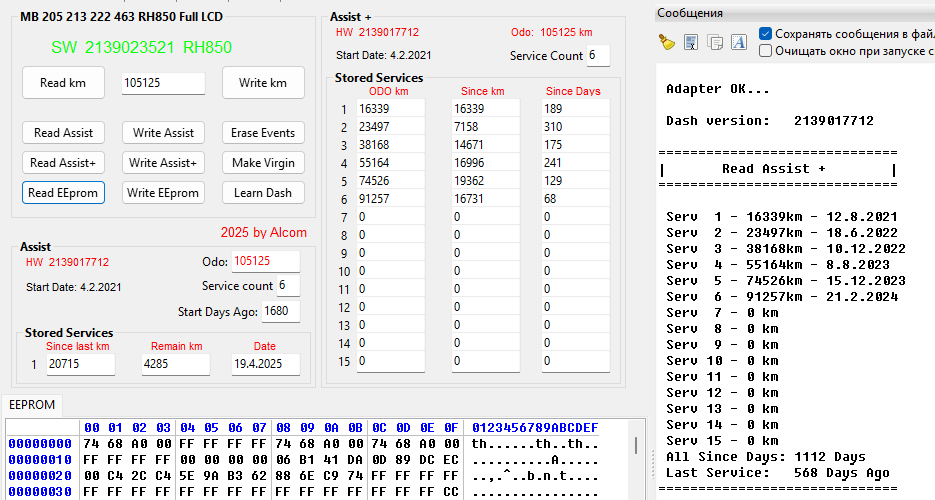

The script supports:
Odometer reading and writing
EEprom reading and writing
Delete all event records
Assist+ reading, editing, and writing. You can write a maximum of 15 services.
Virginize
