VAG Ru Polo 861x on NEC 70F3524 processors Script Pack

Scripts package for working with VAG Ru Polo 861x instrument panels on NEC 70F3524 processors.

The package consists of:

• Script for in-circuit reading of access keys.

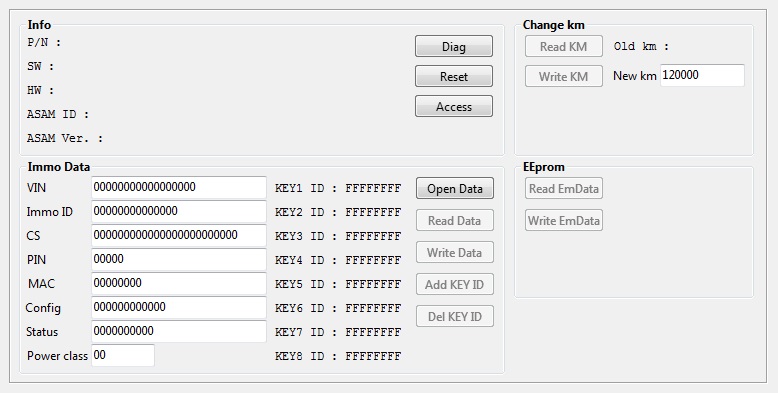

• Script for working with the instrument panel via OBDII.

Attention!! The script is only for the IprogPro programmer!!! Internet connection is required for working

Script for working with panels:

• 6RF920860Q SW 0152 HW H02
• 6RF920861 SW 0214 HW H01
• 6RF920861B SW 0215 HW H01
• 6RF920861C SW 0217 HW H01
• 6RU920861 SW 0218 HW H02
• 6RU920861 SW 0225 HW H02
• 6RF920862A SW 0215 HW H01
• 6RF920862B SW 0217 HW H01

Instructions:

• To work, first remove the panel.
• Lift one leg of the processor (be careful).
• Solder the adapter (Scheme in Help).
• Run the script.
• Click Read .
• If everything is OK, the script will write the number of the panel you are working with and the status of sending data to the server at the end.
• After that, we assemble the panel back, connect it to the table or to the car. And work via CAN.

After reading the access key once, you do not need to repeat this procedure anymore. The key is saved on our server.
