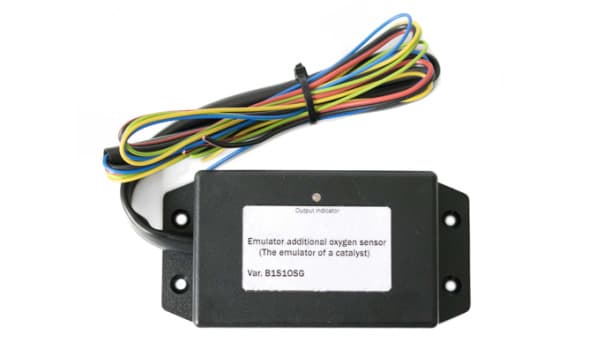

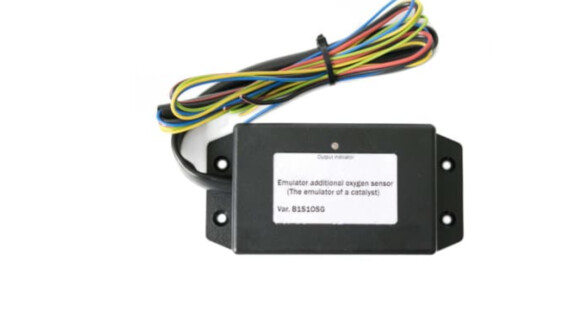

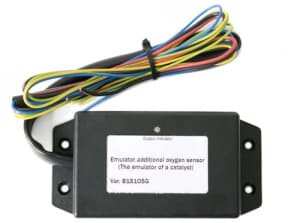

The auxiliary O2 sensor emulator is designed to emulate the signal of a downstream (post-catalyst) O2 sensor (OS — Oxygen Sensor) and is an improved version of the B1S1OS device.
The emulator fully replaces the signal of the stock auxiliary O2 sensor responsible for monitoring catalytic converter operation, if the converter is not working efficiently, so that the system's O2 sensors can be checked for serviceability.
The device emulates the auxiliary O2 sensor by analyzing the signal of the primary (front, B1S1) or second (B1S2) zirconium dioxide 1 volt O2 sensor. The device emulates the signals of the same kind of 1 volt zirconium dioxide sensors used for catalytic converter diagnostics (B1S2). This narrowband sensor has a signal negative that is common or, in some cases, different from the vehicle "ground". To match the signal levels, this device uses an additional input that determines the level of the sensor's signal negative and matches the output signal to it.
Thus, this device is more universal than the B1S1OS and can be used on vehicles with different O2 sensor signal "ground" levels. The device is recommended for installation on the auxiliary (downstream) O2 sensor when the vehicle has a front A/FR sensor and a working auxiliary sensor is required in the exhaust gas stream but without a catalytic converter.
Discontinued.
