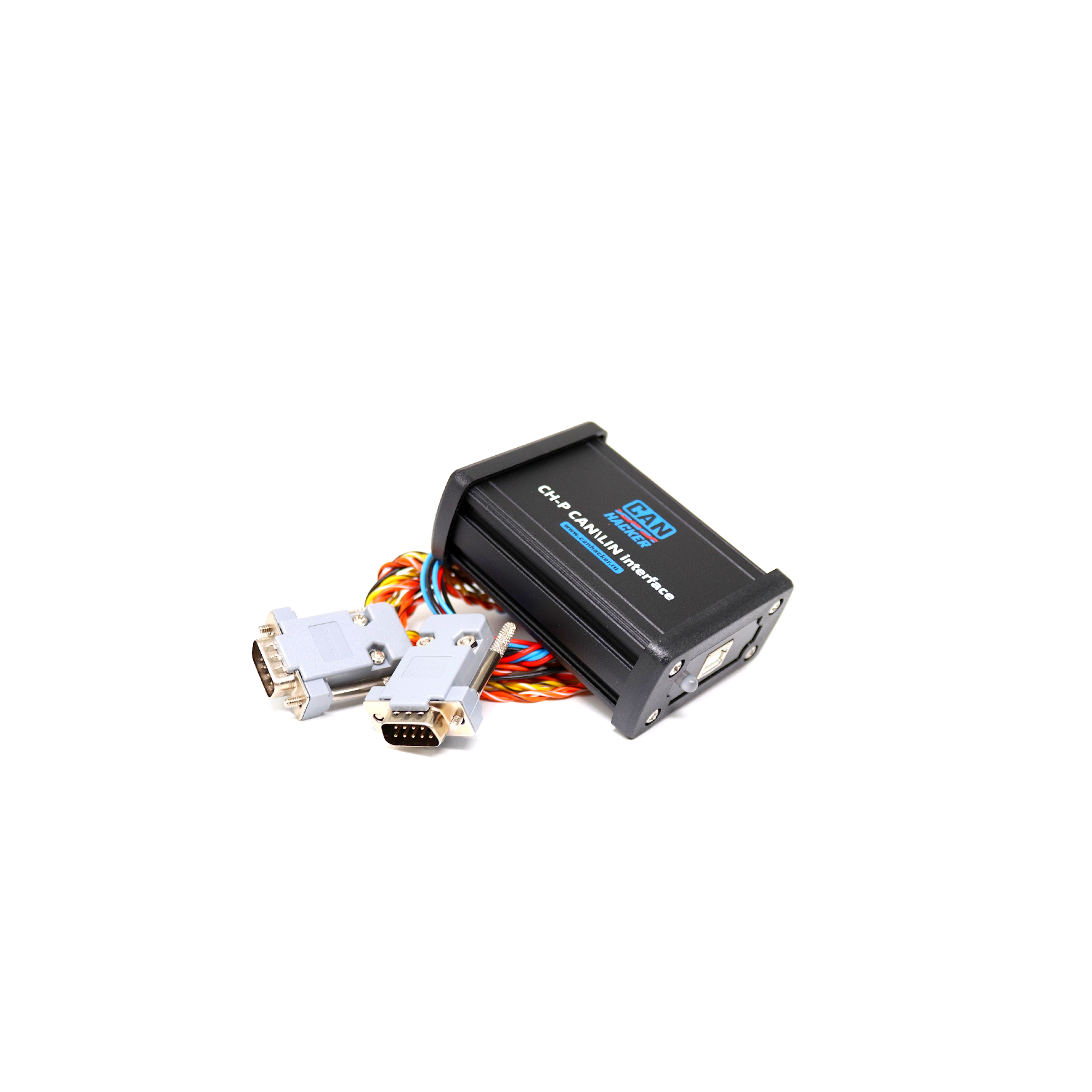

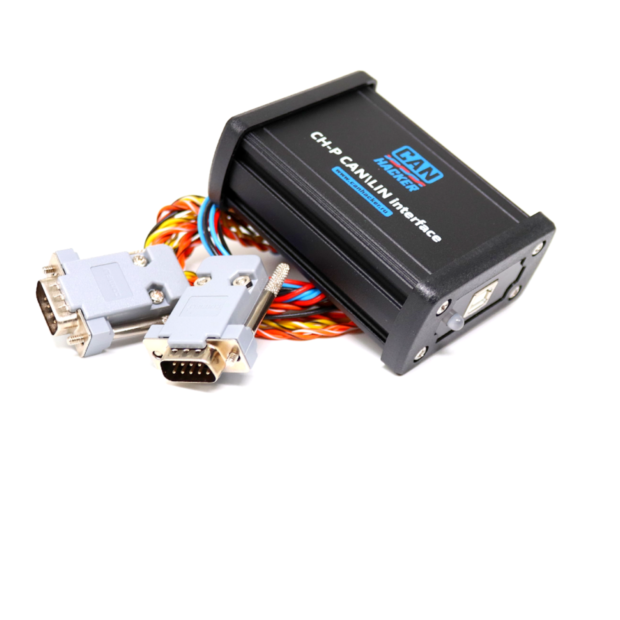

CAN-Hacker CH-P FDL2

Basic function:

• CAN-FD bus analyzer
• LIN bus analyzer

Set

• Interface CAN-Hacker CH-P FDL1
• CAN cable with crocodiles
• LIN cable with crocodiles
• KIA\HYUNDAI Instrument cluster cable for directed connection
• OBD2 Cable
• USB Cable

Supported software

• CarBusAnalyzer
• CAN-CODER L2 (optional)

Technical characteristics

1. CAN-FD channels: 2
2. LIN channels: 1
3.  CAN-FD bitrate – 5 Mbit\s
4. Software controlled 120 Ohm terminators
5. Voltage range between CAN-High and CAN-Low:  -42….+42 V
6. Strong Aluminium enclosure
7. PC Connection: USB 2.0  Virtual COM Port, CDC
8. Recommended OS: Windows 10

Cables description

CAN Cable

• Yellow\black– CAN-Low  channel 1
• Yellow\white– CAN-High channel 1
• Orange\black – CAN-Low channel 2
• Orange\white – CAN-High channel 2

LIN Cable

• Red— +12 V
• Black — GND
• Blue— LIN

Main Connector Pinout

1. CAN-Low, channel 1
2. n.c.
3. LIN
4. +12V for LIN
5. CAN-High, channel 2
6. CAN-High, channel 1
7. GND
8. GND
9. CAN-Low, channel 2
