CH-OBD-FD Analyzer

CAN-FD, CAN, LIN analyzer

• Technical characteristics of the interface:
• Number of CAN-FD, CAN channels: 1
• Number of LIN channels: 1
• Maximum CAN-FD speed: 5 Mbit/s
• Maximum permissible voltage range
• between CAN-High and CAN-Low lines: -42….+42 V
• Power supply from the computer USB port
• OBD2 case
• Communication with the computer: USB 2.0 Virtual COM Port, CDC class
• Recommended operating system: Windows 10, Windows 11
• Appearance, nominal values ​​of elements on the printed circuit board, brightness and wavelength of the LEDs may differ from batch to batch. Insufficient or excessive brightness of the indication, uncomfortable color of the indication are not a defect of the device.

Package contents:

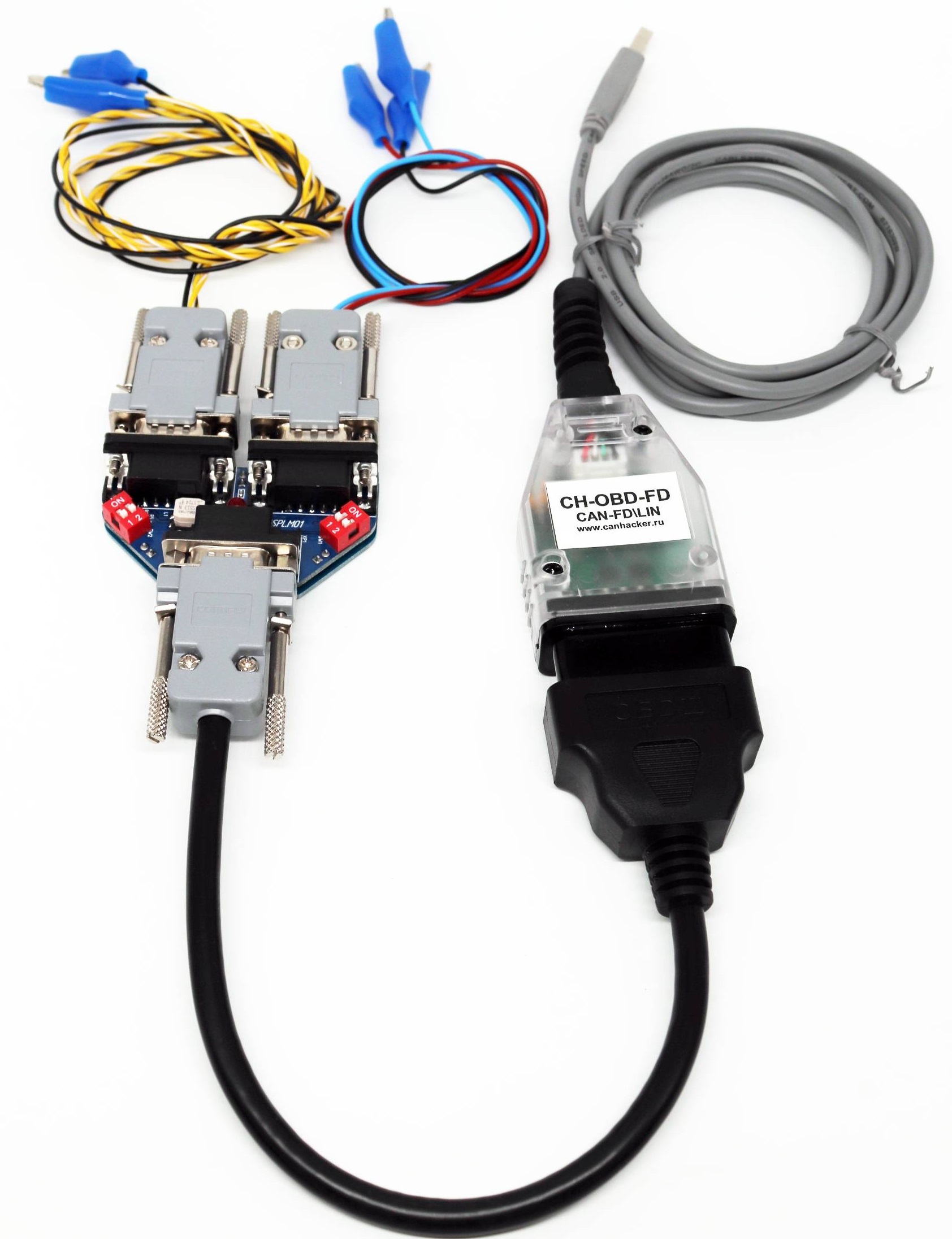

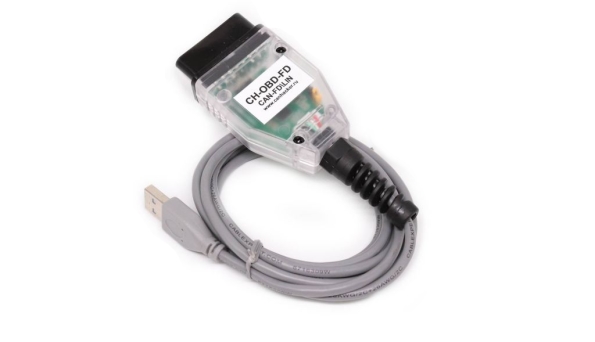

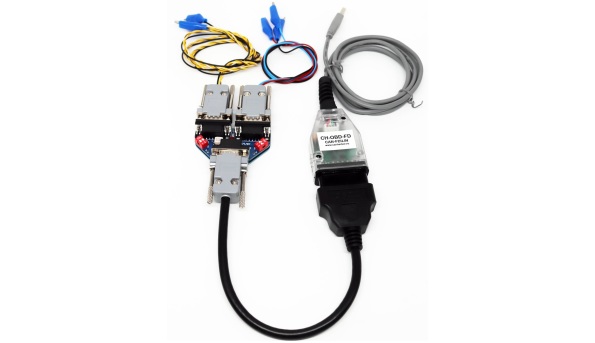

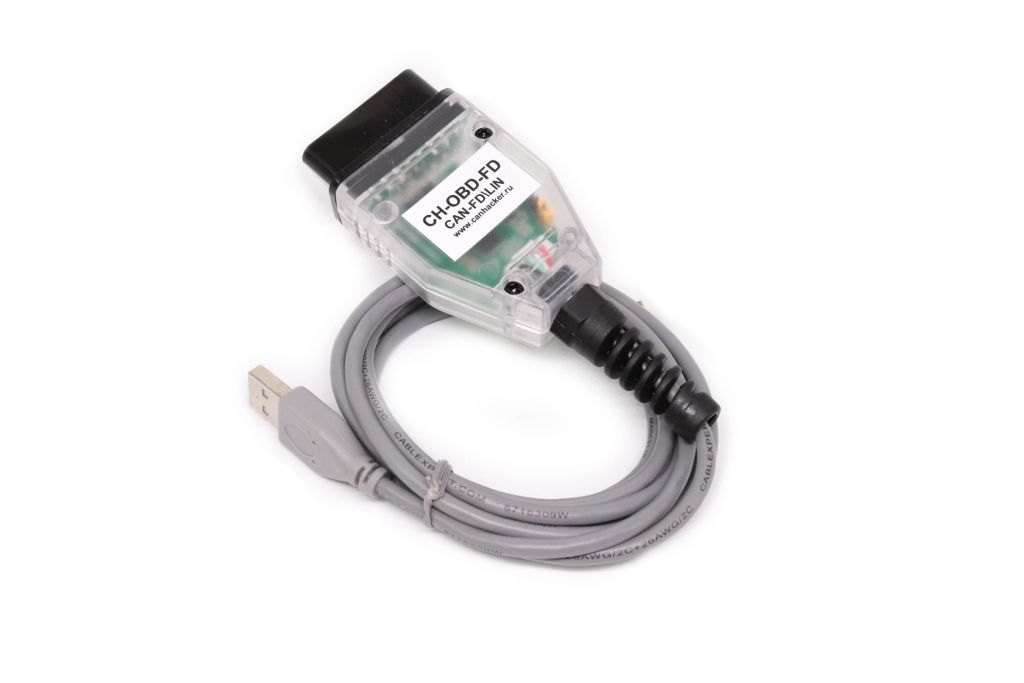

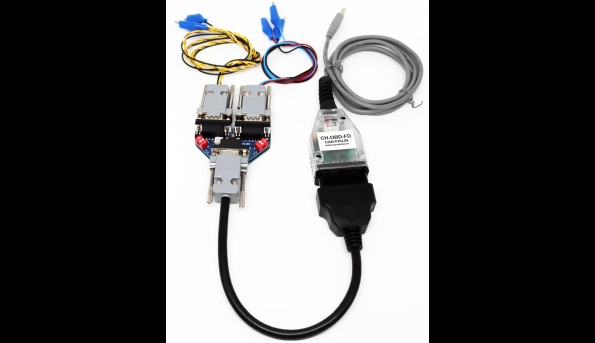

• CAN-Hacker CH-OBD-FD interface
• OBD2-DB9 adapter for connecting standard CAN-Hacker cables

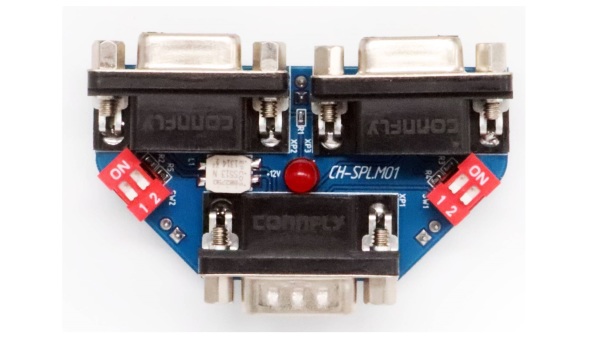

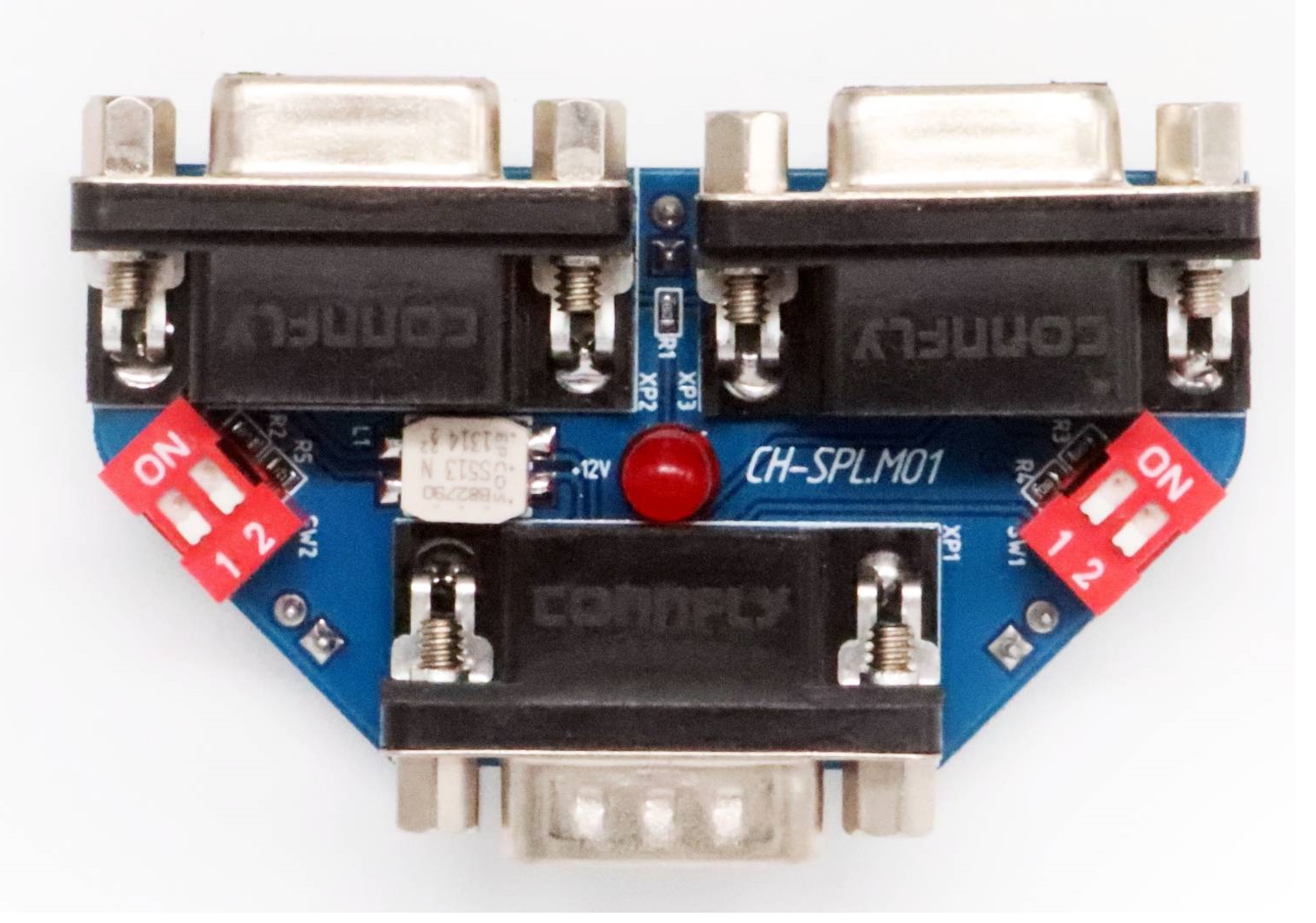

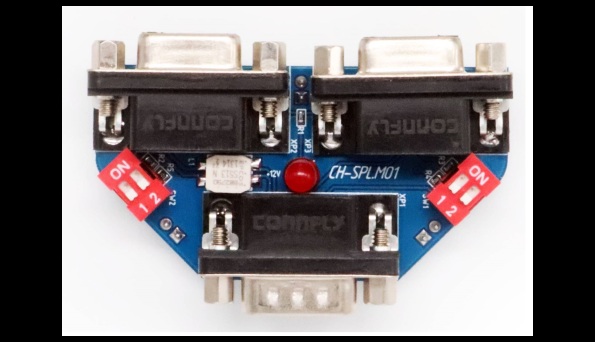

• CAN-LIN splitter. Splits CAN-FD\LIN channels into two connectors
• Cable with crocodile clips for connecting to the CAN-FD, CAN bus
• Cable with crocodile clips for connecting to the LIN bus

Supported software:

• CARBUS Analyzer

IMPORTANT: An internet connection is required for automatic license activation.
