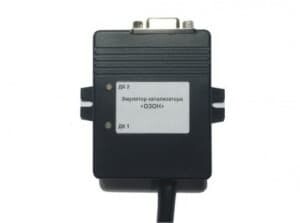

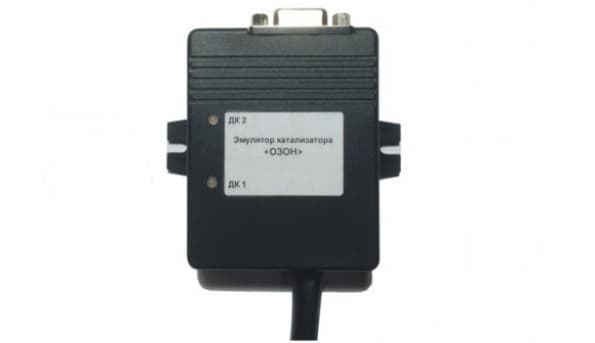

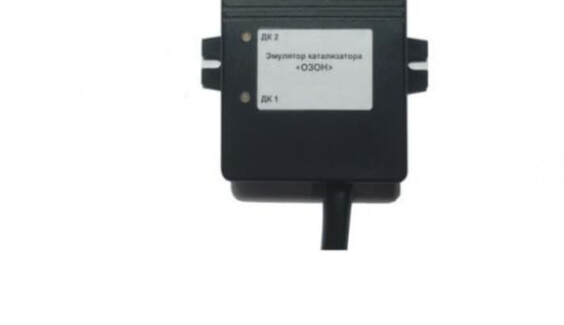

The auxiliary O2 sensor emulator (hereinafter the device) is designed to emulate the signals of downstream (post-catalyst) O2 sensors. The emulator fully replaces the signal of the stock rear O2 sensors responsible for monitoring catalytic converter operation, when diagnosing O2 sensors and the exhaust system. The device emulates the auxiliary O2 sensors by analyzing the signals of the primary (front, B1S1 and B2S1) zirconium dioxide 1-volt O2 sensors, as well as wideband LAF sensors (5-wire lean-mixture sensors). A dedicated operating mode is provided for each sensor type: OSG and LAF. In OSG and LAF modes the device emulates the signals of 1-volt zirconium dioxide (electrochemical) sensors, which are always installed downstream of the catalytic converter (EURO-3 and above).
Device parameters
1 Supply voltage 10-15 V
2 Current consumption no more than 0.05 A
3 Input resistance 1 mOhm
4 Output resistance 10 kOhm
5 Input signal amplitude 0 - 5.0 V
6 Minimum output signal amplitude «lean mixture» for OSG, LAF 0.05 V
7 Maximum output signal amplitude «rich mixture» for OSG, LAF 0.95 V
8 Operating temperature range from -25 to +85°C
9 Device dimensions 73×77×21 mm
10 Device weight 100 g.
