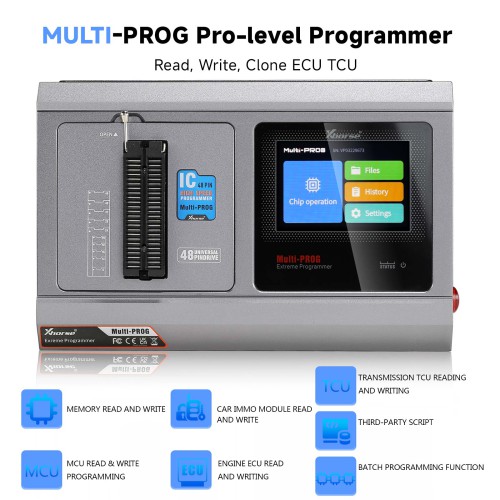

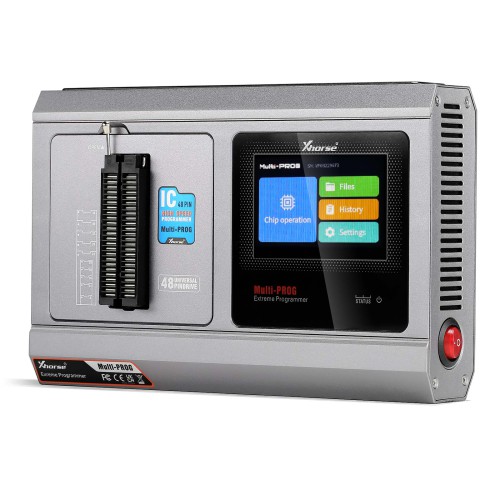

Xhorse VVDI Multi-Prog Programmer

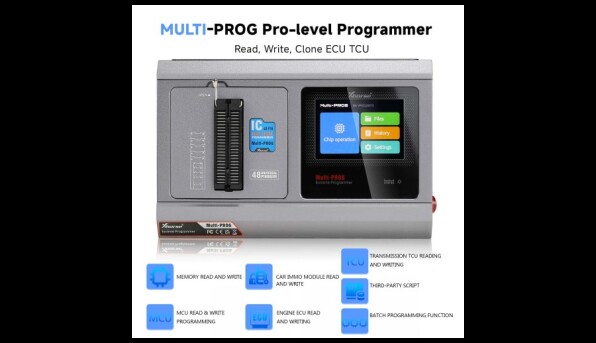

Xhorse MULTI-PROG Pro-level programmer is a reading and writing device for automotive chips, electronic modules, especially ECU modules. It integrates the programming, reading, writing and cloning functions of common automotive MCUs, automotive memory chips, common electronic modules and automotive ECU boards.

Xhorse VVDI Multi Prog Functions:

1. Read, Write and Clone ECU

• BMW B48/ B58 reading ISN
• BMW MSD80/ 81/ 85/ 87/ MSV90
• Mercedes-Benz SIM271
• BMW MSV80
• VW BOSCH MED17 Series ECUo BMW N13/ N20/ N55/ B38/ TC17X
• Support Marelli. Siemens. Delphi and other ECU manufacturers

2. Read, Write and Clone TCU

• Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.
• Porsche DL501 TCU
• Ford Dodge and other MPS6 series TCU
• BMW DKG, Mercedes-Benz VGS and other models TCU

3. Vehicle Engine Data Calculation and Processing

• MED17/ EDC17 data processing

4. Support Flexible Extension of Third-party Plug-ins

• Support the development of third-party plug-ins and provide data processing and modification services

5. Read Write MCU

• Support reading and writing MCU of various brands including Renesas, Motolora, NXP, Infineon, etc.
• Support certain encrypted chip reading and writing

6. Read Write Vehicle Immo Module

• Support Porsche, LandRover, Mercedes-Benz EZS, VOLVO, VW MQB dashboard, AUDI BCM2,etc.
• Support modules including BMW EWS, CAS1/ CAS2/ CAS3/ CAS4+, FEM BDC.etc.
• Support other common immo modules

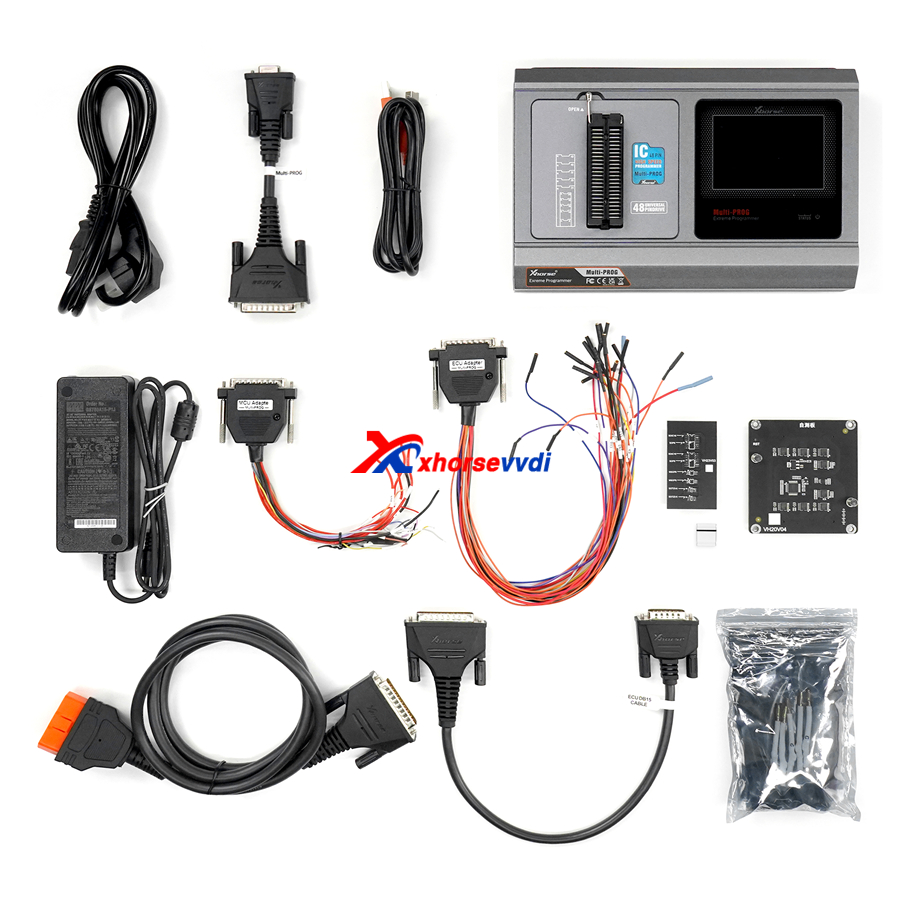

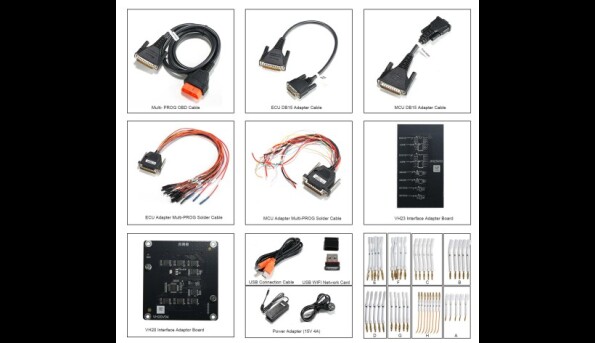

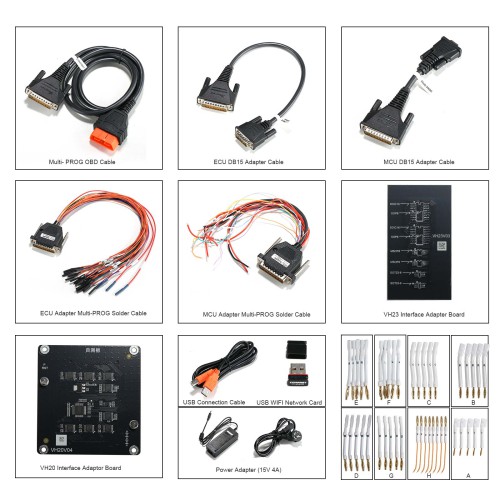

Note: Compatible with Xhorse solder-free adapters and cables

7. Read & Write EEPROM

• Support EEPROM and FLASH

8. Read Write Vehicle Dashboard

• Support dashboard of VW, Honda, Hyundai, Kia.etc.

Multi Prog Specification:
Operating system: Linux
Processor: ZYNQ7020 Dual-core Cortex A9 +FPGA
Memory: 256M* 2 DDR+64M NOR FLASH
Display: 3.5-inch
Input voltage: 15V/4A
Working current: 300mA(14V)
Working temperatures: -20-50℃
Storage temperatures: -30-65℃

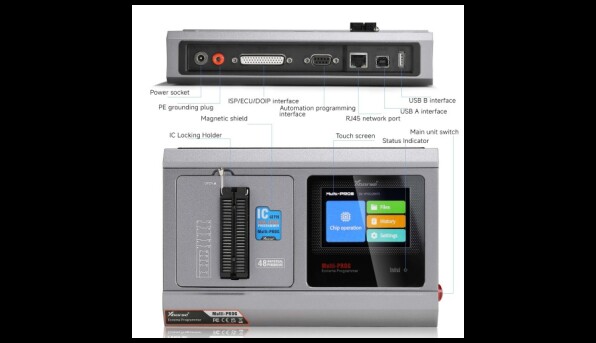

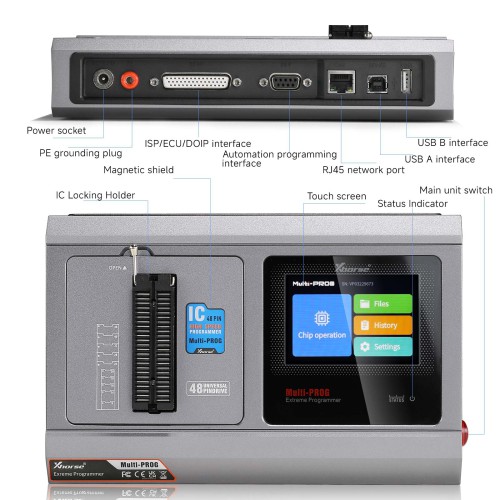

External interface: USB/RJ45
Dimensions: 233*150*54mm

Xhorse Multi Prog ECU and TCU List (Keep Updating)

ECU (Bench Mode)
VAG
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MG1CA811
3. BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED1 7.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
4. BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
5. BOSCH: MG1CS002一SPC5777, MD1 CP014_TC298TP, MG1 CS001_SPC5777, MG1 CS011 _SPC5777, MG1CS002_TC298TP, MD1 CP004_TC298TP, MD1 CP004一SPC5777, MG1 CS111 一SPC5777, MD1 CS004_TC298TP, MG1 CS008_SPC5777, MG1CS008_TC298TP
6. CONTINENTAL: SIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X

BMW
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: MD1CP002_SPC5777, MG1 CS003_SPC5777 (B48, B58), MG1 CS201 _TC298TP (B38, B48, B58), MD1CS001_TC298TP, MG1 CS024_TC298TP(B48, B58), MD1CP032_TC299
3. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC1 7CP45_Exx, EDC17C06, EDC17C56
4. BOSCH: MEI 7.2.1
5. BOSCH: MEVD1 7.2.3, MEVD1 7.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
6. OSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1

Mercedes Benz
1. CONTINENTAL: SIM271 DE, SIM271 KE
2. BOSCH: MEI 7.7, MED17.7.3.1, MED1 7.7.1, MED1 7.7.2, MED1 7.7.3, ME1 7.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. BOSCH: CRD3x.x_TC1793, CRD3x.x_TC1 797
5. BOSCH: MD1CP001-SPC5777, MG1 CP002_SPC5777, MD1CS006_TC298TP

GM
1. DELPHI: DCM3.7AP
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98

Nissan
1. DENSO: 23740-3Nxxx_Gen1 SH72531
2. BOSCH:EDC17C84

Hyundai/Kia
1. BOSCH: ME17.9.11, MEI 7.9.11.1
2. BOSCH:EDC17C53
3. BOSCH: MEG17.9.1 2_ECU

Ford
1. BOSCH: EDC17C70, EDC17CP65
2. BOSCH: ME17.0.3, ME17.8.5

Volvo
BOSCH: EDC17CP48, EDC1 7CP48_ver2, EDC1 7CP22

Other
1. AM_ME1 7.8.5,DOO_ME17.8.5
2. BOSCH: MG1CA007, MEI 7.8.8_TC1728, ME1 7.8.8_TC1 728_HW2, ME17.8.8_TC1 767, ME1 7.8.31, ME1 7.9.52
3. BOSCH: EDC1 7C55, EDC1 7C1 0, EDC1 7C1 0_TC1 796, EDC1 7C1 0_TC1 797, EDC1 7CP42, EDC1 7CP14, EDC17c81
4. BOSCH: MEVD1 7.8.4
5. BOSCH: MED17.8.1 0_TC1 728, MED17.8.1 0_TC1 728_Hw2, MED1 7.8.1 0_TC1 767
6. BOSCH: MD1 CS01 8, MG1 CS026_SPC58, MG1 CS032, MG1CS163, MD1CS01 2, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1 CS01 5_TC277TP, MG1 CS01 6_TC275TP, MG1CS01 7_TC277TP, MG1CS01 8, MG1CS019, MG1CS088
7. CONTINENTAL: SID208, SID209, SID211, SID807EVO ⑧ DENSO: KH, ZY, SH70xx_275xxx-xxx

ECU (Boot Mode)
VW series
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MED17.1.6, MED17.1.21, MED1 7.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED17.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
3. BOSCH: EDC1 7C46, EDC1 7C74, EDC1 7CP24, EDC1 7CP44, EDC1 7CP54, EDC17U01, EDC17U05
4. BOSCH: SIMOS8.3X, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X

BMW series
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
3. BOSCH: ME1 7.2.1
4. BOSCH: MEVD1 7.2.3.MEVD17.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD1 7.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD1 7.2.P_Fxx, MEVD1 7.2.K
5. BOSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1

Mercedes Benz series
1. CONTINENTAL: SIM271 DE,SIM271 KE
2. BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED1 7.7.2, MED1 7.7.3, ME17.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. DELPHI: CRD2.x_MPC556x

Nissan series
BOSCH: EDC17C84

GM series
1. DELPHI: MT80.MT80.1
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98

Hyundai/Kia series
1. DELPHI: MT86
2. DELCO: DCM6.2AP

Other
1. CONTINENTAL: SID208, SID209, SID211, SID807EVO, SID310
2. SDI21.1,SDI21.2,SDI21.3
3. BOSCH: ME1 7.3.0
4. MARELLI: 8DF, MM10JA

TCU (Bench Mode)
VW
DL382, VL381, DL501 Genl, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250

Exx/Fxx BMW series
GETRAG DKG 436 Genl, GETRAG DKG 436 Gen2

Mercedes Benz series
VGS-FDCT, VGS2-FCVT, VGS2-FDCT

Ford series
1. ETRAG MPS6GETRAG
2. DPS6, DC4

TCU (Boot Mode)
Ford series
DPS6, DC4

Other
ZF 9HP
