Alientech K-Tag Master
- K-TAG Master (Tool) 14KT00KTAM
- Connection Basic Kit 144300KTST
- Boards to be soldered: 14AS00T01S, 14AS00T03S, 14AS00T04S
- Cables for MED17-EDC17 14P600KT02
- Battery cable (crocodile clips) 144300К218
- USB cable

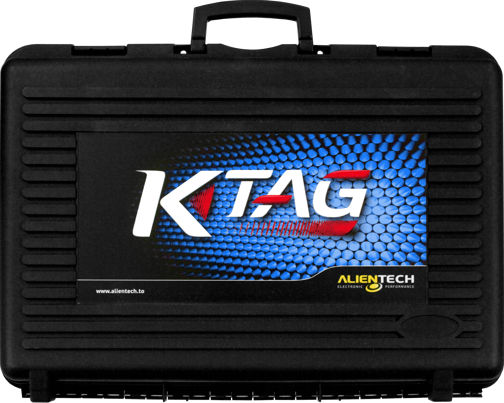

- Carrying case

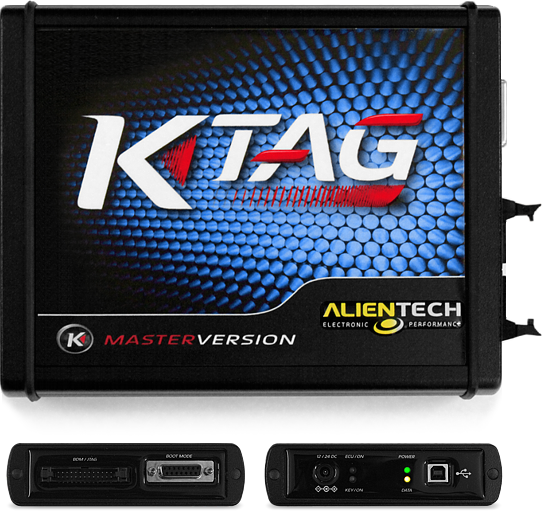

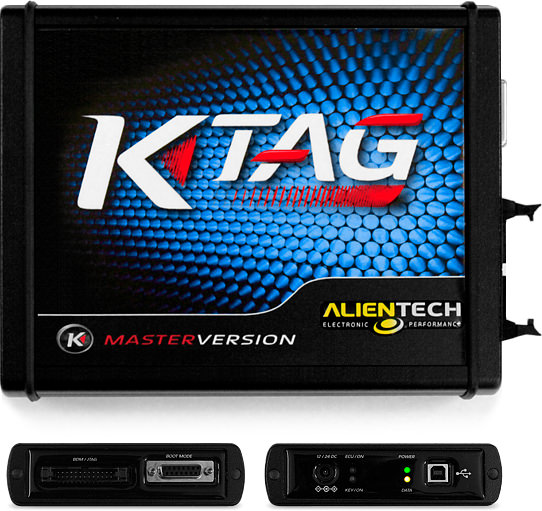

K-TAG Master is a professional universal bench programmer for ECUs and TCUs of cars, motorcycles, trucks, agricultural machinery and boats.
K-TAG can communicate with all the ECUs, also of the last generation, through a direct connection to the micro. This tool will allow you to read and write the microprocessor of the control unit, the flash memory and the EEPROM. It’s the best choice for the professional who wants to be the best.
The solution K-Tag Master is suggested to professionals who want to have the complete control of the remapping procedure of the car ECU. First you read the files inside the ECU using K-Tag, then you edit their parameters using our software ECM Titanium according to the needs of your customers, and last you re-write them back in the ECU.
- Complete access to the ECU EEPROM and micro;
- Automatic checksum correction;
- Activation sorted by microprocessor;
- ECU data cloning;
- Update for new vehicles.
- ECU files reading;
- ECU files writing;
- Single software manager: K-Suite;
- Illustrated multilingual manual;
- Non-mandatory subscription;
- Backup and cloning available.

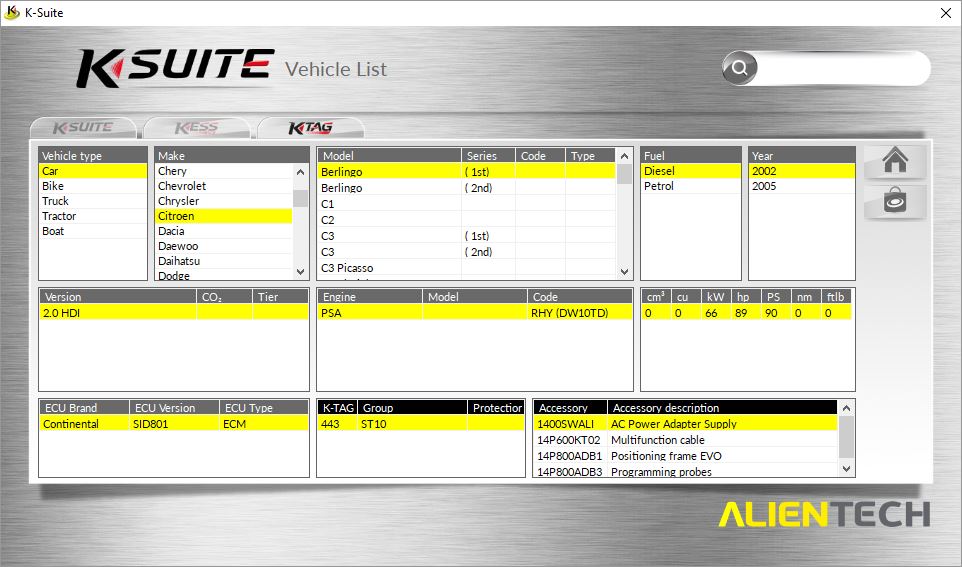

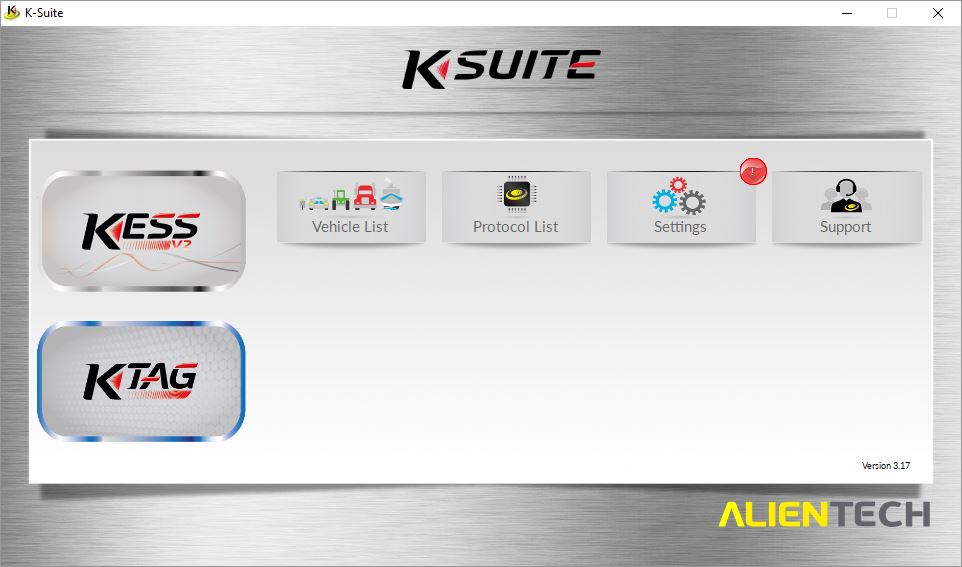

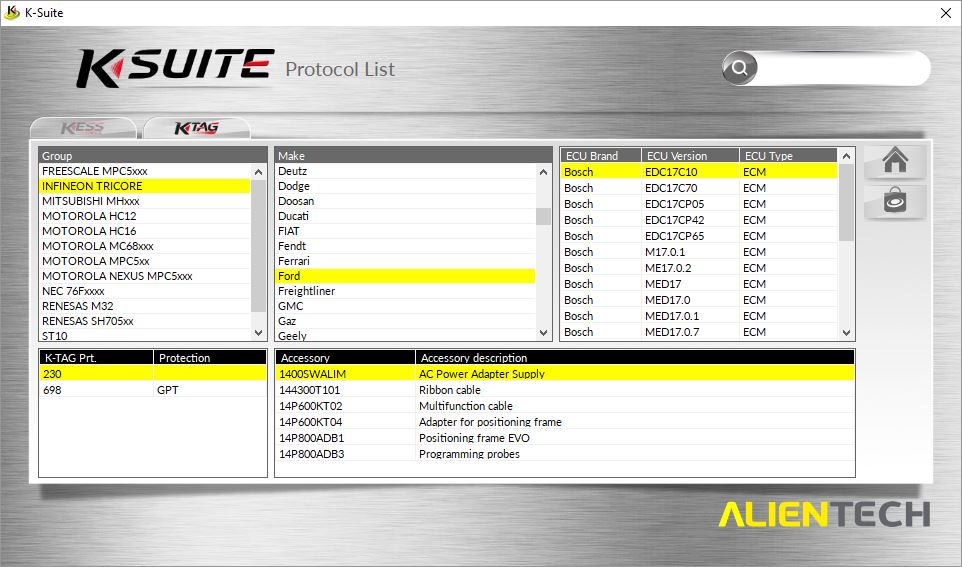

An important help is K-Suite, K-TAG software, that easily and step by step will lead you through all the stages: selection of the vehicle or of the ECU you want to work on, updates manuals for any single protocol, necessary cables and also implementations and developments to let your business grow exponentially:
- DESIGN: Intuitive and totally renewed graphics — user experience improved. From the icon of the vehicles supported to the control dashboard, from the customized details to a software uniformed and easy to use.
- OPERATING SPEED: The most common operations are instinctive and immediate. In a few steps you will be able to select the tool to be used and the vehicle, finding out which cables and accessories are required and access to the online shop directly.
- FEATURES: The vehicles’ list is always at hand, more complete and detailed. Thousands of notes and information. The search option in K-Suite is easier and quicker, one single spec is enough.
- TOTALLY RENEWED TECHNICAL MANUALS: All the descriptions are clearer and easier, a complete and reliable guide to work in total safe. A zoom feature is available to help you during the most delicate steps of your work.
BDM Motorola MPC5xx protocol activation
JTAG Nexus MPC5xxx protocol activation
JTAG Renesas SH705x protocol activation
Bootloader Mitsubishi MH72xx/MH8xxx protocol activation
Bootloader Infineon Tricore and Booloader ST10Fxxx protocol activation
BDM Motorola 68000HC protocol activation
BDM Motorola HC12 protocol activation
Bootloader RENESAS M32 protocol activation
NBD NEC 76F00xx Toyota protocol activation
JTAG Motorola MPC5xxx – Freescale SPC5xxxx protocol activation
Activation of all protocols available at the time of purchase
Replacement Kit with boards and wire in the basic kit
BDM Motorola MPC5xx Adapter Kit: 14AM00T00M - 14AM00T01M - 14AM00TBAS - 14AM00TB01 - 14AM00TB02 - 14AM00TB03 - 14AM00T02M
JTAG Nexus MPC5xxx Adapter Kit: 14AM00T05M - 14AM00T06M - 14AM00T14M
JTAG Renesas Adapter Kit: 14AM00T07M - 14AM00T10M - 14AM00T09M - 14AM00T08M - 14AM00T11M - 14AM00T28M - 14AM00T29M - 14AM00T30M
Bootloader Infineon Tricore/Bootloader ST10Fxxx Adapter Kit: 14AM00T03M - 14P600KT04 – 14AM00T17M – 14AM00T24M – 14AM00T25M – 14AM00T20M – 14AM00T22M - 14AM00T23M
Renesas M32 ECU Denso: Board for Positioning Frame for Denso ECUs used on Kawasaki-Suzuki vehicles
Motorola MPC5xx ECU Delphi Dci: Board for Positioning Frame for Delphi DCI ECUs
Motorola MPC5xx ECU BOSCH: Board for Positioning Frame for Bosch ECUs
Motorola MPC5xx Delphi DCM: Board for Positioning Frame for Delphi DCM ECUs
ST10Fxxx ECU Bosch MED7/STD10: Board for Positioning Frame for Bosch ECUs equipped with ST10Fxxx microprocessor
Nexus MPC5xxx ECU Marelli: Board for Positioning Frame for Marelli ECUs equipped with MPC5xxx microprocessor
Nexus MPC5xxx ECU Delphi: Board for Positioning Frame for Delphi ECUs equipped with MPC5xxx microprocessor
Renesas SH705x ECU Denso: Boards for Positioning Frame to write Denso ECUs
Renesas SH705x ECU Denso: Board for Positioning Frame to write Denso ECUs in Mitsubishi vehicles
Renesas SH705x ECU Denso: Board for Positioning Frame to write Denso ECUs in Suzuki vehicles
Nexus MPC5xxx ECU TRW: Board for Positioning Frame for TRW Truck ECUs
Nexus EFI T6 Lotus: Board for Positioning Frame for EFI ECUs equipped with T6 microprocessor
Motorola MPC5xx Board Siemens: Pull-out Tip for Multi-function Board for Siemens ECUs
Motorola MPC5xx Board Marelli: Pull-out Tip for Multi-function Board for Marelli ECUs
Motorola MPC5xx Board Bosch EDC7: Pull-out Tip for Multi-function Board for Bosch EDC7 ECUs
Motorola MPC5xx Multi-function Board: Multi-function Board for Positioning Frame for 1,27 thread pull-out Tips
Motorola MPC5xx ECU TRW: Board to be soldered for TRW Truck ECUs
Nexus MPC5xxx ECU TRW: Board to be soldered for TRW Truck ECUs
Infineon Tricore ECU Bosch EDC17/MED17: Board for Positioning Frame for Bosch ECUs equipped with "Antintuning" firmware
ECU Data - Cable: OBDII Cable for KTAG ECU Data function
Infineon Tricore EDC GPT Cable: Connection cable for Bosch EDC17GPT ECUs
Infineon Tricore MED GPT Cable: Connection cables for Bosch MED17 GPT ECUs
Infineon Tricore GPT Cable Kit: Connection cables for Bosch EDC17-MED17 GPT ECUs (14P600KT03 and 14P600KT06)
SMD Grabber Probe Kit: 3 Grabber Probes with SMD (BGA microprocessor)
Motorola MPC56xxx ECU Marelli: Board for Positioning Frame for Marelli ECUs
Adapters for Positioning Frame – the suitcase contains the following items: 144300KBDM - 144300KTR3 - 144300KNEX - 144300KRE1 - 144300KNEC – 14AM00T18M
Infineon Tricore ECU Bosch EDC17C59: Adapter for Positioning Frame on Bosch EDC17C59 ECUs using Infineon Tricore
Infineon Tricore ECU Bosch MEDC17.9: Adapter for Positioning Frame on Bosch MEDC17.9 ECUs using Infineon Tricore
Infineon Tricore ECU SID208-SID209: Adapter for Positioning Frame on Continental SID208-SID209 ECUs using Infineon Tricore
Infineon Tricore ECU SID807: Adapter for Positioning Frame on Continental SID807 ECUs using Infineon Tricore
Cable for MED17-EDC17 ECUs from the Basic Kit.
Infineon Tricore ECU Simos PCR 2.1 Cable
NBD NEC 76F00xx Adapter Kit for Positioning Frame using NEC 76F00xx: 14AM00T15M - 14AM00T16M -144300T110
Positioning Frame Evo: Positioning Frame with upper illumination deck and 4 programming probes
Upper illumination deck: Upper illumination deck and programming probes
Programming probes kit: 4x Programming probes
Master - 12 Months Subscription
Denso ECU Board for Positioning frame: Toyota vehicles (JTAG 20 pins). Step 1.27x5.8 mm
