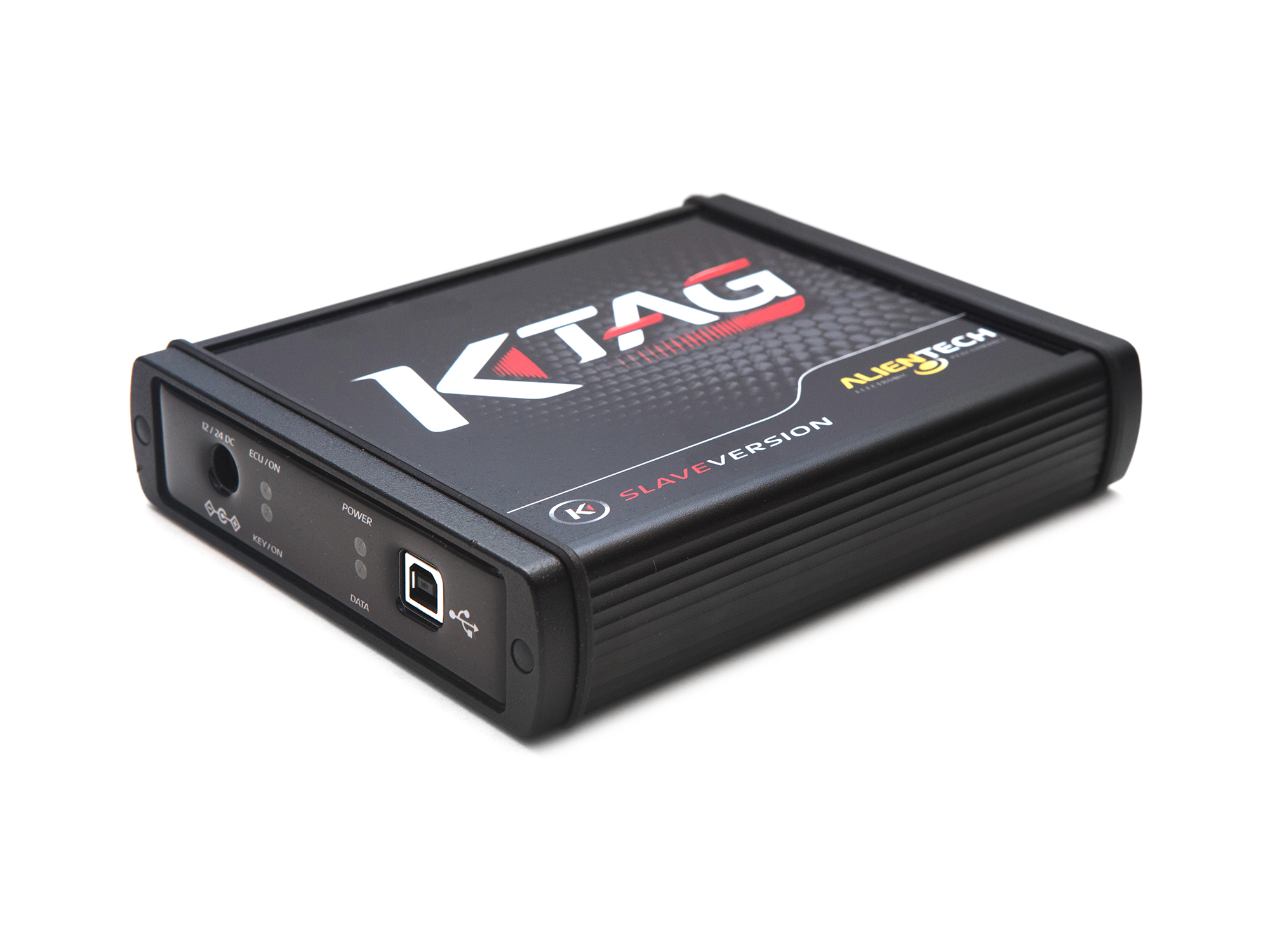

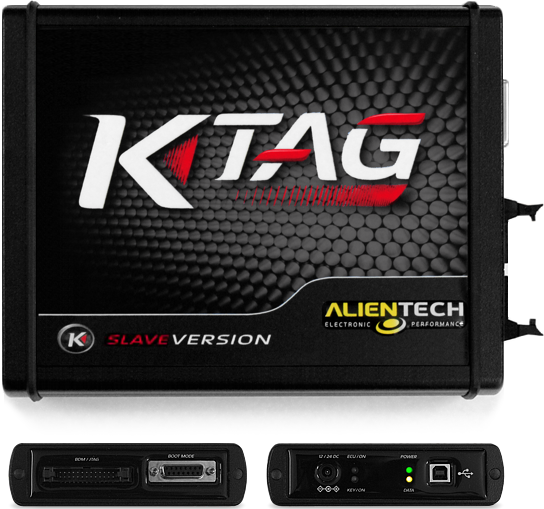

Alientech K-Tag SlaveItem no.: 11K1000

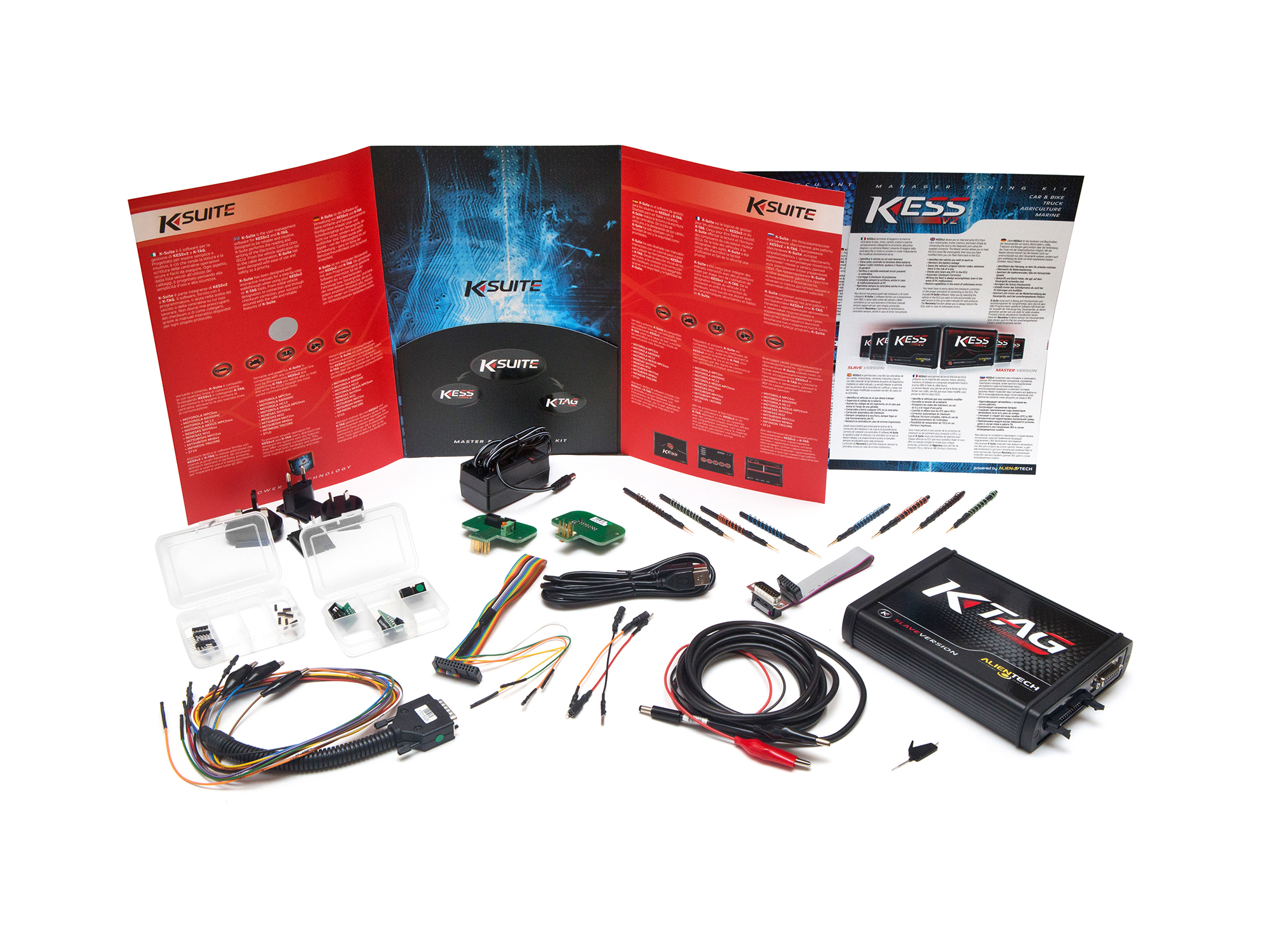

- K-TAG Slave (Tool) 14KT00KTAM
- Connection Basic Kit 144300KTST
- Boards to be soldered: 14AS00T01S, 14AS00T03S, 14AS00T04S
- Cables for MED17-EDC17 14P600KT02
- Battery cable (crocodile clips) 144300K218
- USB cable

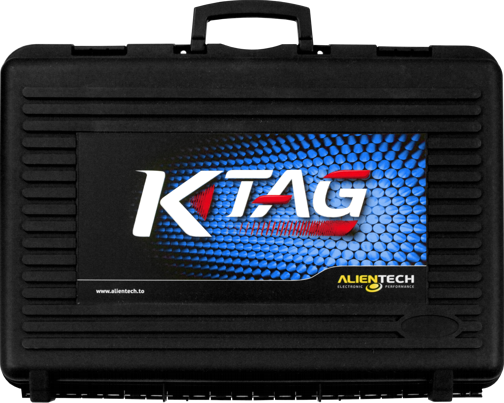

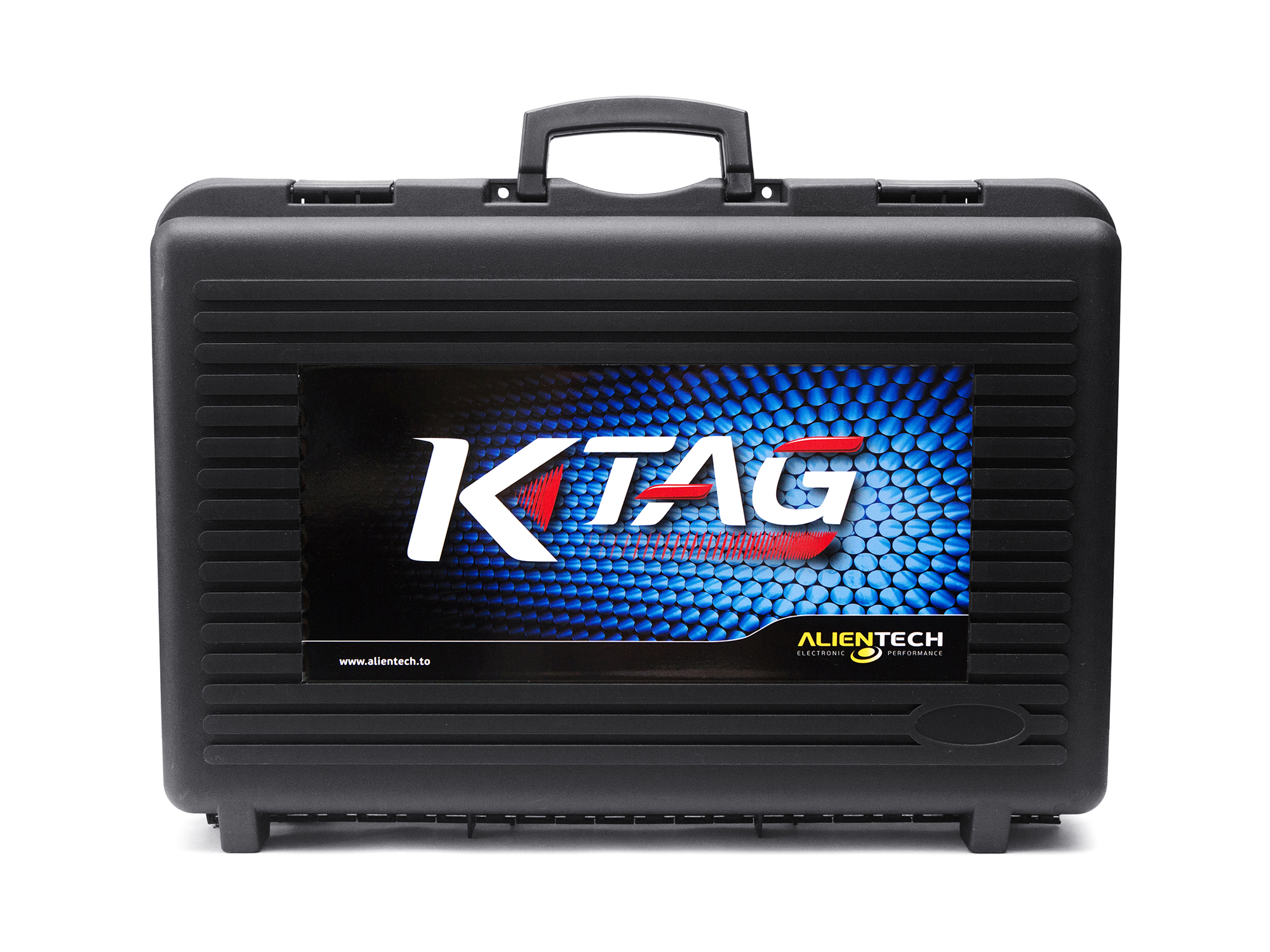

- Carrying case
- 14P600KT03 Infineon Tricore EDC GPT Connection Cable for Bosch EDC17 GPT ECUs
- 14P600KT06 Infineon Tricore MED GPT Connection Cable for Bosch MED17 GPT ECUs
K-TAG Slave is a professional universal bench programmer for ECUs and TCUs of cars, motorcycles, trucks, agricultural machinery and boats.
K-TAG can communicate with all the ECUs, also of the last generation, through a direct connection to the micro. This tool will allow you to read and write the microprocessor of the control unit, the flash memory and the EEPROM. It’s the best choice for the professional who wants to be the best.K-TAG Slave solutions are the best for those garages that want to quickly penetrate in the world of Chiptuning, offering to you customed files just for you. Thanks to your K-TAG you can write the files sent to you by your master right in the ECU, in a few minutes. You can select your Master from the network of our expert tuners, certified by our Academy program. Engine remapping safe and a reliable final result.
- Complete access to the ECU EEPROM and micro;
- Automatic checksum correction;
- Activation sorted by microprocessor;
- ECU data cloning;
- Update for new vehicles.
- ECU files reading;
- ECU files writing;
- Single software manager: K-Suite;
- Illustrated multilingual manual;
- Non-mandatory subscription;
- Backup and cloning available.

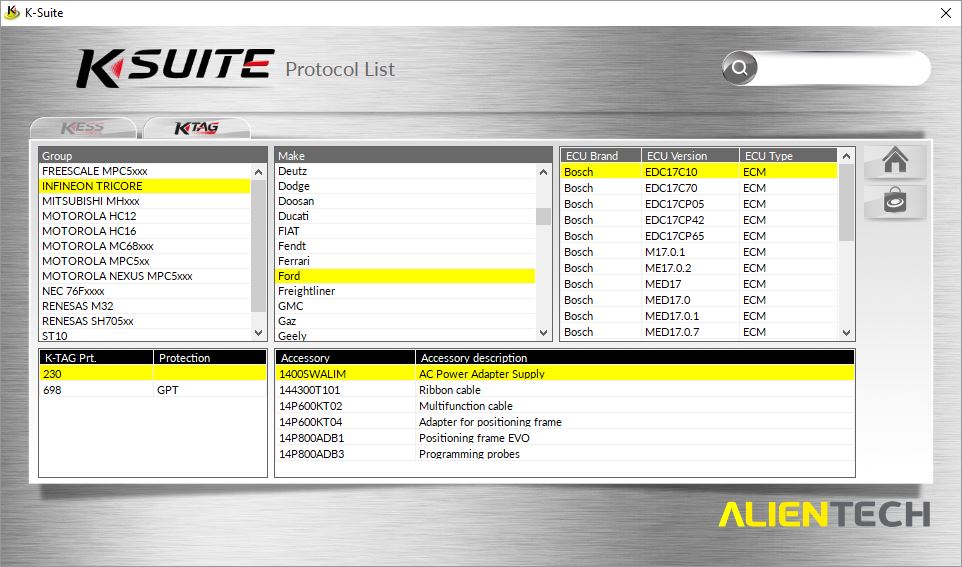

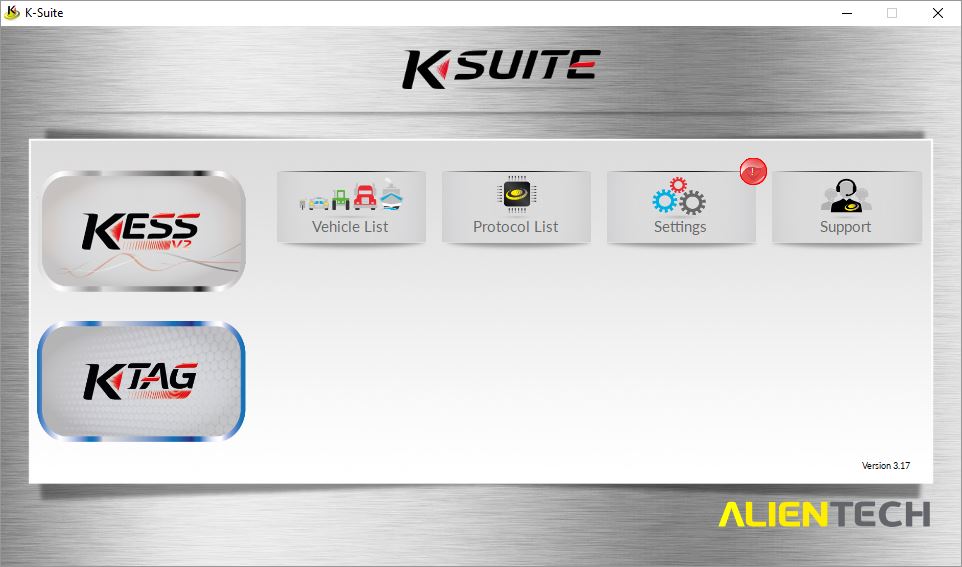

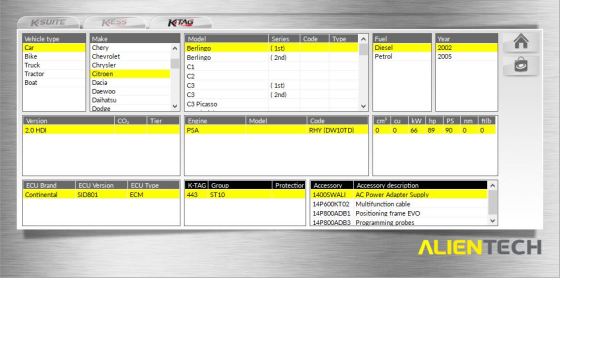

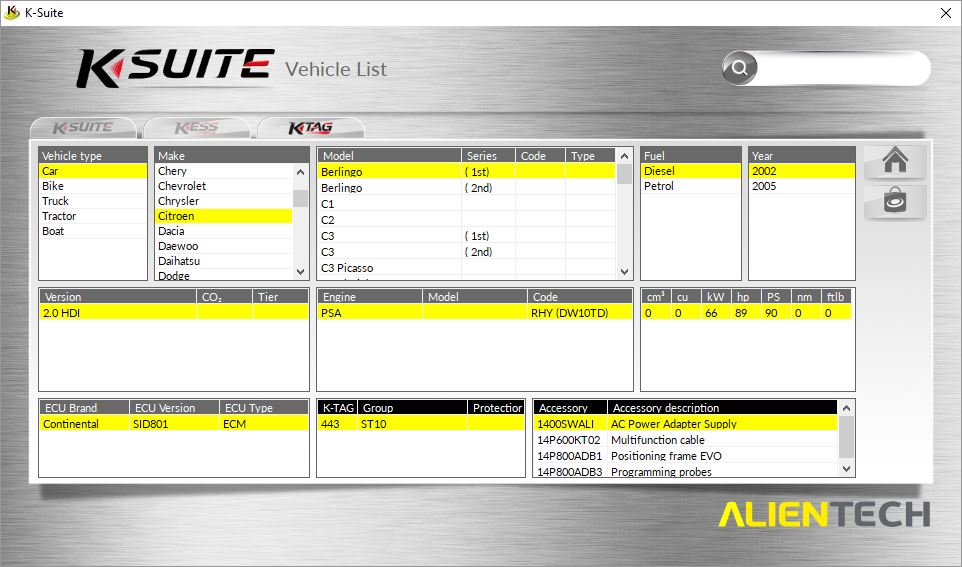

An important help is K-Suite, K-TAG software, that easily and step by step will lead you through all the stages: selection of the vehicle or of the ECU you want to work on, updates manuals for any single protocol, necessary cables and also implementations and developments to let your business grow exponentially:
- DESIGN: Intuitive and totally renewed graphics — user experience improved. From the icon of the vehicles supported to the control dashboard, from the customized details to a software uniformed and easy to use.
- OPERATING SPEED: The most common operations are instinctive and immediate. In a few steps you will be able to select the tool to be used and the vehicle, finding out which cables and accessories are required and access to the online shop directly.
- FEATURES: The vehicles’ list is always at hand, more complete and detailed. Thousands of notes and information. The search option in K-Suite is easier and quicker, one single spec is enough.

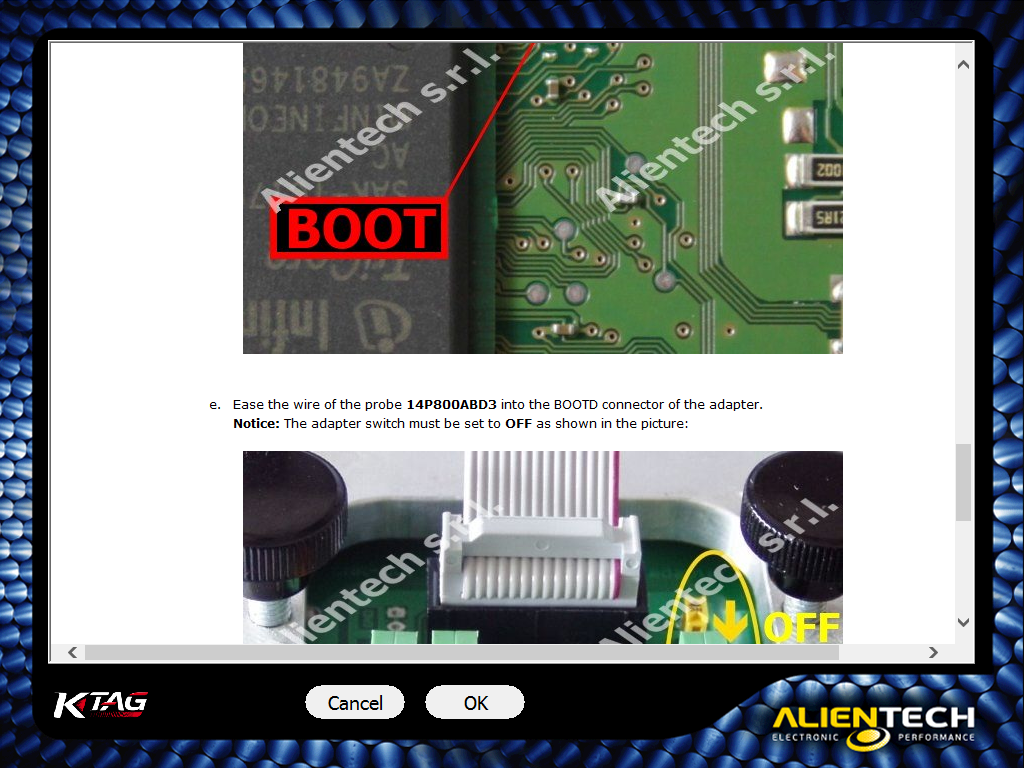

- TOTALLY RENEWED TECHNICAL MANUALS: All the descriptions are clearer and easier, a complete and reliable guide to work in total safe. A zoom feature is available to help you during the most delicate steps of your work.
- Motorola MPC5xx microprocessor
- Nexus MPC5xxx microprocessor
- Renesas SH705x microprocessor
- Mitsubishi MH72xx/MH8xxx microprocessor
- Infineon Tricore microprocessor
- ST10Fxxx microprocessor
- Motorola 68000HC microprocessor
- Motorola HC12 microprocessor
- Renesas M32 microprocessor
- NEC 76F00xx microprocessor
- Motorola MPC5xxx – Freescale SPC5xxxx microprocessor
BDM Motorola MPC5xx Adapter Kit: 14AM00T00M - 14AM00T01M - 14AM00TBAS - 14AM00TB01 - 14AM00TB02 - 14AM00TB03 - 14AM00T02M
JTAG Nexus MPC5xxx Adapter Kit: 14AM00T05M - 14AM00T06M - 14AM00T14M
JTAG Renesas Adapter Kit: 14AM00T07M - 14AM00T10M - 14AM00T09M - 14AM00T08M - 14AM00T11M - 14AM00T28M - 14AM00T29M - 14AM00T30M
Bootloader Infineon Tricore/Bootloader ST10Fxxx: 14AM00T03M - 14P600KT04 – 14AM00T17M – 14AM00T24M – 14AM00T25M – 14AM00T20M – 14AM00T22M - 14AM00T23M
Renesas M32 ECU Denso: Board for Positioning Frame for Denso ECUs used on Kawasaki-Suzuki vehicles
Motorola MPC5xx ECU Delphi Dci: Board for Positioning Frame for Delphi DCI ECUs
Motorola MPC5xx ECU BOSCH: Board for Positioning Frame for Bosch ECUs
Motorola MPC5xx Delphi DCM: Board for Positioning Frame for Delphi DCM ECUs
ST10Fxxx ECU Bosch MED7/STD10: Board for Positioning Frame for Bosch ECUs equipped with ST10Fxxx microprocessor
Nexus MPC5xxx ECU Marelli: Board for Positioning Frame for Marelli ECUs equipped with MPC5xxx microprocessor
Nexus MPC5xxx ECU Delphi: Board for Positioning Frame for Delphi ECUs equipped with MPC5xxx microprocessor
Renesas SH705x ECU Denso: Boards for Positioning Frame to write Denso ECUs
Renesas SH705x ECU Denso: Board for Positioning Frame to write Denso ECUs in Mitsubishi vehicles
Renesas SH705x ECU Denso: Board for Positioning Frame to write Denso ECUs in Suzuki vehicles
Nexus MPC5xxx ECU TRW: Board for Positioning Frame for TRW Truck ECUs
Nexus EFI T6 Lotus: Board for Positioning Frame for EFI ECUs equipped with T6 microprocessor
Motorola MPC5xx Board Siemens: Pull-out Tip for Multi-function Board for Siemens ECUs
Motorola MPC5xx Board Marelli: Pull-out Tip for Multi-function Board for Marelli ECUs
Motorola MPC5xx Board Bosch EDC7: Pull-out Tip for Multi-function Board for Bosch EDC7 ECUs
Motorola MPC5xx Multi-function Board: Multi-function Board for Positioning Frame for 1,27 thread pull-out Tips
Infineon Tricore ECU Bosch EDC17/MED17: Board for Positioning Frame for Bosch ECUs equipped with "Antintuning" firmware
Infineon Tricore EDC GPT Cable: Connection cable for Bosch EDC17GPT ECUs
Infineon Tricore MED GPT Cable: Connection cables for Bosch MED17 GPT ECUs
Infineon Tricore GPT Cable Kit: Connection cables for Bosch EDC17-MED17 GPT ECUs (14P600KT03 and 14P600KT06)
SMD Grabber Probe Kit: 3 Grabber Probes with SMD (BGA microprocessor)
Adapters for Positioning Frame – the suitcase contains the following items: 144300KBDM - 144300KTR3 - 144300KNEX - 144300KRE1 - 144300KNEC – 14AM00T18M
Infineon Tricore ECU Bosch EDC17C59: Adapter for Positioning Frame on Bosch EDC17C59 ECUs using Infineon Tricore
Infineon Tricore ECU Bosch MED17.9.7: Adapter for Positioning Frame on Bosch MED17.9.7 ECUs using Infineon Tricore
Infineon Tricore ECU SID208-SID209: Adapter for Positioning Frame on Continental SID208-SID209 ECUs using Infineon Tricore
Infineon Tricore ECU SID807: Adapter for Positioning Frame on Continental SID807 ECUs using Infineon Tricore
Головка для подключения к ЭБУBosch MEDC17.9 процессор Infineon Tricore (для стола позиционера).
Комлект головок с кейсом: 144300KBDM - 144300KTR2 - 144300KNEX - 144300KREN - 144300KNEC – 14AM00T18M.
Positioning Frame Evo: Positioning Frame with upper illumination deck and 4 programming probes
Upper illumination deck: Upper illumination deck and programming probes
