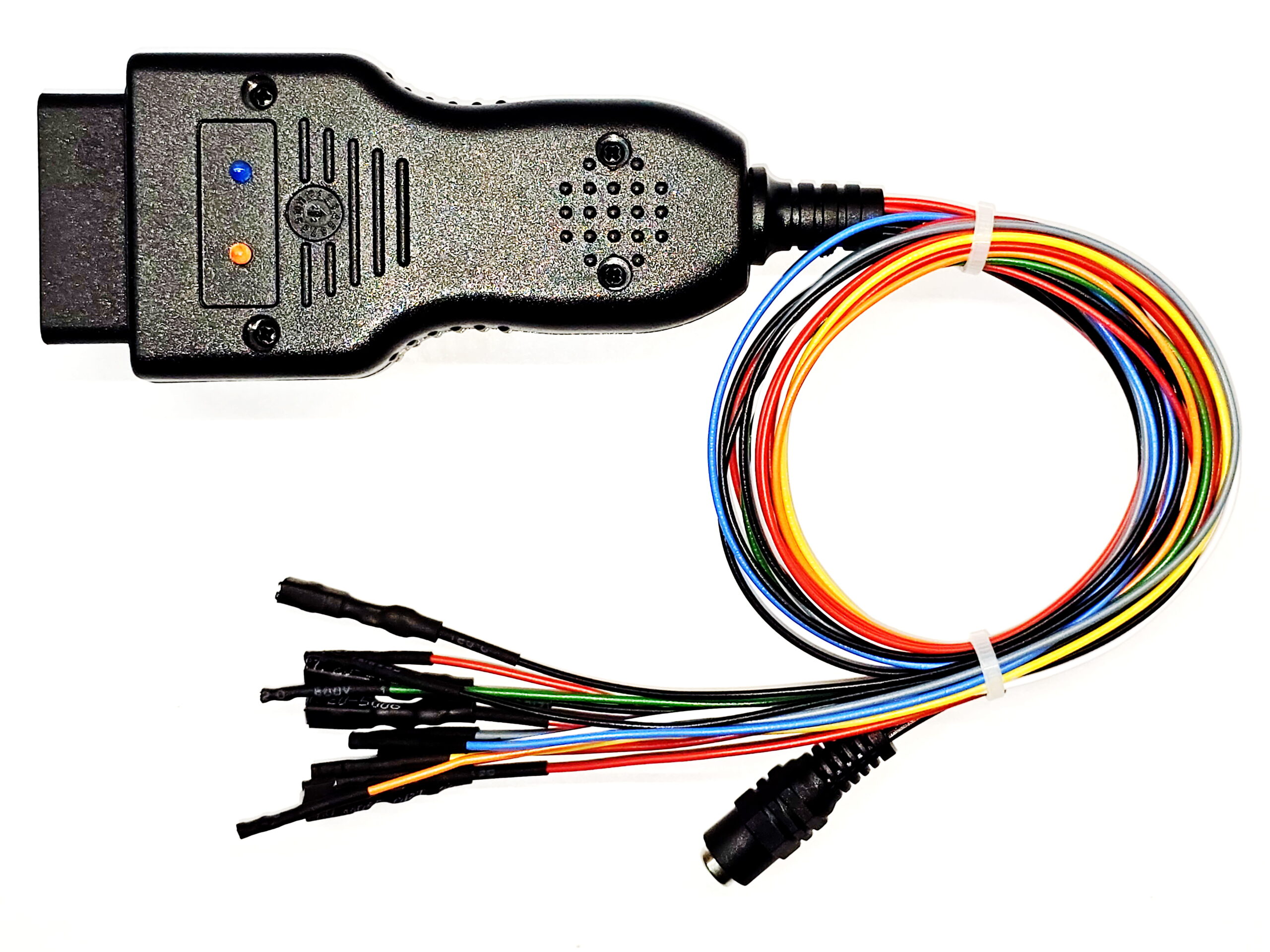

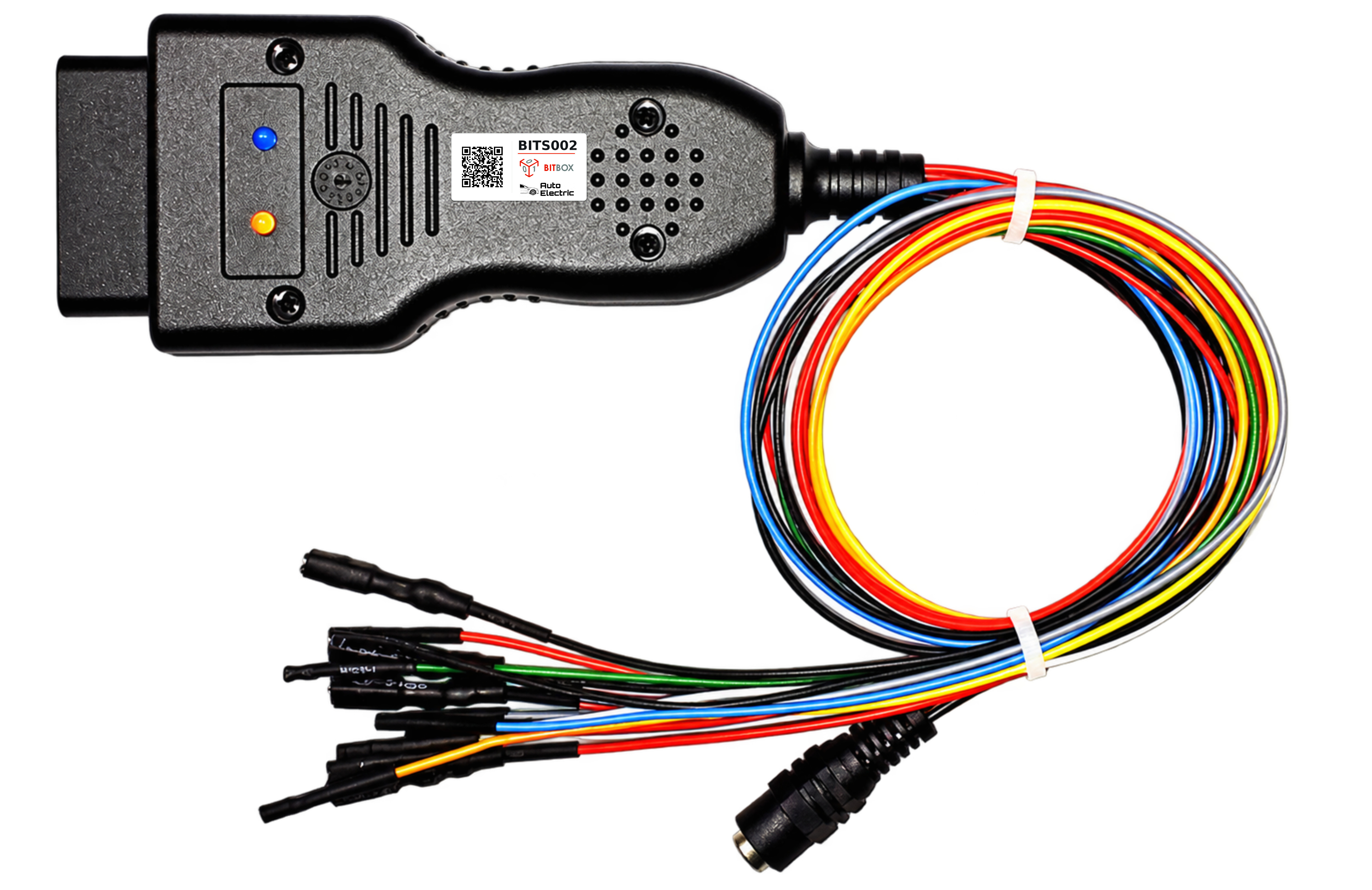

A special adapter for connecting to ECUs on the bench. Automatically manages power and boot pins via a J2534 adapter.
It has a female OBDII connector for connecting to a J2534 adapter, such as the Scanmatic SM2/SM2PRO/SM3.
The pin assignment corresponds to the program documentation:
- Red - +12 POWER
- Black - Ground
- Yellow - CAN-Hi
- Blue - CAN-Lo
- Green - K-line
- Gray - Boot L0
- White - Boot L1
- Orange - Boot H0
- Purple - Vpp
- White/Red - GPT1
- White/Black - GPT2
