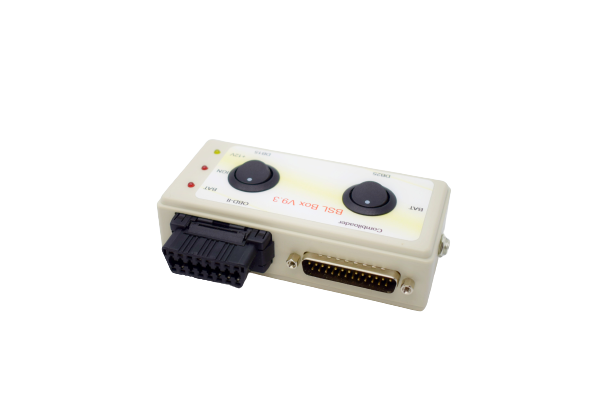

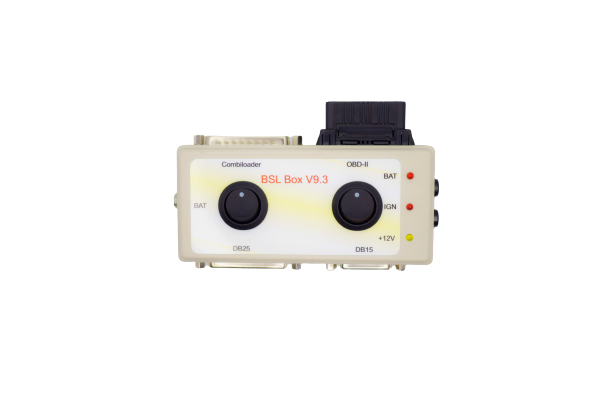

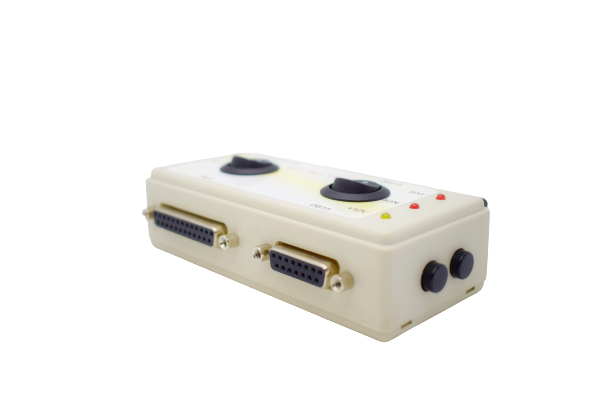

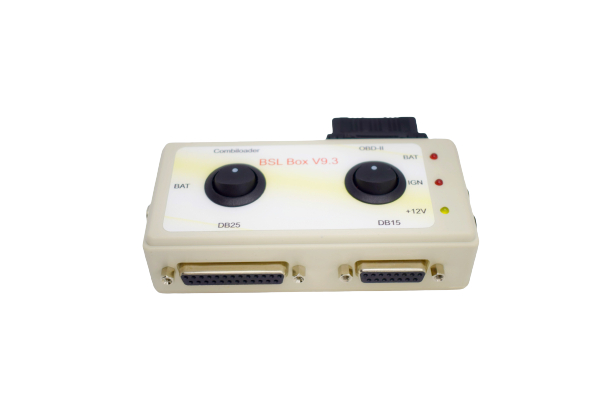

BSL Box V9.3

Item no.: 13C8000
Manufacturer
Basic equipment
BSL Box V9.3 — 100 $
 + Add
Status: In stock

BSL Box V9.3 is a CombiLoader adapter for Bosch EDC16 BSM (J2534) and Bosch MEDC17 BSM (J2534) modules as well as other modules that work in BSL or on the bench.

Connecting:

First, you need to connect the CombiLoader adapter via DB25 connector and the J2534 device Dialink via OBD2 to BSL Box V9.3

5.5*2.1 12V/3A connector is used for the power supply connection, with the protection against polarity reversal and current overload on. The connection to the ECU is done via DB15 or DB25 with the use of the universal or specialised cable. Simultaneous connection of 2 universal or specialised cables is also possible.

The BSL Box V9.3 adapter allows changing the power supply connected to the 30 and 15 terminals manually. The switches on the right side control the voltage supply of the J2534 Dialink 6V / 12V (depending on the ECU), the second one connects a 120 Ohm resistor to the CAN bus.

The LED indicators indicate the presence of the voltage supply for terminals 15 and 30, as well as 12V J2534 Dialink supply.

The pins to connect to the ECU:

DB25:

1. K-Line (the first pin of the CombiLoader adapter)
2. GPT1

4. GPT2
5. +12 after IGN (K15)
11. PRG
15. Power after main relay (К30Р)
16. Main Relay
17. +12V (K30)
19. CAN-L 14 pin OBD2
20. CAN-H 6 pin OBD2
22. GND

DB15:

3. GPT2
5. +12 after IGN (K15)

7. CAN-H
9. +12V (K30)
11. GND
12. GPT1
14. K-Line (the first pin of the CombiLoader adapter)
15. CAN-L

Tricore connecting cable Item no.: 13P2/05

A version of 14P600KT02. It does not have the brown wire like an original does because it is not needed.

32 $
Universal cable for BSL Box V9.3 for Combiloader Item no.: 13P2/06

The universal cable DB15-PIN allows to connect to various ECU connectors, it is a better equivalent of 14P600KT02. GPT1 and GPT2 of the same colour are labelled and brought out together with additional CAN-H CAN-L. The cable has an extra pair of pins on the VECU chain and an extra pair of pins on the VKEY chain which allows to apply up to 8 supply voltages (four small pins and 4 big ones).

44 $
Cable for programming ME17.9.11, ME17.9.12, ME17.9.13 Hyundai/Kia Item no.:

The cable for programming К/Н ME17.9.11, ME17.9.12, ME17.9.13 ECUs (direct connection to the ECU) on the bench.

80 $
Cable for programming MEG17.9.21 Hyundai/Kia Item no.:

The cable for programming К/Н ME17.9.21 ECUs (direct connection to the ECU) on the bench. The work is to be done with Bosch MEDC17 BSM J2534 module

100 $
Cable for programming ME17.5.26 VAG Item no.:

The cable for programming ME17.5.26 VAG ECUs (direct connection to the ECU) on the bench. The work is to be done with Bosch MEDC17 BSM J2534 module.

100 $
Cable for programming SIMOS12 VAG Item no.:

The cable for programming SIMOS12 VAG ECUs (direct connection to the ECU) on the bench. The work is to be done with SIMOS12 VAG (J2534) module

110 $
Cable for programming MEG17.9.21.1 Item no.: 11C5/04

Cable for programming MEG17.9.21.1 in Kia/Hyundai

80 $
Cable for programming EDC17CV44/54 Item no.:

The cable for programming EDC17CV44/54 ECUs (direct connection to the ECU) on the bench. Has two perts to connect to the ECU.

100 $
Cable for programming EDC17CP20 VAG Item no.:

Cable for programming EDC17CP20 VAG.

100 $
Cable for programming VAG EDC16CP34 Item no.:

Cable for programming VAG EDC16CP34. It has two ports for connecting to the ECU.

100 $
