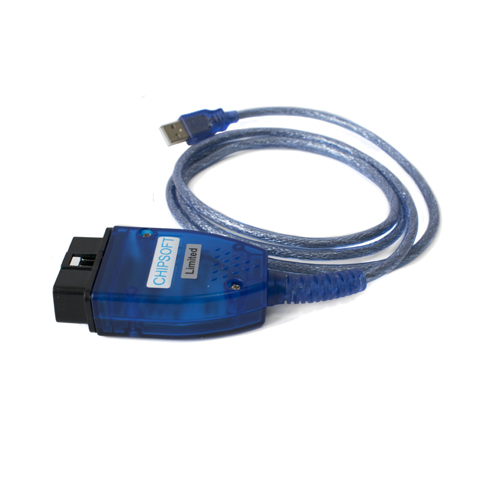

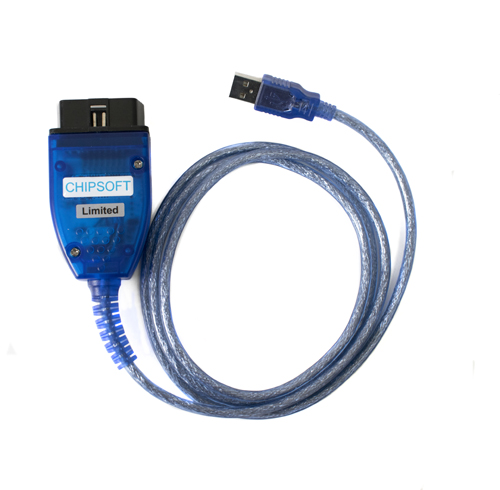

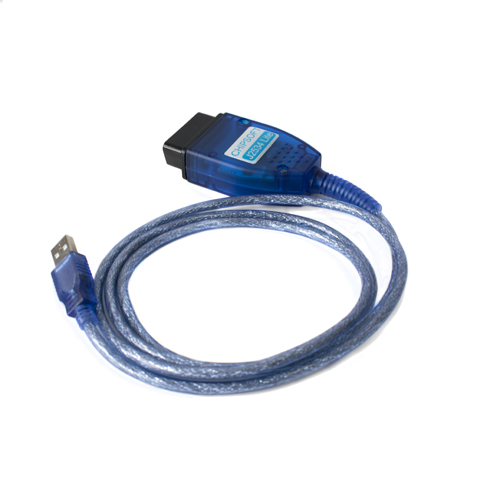

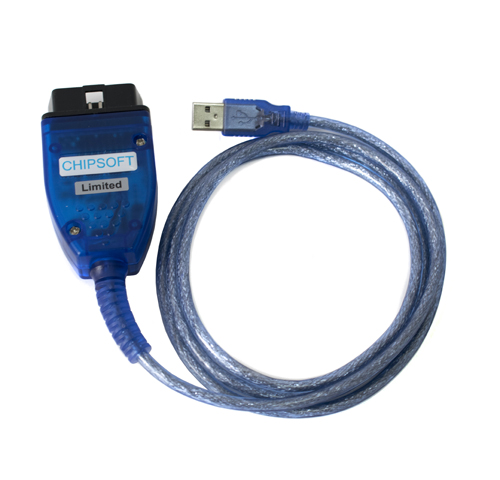

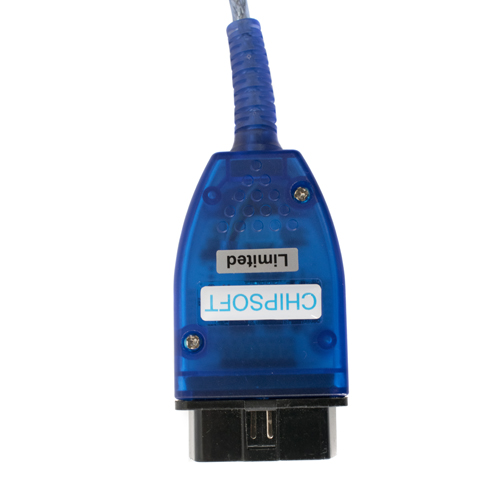

Chipsoft J2534 Lite «Limited Edition»

Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery
  • Adapter
Basic equipment
Chipsoft J2534 Lite «Limited Edition» — 81 $
+ Add
Status: In stock

Chipsoft J2534 Lite is one of the most affordable adapters in its class. Support for a large number of third-party programs that work to the J2534 standard makes the adapter an indispensable tool for diagnostics and chip tuning, and its price lets you start a business with minimal financial outlay. The ability to use different adapter modes (J2534 adapter, KLine adapter, CANHacker) significantly expands its uses.



CHIPSOFT J2534 Lite adapter specifications:

  • modern, powerful 32-bit ARM processor, 72 MHz
  • runs under a real-time operating system (RTOS)
  • USB 2.0 Full-speed support
  • device firmware update via USB
  • J2534 standard support
  • protection against reverse polarity and static voltage
  • dual power supply for reliable operation (+5V USB connector, +12V/+24V OBD2 connector)
  • +24V power supply support when working with trucks and buses
  • operating mode indication with 3 LEDs
  • +5V programming voltage output to pin 12 of the OBD2 connector (reflashing Honda vehicles)
  • OBD2 housing
  • MiniUSB connector for connecting to a computer


Main differences of the Limited Edition:

  • blue translucent housing
  • white main board
  • integrated USB cable


Supported protocols:

  • ISO 11898 (raw CAN) up to 1Mb/s
  • ISO 15765-4 (CAN)
  • ISO 14230-4 (Keyword Protocol 2000)
  • ISO 9141-2
  • GM UART
  • ISO22900 (Tech2Win)

The adapter has been tested with diagnostic programs:

  • PCMScan
  • ScanXL
  • Toyota Techstream
  • VersaTuner

With loaders:

  • ChipLoader (fully)
  • OpenBox (fully)
  • CombiLoader, MultiFlasher, MMC2 Flasher have been tested to the extent of the available modules (i.e. not fully)
  • PCMFlash

With dealer programs:

  • Honda update
  • Toyota/Lexus - Calibration Update Wizard (CUW)
  • GDS2 (dealer diagnostics for GM group vehicles)
  • Tech2Win (dealer diagnostics for GM group vehicles)

The adapter can work in the following modes:

  • J2534 adapter
  • KLine adapter
  • CANHacker
