PowerBox Lite

Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection

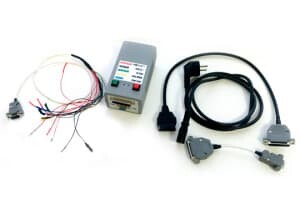

Contents of delivery
  • PowerBox Lite (base unit)
  • 220 V power cable
  • Universal cable for connecting to the ECU
  • DB25-OBD-II(F) cable
  • DB9-"cigarette lighter" cable
Basic equipment
PowerBox Lite — 98 $
+ Add
Status: In stock

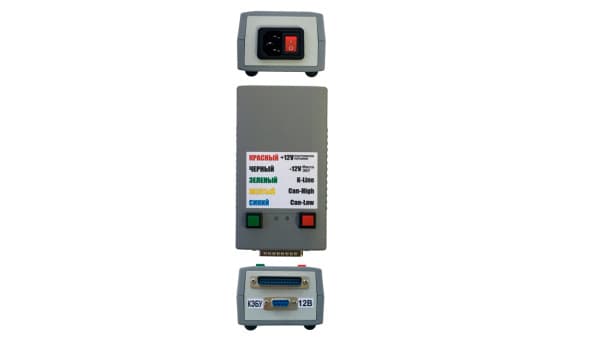

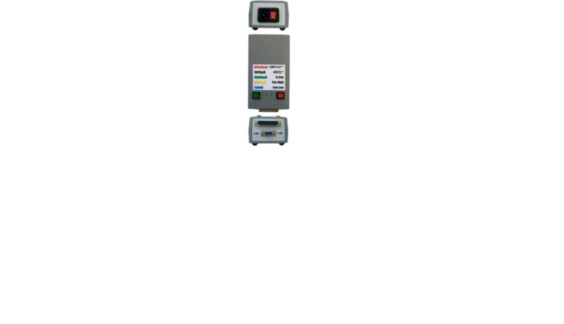

PowerBox Lite is designed to power vehicle electronic control units (ECUs) during programming and diagnostics "on the bench" and in the vehicle, as well as to switch ECU circuits to loader adapters and diagnostic scanners.

The device is a single communication interface that provides stabilized power to the ECU for the entire duration of programming, protects the ECU and adapter circuits against reverse polarity and incorrect connection, and gives the end user all the tools needed to connect directly to the ECU connector.

Advantages of using PowerBox

  • Adapters with DB-25 connectors (SMS Combiloader, SMS Diag, Ecutools K-line), DB-9 (Chipsoft J2534, Chipsoft K-line, ELM327) via an adapter, and OBD-II (Tactrix Openport 2.0, Mongoose, Alientech Kess II, Byteshooter and any other adapters with an OBD-II interface) via an adapter are supported;
  • Various ways of connecting to the ECU are supported. A universal cable for connecting to ECUs with different types of contacts is supplied in the kit;
  • The ECU and the adapter are powered by an internal power supply.

Specifications

  • Number of outputs: 1
  • Output voltage: ~14.2 V
  • Output current, in the range: 0-2.1 A
  • Mechanical output voltage adjustment: ± 10%
  • Efficiency: 76%
  • Ripple level (peak-to-peak): 100 mV
  • Insulation dielectric strength: o input-output — 3000 V AC, o input-ground — 1500 V AC
  • 1 phase connection
  • AC input voltage, in the range: 85-264 V (Nominal: 230 V)
  • Protection against: short circuit, overload, overvoltage
