Launch X-431 Pro Lite 2017

Manufacturer
Not specified
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery
  • Tablet for the Launch x431 Pro Lite car scanner
  • Launch DBScar IV diagnostic adapter
  • Diagnostic connector extension cable
  • Envelope with the car scanner registration code
  • Power adapter
  • USB cable
Basic equipment
Launch X-431 Pro Lite 2017 — 950 $
+ Add
Status: In stock

The new X-431 Pro Lite diagnostic scanner — as its name suggests, is a «lite» version in the PRO line.

At present it is the most budget-friendly multi-brand scanner from Launch. The savings do not come at the expense of the functionality of the standard PRO but from dropping the «old» non-OBD adapters, which makes it more affordable.

The scanner software runs on Android 6.0, and the compact tablet is housed in a shock-resistant case. The ability to connect the Launch X431 Pro Lite to the Internet via Wi-Fi allows you to update the diagnostic programs and perform remote diagnostics. Support for diagnostic programs for cars of model year 2000 and earlier that have no OBD-II diagnostic connector has been discontinued, which made it possible to remove specialized adapters from the kit. The included DBSCar IV adapter is used to connect to the diagnostic connector, and data is sent to the tablet over the wireless BlueTooth protocol.

Basic functions

  • Reading and clearing DTCs
  • Real-time parameters (LIVE DATA)
  • Active tests
  • Reset of all types of service intervals



A wide set of special functions

  • Support for the special functions of most Asian, European and American vehicle systems

Remote diagnostics

  • Support for remote diagnostics between workshops
  • Sending and receiving e-mail

One-click update

  • Update the software over the Internet with one tap
  • 3 years of free software updates included
  • Installing and removing a variety of Android apps
  • Personal scanner settings

Software

General
1. Demo (RUS)
2. EOBD (RUS)


America
3. Chrysler (Dodge, Jeep)
4. Ford USA (RUS)
5. Ford Australia
6. GM (Buick, Cadillac, Chevrolet) (RUS)
7. GM Brazil


Europe
8. Alfa Romeo (RUS)
9. Audi (RUS)
10. Bentley (RUS)
11. BMW (RUS)
12. Bugatti (RUS)
13. Citroen (RUS)
14. Fiat (Abarth) (RUS)
15. Ford Europe (RUS)
16. GAZ (RUS)
17. Jaguar (RUS)
18. Lancia (RUS)
19. Landrover (RUS)
20. Maybach (RUS)
21. Mercedes Benz (RUS)
22. Opel (RUS)
23. Peugeot (RUS)
24. Porsche (RUS)
25. Renault (RUS)
26. Rolls-Royce (RUS)
27. Rover
28. Saab (RUS)
29. Seat (RUS)
30. Skoda (RUS)
31. Smart
32. Transporter & V-Class
33. VAZ (RUS)
34. Volkswagen (RUS)
35. Volvo (RUS)


Asia
36. Acura (RUS)
37. Daewoo (RUS)
38. Daihatsu
39. Honda (RUS)
40. Hyundai (RUS)
41. Infinity (RUS)
42. Isuzu Japan (RUS)
43. Isuzu Tailand
44. Kia (RUS)
45. Lexus (RUS)
46. Mahindra
47. Maruti
48. Mazda (RUS)
49. Mitsubishi (RUS)
50. Nissan (RUS)
51. Perodua
52. Proton
53. SsangYong
54. Subaru
55. Suzuki (RUS)
56. Tata
57. Toyota (RUS)


China
58. BYD (Flyer)
59. Beijing (Baic)
60. Changan
61. Changhe
62. Chery (Qirui)
63. Jianling
64. Geely (HaOQing)
65. Huachen (Brilliance Auto)
66. Gonow Auto
67. GreatWall (ChangCheng) (RUS)
68. Hafei
69. Haima
70. JAC
71. Lifan
72. Saic (SGMW)
73. X431 Tianjin (FAW)
74. Weili
75. GAC Chuan Qi
76. Kowloon
77. Xiamen Golden
78. Xiaokang
79. XinKai
80. ZhongShun
81. Zhongxing (ZX Auto)
82. Zhongtai (Zotye Auto)


* (RUS) — localized programs are marked

The application table (coverage map) by make is here — qcar.x431.com

Specifications

Tablet

  • Operating system: Android 6.0
  • Processor: 1.0 GHz 4 cores
  • Screen: 7 inches, 1024×600 resolution, IPS
  • RAM: 1 GB
  • Built-in memory: 16 GB
  • Touch screen: capacitive
  • Camera: front 2 MP, rear 5 MP
  • Connection interfaces: Wi-Fi, Bluetooth, GPS
  • Memory expansion: microSD up to 32 GB
  • Battery: li-pol 3450 mAh
  • Dimensions: 24.8×11.6×4.5 cm Weight: 860 g

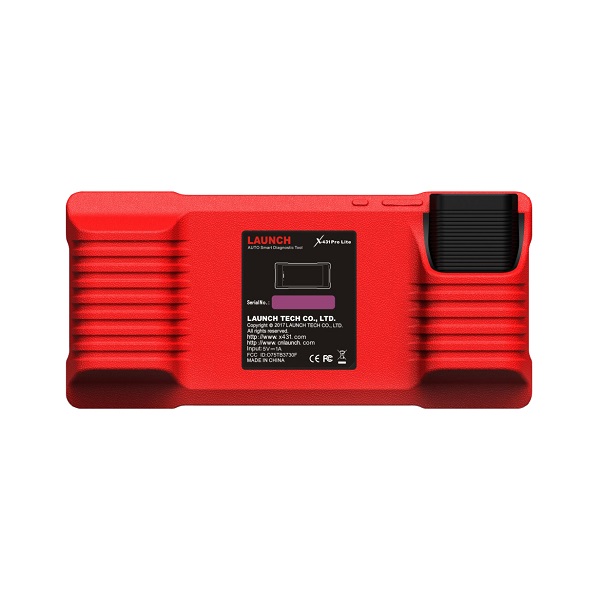

Diagnostic adapter

  • Connection method: standard OBDII connector
  • Operating voltage: 9-18 V
  • Quiescent current: 25 mA
  • Average consumption: 35 mA
  • Storage temperature: -20℃-70℃
  • Operating temperature: -10℃-50℃
  • Dimensions: 5.8×4.7×2.4 cm Weight: 100 g
