AVTOAS-CARGO

The specialized computer scanner «AVTOAS-CARGO» is designed for diagnosing the diesel engine control systems of KAMAZ, MAZ, GAZ, PAZ, LiAZ and URAL trucks and buses.

Supported engines:

• Cummins 4ISBe, 6ISBe Euro 3 with CM2150C ECU;
• Cummins 4ISBe, 6ISBe Euro 4 with CM2150E ECU;
• Cummins ISF 2.8, ISF 3.8 Euro 3 with CM2220 ECU;
• Cummins ISF 2.8, ISF 3.8 Euro 4 with CM2220 ECU;
• MMZ D-245 Euro 3 with BOSCH EDC7UC31 ECU
• MMZ D-245 Euro 4 with BOSCH EDC7UC31 ECU and with BOSCH EDC17CV54 ECU;
• YaMZ 650.10 Euro 3 (Renault) with BOSCH EDC7UC31 ECU;
• YaMZ 651 Euro 4 with BOSCH EDC7UC31 ECU;
• YaMZ 652 Euro 4 with BOSCH EDC7UC31 ECU;
• YaMZ 656 Euro 3, YaMZ 658 Euro 3 with Elara 50.3763 ECU and with M230.E3 ECU;
• YaMZ 656 Euro 4, YaMZ 658 Euro 4 with M240 ECU;
• YaMZ 534 Euro 4, YaMZ 536 Euro 4 with BOSCH EDC7UC31 ECU;
• YaMZ 534 Euro 5 with BOSCH EDC17CV44 ECU; NEW!
• YaMZ 236 Euro 3, YaMZ 238 Euro 3 with M230.E3 ECU;
• KAMAZ 740 Euro 3 with BOSCH MS 6.1 ECU;
• KAMAZ 740 Euro 4 with BOSCH EDC7UC31 ECU;

«AVTOAS-CARGO» also supports the universal RP1210A J1939 software interface. This allows the «AVTOAS-CARGO» adapter to be used with programs from other manufacturers that use RP1210A J1939, for example «Cummins INSITE».

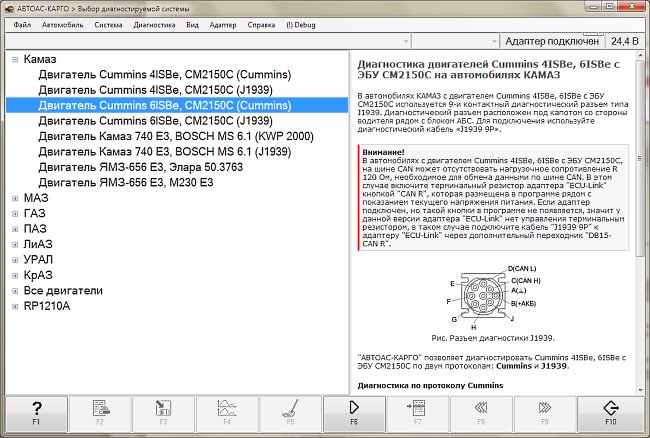

«AVTOAS-CARGO» works together with the «ECU-Link» adapter under the control of a personal computer or laptop equipped with a USB port and/or a Bluetooth wireless module, running Windows XP/Vista/7 (32- and 64-bit versions). «AVTOAS-CARGO» is intended for service stations, vehicle fleets and vehicle owners.

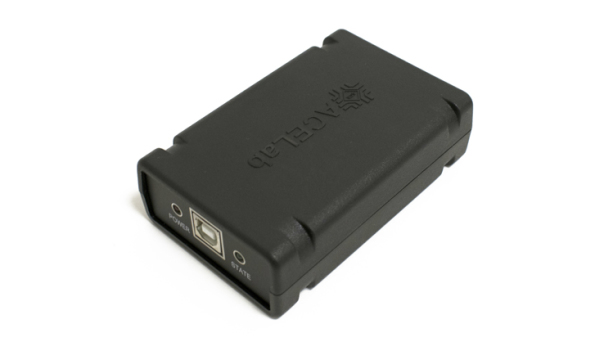

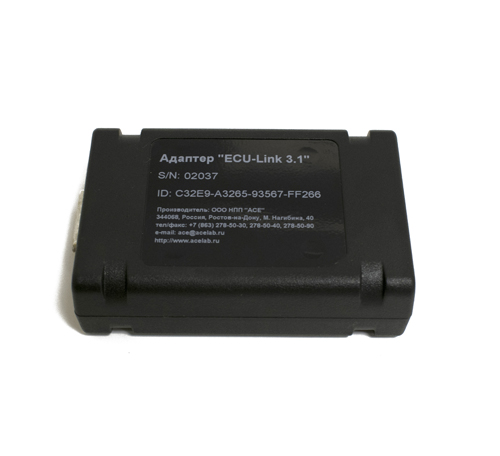

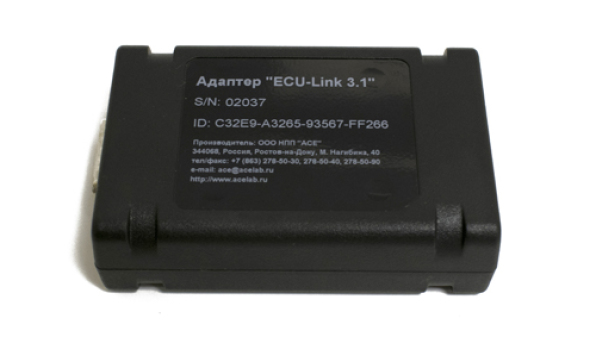

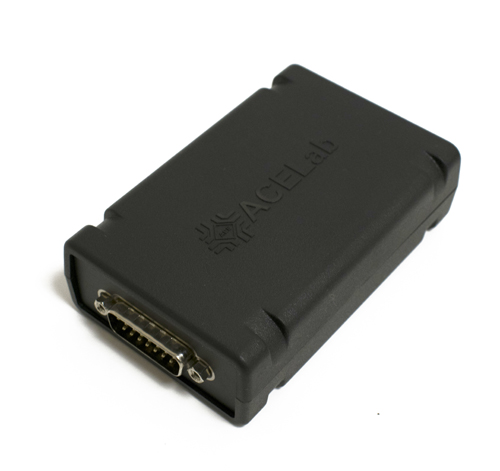

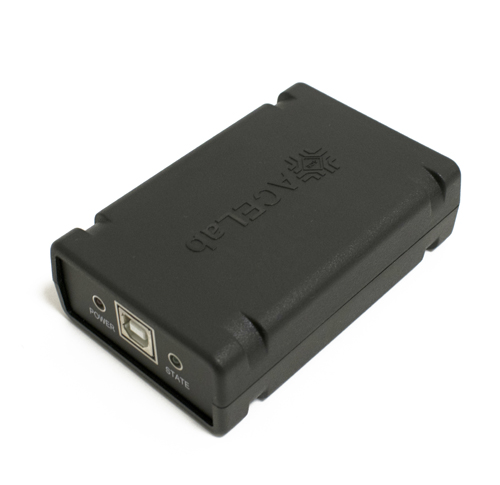

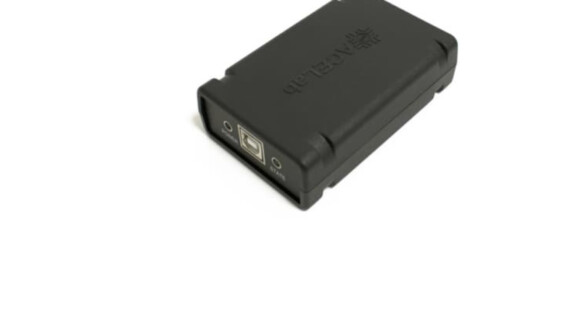

The «ECU-Link» adapter is used to connect a computer running the «AVTOAS-CARGO» program to the vehicle diagnostic connector. The «ECU-Link» adapter is housed in a high-quality plastic case. The case has 2 LED indicators, «POWER» (power) and «STATE» (adapter ready + data exchange), a USB connector (type B) and a DB15 connector for connecting diagnostic cables. The «ECU Link» adapter connects to a computer via a USB port or wirelessly over Bluetooth.

The adapter's wireless Bluetooth connection (up to 10 meters) is especially convenient when diagnosing truck engines, as it lets you place the computer with the program in any convenient location.

Computer requirements

Minimum:

• Windows XP operating system
• 512 MB RAM, USB port

Recommended:

• Windows XP/Vista/7 operating system (32- or 64-bit)
• 2 GB RAM, CD/DVD drive for installing the software, USB port, Bluetooth

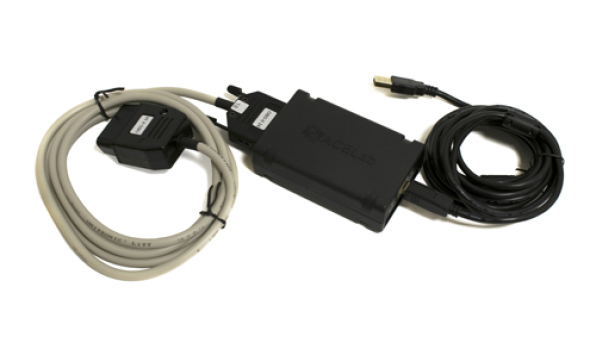

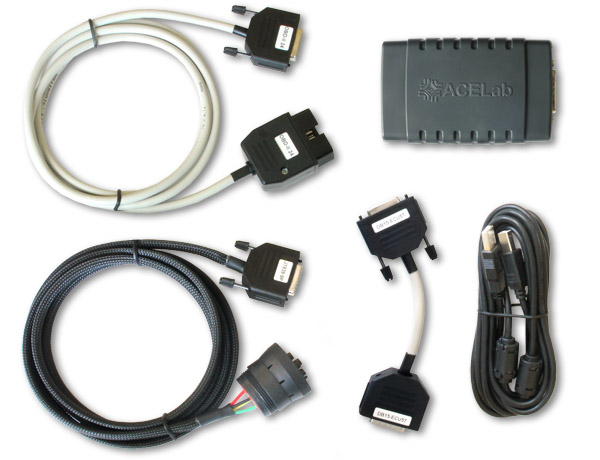

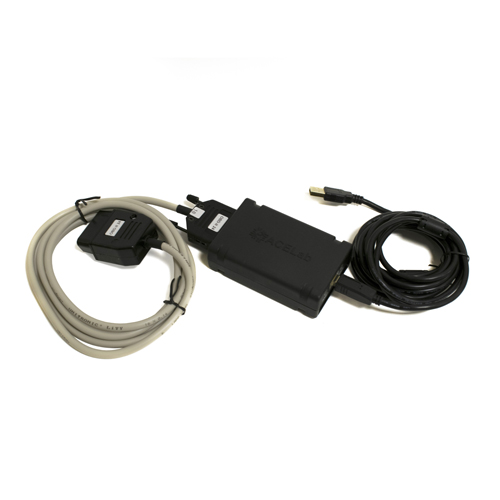

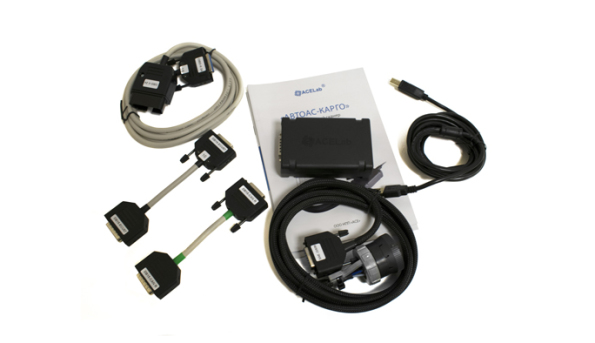

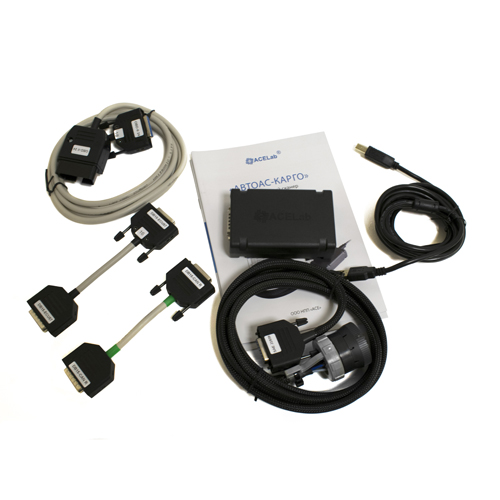

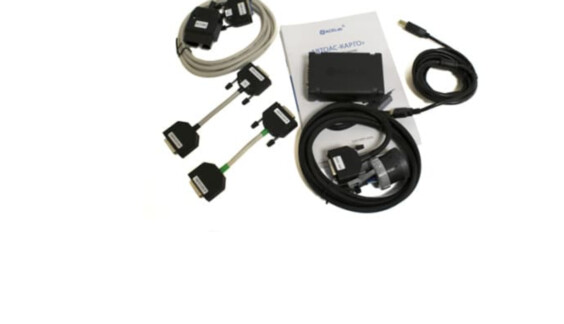

A «light» kit is also available — "AVTOAS-CARGO" (basic). It includes: the «ECU-Link3 » adapter with USB cable, a CD with software and the «OBD-II 24» diagnostic cable. The price of the "AVTOAS-CARGO" (basic) kit is 17950 RUB (retail)
