ABTOAC-F16 CAN 24 – Diagnostic Tool

ABTOAC-F16 CAN 24

Item no: 21A4000
Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery
  • «AVTOAS-F16 CAN 24» scanner
  • Power cable for a +9V...+36V source
  • USB cable for connecting the device to a computer to write firmware
  • CD-R with the firmware loader program
  • User manual
  • Cardboard packaging
Basic equipment
ABTOAC-F16 CAN 24 — 280 $
Basic equipment280 $
Diagnostic cables for "AVTOAS"from 10 $
+ Add
Status: Pre-order

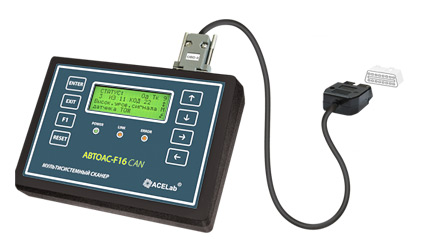

«AVTOAS-F16 CAN 24» — a portable multi-brand 4th-generation scanner for diagnosing electronic engine management systems and other systems of Russian-made vehicles, as well as of common imported vehicles.

«AVTOAS-F16 CAN 24» supports ALL common automotive diagnostic interfaces and protocols: K,L-Line, ISO 9141-2, ISO 14230-4, KWP-2000, KWP-1281, KW-81, KW-82, ALDL, J1850 PWM/VPW, CAN, ISO 11898, ISO 15765-4.

«AVTOAS-F16 CAN 24» supports diagnostics of both passenger cars with a 12V on-board voltage and trucks and buses with a 24V on-board voltage.

«AVTOAS-F16 CAN 24» is housed in a high-quality, impact-resistant plastic case. The keypad is a dust- and moisture-proof membrane type. Information is shown on a backlit liquid crystal display with large characters, which allows diagnostics in poor lighting.

«AVTOAS-F16 CAN 24» is equipped with electronic protection against overvoltage above +36V and reverse polarity, as well as against short circuits on the K,L-Line diagnostic lines and on the CAN bus.

The device contains 64 rewritable Flash memory sectors for storing diagnostic firmware, which is easily added and updated using a computer and the Internet. All new and updated diagnostic firmware created for the «AVTOAS-F16 CAN 24» is distributed free of charge and can be downloaded from the technical support section on the manufacturer's website.



Firmware modules



  • VAZ, GAZ, UAZ, IZH, PAZ, MAZ, ZAZ
  • CHERY
  • DAEWOO/CHEVROLET
  • HYUNDAI
  • KIA
  • SSANG YONG
  • OPEL
  • RENAULT
  • VAG
  • Mercedes
  • OBD-II
  • SSANG YONG



Specifications

  • dimensions — 190×135×47 mm
  • weight, no more than — 500 g
  • power supply (from the vehicle diagnostic connector or battery) — +9V...+36V
  • current consumption at +12V supply voltage — no more than 300 mA
  • display — 4×40 character LCD with LED backlight and an extended operating temperature range
  • housing material — heat-resistant U ABS plastic
  • keypad — protected film membrane type
  • supported vehicle interfaces and protocols — K,L-Line (12/24V), ISO 9141-2, ISO 14230-4, KWP-2000, KWP-1281, KW-81, KW-82, ALDL, J1850 PWM/VPW, CAN, ISO 11898, ISO 15765-4.
  • computer interface for rewriting diagnostic firmware — USB
  • on-board voltage of diagnosed vehicles +12/24V
  • built-in protection against reverse polarity and overvoltage above +36V
  • built-in protection against short circuits and overvoltage (above +36V) on the K,L-Line lines
  • protection of the scanner's K and L lines against shorts to the vehicle battery +
  • protection of the scanner's CAN H and CAN L lines against shorts to ground and to the vehicle battery +
  • ESD protection of the scanner's K and L lines up to 2 kV
  • ESD protection of the scanner's CAN H and CAN L lines up to 6 kV
  • protection of data exchange on the vehicle CAN bus when one of the scanner's CAN H or CAN L lines is open or shorted.
Diagnostic cables for "AVTOAS"
(10)
«DHC15-DB15» adapter

Adapter for connecting diagnostic cables with a DB15 connector to the «USB-ECU AS» adapter and the «AVTOAS-F16» and «AVTOAS-F16 CAN» portable scanners

Item no: 21A7/10

Adapter for connecting diagnostic cables with a DB15 connector to the «USB-ECU AS» adapter and the «AVTOAS-F16» and «AVTOAS-F16 CAN» portable scanners

Adapter for connecting diagnostic cables with a DB15 connector to the «USB-ECU AS» adapter and the «AVTOAS-F16» and «AVTOAS-F16 CAN» portable scanners

10 $
«OBD-II 24»

For connecting to the OBD-II diagnostic connector of vehicles with a 12V or 24V on-board voltage. Intended for VAZ, GAZ, UAZ, KAMAZ, MAZ, Chery, Daewoo/Chevrolet, Hyundai, KIA, Ssang Yong, VAG, OPEL, Renault, Subaru, For

Item no: 21A7/03

For connecting to the OBD-II diagnostic connector of vehicles with a 12V or 24V on-board voltage. Intended for VAZ, GAZ, UAZ, KAMAZ, MAZ, Chery, Daewoo/Chevrolet, Hyundai, KIA, Ssang Yong, VAG, OPEL, Renault, Subaru, Ford, Mazda, Toyota, Nissan and other vehicles.

For connecting to the OBD-II diagnostic connector of vehicles with a 12V or 24V on-board voltage. Intended for VAZ, GAZ, UAZ, KAMAZ, MAZ, Chery, Daewoo/Chevrolet, Hyundai, KIA, Ssang Yong, VAG, OPEL, Renault, Subaru, Ford, Mazda, Toyota, Nissan and other vehicles.

24 $
«VAZ 24»

For connecting to the diagnostic connector of VAZ, ZAZ and DAEWOO vehicles (GM type, 12 pins)

Item no: 21A4/07

For connecting to the diagnostic connector of VAZ, ZAZ and DAEWOO vehicles (GM type, 12 pins)

For connecting to the diagnostic connector of VAZ, ZAZ and DAEWOO vehicles (GM type, 12 pins)

17 $
«VAG 24»

For connecting to the diagnostic connectors of VAG (VW, Audi) vehicles up to 1995

Item no: 21A7/05

For connecting to the diagnostic connectors of VAG (VW, Audi) vehicles up to 1995

For connecting to the diagnostic connectors of VAG (VW, Audi) vehicles up to 1995

17 $
«OPEL 24»

For connecting to the diagnostic connector of OPEL vehicles (10 pins) up to 1995

Item no: 21A7/04

For connecting to the diagnostic connector of OPEL vehicles (10 pins) up to 1995

For connecting to the diagnostic connector of OPEL vehicles (10 pins) up to 1995

17 $
«K-Line 24» Item no: 21A7/02

Cable with interchangeable K-Line probes for connecting to the diagnostic connector of ZAZ, KIA Spectra, Chery Amulet, Daewoo/Chevrolet, GAZ ABS BOSCH 5.3 and other vehicles

Cable with interchangeable K-Line probes for connecting to the diagnostic connector of ZAZ, KIA Spectra, Chery Amulet, Daewoo/Chevrolet, GAZ ABS BOSCH 5.3 and other vehicles

13 $
«CAN 24» Item no: 21A4/01

Designed for connecting to the medium-speed MSCAN and low-speed SWCAN bus lines in the OBD-II diagnostic connector of Ford, Mazda, Opel and Chevrolet vehicles

Designed for connecting to the medium-speed MSCAN and low-speed SWCAN bus lines in the OBD-II diagnostic connector of Ford, Mazda, Opel and Chevrolet vehicles

13 $
«MB 24» Item no: 21A4/03

Cable with interchangeable probes for connecting to the diagnostic connectors of MERCEDES vehicles (38-pin, 16-pin, 9-pin, 8-pin). Use only with the «AVTOAS-F16 CAN 24»

Cable with interchangeable probes for connecting to the diagnostic connectors of MERCEDES vehicles (38-pin, 16-pin, 9-pin, 8-pin). Use only with the «AVTOAS-F16 CAN 24»

17 $
«DB15-CANR» adapter Item no: 21A7/08

Adapter for connecting to the CAN bus of Cummins ISF2.8 Euro-3 engines (Gazelle) without the 120 Ohm termination resistor. Use only with «AVTOAS-SCAN» and the «USB-ECU AS 2» and «USB-ECU AS 24» adapters

Adapter for connecting to the CAN bus of Cummins ISF2.8 Euro-3 engines (Gazelle) without the 120 Ohm termination resistor. Use only with «AVTOAS-SCAN» and the «USB-ECU AS 2» and «USB-ECU AS 24» adapters

10 $
«DB15-ECU57» adapter Item no: 21A4/09

Adapter for connecting to the diagnostic connector of vehicles with YaMZ 656 E3 and YaMZ 658 E3 engines with the Elara 50.3763 ECU. Use only with the «AVTOAS-F16 CAN 24»

Adapter for connecting to the diagnostic connector of vehicles with YaMZ 656 E3 and YaMZ 658 E3 engines with the Elara 50.3763 ECU. Use only with the «AVTOAS-F16 CAN 24»

10 $
