ABTOAC-F16 G2

Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery

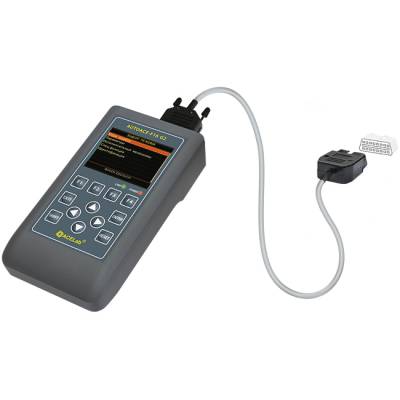

  • «AVTOAS-F16 G2» portable scanner
  • «OBD-II 24» diagnostic cable, 2 m
  • USB type A-B cable for connecting the device to a computer
  • Spare protective cap for the USB connector
  • Data sheet. User manual
  • Warranty card
  • Cardboard shipping box
Basic equipment
ABTOAC-F16 G2 — 337 $
+ Add
Status: Pre-order

A new portable scanner with a color graphic display for diagnostics of engines and other systems of trucks, buses and special equipment: KAMAZ, MAZ, GAZ, PAZ, LiAZ, URAL, KrAZ, ZIL, NefAZ, KAvZ and others, for use both at a stationary diagnostic station and on the road, in difficult weather conditions.

«AVTOAS-F16 G2» is intended for use at service stations, fleets and vehicle owners.


The «AVTOAS-F16 G2» software consists of special diagnostic programs designed to work with the engines and systems of various vehicles, usually grouped by manufacturer. «AVTOAS-F16 G2» is equipped with a 4 GB SD card for storing programs, reference information and diagnostic report files. The user can update and add diagnostic programs with any computer or tablet running Windows, Android, MacOS or Linux and equipped with a USB port for connecting external USB flash drives.



Main operating modes:



  • Selecting the diagnostic program and the engine/system to be diagnosed. When you select the engine/system to be diagnosed, pressing the F2 function key shows a help page on diagnostic and connection specifics on the device display.
  • Reading, decoding and clearing fault codes - in this mode the fault codes (errors) registered by the ECU of the diagnosed system are read and reset. The screen shows the numeric error codes, the status of the detected errors (current, stored) and their decoding. Pressing the F2 function key shows the full text of the fault code and reference information on troubleshooting on the device display.
  • Parameters – viewing the current operating parameters of the diagnosed system. Up to 8 parameters can be shown on the device display at the same time. Users can create and save their own groups of parameters to display. An extended description of each parameter can be called up on the display.
  • Actuators - this mode is intended for checking the operation of the actuators of the diagnosed system and, in some cases, for setting a new value. Pressing the F2 key shows an extended description of the selected actuator, its control specifics and the conditions that must be met when controlling it.
  • Special functions - this mode includes various settings of the operating parameters of the diagnosed system*: idle speed adjustment, speed limiter setup, engine hours reset, accelerator pedal calibration, ECU adaptation reset, writing injector codes (coding), and so on. Pressing the F2 key shows an extended description of the selected special function and its execution conditions.
  • Identification - this mode reads the identification data of the ECU of the diagnosed system (ECU serial number, firmware version, etc.) and shows it on the device display. The identification data read can be saved as a text file on the device's SD card.


Main specifications:


  • dimensions - 210 x 110 x 48 mm
  • weight - no more than 400 g
  • maximum permissible supply voltage - 32 V
  • minimum permissible supply voltage - 8 V
  • power consumption - no more than 3,0 W
  • supported vehicle interfaces - ALDL, K/L-Line (12/24V), J1850 PWM, J1850 VPWM, CAN, J1708
  • display - color graphic TFT with backlight, 320x240
  • housing material - UL 94 V-0 plastic
  • keypad - protected, membrane-type film keypad
  • SD memory card - 4 GB
  • processor - ARM, 32-bit
  • computer interface for connecting the device - USB (Host, type A)
  • operating temperature - from -10 to +40 °C
  • storage temperature - from -25 to +50 °C
  • reverse polarity protection and overvoltage protection up to +40V
  • short-circuit and overvoltage (up to +40V) protection on the K/L-Line lines
  • protection of the device's CAN-H and CAN-L lines against shorts to ground and to battery +
  • protection of data exchange on the vehicle CAN bus when one of the device's CAN-H or CAN-L lines is broken or shorted
  • service life - 5 years
