USB Autoscope IV Full kit

Manufacturer
Not specified
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection

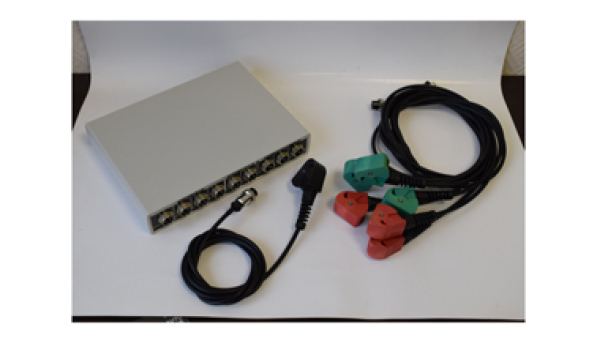

Contents of delivery
  • USB Autoscope IV
  • Dx vacuum sensor -0.95...+0.15 Bar

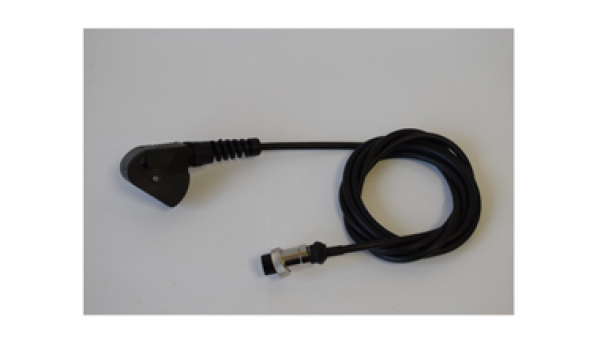

  • Sync synchronization sensor

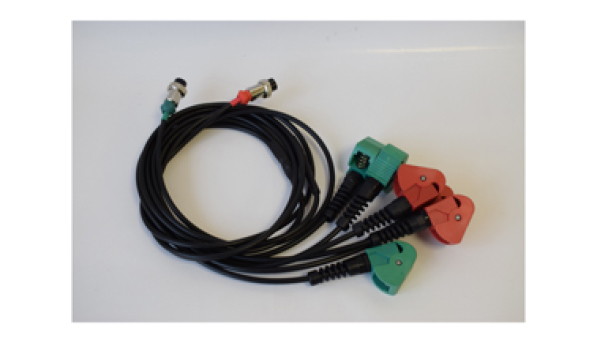

  • DIS Cx 6 capacitive sensor kit for diagnostics of DIS ignition systems
  • Cx-M universal clip-on capacitive sensor
  • Lx-M universal clip-on inductive sensor
  • Px35 cylinder pressure sensor -0.95...+35 Bar

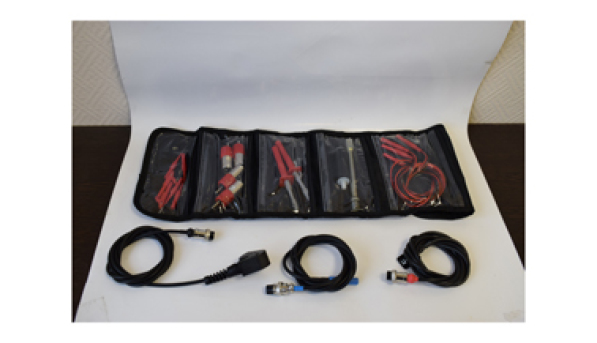

  • Universal cable 4 pcs.
  • Measuring adapter 4 pcs.
  • Device stand-holder
Basic equipment
USB Autoscope IV Full kit — 1 450 $
+ Add
Status: In stock

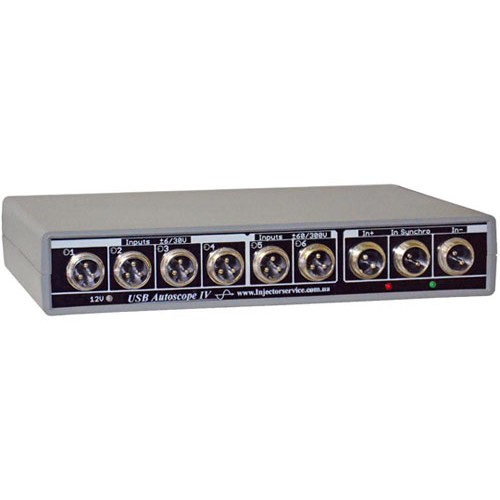

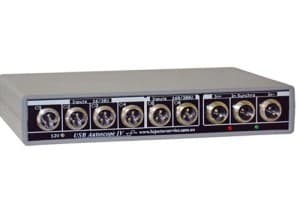

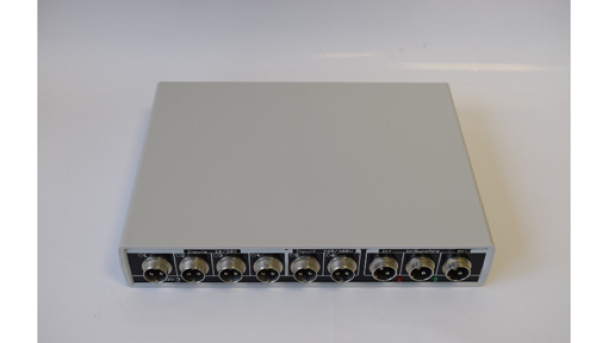

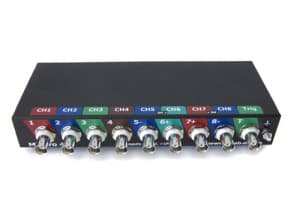

Digital oscilloscope USB Autoscope IV (Postolovsky oscilloscope) is an improved version of USB Autoscope III and is designed for viewing, saving and analyzing digital and analog signals from vehicle electrical circuits, in order to find faults in vehicle electronic systems and to diagnose the mechanics of petrol engines. The device connects to a PC via a USB port.

Main differences of USB Autoscope IV from USB Autoscope III:

  • built-in ignition adapter;
  • sensors powered from the device;
  • convenient LED backlight on the measuring adapters;
  • stand-holder for the device and sensors.

Device features

  • Displaying waveforms of sensor and actuator signals, with simultaneous recording and measurement of the signal under test in real time;
  • Analysis of primary and secondary voltage waveforms. Waveforms are displayed in «parade», «raster» and «overlay» modes;
  • Wide signal parameter analysis capabilities — determining maximum/minimum/average voltage and voltage difference, as well as signal timing parameters — pulse width, frequency, duty cycle and signal phase;
  • Support for external plug-in software modules (Plug-In) to perform specific tests;
  • Measuring the ignition timing angle from the cylinder pressure waveform (if the appropriate sensor is available);
  • Displaying a vacuum graph to assess the condition of engine mechanics by studying how the intake manifold vacuum changes and by measuring the level of gas pressure pulsations in the crankcase and in the exhaust pipe;
  • Estimating the relative compression in engine cylinders from the starter current waveform (if a current clamp is available). It is known that the higher the compression in a cylinder, the greater the amplitude of starter current pulsations during that cylinder's compression stroke;
  • Automatic analysis of a recorded waveform using VBScript or JScript files, with a report, as well as automatic marking and commenting of characteristic sections of the waveform;
  • Free switching of analog inputs (an oscilloscope channel can be connected to any physical input «on the fly»);
  • Triggering on any of the 8 channels of the oscilloscope (analyzer), with a choice of rising or falling edge;
  • Saving the captured data as JPEG or a binary file;
  • Editing of recorded signals;
  • Printing current or saved waveforms on a printer;
  • Creating user settings for frequently used modes;
  • Others.

The device can operate in the following modes:

  • analog oscilloscope mode;
  • digital analyzer mode;
  • ignition system diagnostics mode;
  • vacuum graph;
  • valve timing system diagnostics mode;
  • ignition timing angle measurement mode;
  • signal timing parameter measurement mode;
  • relative fuel consumption measurement;
  • automatic waveform analysis.

Specifications

The device can operate in two modes:

  • 1-, 2-, 4- or 8-channel analog oscilloscope mode,
  • (2-), 4- or 8-channel digital analyzer mode.

Analog oscilloscope mode

Model Autoscope IV
Number of analog inputs 8
Number of oscilloscope channels 1, 2, 4, 8 (selectable)
ADC resolution 12 bit
Measured voltage range +/-6/30 V — analog inputs 1-4
+/-60/300 V — analog inputs 5-6
analog inputs 1-4 when using
external 1:10 input voltage dividers
+/-6 V — analog inputs 7-8
Maximum sampling rate 12.5 MHz — 1-channel mode
5 MHz — 2-channel mode
2.5 MHz — 4-channel mode
1.25 MHz — 8-channel mode
Sampling mode continuous stream
Input resistance 1 MOhm

Digital analyzer mode

Model Autoscope IV
Number of digital inputs 9
Operating modes 2-, 4- and 8-channel analyzer
Maximum sampling rate 100 MHz — 2-channel mode
50 MHz — 4-channel mode
25 MHz — 8-channel mode
Sampling mode continuous stream
Input resistance 10 kOhm
>1 MOhm at voltages (0...5V)
510 Ohm when out of range



Minimum PC requirements for Autoscope IV: Microsoft Windows 98SE/ME/2000/XP/Vista/7/8, Pentium IV, 2000 MHz, 1024 MB RAM, HDD 10 GB UDMA 100, a USB 2.0 480 Mbit/s (HI-SPEED) port.

Attention! The current consumption of any USB device must not exceed 500mA. The current consumption of USB Autoscope IV in operating mode is 180mA. Nevertheless, on some computer models the +5V supply voltage of the computer's USB bus drops when USB Autoscope IV is switched on — because of a fault in the computer's USB bus power circuit, USB Autoscope IV does not turn on and cannot work with the standard kit on such computers. This problem can be solved on such computers by changing BIOS settings, Windows settings, or by buying a USB-Hub or USB extension cable with additional power.
