Carman Auto I-300

Item no: 21C100
Manufacturer
Not specified
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery
  • Main unit with Bluetooth dongle
  • Bluetooth dongle for PC
  • OBD-II diagnostic cable
  • User manual
  • Program on CD + manual
  • USB cable
  • Carrying case
Basic equipment
Carman Auto I-300 — 1 800 $
+ Add
Status: Pre-order

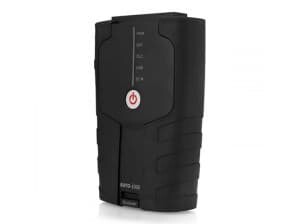

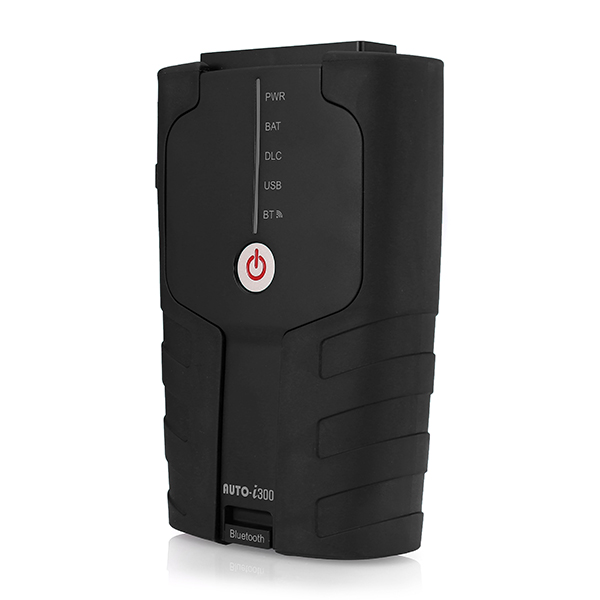

«Carman AUTO-I300» is a new fifth-generation diagnostic device, continuing the development of the Wi and VCI model technology on the I700 platform. The scanner is built as an adapter-multiplexer with a detachable communication cable, a USB port and a detachable integrated Bluetooth dongle. The scanner is a more advanced version of the popular Carman Scan VCI. The scanner is designed for remote vehicle diagnostics. The device and the vehicle can be up to 40 meters from the computer, even outside the workshop. A distinctive advantage of the scanner is the ability to jump directly into the MOTORDATA database menu from within the scanner program menu. All users receive a discounted subscription to MOTORDATA online.

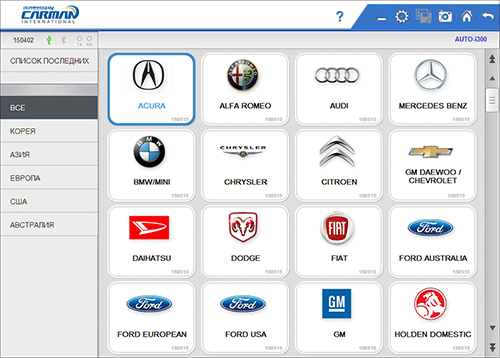

Supported vehicles:

  • Asia: Toyota, Lexus, Honda, Acura, Nissan, Mitsubishi, Proton, Mazda, Subaru, Suzuki, Isuzu, Infiniti, Holden, Hyundai, Kia, Daewoo, Chevrolet, Ssangyong, Chinese makes
  • Europe: Benz, BMW, Audi, Volkswagen, Seat, Skoda, Saab, Opel, Renault, Peugeot, Citroen, Ford, Fiat, LADA, GAZ, UAZ, Volvo, Alpha Romeo, Lancia
  • USA: General Motors, Chrysler/Jeep, Ford



Functions:



  • Reading and decoding fault codes from the control unit memory.
  • Clearing faults from the control unit memory.
  • Displaying live data (in numeric and graphical form).
  • Building parameter groups manually.
  • Testing (activating) actuators.
  • Graphical comparison of a selected parameter with all the others.
  • Recording live parameters to the scanner memory with later display on the PC screen.
  • Identification of systems (control units).
  • Performing adaptations and memory resets.
  • Resetting service intervals.
  • Reading and programming of the immobilizer, keys and key fobs*.
  • Support for the OBD-I, OBD-II and EuroOBD protocols.
  • Coding, sensor calibration, injector programming and much more.
  • Additional
  • Can be connected to a standard computer (for processing measurement results) via USB or wirelessly
  • Additional equipment can be connected through the USB port
  • Can output to a printer (stationary or portable)
  • Universal power supply

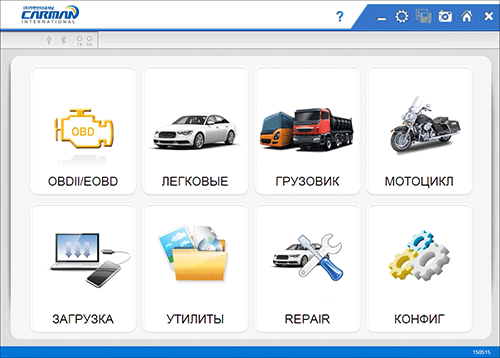

PC software:



  • Analysis of recorded data from measurement results
  • Downloading updates through a dedicated program
  • Building a customer database


Main scanner functions:



  • Diagnostic trouble codes (reading and clearing)
  • Live parameters, including Freeze Frame Data
  • Parameter recording
  • Actuator activation test
  • Adaptation
  • Programming
  • Coding
  • Key registration
  • Displaying information about systems and on-board software
  • Protocol support: ISO9142-2, ISO14230-2, ISO15765-4, SAE-J1850PWM, CAN ISO 11898, High-speed CAN, Medium-speed CAN, Low-speed CAN, High-speed data transfer over the K/L line, Flash codes, Ethernet protocol, Byte protocol, Honda Diag-H diagnostic protocol, KWPT1281, TP2.0, T1.6, J2610 (Chrysler SCI).
