Launch X431 Pro3 2017

Manufacturer
Not specified
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery
  • Launch X431 Pro3 2017 car scanner
  • DBScar diagnostic connector
  • Main cable
  • Battery power cable
  • Diagnostic connector extension cable
  • USB cable
  • Fuse kit (4 pcs.)
  • 220V power supply
  • Envelope with the registration code
  • Subaru-9 pin diagnostic connector
  • Fiat-3 pin diagnostic cable
  • Fiat-3 pin diagnostic cable
  • Daihatsu-4 pin diagnostic connector
  • GAZ-12 pin diagnostic cable
  • Ssangyong-14 pin diagnostic cable
  • Universal-3 pin diagnostic connectors
  • Mitsubishi\Hyundai-12+16 pin diagnostic connector
  • Nissan-14+16 pin diagnostic connector
  • BENZ-38 pin diagnostic connector
  • BMW-20 pin diagnostic connector
  • Toyota-17 pin diagnostic connector
  • Mazda-17 pin diagnostic connector
  • Toyota-22 pin diagnostic connector
  • Kia-20 pin diagnostic connector
  • Honda-3 pin diagnostic connector
  • Ssangyoung-20 pin diagnostic connector
  • Chrysler-6 pin diagnostic connector
  • GAZ-12 pin diagnostic connector
  • Ford 6+1 pin diagnostic connector
  • Geely-22 pin diagnostic connector
  • Daewoo-12 pin diagnostic connector
  • Case
Basic equipment
Launch X431 Pro3 2017 — 1 650 $
+ Add
Status: Pre-order

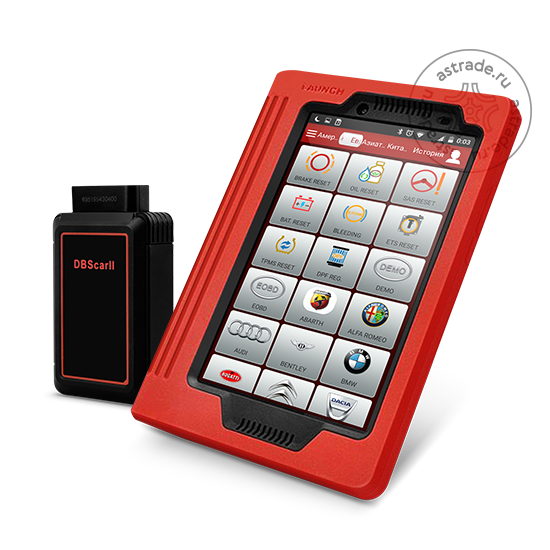

Launch X431 Pro 3 - a car diagnostic scanner consisting of a tablet running Android 7.1, a diagnostic adapter and software. Compared with the previous version, the tablet has a more powerful processor and more RAM. The new DBSCar 5 diagnostic adapter connects to the vehicle's OBD connector directly or through the adapters included in the kit. Data is sent from the adapter to the tablet over the wireless BlueTooth protocol.


Functions



  • Control unit coding
  • Control unit adaptation
  • Service interval reset
  • Reading data streams of vehicle systems
  • Displaying current system parameters
  • Actuator tests
  • Reading and clearing fault codes of vehicle systems
  • Automatic model identification by VIN


Advantages



  • All the functions of a modern tablet
  • Improved performance
  • New convenient Russian menu
  • More than 10 special functions in a separate menu
  • No lockout after the subscription period ends
  • Printing diagnostic results on a wireless mini printer (optional)
  • Support for heavy-duty vehicles (optional)
  • Functionality and the coverage map are constantly expanding


Features



  • The devices can communicate over either Bluetooth or USB
  • 3 years of free software updates included
  • The device updates over Wi-Fi directly from the app, from the manufacturer's server
  • An Internet connection is needed only for downloading updates and online operations (help, information exchange, etc.)
  • The application table (coverage map) by make is here - qcar.x431.com

Tablet specifications:

  • Operating system — Android 7.1.1
  • Display 10.1 ” with a resolution of — 1280 x 800
  • Processor — 4 cores, 1.4 GHz
  • RAM — 2 GB
  • Internal memory — 16 GB
  • Preinstalled microSD memory — 32 GB
  • Rear camera of the tablet — 5 MP
  • Battery — 7000 mAh
  • Dimensions (L x W x H) — 265 x 210 x 30 mm
  • Storage temperature: from -30 C to 70 C
  • Operating voltage: powered from the vehicle battery, DC 9 - 18 V

Service maintenance programs

  • Reset battery matching;
  • Reset exhaust;
  • Reset solar term door matching;
  • Reset tire pressure monitoring system maintenance;
  • AutoSearch;
  • Reset diesel particulate filter regeneration maintenance;
  • RESET injector diagnosis software encoding;
  • RESET security;
  • RESET tooth learning diagnosis software;
  • Reset_Brakediagnosissoftware(Resetbrakezerodiagnosticsoftware);
  • Reset_Oildiagnosissoftware(ResetmachineoilZerodiagnosticsoftware);
  • Reset_SASdiagnosissoftware(Resetsoftwareresetdiagnosisofsteeringanglesensor).
