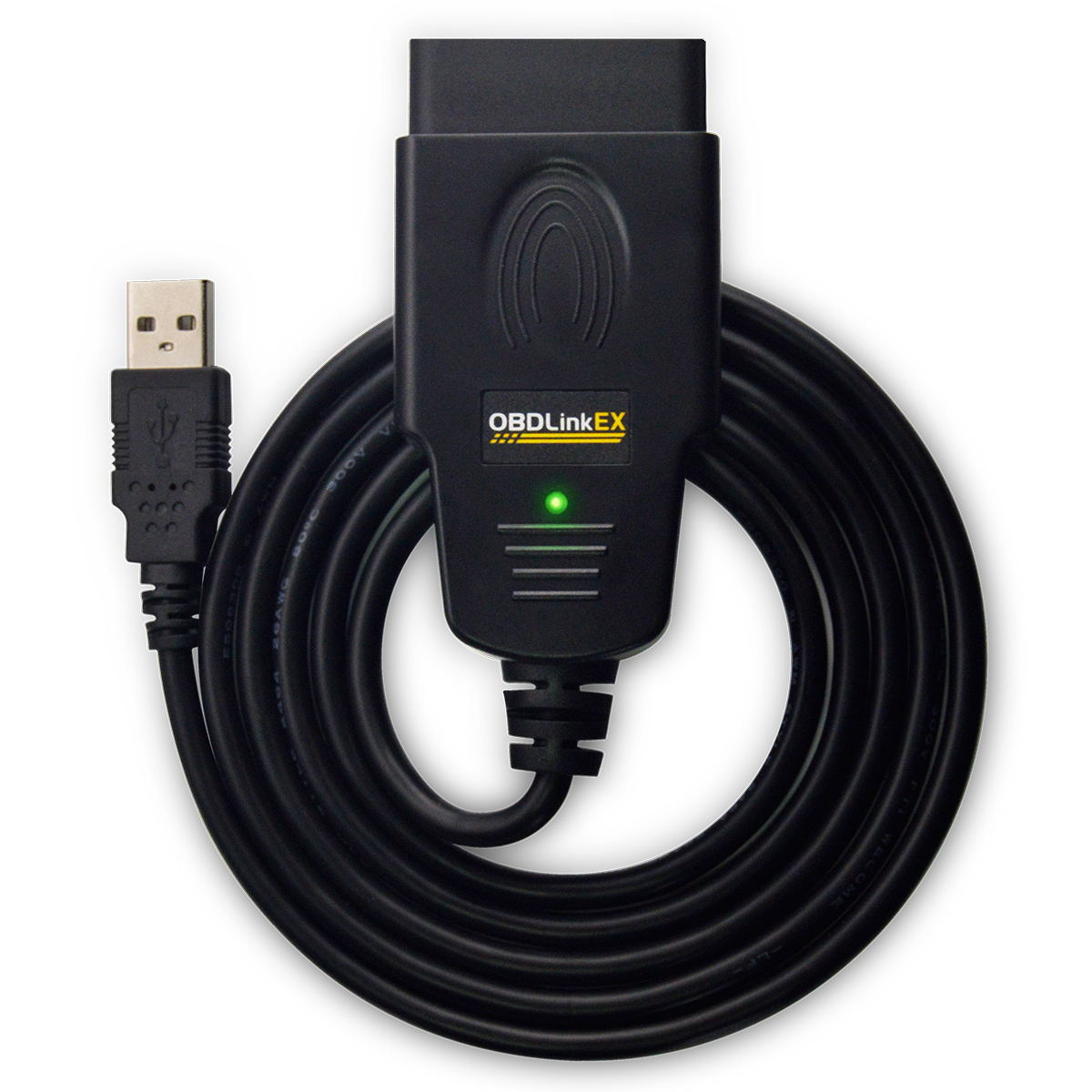

OBDLink EX

Item no.: 23O4000
Manufacturer
Basic equipment
OBDLink EX — 72 $
 + Add
Status: Pre-order

OBDLink EX is an affordable, user-friendly, professional-grade OBD adapter designed from the ground up to take full advantage of all of the features of the FORScan software for Windows. In turn, FORScan takes advantage of exclusive OBDLink functionality. FORScan team recommends EX for its connection reliability, lightning-fast data transfer speed, and support of the proprietary Ford CAN buses.

  • Made for FORScan and recommended by the FORScan team
  • 100% coverage of Ford modules and all features offered by FORScan
  • Electronic MS-CAN/HS-CAN switch allows FORScan to access all CAN buses simultaneously and enables advanced functions not possible with «toggle switch» adapters
  • Maximum throughput: up to 20 times faster than «toggle switch» adapters
  • Dealership-level diagnostics — OBDLink EX supports all Ford protocols, modules, and advanced features of FORScan
  • Rock-solid connection avoids data corruption and dropped packets

OBDLink EX can access 100% of Ford ECUs and get access to more functions than the official Ford dealer scan tool. You read that right: FORScan has capabilities that are locked out in the proprietary software used at Ford dealerships.

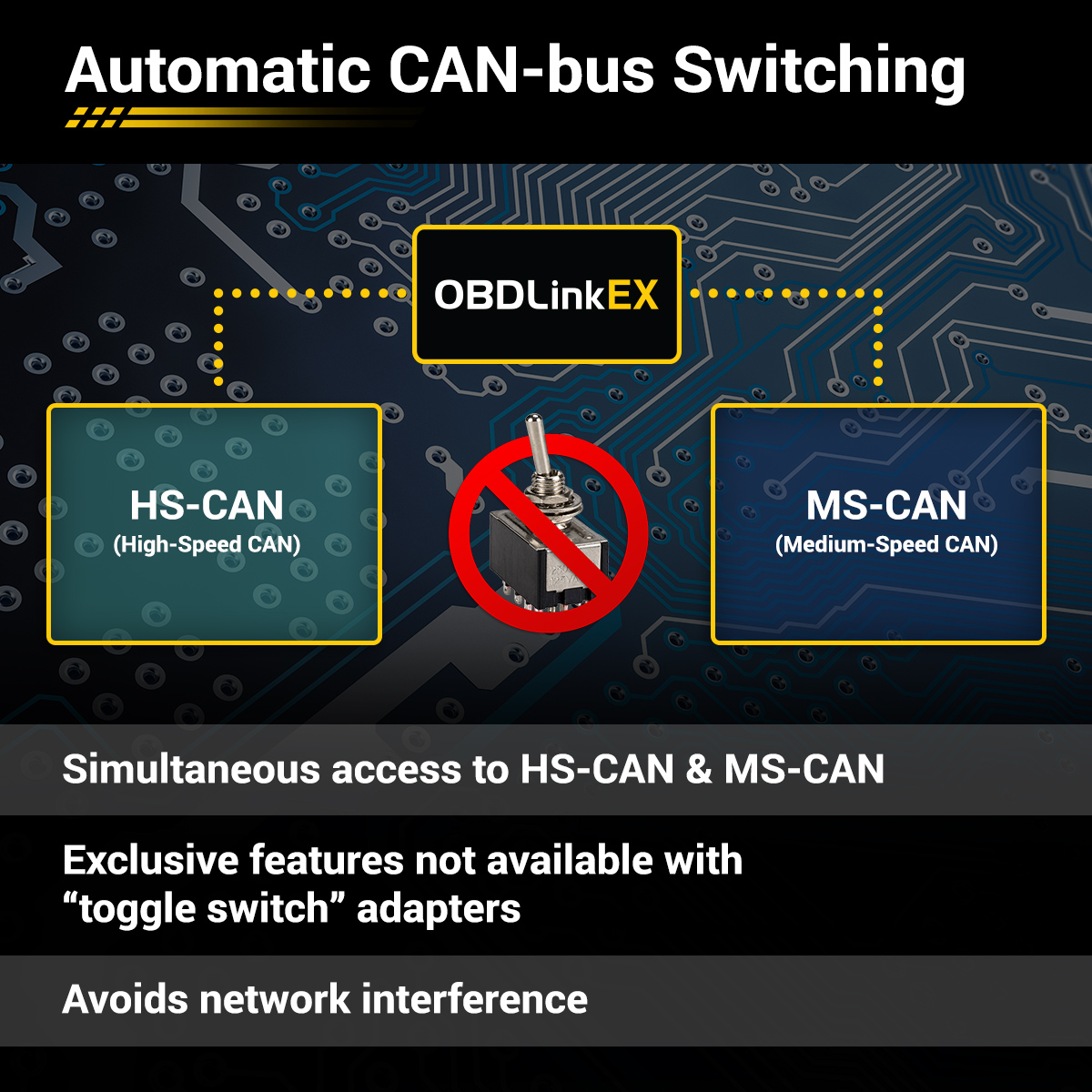

Electronic switching allows access to advanced functions such as simultaneously reading parameters from ECUs on different CAN networks and initializing some modules (e.g., «Remote Keyless Entry and Start»). OBDLink switches seamlessly between HS-CAN, MS-CAN, and J1850 Ford networks. «No switch» means no worries about messing things up if you accidentally transmit on the wrong network.

Vehicle Compatibility

OBDLink EX is optimized for Ford vehicles, but also works with all 1996 & newer model year cars and light trucks sold in the U.S., including all American, European, and Asian vehicles. Live outside the U.S.? Most newer non-U.S. vehicles are compliant with the OBD-II standards.

Supported Platforms: Android, Windows Vista or newer
Connection: USB 2.0
OBD Protocols

  • Legislated OBD-II protocols
    • ISO 15765-4
    • ISO 14230-4 (Keyword Protocol 2000)
    • ISO 9141-2
    • SAE J1850 VPW
    • SAE J1850 PWM
  • OEM-Specific Protocols
    • Ford Medium-Speed CAN (MS-CAN)

Operating Voltage: 12V nominal, operating range 8-30V
Overvoltage Protection: Up to 100V
Operating Current: 6.5 mA @12V
BatterySaver™ Low Power Mode: <1 mA
Device Weight: 3.4 oz (96.4 g)
Dimensions: 3.5 L x 1.78 W in (88.9 x 45.2 mm)
Operating Temperature: -4º to 131º F (-20º to 55º C)
Operating Humidity: 10 to 85% (non-condensing)
