ScanDoc J2534

Item no: 23S1000
Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery
  • Adapter
Basic equipment
ScanDoc J2534 — 195 $
+ Add
Status: In stock

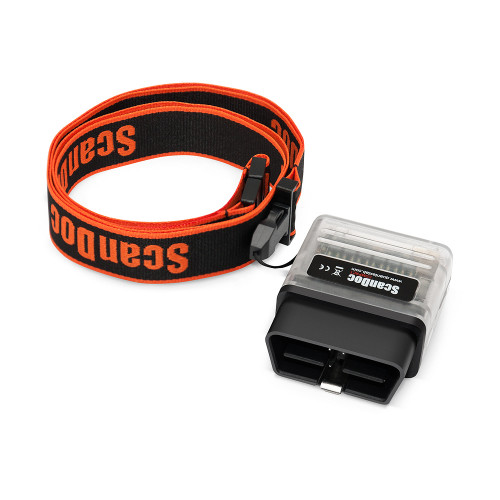

ScanDoc J2534 — a wireless diagnostic adapter designed to work with third-party software over the universal J2534 protocol. The adapter connects to the vehicle via OBD-II and transmits data to the computer over Wi-Fi.

The J2534 protocol defines a unified data exchange interface between software and the adapter. With suitable software, the Scandoc j2534 adapter allows in-depth vehicle diagnostics — for example, for Toyota, Lexus, Volkswagen, Audi, Seat, Skoda, Honda, Volvo, Acura and other makes (software is not included in the delivery kit).

In the basic configuration the device does not work with the regular Scandoc program, but it can be upgraded to a multi-brand universal scanner (this requires purchasing the corresponding software module). This turns the ScanDoc J2534 adapter into a standard Scandoc Compact scanner and provides diagnostics for European, Korean, Japanese, Russian and Chinese vehicle makes.

The adapter is built to a high technical standard and is well protected against physical impact, overvoltage and incorrect connection. Communication with the computer uses the TCP/IP network protocol (over Wi-Fi wireless), which guarantees good data rates and a stable connection. This ensures stable operation under strong interference at distances of up to 25–30 meters.

Technical features:

  • hardware support for protocols: KL–Line, 2xCAN, VPW, PWM;
  • software support for protocols: J2534 (expandable in software to support KW71, KW81, KW82, KW1284, DS2, ISO8, ISO14230, ISO9141, ISO15765, J1979, J1850);
  • built-in electronic switching: 13 channels;
  • connection to the computer: Wi-Fi;
  • power supply, V: 9–30 DC, from the vehicle's on-board network.

Operating conditions

  • operating temperature: 0-50 C;
  • maximum relative humidity: 80% (up to 30 C) and 50% (at 40 C and above);
