ScanDoc Wi-Fi (Full)

Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Basic equipment
ScanDoc Wi-Fi (Full) — 980 $
+ Add
Status: In stock

The ScanDoc multi-brand automotive scanner is designed for reading information from various vehicle systems. Wireless connectivity and a full set of connectors.

Suitable when the vehicles you service include many cars made before 2000 (with older connector types).

Scandoc — one of the best multi-brand scanners on the market.

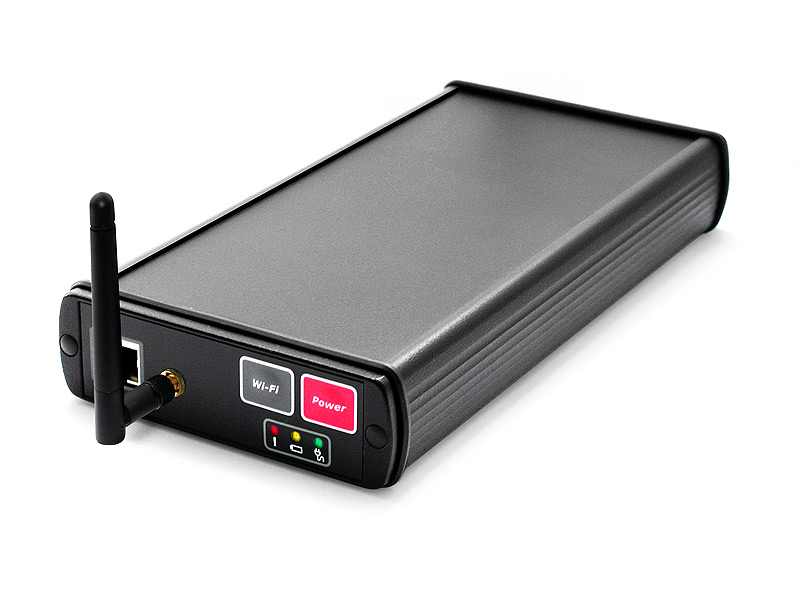

The scanner is designed as an adapter that connects to the computer via a LAN interface.

The aluminum housing well protects the inside of the adapter from possible impacts and aggressive environments. It is built for harsh workshop operating conditions.

The battery inside the adapter allows the device to operate when there is no power in the diagnostic connector, and also acts as a backup power source when the voltage drops during engine cranking. Adapters and cables for connecting to vehicles are recognized by the scanner automatically. This protects against selecting the wrong make or model in the program, which can sometimes happen when the technician works at a fast pace.

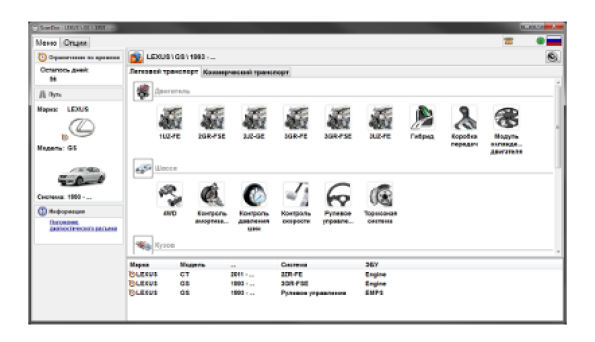

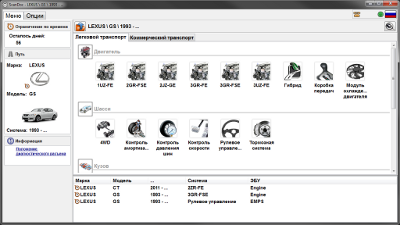

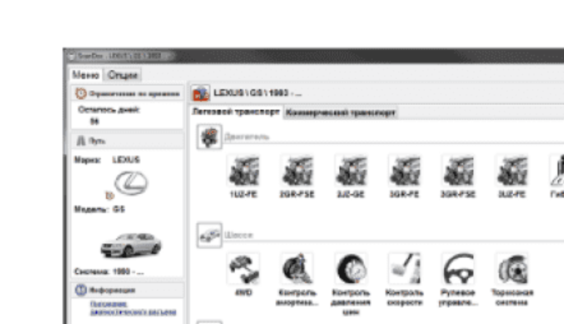

The ScanDoc software has a convenient and intuitive interface.

Functionality

  • reading and decoding error codes
  • clearing errors

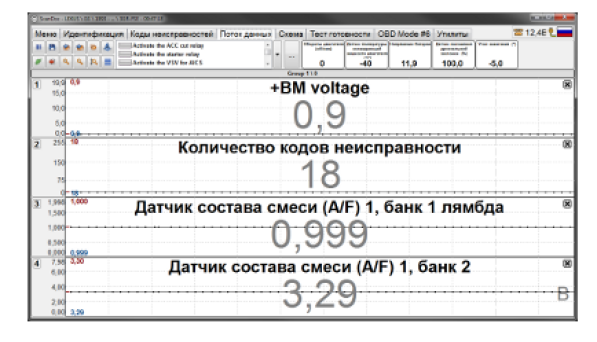

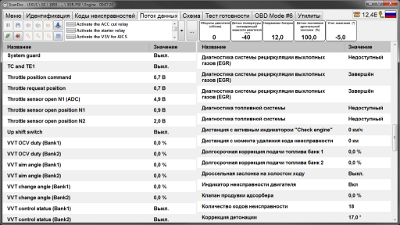

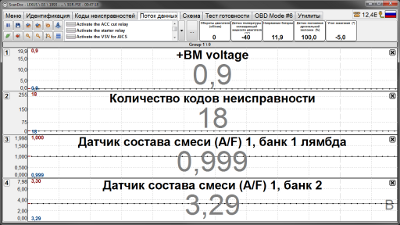

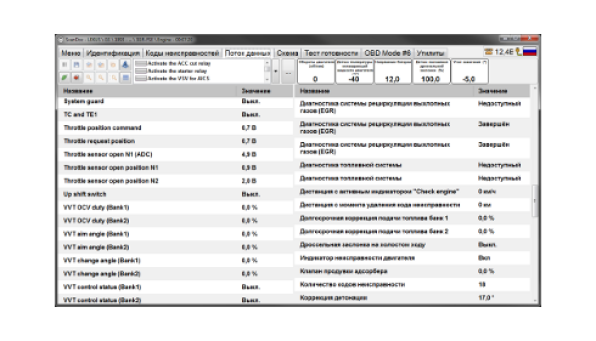

  • live data output in digital and graphical form
  • actuator activation
  • system (control unit) identification
  • immobilizer reading and programming

Software under development

(available free of charge, on request, until the module goes on sale)

  • AUDI/VW/SEAT/SKODA
  • CITROEN
  • FIAT
  • MERCEDES/SMART
  • PEUGEOT

Additional features

  • parameter grouping
  • quick parameter hints (not for all makes)

Supported software interfaces

  • Russian;
  • English

Hardware specification

  • processor: 32 bit, 71 MHz
  • internal memory: 32 MB
  • hardware protocol support: KL-Line, 2xCAN, VPW, PWM, J1708
  • software protocol support: KW71, KW81, KW82, KW1284, DS2, ISO8, ISO14230, ISO9141, ISO15765, J1979, J1850
  • built-in electronic switching: 36 channels
  • connection to the PC: Ethernet 10/100, WI-FI IEEE 802.11b 100 mW (11 Mbit/s)
  • built-in battery: (about 1 hour of operation)
  • power supply: 9-30 VDC

Operating conditions

  • indoor use only
  • operating temperature: 0-50C
  • maximum relative humidity: 80% (up to 30 C) and 50% (at 40C and above)

System requirements

Minimum:

  • Pentium IV 2 GHz processor
  • 512 MB RAM
  • Ethernet adapter 10 BASE-T
  • Video adapter 1024×600, 256 colors
  • COM port (for connecting a gas analyzer)
  • CD-ROM for installing the software
  • OC Windows 2000/XP
  • Internet

Recommended:

  • Pentium IV 2 GHz processor
  • 1 GB RAM
  • Ethernet adapter 10/100 BASE-T
  • Video adapter 1024×600, True-Color
  • COM port (for connecting a gas analyzer)
  • CD-ROM for installing the software
  • OC Windows XP
  • Internet

General specifications

  • main scanner unit dimensions: 200×100×40 mm
  • main unit weight: 600 g
  • housing color: black
