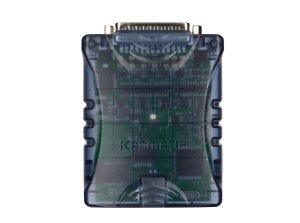

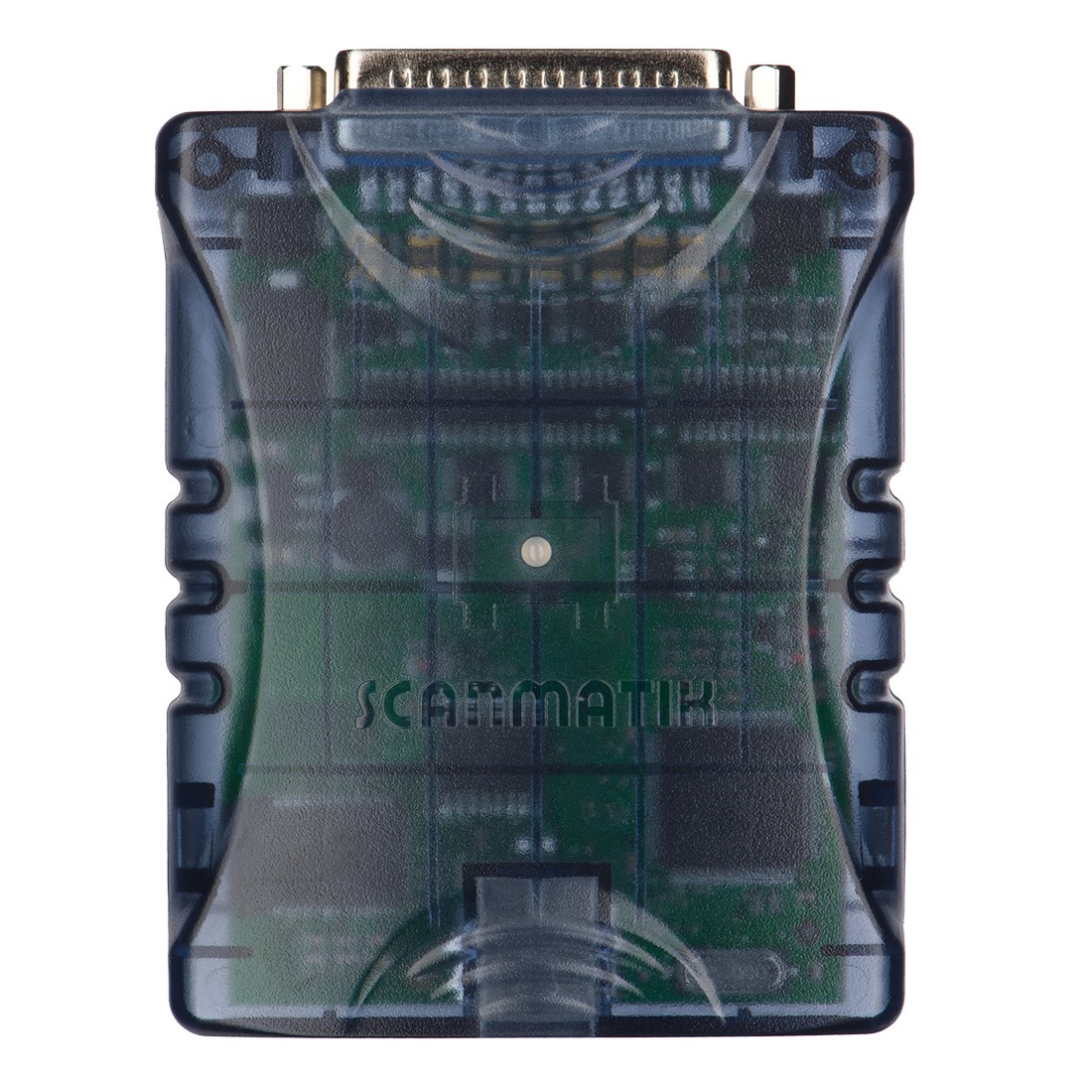

Scanmatik 2 PRO — a professional multi-brand scanner designed for diagnostics of the electronic control systems of modern American, European, Japanese and Russian cars. The device is the logical successor of the Scanmatik 2 device, built on 7 years of accumulated operating experience. In addition to the old adapter, the new Scanmatik 2 PRO has the following features:
- Galvanic isolation of the USB port (together with the power supply);
- K-line and CAN bus protection has been redesigned on a new component base;
- Bluetooth speed has been increased by about ~20%;
- In-house designed switching power supplies are used (no heating, + a wide input voltage range from 5 to 55V);
- Power supply protection against «Load-Dump» voltage surges (when the alternator is disconnected with the engine running).
The widest support of the J2534-1/2 standards:
- Programming voltage (5-24V) supplied to OBD connector pins 6, 8, 11, 12, 13, 14;
- AUX programming voltage output (via an additional cable).
For full support of peripheral units on GM cars (GDS2) and VAZ/Renault cars, the following is provided:
- An additional CAN bus on pins 12–13, working in a 12H-13L or 12L-13H configuration.
Description
The device works with a personal computer, tablet or smartphone. Programs for Windows and Android are included. When the driver (included) is installed, it works with third-party software built to the SAE J2534 and RP1210 standards. Either the USB or the Bluetooth interface (both built into the Scanmatik 2 PRO adapter) can be used to connect to the adapter. The kit includes the full current version of the program (all software modules available at the moment): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and loaders built for the standard SAE J2534 and RP1210 interfaces.
SM2-PRO adapter specifications
- Interfaces for communication with a PC (tablet, smartphone) — USB or Bluetooth;

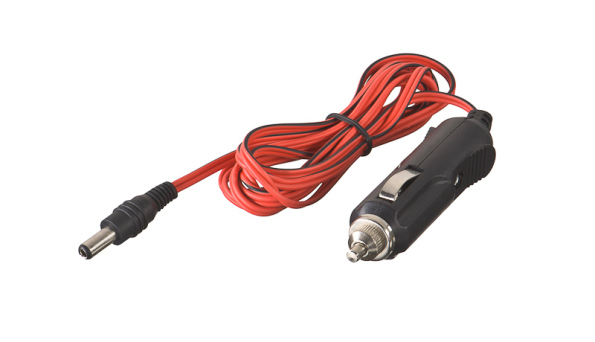

- Supply voltage: 5...36V from the vehicle on-board network or USB (galvanic isolation together with the power supply);
- Current consumption, no more than 350mA;
- Internal in-house designed switching power supplies (no heating + a wide input voltage range from 5 to 55V);
- Power supply protection against “Load-Dump” voltage surges (when the alternator is disconnected with the engine running);
- Supported data buses:
- 13 x ISO-9141/ISO-14230 (K-LINE);
- 1 x J1850VPW;
- 1 x J1850PWM;
- 4 x CAN;
- 1 x Single Wire CAN.
- Built-in multiplexer for switching the diagnostic lines;
- The widest support of the J2534-1/2 standards;

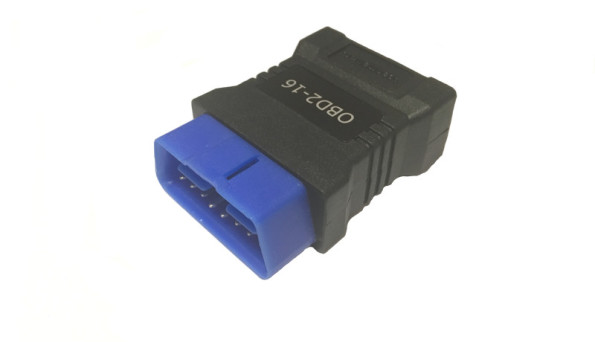

- Programming voltage (5-24V) supplied to OBD2 connector pins: 6, 8, 11, 12, 13, 14;

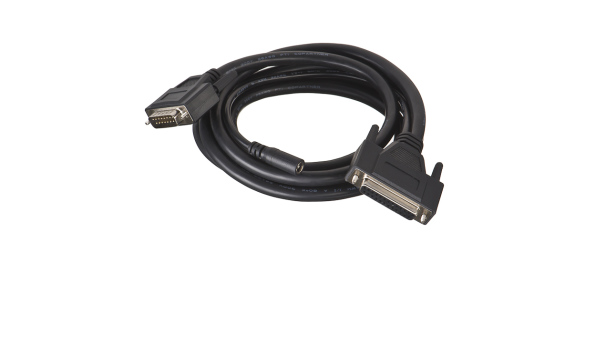

- AUX programming voltage output (via an additional cable);
- Bluetooth range, at least: 10m (Class 2);
- Adapter dimensions (L x W x H), no more than: 970x750x220mm;
- Weight of the device in the basic configuration, no more than: 1 kg.
PC system requirements
- Operating system Windows XP, Vista, Windows 7, Windows 8, Windows 10
- Processor clock speed, at least (see the minimum requirements for running the OS)
- RAM, at least (see the minimum requirements for running the OS)
- Free hard disk space, at least 7 MB
- For a USB connection — a free USB 1.1 port
- For a Bluetooth connection — a Bluetooth adapter (built-in or external).
System requirements for the tablet / smartphone
- Operating system — Android 2.1 and higher;
- Supported architecture — all (ARM, X86, MIPS);
- For a USB connection — USB-Host;
- For a Bluetooth connection — a Bluetooth module.
