Scanmatik 2 PRO (Standard kit)

Manufacturer
The basic software is free.
TCEPro is an editor for calibration maps of ECUs. To use the software a catalog is required.
Go to module selection
Contents of delivery

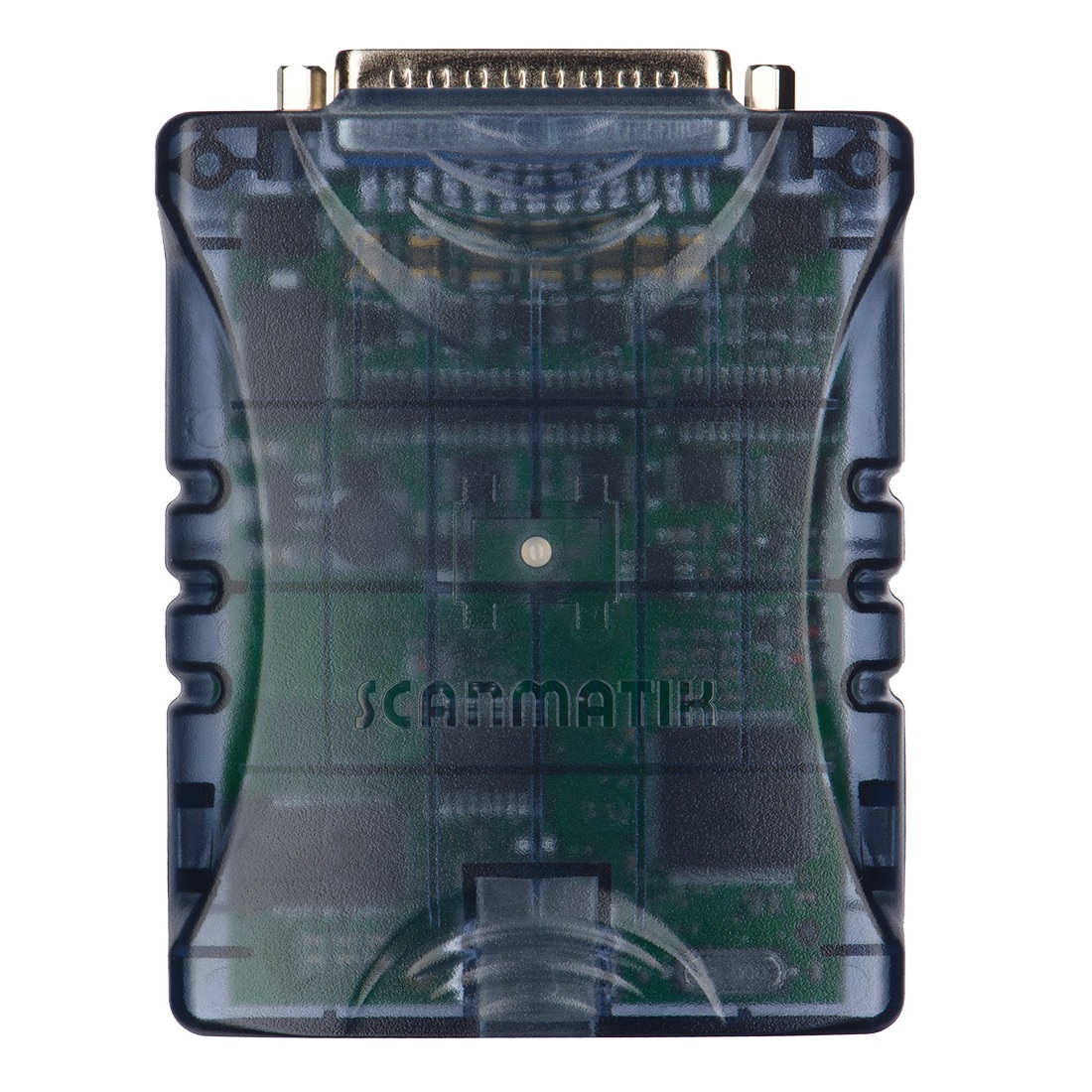

  • Scanmatik SM2-PRO adapter

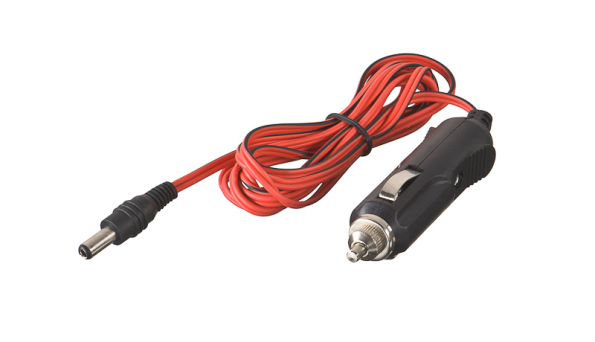

  • Cigarette lighter power cable
  • GAZ-12 for GAZ and UAZ

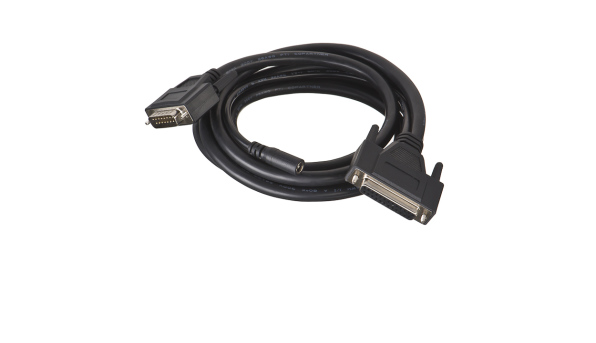

  • Main cable (1.8 m )

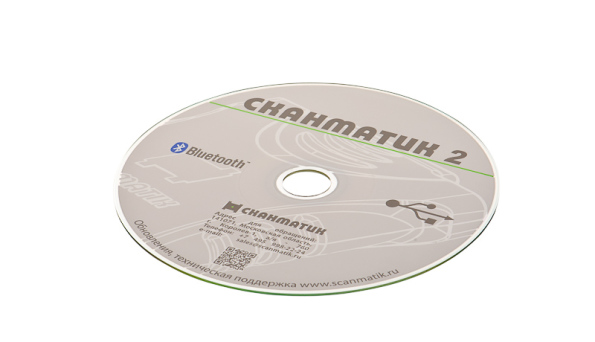

  • CD with program and manuals
  • GM/VAZ-12 for VAZ and Daewoo
  • USB cable ( 1.8 m )

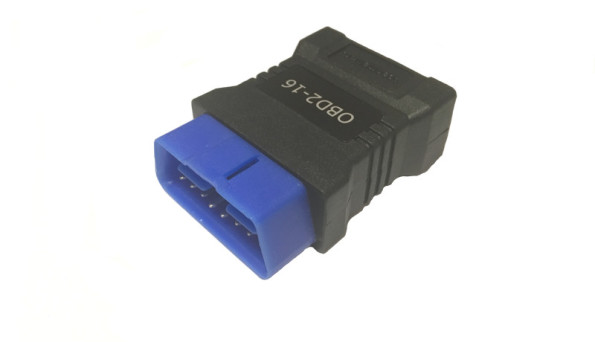

  • OBD2 adapter
Basic equipment
Scanmatik 2 PRO (Standard kit) — 326 $
+ Add
Status: Pre-order

Scanmatik 2 PRO — a professional multi-brand scanner designed for diagnostics of the electronic control systems of modern American, European, Japanese and Russian cars. The device is the logical successor of the Scanmatik 2 device, built on 7 years of accumulated operating experience. In addition to the old adapter, the new Scanmatik 2 PRO has the following features:

  • Galvanic isolation of the USB port (together with the power supply);
  • K-line and CAN bus protection has been redesigned on a new component base;
  • Bluetooth speed has been increased by about ~20%;
  • In-house designed switching power supplies are used (no heating, + a wide input voltage range from 5 to 55V);
  • Power supply protection against «Load-Dump» voltage surges (when the alternator is disconnected with the engine running).

The widest support of the J2534-1/2 standards:

  • Programming voltage (5-24V) supplied to OBD connector pins 6, 8, 11, 12, 13, 14;
  • AUX programming voltage output (via an additional cable).

For full support of peripheral units on GM cars (GDS2) and VAZ/Renault cars, the following is provided:

  • An additional CAN bus on pins 12–13, working in a 12H-13L or 12L-13H configuration.

Description

The device works with a personal computer, tablet or smartphone. Programs for Windows and Android are included. When the driver (included) is installed, it works with third-party software built to the SAE J2534 and RP1210 standards. Either the USB or the Bluetooth interface (both built into the Scanmatik 2 PRO adapter) can be used to connect to the adapter. The kit includes the full current version of the program (all software modules available at the moment): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and loaders built for the standard SAE J2534 and RP1210 interfaces.

SM2-PRO adapter specifications

  • Interfaces for communication with a PC (tablet, smartphone)  — USB or Bluetooth;
  • Supply voltage: 5...36V from the vehicle on-board network or USB (galvanic isolation together with the power supply);
  • Current consumption, no more than 350mA;
  • Internal in-house designed switching power supplies (no heating + a wide input voltage range from 5 to 55V);
  • Power supply protection against “Load-Dump” voltage surges (when the alternator is disconnected with the engine running);
  • Supported data buses:
    • 13 x ISO-9141/ISO-14230 (K-LINE);
    • 1 x J1850VPW;
    • 1 x J1850PWM;
    • 4 x CAN;
    • 1 x Single Wire CAN.
  • Built-in multiplexer for switching the diagnostic lines;
  • The widest support of the J2534-1/2 standards;
  • Programming voltage (5-24V) supplied to OBD2 connector pins: 6, 8, 11, 12, 13, 14;
  • AUX programming voltage output (via an additional cable);
  • Bluetooth range, at least: 10m (Class 2);
  • Adapter dimensions (L x W x H), no more than: 970x750x220mm;
  • Weight of the device in the basic configuration, no more than: 1 kg.

PC system requirements

  • Operating system Windows XP, Vista, Windows 7, Windows 8, Windows 10
  • Processor clock speed, at least (see the minimum requirements for running the OS)
  • RAM, at least (see the minimum requirements for running the OS)
  • Free hard disk space, at least 7 MB
  • For a USB connection — a free USB 1.1 port
  • For a Bluetooth connection — a Bluetooth adapter (built-in or external).

System requirements for the tablet / smartphone

  • Operating system — Android 2.1 and higher;
  • Supported architecture — all (ARM, X86, MIPS);
  • For a USB connection — USB-Host;
  • For a Bluetooth connection — a Bluetooth module.
