ACDP-2 Mini
Item no.: 40Y2000

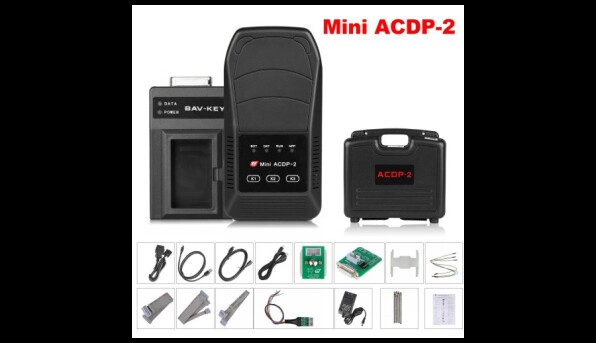

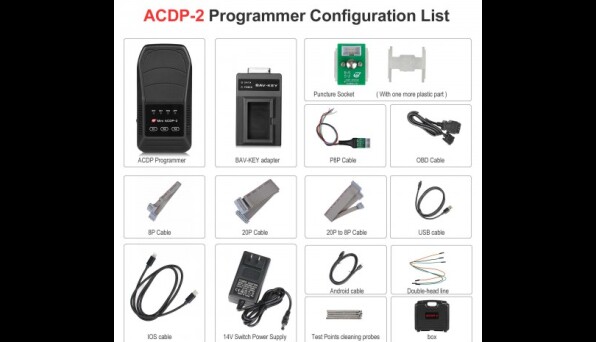

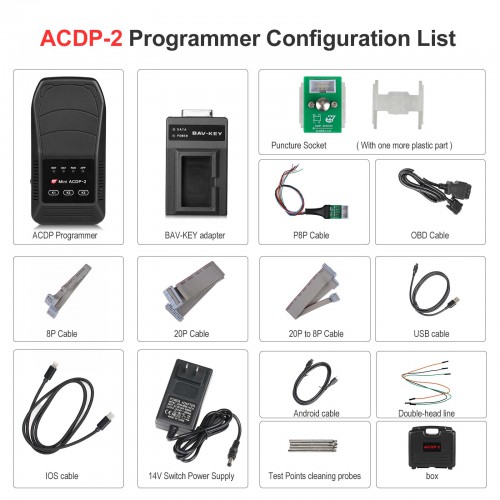

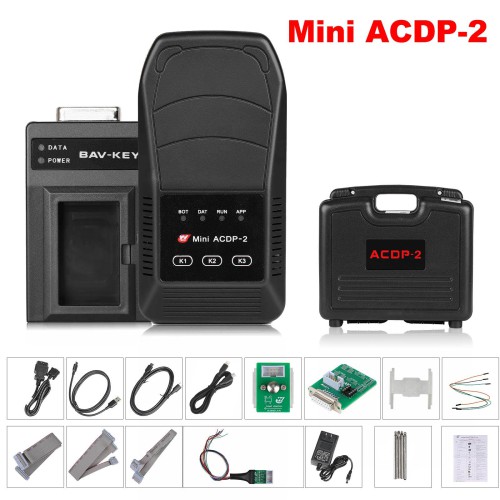

- ACDP Programmer
- Puncture Socket (With one more plastic part)
- BAV-KEY adapter
- P8P Cable, 8P Cable, 20P Cable, 20P to 8P cable
- Android cable, IOS cable
- USB cable, OBD cable
- 14V Switch Power Supply
- OBP2 adapter
- Test Points cleaning probes
- Double-head line

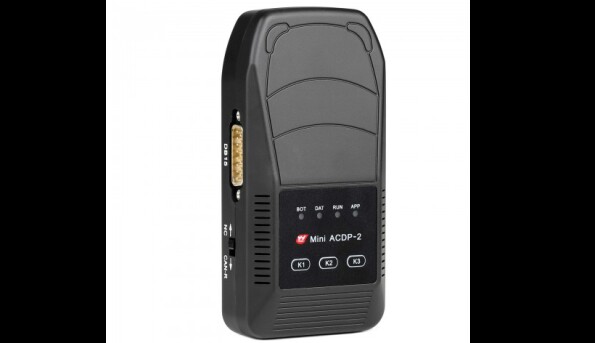

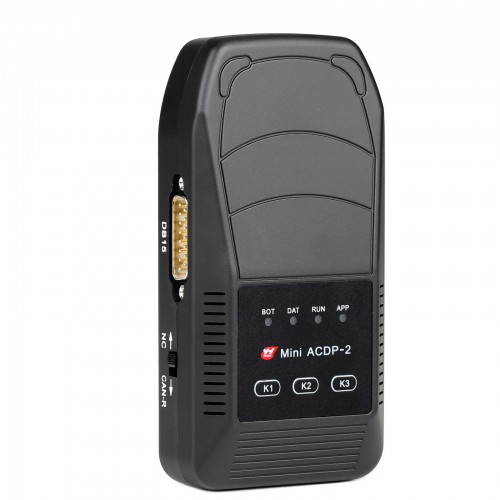

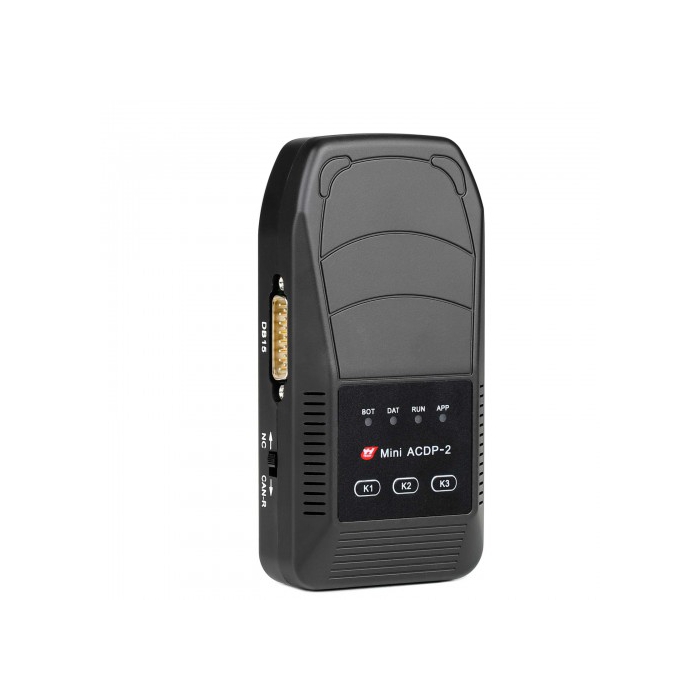

The Yanhua Mini ACDP-2 is an updated version of the popular Mini ACDP programmer, enhanced with USB connectivity capabilities. Developed by Yanhua-a company renowned for its professional solutions in the field of automotive electronics-the ACDP-2 programmer is designed for the diagnosis, reprogramming, and maintenance of automotive Electronic Control Units (ECUs).
Yanhua ACDP-2 Programmer Highlights:
- Dual Connection Modes: USB & Wireless(WiFi/Bluetooth)
- No Soldering Needed: In-Circuit Programming (ICP) for 93/24/25/35/95 Series EEPROMs
- Multi-Platform Support: Windows PC, Android, iOS (iPhone/iPad)
- Smart Pin Detection: Safe & Reliable Read/Write Operations
- Flexiable programmer: you just need pay for what you need
ACDP-2 Basic Module Functions:
1. Support 93/24/25/35/95 Series EEPROM in circuit programming (ICP) and on adapter board programming(OBP).
2. Support ICP programming for chip models 9S12/SPC/TC1784/TC1793/V850-D70F34/RH850-R7F7014, etc.
3. This module is a necessary basic configuration for other modules.
Extended Functions: By expanding more adapters to achieve various functions, such as ECU programming, key programming/matching, ECU refresh.
The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB, Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.
Mini ACDP-2 Advantages:
1. No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

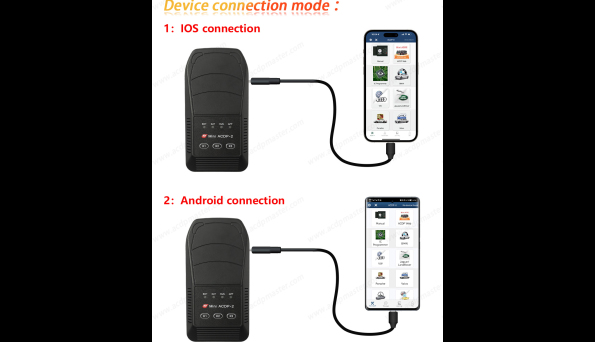

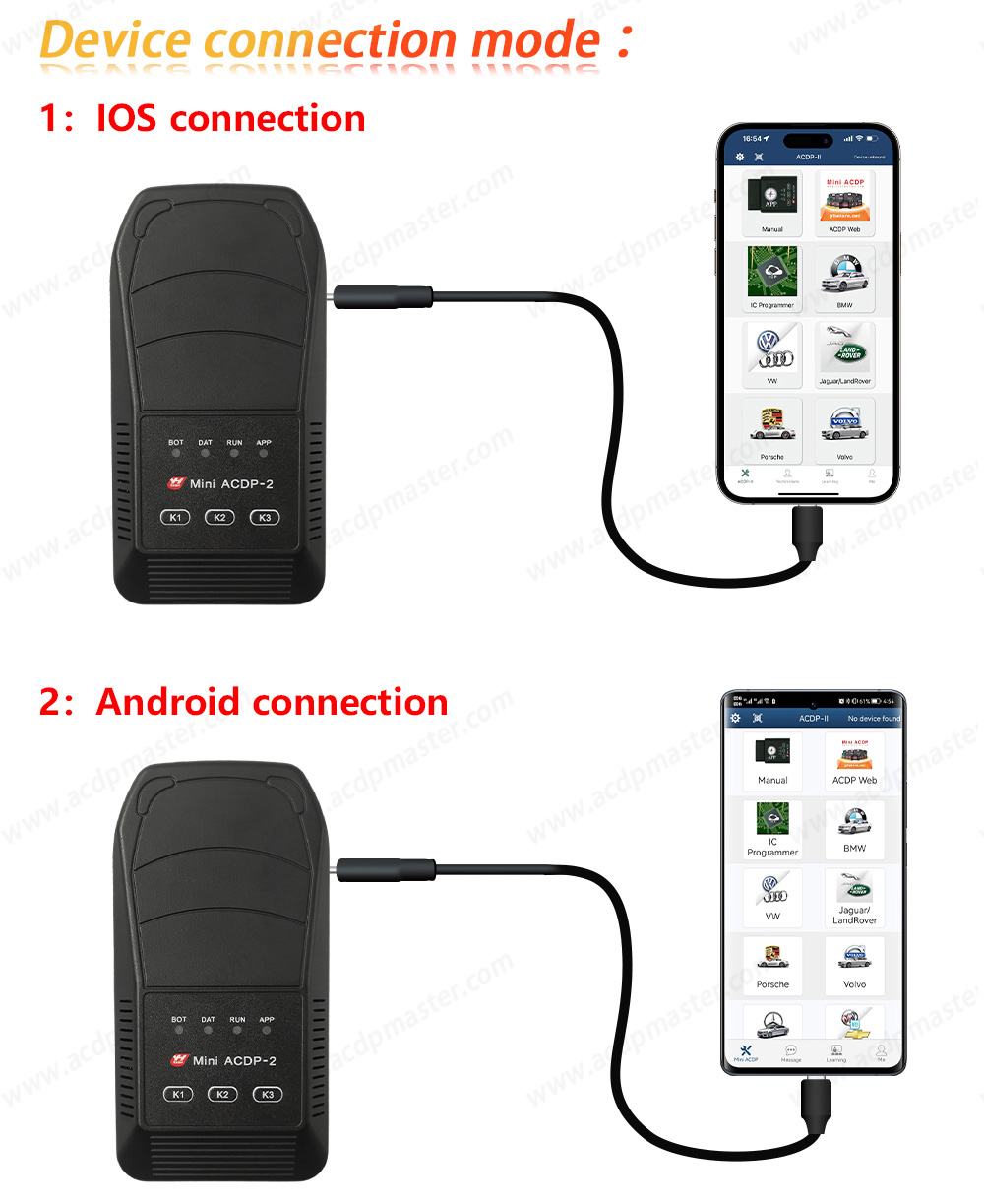

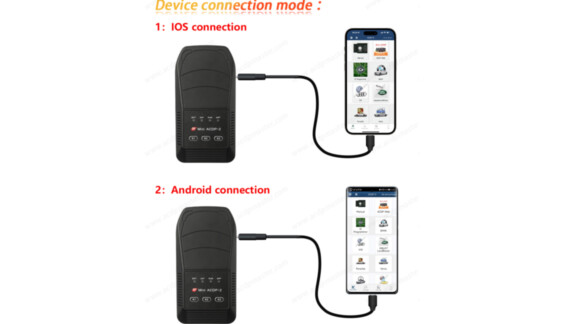

How to Bind the second-generation ACDP:
1: Bind directly through the USB cable. The 3 USB cables correspond to Android, IOS, and PC respectively. After binding the device in this way, the USB cable must be connected to the host and the mobile phone, and it cannot be used without the USB cable. Disconnect the USB cable and the device will lose connection.
2: Configure wifi or hotspot binding through the USB cable. The binding process of this method requires a USB connection, and then enter the wifi or hotspot name and password to complete the binding. After binding, you can unplug the USB cable and use it wirelessly.
3: Configure wifi or hotspot binding through the Bluetooth of the mobile phone. This method is the same as the binding method of the 1st generation host. Wireless use after binding.
Yanhua ACDP2 Operating system requirements:
iOS (iPhone/iPad/Mac):
System Version: 9.0 or above
Device: iPhone 6 or newer
RAM: 2GB or more
Storage: 1.5GB or more
Download the app from the iOS App Store by searching for 'ACDP-2'
Android (Huawei, Xiaomi, Oppo, Samsung, etc. with Qualcomm chipset):
System Version: 5.0 or above
RAM: 2GB or more
Storage: 1.5GB or more
Download and install the Android app
Windows PC (Windows 7, 10, 11):
System Version: Windows 7 or 10 or 11 (WinXP not supported)
RAM: 2GB or more
Storage: 1.5GB or more
Module 19 (SH725XX TCU) is designed for use with the ACDP programmer; it enables the cloning of transmission control units (TCUs) based on the SH725XX processor across a wide range of vehicles, including BMW, Jaguar, Land Rover, VW/Audi, Rolls Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, and other brands.
Key Functions:
Cloning of ZF 8HP control units;
Cloning of DSG DQ380/DQ381 control units;
Cloning of Mercedes 9G-Tronic VGSNAG3 control units;
Cloning of dual-clutch automated transmission control units (BMW GETRAG 7DCT and TEMIC DKG).
The kit includes additional adapters for connecting to the control unit. Operation requires the Yanhua Mini ACDP 2 Universal Programmer base kit.
ACDP Module 33 MQB-33 function:
- Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction
- Add keys and All key lost for Volkswagen MQB48(AKL need to get Synchronous data from third party)
- Module 33 Support the following chip module instrument cluster 3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320
ACDP Module 34 For VW MQB
- D70F3423/3426 chip mask The 4th generation odometer Add keys & all key lost & milage correction
- R7F71401/ 1402/ 1407 chip mask RH850 5A odometer Add keys & all key lost & milage modify
- R7F71401/ 1402/ 1404/ 1406/ 1407 chip mask RH850 5C odometer Mileage correct
- For 2019-2022 VW Polo/VW Virtue, R7F701402-B Interface Board extra is requried.
- For VW MQB 5D, Golf 8, Teramont, Viloran, Tavendor, Lamando, Tiguan L…mileage correction. R7F701401/21-5D Interface Board extra is requried.
- Support VW Audi MQB49 5C 5D IMMO key programming(add keys), ACDP Module 44 is requried.
ACDP BMW BDC2 IMMO Module Function:
- Supports adding key for all versions of BMW BDC2.
- Add keys, enable keys, disable keys, reset starter motor, headlight height match
- Support for BMW BDC2 all key lost is supported, need work with BDC2 Key Learning Bench Platform together
- Support for BMW BDC2 Mileage Reset
- Support for BMW BDC2 Module Refresh
- Support for BMW BDC2 Module Copy Replacement
- Support for BMW G Chassis BDC3, BMW U Chassic BCP Key Copying(need work with ACDP Key Copy Interface Board Kit for BMW BDC3 BCP together)
- Newly add modify IMMO info function on Nov 12th: with this function, you can you can modify VIN number, delete/add key ID, change ISN data
- Newly add BDC2/BDC3/BCP/LCD key Encrypted key Copying function on Jan, 2026 (requires ACDP Encrypted Key Copy Interface Board Set)
