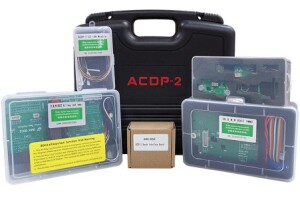

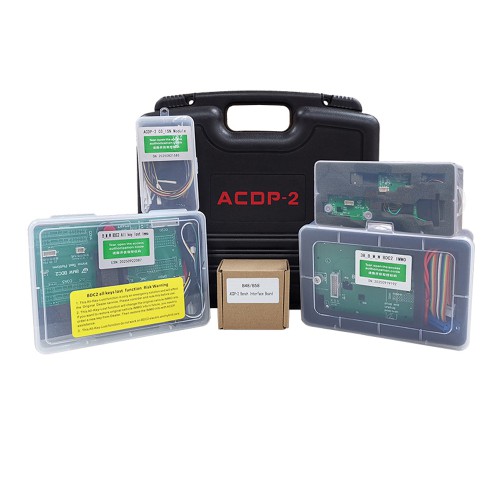

Yanhua ACDP-2 IMMO Package for BMW BDC2/BDC3/BCP Key Programming

Functions:
1: Supports for BMW BDC2 add keys and all keys lost.
2: Supports for BMW BDC3 keys copy.
3: Supports for BMW BCP keys copy.
4: Supports for BMW B48/B58 DME ISN read.
5: Supports for BMW BDC2 module refresh and Copy data replacement.
6: BDC2/BDC3/BCP/LCD key Encrypted key Copying function (require Encrypted Key Copy Interface Board Set)

Video On How To Process for BMW BDC2 All Key Lost

ACDP-2 Basic Module Features:

Yanhua Mini ACDP-2 supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP) and on adapter board programming(OBP). This module is a necessary basic configuration for other modules.

Extended Functions: By expanding more adapters to achieve various functionsauch as ECU programming key programming/matching, ECU refresh.
The current adapters include: for BMW CAS, for BMW FEM/BDC, for BMW DME, Meter/Instrument, for BMW Key refresh, for BMW FRM(Footwell), for BMW EGS(Gearbox), Fujitsu CPU, for VW MQB, for Jaguar Land/Rover KVM, for Porsche BCM, for Volvo, etc.

Mini ACDP-2 Advantages:

1. No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

The Function of ACDP Module 38 for BMW BDC2 IMMO:

Supports adding key for all versions of BMW BDC2.
Enable keys, disable keys, reset starter motor, headlight height match
Support for BMW BDC2 all key lost
Support for BMW BDC2 Mileage Correction
Support for BMW BDC2 Module Refresh
Support for BMW BDC2 Module Copy Replacement
Supports original key and aftermarket key. Both 315Mhz (US) and 433MHz (EU).
Just need to insert the interface board to the BDC2 module directly.
No annual fees or per-use charges-one-time solution with zero hidden costs.

Key Learning Test Platform with AKL License for BMW BDC2:

All‑Key‑Lost License Update: Includes free software license updates for BMW BDC2 key learning (Module 38).
Module‑Free Bench Learning: Program new keys on the bench without reinstalling the BDC2 module in the vehicle.
Emergency Function Testing: Enables ignition-on and emergency start testing to verify successful key learning.
Remote & Keyless Testing: Supports connection to smart antennas, IR boxes, and keyless systems for remote-only validation.
Cluster & DME Integration: Expandable to test integration with instrument cluster and engine control units (DME).
Plug‑and‑Play Interface Board: Dedicated board replaces cable harnesses-efficient, safe, and straightforward.
Fully Compatible: Works with any ACDP-enabled device that supports Module 38.

ACDP Module 3 for BMW ISN Reading and Writing:

Support for BMW DME ISN Reading/writing(Necessary when all-key-lost).

1. Support OBD/CAN reading for BMWE chassis MSV80/MSV801, MSD80/MSD802, MSD81/MSD812, MSD851/MSD852, N62_TUE/N62_TUE2, MEV9N46/MEV9N46L, N46(MV1746), MSV70, MSS60, BMW R chassis
N12(MEV172), N14(MED172), N16(MEV1722D), N18(MEVD1722), N18(MEVD1727) and other DME ISN.
2. Support bench method to quickly read the DME ISN for BMWN20/N55/B38/B48 (need to purchase the interface board).
3. Support OBD mode to read some versions of the B48 and MSV90 enginecomputer ISN (need to purchase authorization).

ACDP Interface Board for BMW B48/B58:

1. Support all F/G chassis versions and all B48/B58 DME which chip modle is SPC5777/TC298TP
2. No programming is required and the ISN is read in seconds
3. The special interface board connection method replaces the traditional plugging wire method, simple and efficient, safe and reliable

Yanhua ACDP Interface Board for BMW BDC3 BCP Key Copy:

1. Supports use original brand new keys copying for 2020–2024 BMW BDC3 keys (G chassis BDC3 keys manufactured in Hungary).
2. Supports use original brand new keys copying for BMW U chassis BCP keys (with and without UWB functionality).

How to Enter the All Key Lost Menu In ACDP APP

• BMW -> FEM/BDC -> IMMO/Mileage -> BDC2 ICP+ OBD (F/G Chassis) -> Add Key (All key lost)

User Manual for BMW BDC2 All Key Lost

Step 1: Backup coding data

• Use Yanhua ACDP Module 3 and B48 Interface Board to backup EEPROM data

Step 2: Backup FAFP data
Step 3: Write IMMO data
Step 4: Write coding data
Step 5: Made dealer key

• After making the dealer key, turn on the ignition to do key match

Step 6: Write DME ISN

• Verify the key can start the car normally, then go to next step

Step 7: Reset EGS EWS(turn on ignition, but not start the car)
After finishing these steps, start the engine — both the key and vehicle should now function properly.

FAQ:
Q: Can I use disabled key for all key lost situation? Customer lost his working key but have one key which was disabled before.
A: Use the disabled key as a working key and made a new key. After the new key was made, he enabled the disabled key, and then he disabled all the lost keys.

Q: I need to virginze bdc2 or bdc3 to clone damaged bdc, this package can do this?
A: ACDP can virginze bdc2 to clone damaged bdc. But it does not support this function for BDC3

Weight: 2.9KG (6.39LB)
Package: 34.5cm*32cm*19cm (Inch: 13.58*12.6*7.48)

Technical support is provided by the developer directly.

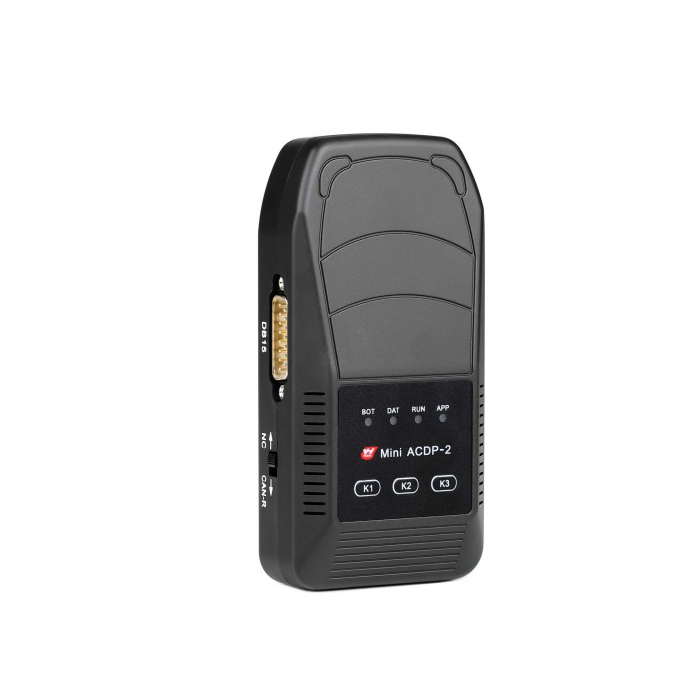

The Yanhua Mini ACDP-2 is an updated version of the popular Mini ACDP programmer, enhanced with USB connectivity capabilities. Developed by Yanhua-a company renowned for its professional solutions in the field of automotive electronics-the ACDP-2 programmer is designed for the diagnosis, reprogramming, and maintenance of automotive Electronic Control Units (ECUs).

Yanhua ACDP-2 Programmer Highlights:

• Dual Connection Modes: USB & Wireless(WiFi/Bluetooth)
• No Soldering Needed: In-Circuit Programming (ICP) for 93/24/25/35/95 Series EEPROMs
• Multi-Platform Support: Windows PC, Android, iOS (iPhone/iPad)
• Smart Pin Detection: Safe & Reliable Read/Write Operations
• Flexiable programmer: you just need pay for what you need

ACDP-2 Basic Module Functions:

1. Support 93/24/25/35/95 Series EEPROM in circuit programming (ICP) and on adapter board programming(OBP).
2. Support ICP programming for chip models 9S12/SPC/TC1784/TC1793/V850-D70F34/RH850-R7F7014, etc.
3. This module is a necessary basic configuration for other modules.

Extended Functions: By expanding more adapters to achieve various functions, such as ECU programming, key programming/matching, ECU refresh.
The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB, Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.

Mini ACDP-2 Advantages:

1. No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

How to Bind the second-generation ACDP:

1: Bind directly through the USB cable. The 3 USB cables correspond to Android, IOS, and PC respectively. After binding the device in this way, the USB cable must be connected to the host and the mobile phone, and it cannot be used without the USB cable. Disconnect the USB cable and the device will lose connection.
2: Configure wifi or hotspot binding through the USB cable. The binding process of this method requires a USB connection, and then enter the wifi or hotspot name and password to complete the binding. After binding, you can unplug the USB cable and use it wirelessly.
3: Configure wifi or hotspot binding through the Bluetooth of the mobile phone. This method is the same as the binding method of the 1st generation host. Wireless use after binding.

Yanhua ACDP2 Operating system requirements:

iOS (iPhone/iPad/Mac):
System Version: 9.0 or above
Device: iPhone 6 or newer
RAM: 2GB or more
Storage: 1.5GB or more
Download the app from the iOS App Store by searching for 'ACDP-2'

Android (Huawei, Xiaomi, Oppo, Samsung, etc. with Qualcomm chipset):
System Version: 5.0 or above
RAM: 2GB or more
Storage: 1.5GB or more
Download and install the Android app

Windows PC (Windows 7, 10, 11):
System Version: Windows 7 or 10 or 11 (WinXP not supported)
RAM: 2GB or more
Storage: 1.5GB or more

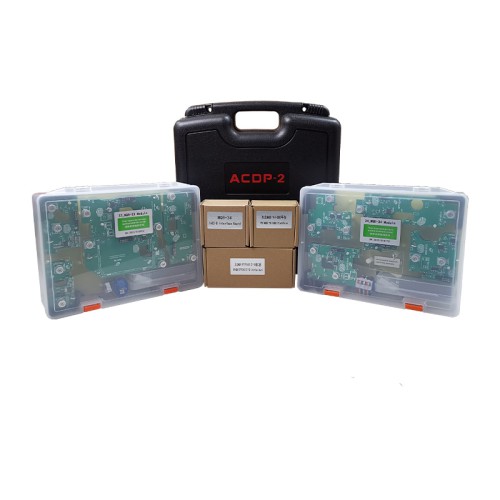

Yanhua Mini ACDP-2 MQB Package with Module 33/34 is a powerful and versatile diagnostic solution, specifically designed for Volkswagen vehicles with MQB48 and RH850 platforms. The ACDP-2 VW MQB Package is essential for key programming and mileage correction. Supports VW MQB48 & RH850 Key 5A Programming and 5A 5C Mileage Correction. With its advanced features, user-friendly interface, and compact design, it is an essential tool for a professional mechanic or a DIY enthusiast, it offers the precision and functionality needed to perform a wide range of tasks.

ACDP2 VW MQB Package Functions:

1. Support IMMO and mileage correction for Volkswagen 4, generation 4.5 generation, MQB48 5A instrument with D70F3524(A2C00889000)/D70F3525(A2C81589600)/ D70F3526 (A2C81589700/A2C99606600)/D70F3529/ D70F3532 (A2C81589500/A2C81589501)/ D70F3524(A2C0 (A2C81589200)/D70F3536/ D70F3537 (A2C81589300/A2C81589800) chip model.
2. Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
3. Support IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
4. Support IMMO and mileage correction for RH850 series R7F701401,R7F701402,R7F701407 chip model 5A instrument.
5. Support mileage correction for RH850 series R7F701401, R7F701402,R7F701404, R7F701405,R7F701406,R7F701407 chip model 5C instrument.
6. Support mileage correction for RH850 series R7F701401, R7F701421 chip model 5D instrument.
7. Support VW Audi MQB49 5C 5D IMMO key programming(add keys), need work with ACDP Module 44

Yanhua VW MQB Package Support List:

MQB48(VDO/JCI-NEC35XX Locked MQB) Supported Dashboard:

MQB48(VDO/JCI-NEC35xx Lock) supported part number

81920940A 5G1920740D 5G1920957 3G1920794C 6C0920741C 8V0920860E 5G1920741 5GG920630 3GD920640/A/B/C 6C0920741E 8V0920860G 5G1920741A 5GG920630A 3GD920650/A/B 6C0920746/B 8V0920860N/P 5G1920741B 5GG920630B 3GG920650 6C0920746B 8V0920861/A/H/N 5G1920741C 5GG920630C 3GG920650A 6C0920940A/E 8V0920870H 5G1920741D 5GG920640A 55G920640 6C0920941A 8V0920872B 5G1920750D 5GG920640B 55G920650 6C0920946C 8V0920960A 5G1920751B 5GG920640C 2GA920740 5GD920630 8V0920960B 5G1920751C 5GG920640D 2GD920640 5GD920630A 8V0920960H 5G1920756A 51G920630 2GD920640A 5GD920640 8V0920960M 5G1920756C 51G920630B 31G920850A 5GD920640A 8V0920961C 5G1920790 51G920630C 17A920740 5GD920640B 5G0920640A 5G1920790A 5G1920656A 17A920840 5GD920650 5G0920860/A 5G1920790B 3G0920740A 17G920640 5GD920730 5G0920861/A 5G1920791 3G0920741A 19G920640 5GD920750 5G0920871A 5G1920791A 3G0920741B 19G920640A 5G6920870 5G0920950 5G1920791B 3G0920741C 19G920650 5GE920870 5G0920960A 5G1920795B 3G0920741D 19G920650A 3CG920791 5G1920640A 5G1920840 3G0920751A 3G0920650A 3CG920791A 5G1920640C 5G1920840A 3G0920751C 3G0920650B 3CN920850 5G1920641A 5G1920840B 3G0920751B 3G0920650C 5NG920650 5G1920656B 5G1920841 3G0920790C 3G0920650D 5NG920650B 5G1920730B 5G1920856 3G0920791A 6C0920730/A/B/C/F/G/K 5NA920750A 5G1920731A 5G1920931 3G0920791B 6C0920731A 5NA920751 5G1920740 5G1920940B 3G0920791C 6C0920740/A 5NA920790B 5G1920740A 5G1920940C 3G0920791D 6C0920740C 5NA920790C 5G1920740B 5G1920941C 3G0920941B 6C0920740E 5NA920791 5G1920740C 5G1920941D 3G0920951A 6C0920741A 5NA920791A

R71F701401/R7F⁷01402/R7F7014075A

83A920700B 83A920700 8V0920740B 81A920740L 51G920640D 55G920790 2GD920790A 5GD920790 5NG920640C 5NG920650C 5ND920650C 5NG920654 2GG920640 3GB920640 3GB920790 56G920790 3VD920740B

R7F701401/R7F701402/R7F701404/R7F701405/R7F701406/R7F7014075C

3GB920640A 3GB920640B 3GB920640C 3GD920640D 19G920640B 19G920640C 19D920640B 19D920640C 17G920640A 2GD920640B 2GD920640C 5GD920640D 5ED920860C 19G920650B 19G920650C 55G920650A 55G920650B 55G920650C 5HG920340 5HG920340A 5HG920340B 5HG920340C 5NG920640D 5NG920650D 2GG920640A 51G920640E

D70F3423 +95320

31G920850B 31G920850A 18G920860A 31G920850F 34D920850C 31G920850C 34D920850E 31G920860A 34D920850G

D70F3426+95128

5GG920640 5GG920860 5GG920860A 5G0920861A

The technical support is provided by the developer directly.

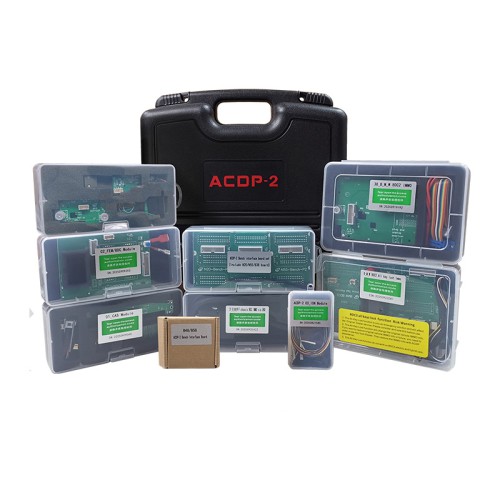

 ACDP-2 IMMO Full Package for BMW CAS, FEM BDC, BDC2 Key Programmer is designed to extend the functionality of the Yanhua Mini ACDP 2 programmer when working with BMW vehicles. It enables key operations involving immobilizers, control units, and mileage systems.

ACDP-2 IMMO Package Functions:

1. Support for BMW CAS1-CAS4+ key programming and mileage reset by ICP and OBD.
2. Support for BMW BDC2 add keys and all keys lost.
3. Support for BMW BDC3 keys copy.
4. Support for BMW BCP keys copy.
5. Support for BMW FEM/BDC key programming and mileage reset by automatic mode.
6. Support for BMW BDC key programming and mileage reset by OBD mode.
7. Support for BMW BDC2 module refresh and Copy data replacement.
8. Support learn BDC2 keys on bench and test key emergency function
9. Support for BMW CAS1-CAS4+ CAS module replacement by ICP.
10. Support for BMW CAS3/CAS4 DME replacement by OBD.
11. Support for BMW FEM/BDC key programming and mileage reset by automatic mode.
12. Support for BMW FEM/BDC replacement by copy data and calculate data.
13. Support for BMW E/F chassis enable/disable/delete key by OBD.
14. Support for BMW N20/N55/B38/B48 DME ISN read by bench mode.
15. Support for BMW E chassis MSV80/MSD81/MSD85/MSV70/N46/MSS60 etc. DME ISN read by can/OBD.
16. BDC2/BDC3/BCP/LCD key Encrypted key Copying function (requires Encrypted Key Copy Interface Board Set)

Yanhua Module 1 CAS Module:

Comprehensive Key Programming & Mileage Reset:

• Supports for BMW CAS1 – CAS4+ IMMO key programming, mileage reset, EEPROM, and FLASH data reading/writing through OBD and in-circuit programming (ICP).
• No need for chip removal, soldering, or cutting wires—intelligent pin detection ensures a secure, easy setup.
• Covers all series for BMW, enabling key addition, CAS data backup/recovery, and problem restoration.

Module Features by CAS Type:

CAS1-CAS3+ Functions:

• Key programming, mileage reset, EEPROM read, and all-key-lost recovery by OBD.
• Allows CAS data restoration and modifications, including vehicle frequency, VIN, and ISN code.

CAS4/CAS4+ Functions:

• All key programming, mileage reset, and data backup without soldering or component removal.

Yanhua Module 2 FEM BDC Module:

Key Programming & Mileage Reset:

• Supports FEM/BDC IMMO key programming and mileage reset with fully automated, safe, and reliable mode matching.
• Allows for module restoration, backup, and writing of anti-theft data.

Key Features:

No soldering needed for all key-related tasks, including adding, deleting, enabling/disabling keys, and key ID reading.

FEM module repair and mileage reset without welding.

Model Compatibility (2011–2017):

Support for BMW 1 Series (F20/F21), 2 Series (F22/F23/F45/F46), 3 Series/GT (F34/F35), 4 Series (F30/F31/F32/F33/F36), X5 (F15).

Yanhua Module 3 ISN Module:

Main Functions:

• Enables reading and writing for BMW DME ISN codes through OBD in "all keys lost" situations without soldering.
• Supports various DME models, including N20, N55, N13, MSV80, and MSD85, with some requiring DME shell opening for full access.

Compatible Models and Series:

• E Series: Supports DDE70_EDC17C06, MEVD1726, MSD85, among others.
• F Series: Supports DDE701A, MEVD172P (N20), MSD85HY, and more.
• R Series: Includes MEV1722, MED172, DDE701_EDC17C50.
• M Series: Supports models like BMSX.

Yanhua ACDP Module 38 for BMW BDC2 IMMO:

Main Functions:

• Supports adding key for all versions for BMW BDC2.
• Add keys, enable keys, disable keys, reset starter motor, headlight height match
• Support for BMW BDC2 all key lost is supported, need work with BDC2 Key Learning Bench Platform together
• Support for BMW BDC2 Mileage Reset
• Support for BMW BDC2 Module Refresh
• Support for BMW BDC2 Module Copy Replacement
• Just need to insert the interface board to the BDC2 module directly.

ACDP Module 38 Highlights:

1. Compatible with both OEM and aftermarket G-chassis blank keys—no specialized keys required.
2. Fully automated operation, no manual plugging or unplugging of connections during the process,ensuring safety and stability.
3. No annual fees or per-operation charges. One-time solution with zero hidden costs.
4. No Soldering required No need to buy specific key.

BDC2 AKL Test Platform:

Bench Test Platform Functions for BMW BDC2 IMMO:

1. Contains the authorization A504 for BMW BDC2 all keys lost(work with ACDP module 38)
2. Can learn BDC2 keys on bench, no need to assemble BDC2 module back to car.
3. Can test key emergency function to confirm whether the key can turn on ignition and ensure that the key has been learned.
4. Supports to connect smart antennas and remote control receiver for testing key remote control and keyless.
5. Supports to connect the BDC2 instrument and DME module.

Bench Test Platform Features:

1. Compatible with any device that supports the BDC2 module.
2. The bench interface board replaces the wire plug-in, which is safe, convenient, simple and efficient.

Key Copy Interface Board for BMW BDC3 BCP

1. Supports use original brand new keys copying for 2020-2024 BMW BDC3 keys(G chassis BDC3 keys manufactured in Hungary).
2. Supports use original brand new keys copying for BMW U chassis BCP keys(with and without UWB functionality).
