Adapter Boot/Bench V3.2 (DB25)

Item no.: 11P1/02
Manufacturer
Basic equipment
Adapter Boot/Bench V3.2 (DB25) — 131 $
 + Add
Status: Far warehouse

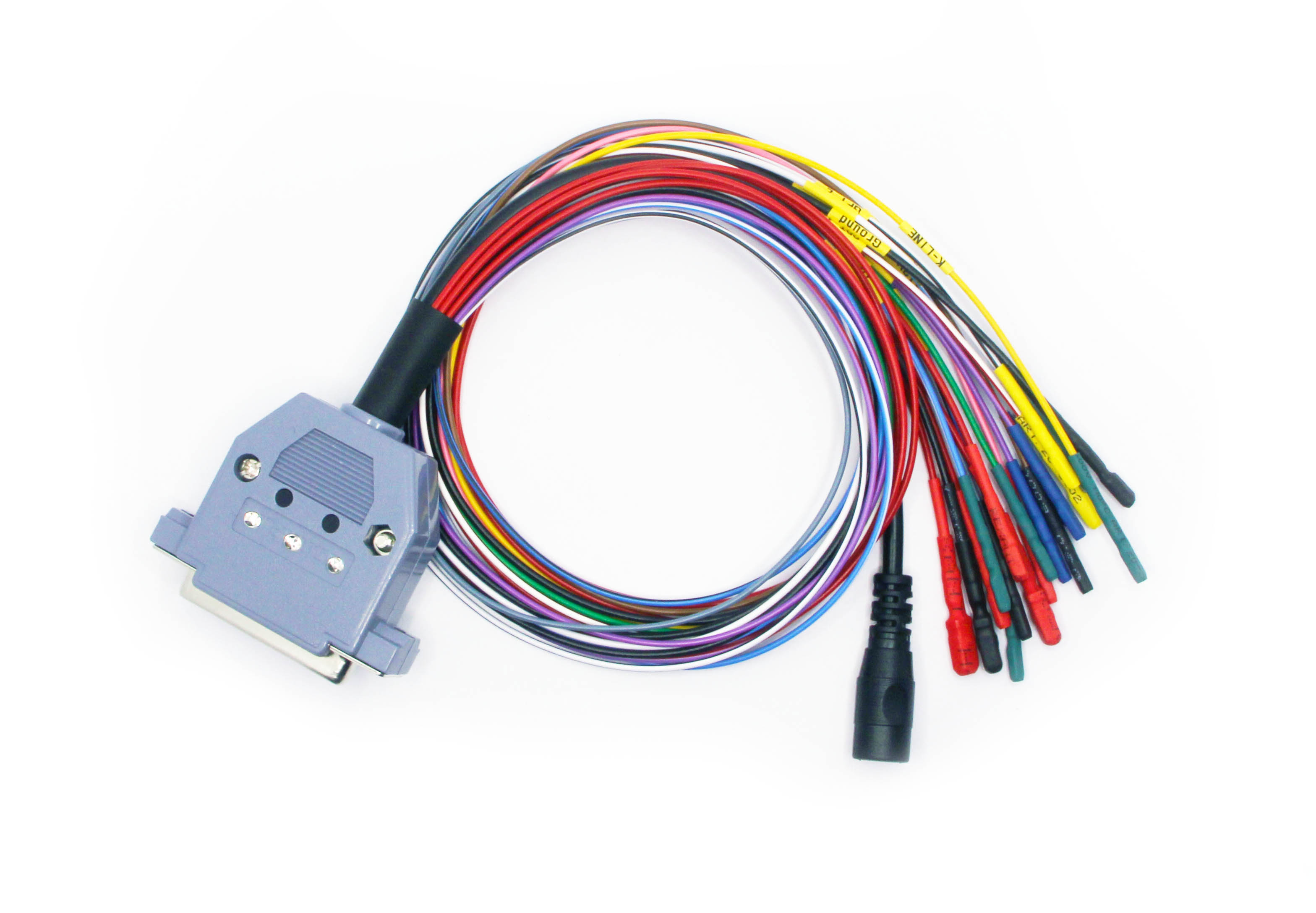

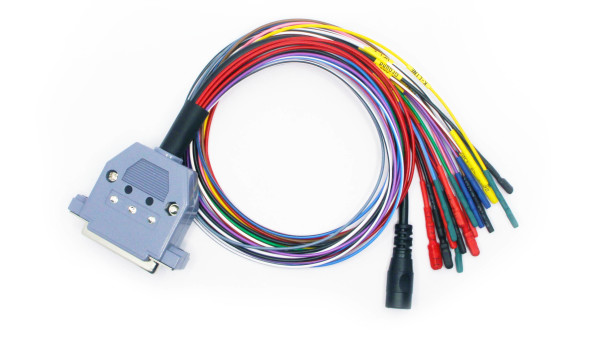

The boot/bench V3.2 adapter (DB25) is designed to work with 71, 77, 53 and other PCMFlash modules and has a direct connection to Scanmatik2. The adapter has manual and automatic control of the ECU power supply and Boot pins.

  • The boot/bench V3.2 adapter also works with other programs, such as BitBox.
  • The boot/bench V3.2 adapter has protection against reverse polarity of the supply voltage and overcurrent.
  • Manual power control makes it possible to use the boot/bench V3.2 adapter to check the ECU on the bench after programming.
  • The boot/bench V3.2 adapter uses automotive terminals, not computer terminals. The color coding of the terminals is clear and divided into several categories: power, signal wires (CAN, K-Line), Boot (Boot and CNF (3.3V) and GPT wires.
  • The signal wires, Boot wires and GPT wires are marked for ease of use of the adapter.

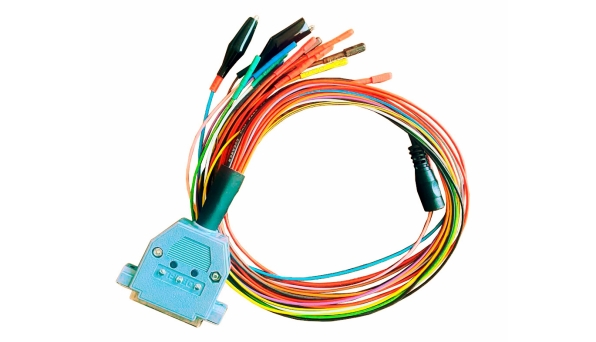

The difference between the new V3.2 adapter and V3 is the presence of a constant "+" power supply to the ECU and the ability to work according to the J1850 protocol, for which the corresponding wires are added to the adapter. V3.2 does not have alligator clips on the Boot and CNF wires; instead of alligator clips, terminals are installed on these wires.
