Scanmatik 2 PRO

Item no.: 21S5000
Manufacturer
Contents of delivery

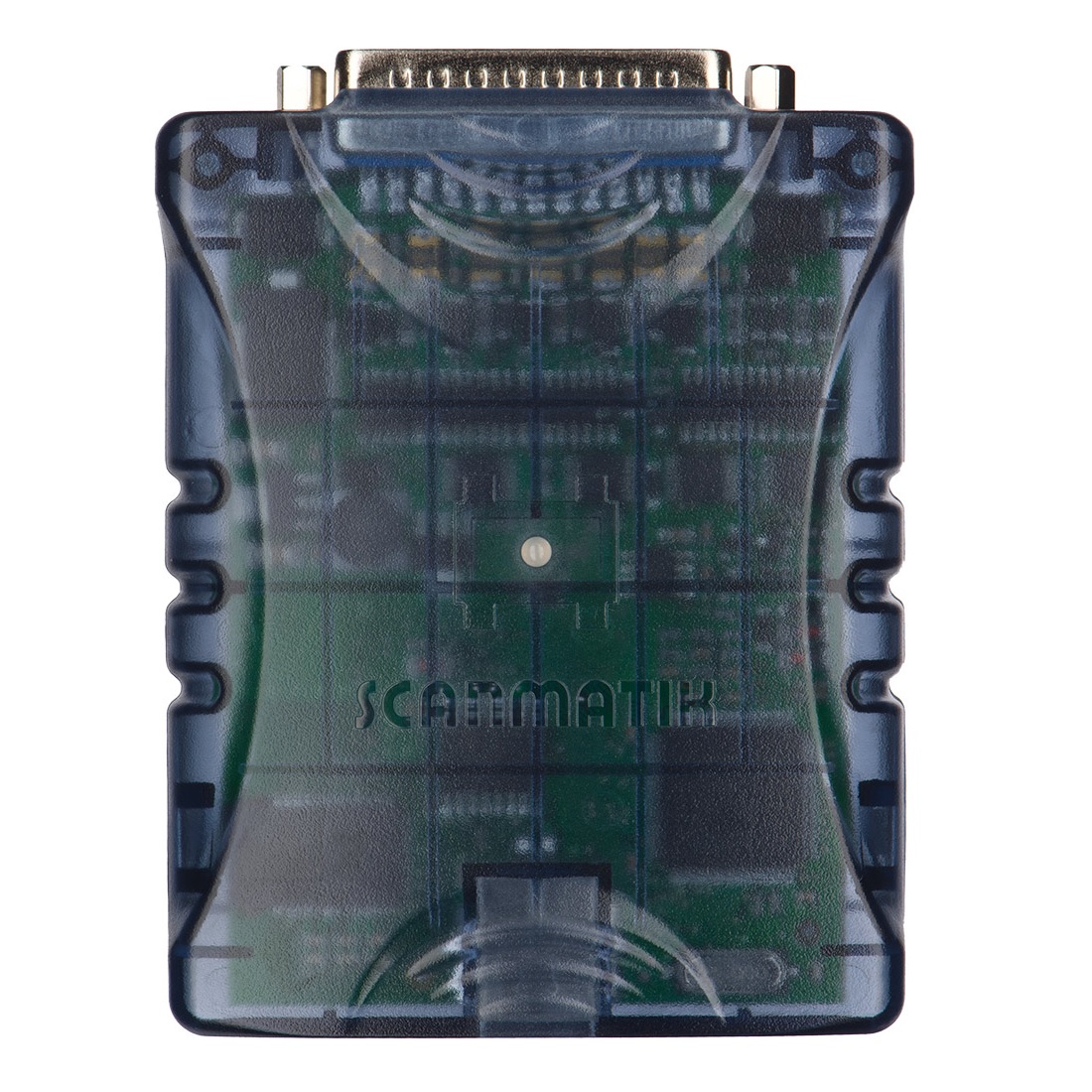

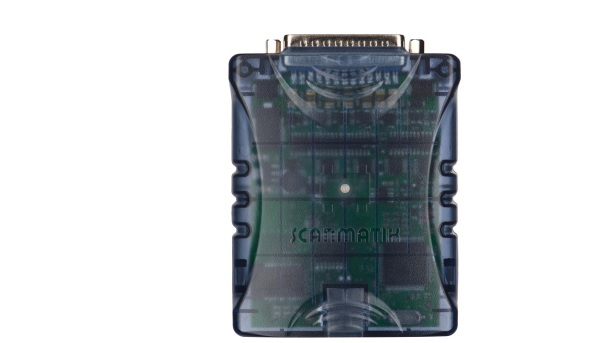

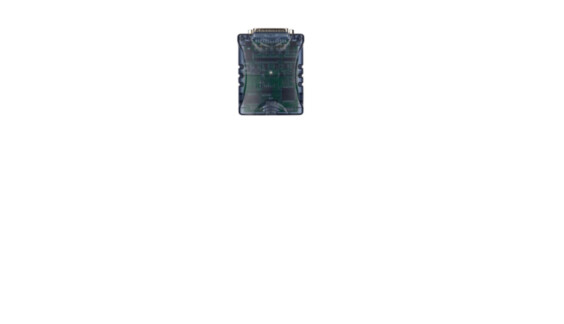

  • Scanmatik SM2-PRO adapter

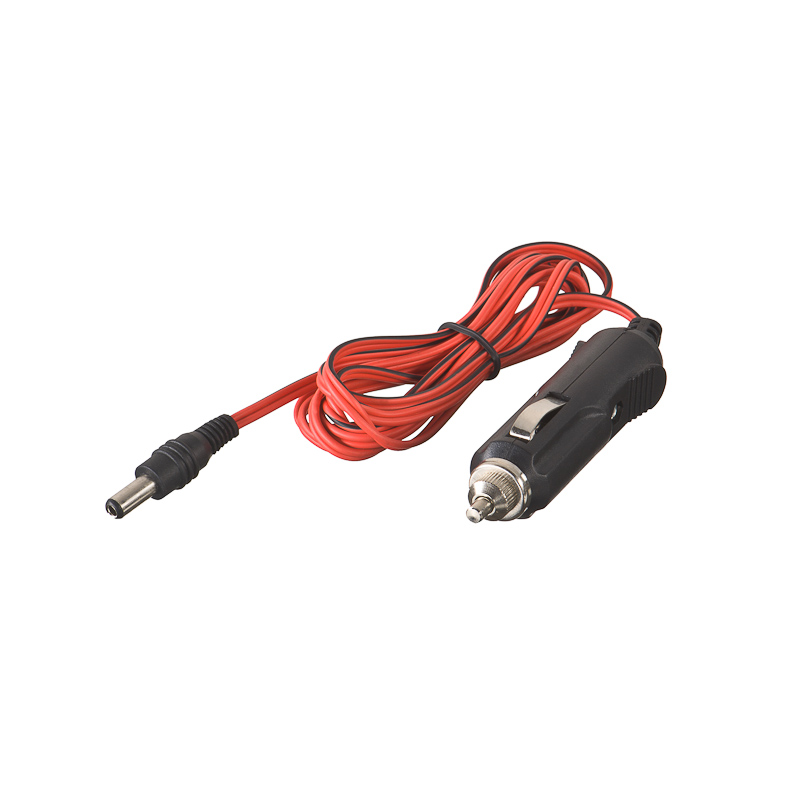

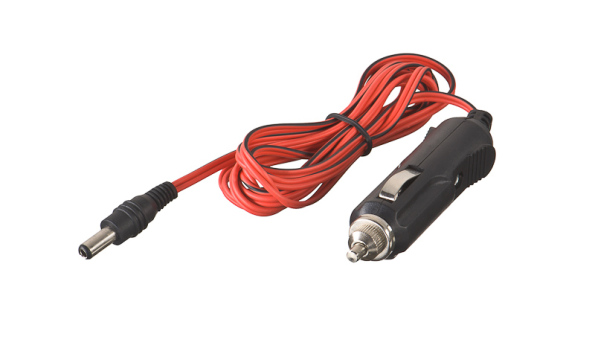

  • Power supply cable from the cigarette lighter

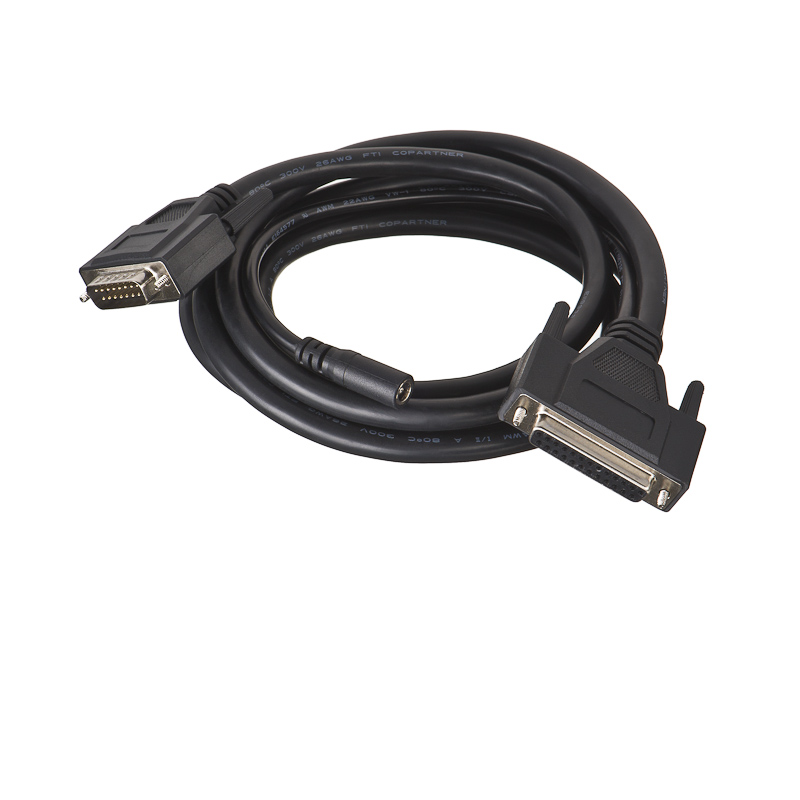

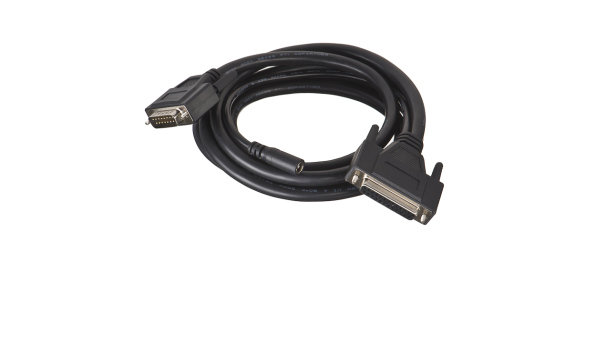

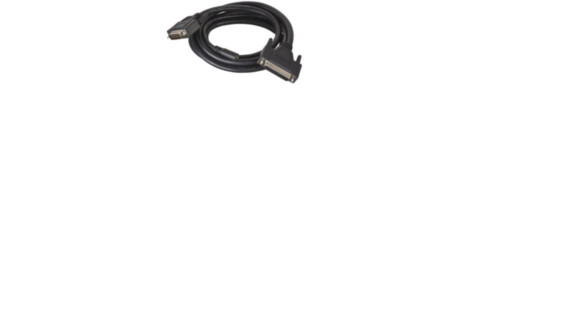

  • OBD II cable

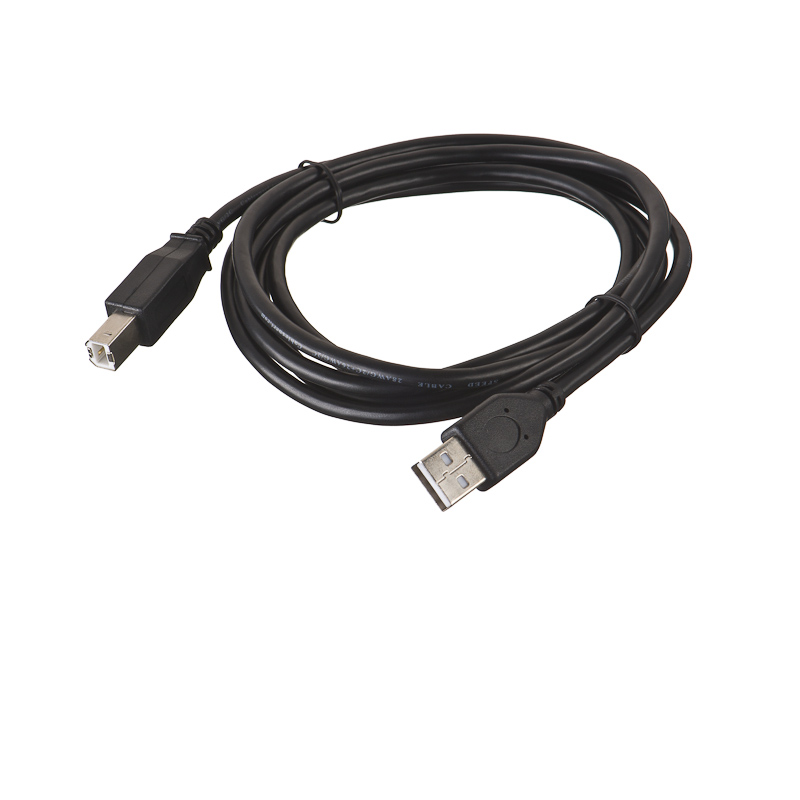

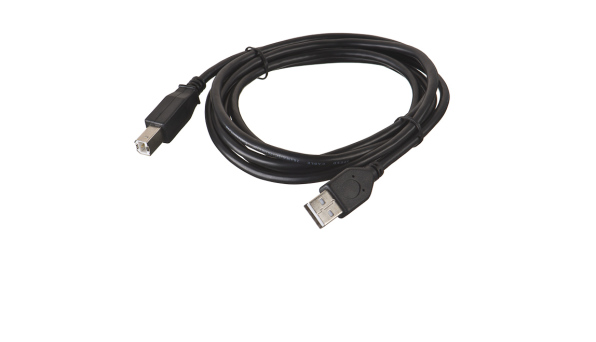

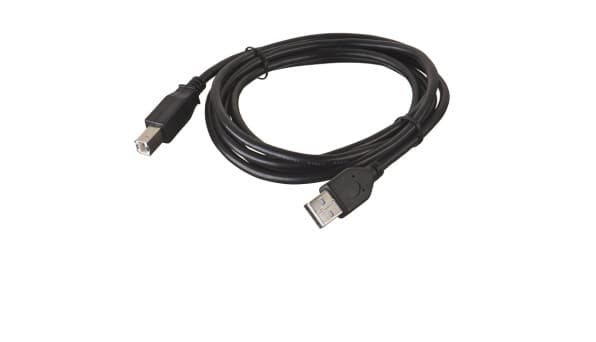

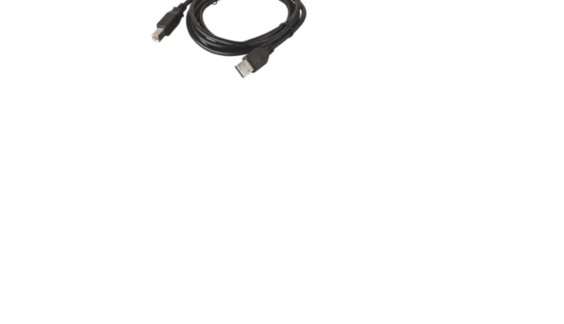

  • USB cable (1.8 m)
  • Case
Basic equipment
Scanmatik 2 PRO — 490 $
 + Add
Status: In stock

Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

New features of Scanmatik 2 PRO:

  • Galvanic isolation of the USB port (with power);
  • Redesigned protection of K-lines and CAN buses on a new element base;
  • Increased speed of work via Bluetooth by about 20%;
  • Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
  • Load-Dump power surge protection (when the generator is switched off on a running engine).

The widest support of J2534-1/2 standards:

  • Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13, 14;
  •  AUX programming voltage output (via an additional cable).

For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:

  • An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.

Description

The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

SM2-PRO Adapter Specifications

  • Interfaces for communication with PC (Tablet, Smartphone) - USB or Bluetooth;
  • Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
  • Current consumption, not more than 350mA;
  • Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
  • Load-Dump power surge protection (when the generator is switched off on a running engine).
  • Supported data buses:
    • 13 x ISO-9141/ISO-14230 (K-LINE);
    • 1 x J1850VPW;
    • 1 x J1850PWM;
    • 4 x CAN;
    • 1 x Single Wire CAN.
  • Built-in multiplexer for switching diagnostic lines;
  • The widest support of J2534-1/2 standards;
  • Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
  • AUX programming voltage output (via an additional cable);
  • Bluetooth range, not less than: 10m (Class 2);
  • Adapter dimensions (L x W x H), not more than: 970×750×220mm;
  • Weight of the device in the basic configuration, not more than: 1 kg.
Boot-Bench Connection cable Item no.: 11P1/01

Adapter (boot/bench cable) for bench working with PCMFlash together with Scanmatik 2 or Scanmatik 2 PRO and external power supply (12V or 24V for trucks).

  • Power connector is Jack 2.0 mm;
  • Has a built-in short circuit protection;
  • The maximum allowable current is up to 5 A;
  • Automatic power management and Boot and CNF1 signals;

Works with ALL PCMFlash modules that require Bench work and automatic power management, such as 53 , 71 ,77 and others.

Ver. 2, short-circuit protection.

The wire colouring of the connection cable

Red — +12V
Blue-yellow — GPT1 (5v amplitude output)
Black — GND
Red-yellow — GPT2 (5v amplitude output)
Red-white — GPT1 -12b (bufferless, up to 12V)
Black-white — GPT2 -12b (bufferless, up to 12V)
White — CAN H
Violet — Vpp
Green — CAN L
Blue — CNF1 510 Ohm
Yellow — K-Line
Grey — boot 1 kOhm

External power 12V (5, А mах) Jack



The correct pinouts to the adapter board:



Additional features:

The adapter provides the ability to control the power supply manually. For this feature, it is required to make a switch, see the photo below. Manual control is a better option than automatic control.
For advanced users: after completion it is possible to work on the bench with all packages originally designed to work in the car, for example: 50, 36, etc.

54 $
OBD2+Aux cable Item no.: 21S5/01
28 $
Adapter Deutsch 6+9 Item no.: 21S5/06

For connecting to a variety of trucks using these connectors.

26 $
Adapter OBD2-Mitsubishi12 Item no.: 21S5/16

For Mitsubishi vehicles with with a 12-pin connector.

12 $
Adapter Chery/Fiat-3 Item no.: 21S5/05

Adapter for Chery Amulet with 3-pin diagnostic connector under the hood

12 $
Adapter OBD2-Kia20 Item no.: 21S5/15
12 $
Adapter ISO-16 Item no.: 21S5/12

Adapter for trucks with ISO-16 connector.

12 $
Adapter Honda-3 Item no.: 21S5/11

For working with Honda HDS software with vehicles with 3-pin connector.

12 $
Adapter SCR-MGS Item no.: 21S5/17

For SCR MGS exhaust fumes aftertreatment systems.

12 $
OBD2-16 Adapter Item no.: 21S5/20

Adapter for connection to modern vehicles.

12 $
Main Cable Item no.: 21S5/22
19 $
