X5 With X5Box

2-in-1 Heavy Duty Diagnostic and ECU programming tool with a Bench mode for European and Janpanese brand ECUs.

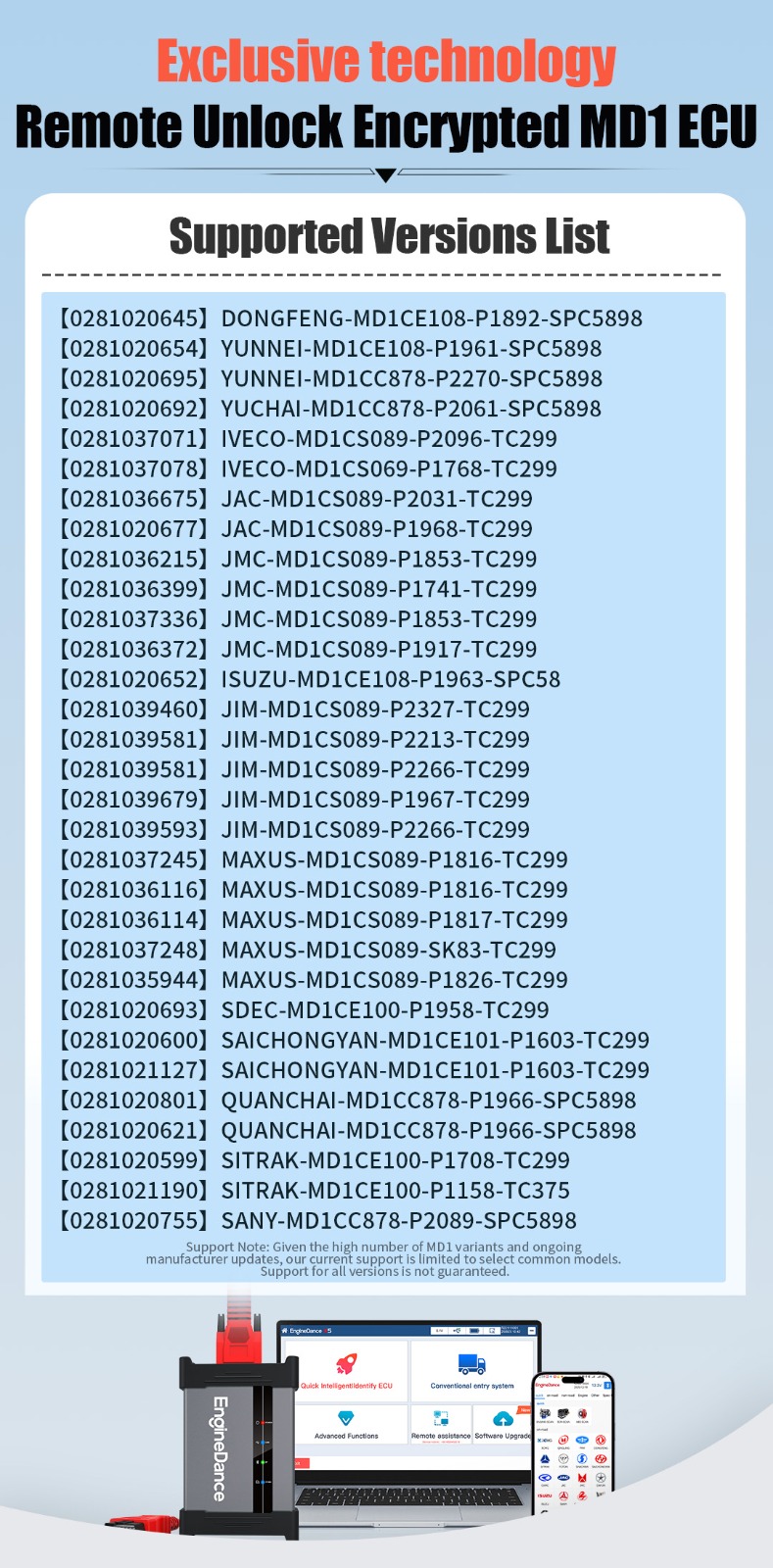

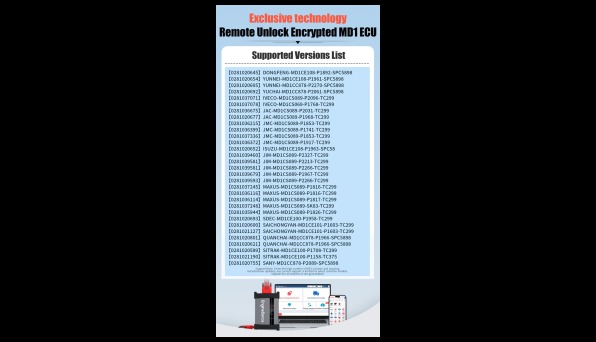

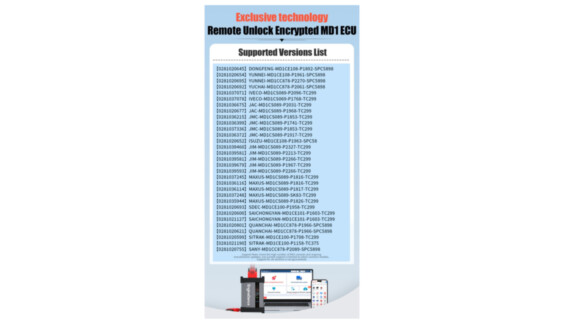

X5 supports remote unlocking of MD1 Truck ECUs:

• [0281020645] DONGFENG MD1CE108 P1892 SPC5898
• [0281020654] YUNNEI MD1CE108 P1961 SPC5898
• [0281020695] YUNNEI MD1CC878 P2270 SPC5898
• [0281020692] YUCHAI MD1CC878 P2061 SPC5898
• [0281037071] IVECO MD1CS089 P2096 TC299
• [0281037078] IVECO MD1CS069 P1768 TC299
• [0281036675] JAC MD1CS089 P2031 TC299
• [0281020677] JAC MD1CS089 P1968 TC299
• [0281036215] JMC MD1CS089 P1853 TC299
• [0281036399] JMC MD1CS089 P1741 TC299
• [0281037336] JMC MD1CS089 P1853 TC299
• [0281036372] JMC MD1CS089 P1917 TC299
• [0281020652] ISUZU MD1CE108 P1963 SPC58
• [0281039460] JIM MD1CS089 P2327 TC299
• [0281039581] JIM MD1CS089 P2213 TC299
• [0281039581] JIM MD1CS089 P2266 TC299
• [0281039679] JIM MD1CS089 P1967 TC299
• [0281039593] JIM MD1CS089 P2266 TC299
• [02810371245] MAXUS MD1CS089 P1816 TC299
• [0281036114] MAXUS MD1CS089 P1816 TC299
• [02810371144] MAXUS MD1CS089 SK83 TC299
• [0281035944] MAXUS MD1CS089 P1826 TC299
• [0281020693] SDEC MD1CE100 P1958 TC299
• [0281020600] SAICHONGYAN MD1CE101 P1603 TC299
• [0281021127] SAICHONGYAN MD1CE101 P1603 TC299
• [0281020801] QUANCHAI MD1CC878 P1966 SPC5898]
• [0281020621] QUANCHAI MD1CC878 P1966 SPC5898]

Support Note: Given the high number of MD1 variants and ongoing manufacturer updates, our current support Is limited to select common models. Support for all versions is not guaranteed. Each unlock is its own transaction.

POWERFUL SOFTWARE PRECISE DIAG, DATA COMPATIBILITY

Wide coverage, not just Chinese brands:

Models: Light trucks, heavy trucks, buses, agricultural machinery, construction machinery and cover over 98% of Chinese vehicle models.
ECU: Bosch, Denso, Cummins, Delphi, Continental, Trw,Ectek ...
Engine: Cummins, Perkins, Caterpillar, Weichai, Yuchai, Faw, Yunnei, Doosan, Isuzu, Komatsu, Yanmar, Deutz, YTO, Econtrols, WoodWard, Mercury, Quanchai, SDEC, Greatwall, Changchai, DCD, Sida, XinChai ...

Powerful and Stable ECU re-programming function:

• Covering most ECU Flash (FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/SANY/CHENGLONG)
  • Note: Engine Dance X5 Supports reading and writing of over 300 ECU models of Chinese commercial vehicles, covering almost all electronic control systems of commercial vehicles in China, not listed one by one.
• Gas flash, Woodward OH6, OH2.0, Bosch EGC4 flash;
• Post processing DCU flash
• Transmission module flash, retarder flash
• Stable flashing, simple operation, using dual verification technology, stable flashing and extremely low probability of flashing death; Easy to operate and get started with VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton

Advanced features, professional and comprehensive:

• DPF regeneration with comprehensive coverage
• Calibration
• SCR detection
• NOX Sensor detection
• VECU maximum speed adjustment calibration
• Urea injection temperature setting
• CAN Bus, Instrument drive.
• Read OBD pin voltage

Remote assistance and timely service:

Remote assistance, one click start, the distance between you and engineers and teachers is only one button. Engineers or teachers can remotely help you Flash Diag and calibration, which is simple and efficient. You no longer have to worry about not being able to operate the computer or flash.

One click software upgrade:

Software update, one click software update, without complex operations, only one click, the software automatically updates to the latest version.

International vehicle brand diagnosis and re-programming:

Diagnostics: Volvo, Man, Scania, Mercedes-Benz, Daf, Hino, Fuso, Iveco, UD, Caterpillar, Hyundai, Kia, Doosan, Isuzu, Toyota, Ford, Jeep, Land Rover, VW ...

X5 ECU Programming:

Scania

• Scania EMS/EDC S6 250Kbps (MPC555/556)
• Scania EMS S6 500Kbps (MPC555/556)
• Scania EMS S8 250Kbps (MPC5566)
• Scania EMS S8/EMD1 500Kbps (MPC5566)
• Scania EMS S8/EMD1 250Kbps (MPC5566) –Bam
• Scania EMS S8/EMD1 500Kbps (MPC5566) –Bam

Reading, writing, checksum correction.

MAN

• MAN Bosch EDC7C32 [0281020067]-OBD/Bench
• MAN Bosch EDC17CV42 [0281020273, TC1797]- Bench
• MAN Bosch MD1CE100 TC299- Bench

Reading, writing, checksum correction.

Denso SH725XX/1N83M/ SH705X Bench

• 1N83M FLASH Reading, writing, checksum correction
• 1N83M EEPROM Reading, writing
• SH72543 FLASH Reading, writing, checksum correction
• SH72543 EEPROM Reading, writing
• SH7055 FLASH Reading, writing, checksum correction
• SH7055 EEPROM Reading, writing
• SH7058 FLASH Reading, writing, checksum correction
• SH7058 EEPROM Reading, writing
• SH7059 FLASH Reading, writing, checksum correction
• SH7059 EEPROM Reading, writing

Toyota/Lexus Gen 3

• R7F701202/R7F701216 P5-UDS
• LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)
• LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
• LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
• LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)
• Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)
• Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)
• Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]
• Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]
• Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]
• Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]

Reading, writing, checksum correction

Trucks Delphi ETC3

• Reading and writing via OBD2 connector via CAN-bus of Delphi ETC3 ECUs used in
• DAF, Kenworth, Peterbilt, Hyundai trucks.
• DAF/Industrial Delphi ETC3
• Delphi ETC3 REV A/B/C ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb. Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH. REV 0 and REV H ECUs are not supported.
• Hyundai Delphi ETC3
• Delphi ETC3 ECUs based on MCU NXP MPC5566 with internal flash memory 3 Mb.
• Reading of map area and writing with checksum correction via CANbus via OBD2 or on the BENCH.

Trucks Delphi DMCI CAN

• Module for reading and writing by CAN-bus Delphi DMCI ECUs used in DAF and Hyundai trucks. ECU is based on MCU Motorola MPC561 with internal flash memory 2.0Mb.
• Allows to read and write calibration area through CAN-bus with checksumm correction on writing. DAF/Kenwroth Delphi DMCI

Hyundai Delphi DMCI

• IVECO Light truck
• IVECO EDC17C69 Bench
• IVECO EDC17C49 Bench
• IVECO MD1CS069 [Support Bench lock Ecu]
• IVECO MD1CS089 Bench
• IVECO DCU17PC42/PC43 Bench

Isuzu/Transtron

• ISUZU 4HK1/6HK1/4JJ1:SH7058
• ISUZU 6HK1XDIAG/4JJ1XDIAG M4S/L4S:SH72533
• ISUZU 6HK1/6WG1 M5.3/M5.2:SH72544/SH72546
• ISUZU-4HK1/6HK1/4JJ1 L5.2/L5.3/L5.4:SH72544/SH72546

Kia/Hyundai

• Modern/Kia heavy-duty truck engine Delphi-ECU: DMCl (chip: MPC561)
• D6CF Delphi ETC3 Series MPC5566-OBD
• Kia/Hyundai Kefico/Denso 2.5L CRDI (SH72546) MB275700-58xx-OBD
• Kia/Hyundai Euro 6 (Denso SH72543)-Bench
• Kia/Hyundai DCM3.7AP

Reading, writing, checksum correction.

BOSCH MD1 Bootloader

• MD1CE100 AURIX SAK-TC299TP
• MD1CE108 ST-SPC5898
• MD1CS089 SAK-TC299TP
• MD1CS069 SAK-TC299TP
• MD1CC878/868 ST-SPC58XX

Reading, writing, checksum corrections

Volvo Truck

• Volvo/Renault/Construction Machinery EMS2.0(MPC56X) -OBD
• Volvo/Renault/UD/MACK truck EMS2.2(MPC5554) - Bam
• Volvo/Renault/UD/MACK truck EMS2.2(MPC5554) - Bench
• Volvo/Renault/UD/MACK truck EMS2.3(MPC5674F) - Bench
• Volvo/Renault/UD/MACK truck EMS2.4(MPC5777C) - Bench

Reading, writing, checksum correction.

Ford Transit /Ranger, Land Rover Defender

• Land Rover Defender SID208 - Bench / Bam
• Ford Ranger SID209 - OPEN
• Ford Transit SID208 OBD/Bench / Bam
• Ford Transit SID209 OBD/Open
• SID604 OBD writing, checksum

Reading, writing, checksum correction.

Toyota/Lexus/Scion/Hino Gen 2

• 76F0196/198/199/219 P5-CAN-bus
• 76F0199 GearBox P5-CAN-bus

Reading, writing, checksum correction.

DELPHI

• Yuchai DCM3.2/DCM6.2AP/DCM6.24
• Yuchai DCM7.1AP/ DCM7.24
• Dongfeng M9T DCM7.1AP
• Great Wall/Haval DCM6.2AP
• HYCET Great Wall/ZhongXin/Changan Kaicene DCM7.1AP
• Great Wall/Haval DCM3.7AP
• Kia/Hyundai DCM3.7AP(SH725xx)
• DOOSAN/Bobcat/Kioti/McCormick DCM3.7AP
• SsangYong 2.0L XDI DCM3.7AP
• DOOSAN/Bobcat/Kioti/McCormick (DCM3.7AP)
• GM/Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7AP)
• JAC DCM6.2AP
• Qingling/Isuzu DCM6.2AP
• Qingling/Isuzu DCM7.1AP
• Yunnei DCM6.24
• Yunnei DCM7.24
• Changan DCM7.1AP
• OBD Reading, writing, checksum correction.
• DCM7.1AP/ DCM7.24 BENCH Reading, writing, checksum
• DCM 6.2AP open model SPC56X

BOSCH EDC

• DCU17CV51 TC1724 Bench (SAIC/JBC)
• DCU17HD01/DCU2.2 TC1766 (Hino, Cummins, Hyundai, CAT, CASE, Isuzu)
• VD1CC001 Euro 6(Chip: SPC574X, Hino. ISUZU Euro 6 models)
• DCU17PC42/PC43 Bench (IVECO, FOTON, HYUNDAI)
• EDC17CV44/54 OBD/Bench/Open
• EDC17C81 OBD/Bench/Open[Support Bench lock Ecu]
• EDC17C53 OBD/Bench/Open[Support Bench lock Ecu]
• EDC17C55/C63/C04 OBD/Bench/Open[Support Bench lock Ecu]
• EDC17CV41 OBD/Bench/Open(WeiChai, Iveco,Doosan,CASE,New Holland, CLAAS)
• EDC17CV42 Bench MAN
• EDC7UC31 MPC561/562 OBD/Bench
• EDC7C1(lveco, Doosan, etc,series chip:MPC555)
• EDC7C4, EDC17CP15/CP52 Chip:MPC555 OBD
• EDC16UC40 MPC561/562 OBD/Bench
• EDC16C39 MPC561/562 OBD/Bench
• EDC17CP52 TC1797 Bench(Ivevo,Fuso)
• EDC17C69 TC1793 Bench IVECO
• EDC17C49 TC1797 Bench IVECO
• EGC4 TC1797 BGA Bench
• EDC17C83 TC1793 Bench ISUZU
• MEG17.9.1X, Chip:TC176211766/179211796 (Bench Mode)
• MEG17.9.2X, Chip:TC17241172817671178211784/1797 (Bench Mode)

Others

• Continental FAW 52E/91E SPC563X OBD/Open/checksum
• Continental Weichai WISE15/15C SPC564X OBD/Open/checksum
• Continental FAW 32F/36F OBD /checksum
• Econtrols LNG/CNG 3G/4G OBD Model
• Woodward LNG/CNG OBD Model/Recover
• ZF Transmission OBD writing/checksum
• ZF Retarder OBD writing
• WABCO ECAS Reading, writing
• WABCO ABS/EBS Reading, writing
• Knorr ECAS Reading, writing
• Knorr ABS/EBS Reading, writing
• VCU/CBCU/BCM/Instrument writing (FAW, CNHTC, DF, Foton,)
• Covering most ECU Flash
• (FAW/CNHTC/SINOTRUK/SITRAK/DongFeng/
• Foton/CAMC/SHACMAN/SFH/JMC/JAC/XCMG/
• SANY/CHENGLONG)

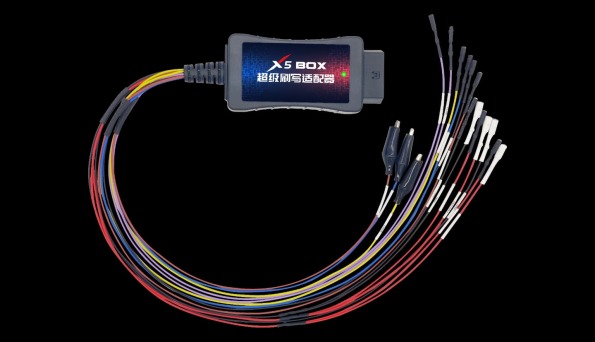

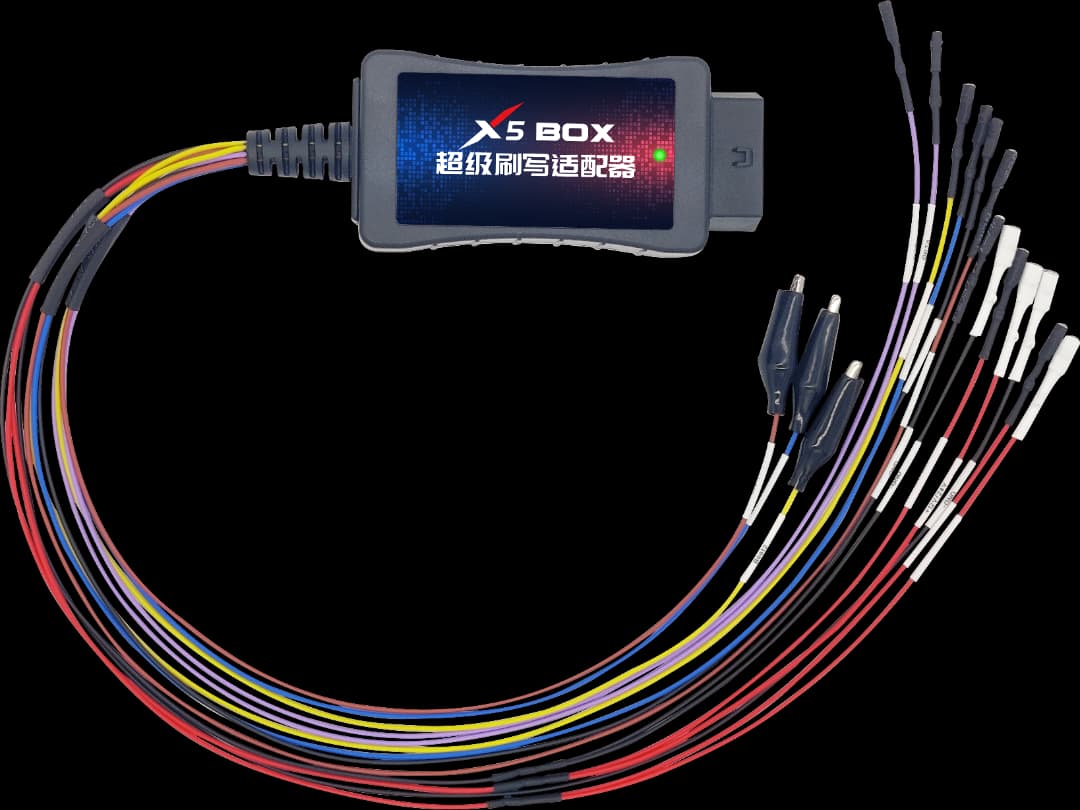

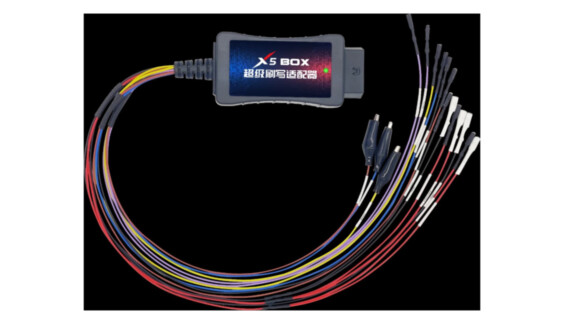

X5Box Support

Volvo/UD/MACK Series

• Volvo/Renault/UD/MACK series MODE+ECU Flash+Checksum+Recover file corrupt
• Volvo/Renault/Construction Machinery Engine EMS2.0 (Euro 2/3-chip: MPC56X) 【 OBD Mode 】
• Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554) 【 BAM Mode 】
• Volvo/Renault/UD/MACK truck engine EMS2.2 (Chip: MPC5554)【 BENCH Mode 】
• Volvo/Renault/UD/MACK truck engine EMS2.3 (Chip: MPC5674F)【 BENCH Mode 】
• Volvo/Renault/UD/MACK truck engine EMS2.4 (Chip: MPC5777C)【 BENCH Mode 】

SCANIA Series

• Scania S6/S8/EMD1 engine series MODE+ECU Flash+ Checksum+Recover file corrupt
• Scania S6 engine [Chip: MPC555/MPC556] - OBD Mode
• Scania S8/EMD1 Engine [Chip: MPC5566] - OBD Mode
• Scania S8/EMD1 Engine [Chip: MPC5566] - BAM Mode

HYUNDAI Series

• D6CF Delphi ETC3 Series OBD MODE ECU Flash
• [HINO/HYUNDAI] DCU17HD [TC1766] Bench read/write/checksum
• Denso2-plug[Chip:SH72546 MB275700-57XX] CRDI-E6 2.5

Denso Series

• [HINO] Denso 3-plug [Chip: SH72543/1N83M]
• [SDEC] Denso 3-plug [Chip: SH72543/1N83M]
• [Mitsubishi Fuso] Denso 3-plug [Chip: SH72543/1N83M]
• [HYUNDAI/Kia] Denso3-plug [Chip: SH72543/1N83M]
• [HYUNDAl/Kia] Denso2-plug [Chip: SH72546 MB275700-57XX] CRDI-E6 2.5
• [Denso 2-plug] [93C86 SH7058] Bench
• [Denso 5-plug] [93C86 SH7055/7058] Bench
• [SDEC/JCB…] DCU Bench read/write/checksum
• [HINO/HYUNDAI] DCU17HD [TC1766] Bench
• [Fuso]SANY Construction Machinery D04/D06 Engine Bench mode
• [Fuso] KATO Construction Machinery EDC7C4, EDC17CP15/CP52 Chip: MPC555 OBD mode

MAN Series

• MAN (TGA/TGL/TGM/TGS/TGX) engine EMS  (OBD/BEACH ECU Flash)
• EDC7C32 MODE+ECU Flash+Checksum EDC17CV42 MODE+ECU Flash+Checksum
• MD1 Series MODE+ECU Flash+Checksum

DAF/Kenwroth

• Delphi-ECU:DMCI read/write/checksum
• Delphi-ECU:ETC3/ETC4 read/write/checksum

Continental Series

• Continental SID604 ECU Flash/Checksum
• SID208/209 Data Checksum
• Ford SID209OBD Encryption ECU MODE Flash Ford SID209 Open Mode Recover file corrupt
• Ford SID208 Open Mode Recover file corrupt
• Ford SID208 Bench MODE

IVECO Series

• IVECO EDC17C69 Bench MODE/ECU Flash
• IVECO EDC17C49 MODE/ECU Flash
• IVECO MD1CS069 MODE/ECU Flash【Support encryption ECU】
• IVECO MD1CS089 Bench MODE/ECU Flash
• IVECO handle DCU17PC43/PC42 MODE/ECU Flash 【Equipment IVECO, Foton, HYUNDAI】

ISUZU/Transtron Series

• ISUZU-4HK1/6HK1/4JJ1/6WG1E5NC[Transtron-SH7058]
• ISUZU Construction Machinery [Old]-6WG1XDHAG/4JJ1XDHAG [Transtron-SH7059]
• ISUZU Construction Machinery [Old]-6HK1XDIAG/4JJ1XDIAG [Model M4S/L4S: SH72533]
• ISUZU Construction Machinery [New]-GIGA-6HK1/6WG1 [Model M5.3/M5.2: SH72544/SH72546]
• ISUZU-4HK1/4J1 [Model L5.2/L5.3/L5.4/L5.5-SH72544/SH72546]
• ISUZU-RZ4E 12V EDC17C83

Technical support is provided by the developer directly.
