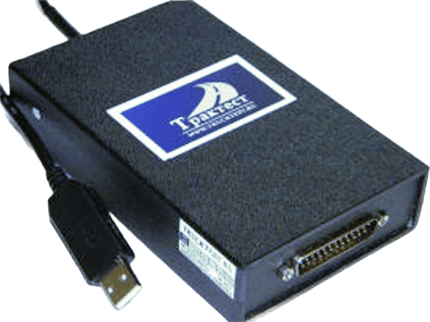

Diagnostic adapter for Knorr-Bremse systems.
All electronic components of KNORR-BREMSE systems: ABS, ABSI8, ABSEU12, ABS6, KB92, KB3AL, G2E, G2M, G3M, CI12, EBS2, EBS5, ECAS, EAC, EAC1, ECA, EDC, KB4-TA, and iAPU for trucks and buses are diagnosed using specialized Knorr-Bremse computer programs (NEO-Green, NEO-ORANGE) using our adapter and the necessary cables.
For diagnostics of iTPMS, KB4TA, TEBS4, TEBSG2, TIM G2, TPMS, and TRM trailer systems.
Licensed software for "trailers" (2024) is available for download after registration from the official KNORR-BREMSE website and is free to use. The adapter for Knorr electronic systems works equally well with new trucks and trailers, as well as those manufactured many years ago.
This device is compatible with the UDIF II39809F (EZ1031) diagnostic interface (serial port), and the USB version allows it to be used on computers without a serial port without the need for adapters.
Our adapter allows you to do diagrnotics of Knorr electronic systems in trucks, buses, and trailers, program all electronic units, calibrate, test, and change parameters, adjust the air suspension, and configure ABS, EBS, and ECAS units.
The device is essential for error checking, pairing the road train (adjusting braking forces), commissioning, and replacing the electronic unit.
The WABCO cable interface unit allows you to use not only expensive original Knorr cables, but also the widely available high-quality and budget-friendly Trucktest cables, WABCO cables, and their cheap Chinese copies: the jumper (4463003600) and (4463003292).
Technical support is limited and may not be possible.
Adapter Unit
The WABCO cable adapter unit allows you to use not only expensive original Knorr cables, but also widely available and affordable wabco cables: crossover (4463003600) and "blue" (4463003292).
An adapter for diagnosing EBS systems on semi-trailers using a "crossover" connector (ISO 7638).
An adapter for diagnosing EBS systems on semi-trailers using a "crossover" connector (ISO 7638).
For applications without a diagnostic connector. Compatible with cables EZ1034 (Knorr) and 4463003600 (Wabco).
An adapter for ABS systems diagnostics on semi-trailers with TEBS4 and A18.
An adapter for ABS systems diagnostics on semi-trailers with TEBS4 and A18.
Compatible with cables Z005464 (Knorr) and 4463003292 (Wabco).
An adapter that allows you to do EBS and ABS systems diagnostics on tractors.
An adapter that allows you to do EBS and ABS systems diagnostics on tractors.
A direct connection adapter for EBS 5 systems diagnostics.
A direct connection adapter for EBS 5 systems diagnostics.
The upgraded version allows diagnosing EBS 5 systems (2001-2024) of all vehicle brands with 18-pin (17-pin + key) connections, except Volvo.
For complete, incomplete, and damaged CAN networks.
Direct connection adapter for diagnosing Knorr 18-pin (17+1) ELC systems.
Direct connection adapter for diagnosing Knorr 18-pin (17+1) ELC systems.
The upgraded version allows diagnosing systems (1998-2024) of all vehicle brands (including LiAZ, NEFAZ, PAZ, TrolZa, Volzhanin, and Kamaz). Except Volvo. Used when the vehicle's diagnostic line is missing or damaged.
