Scanmatik 3
Item no.: 21S6000

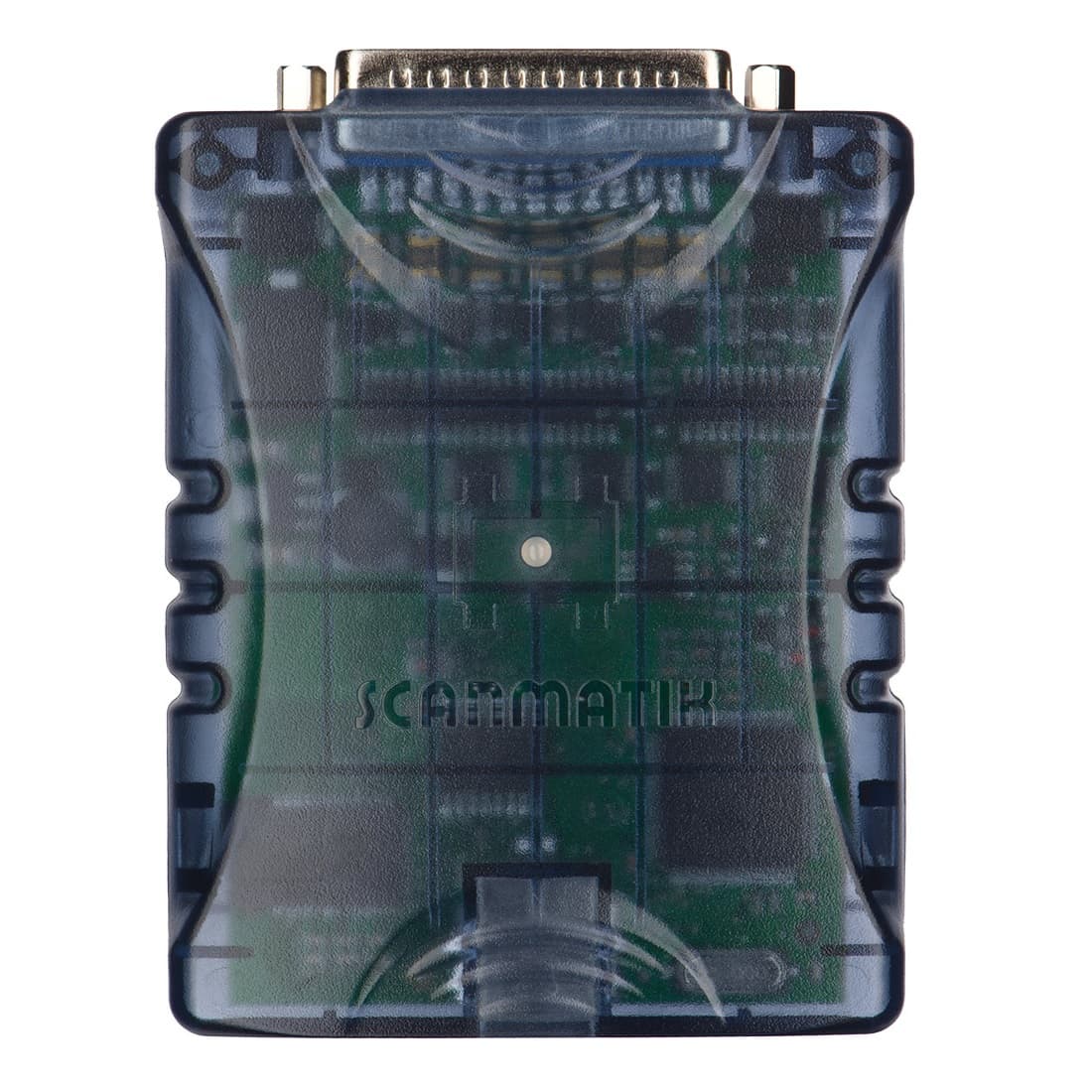

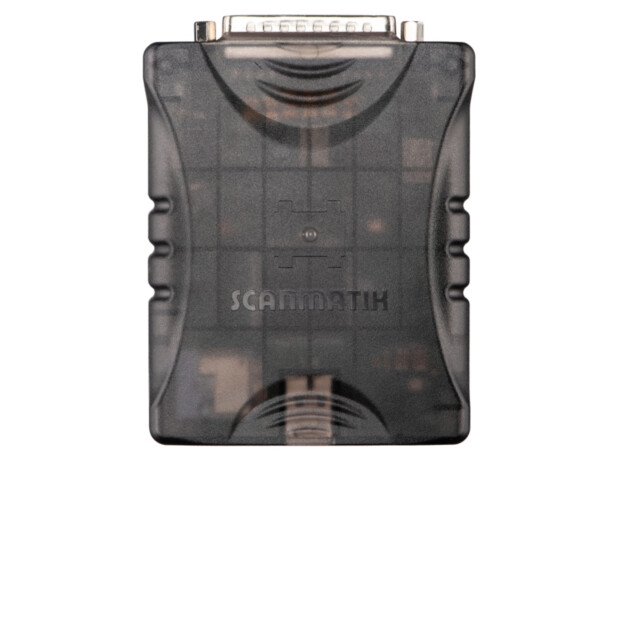

- Scanmatik 3 Adapter

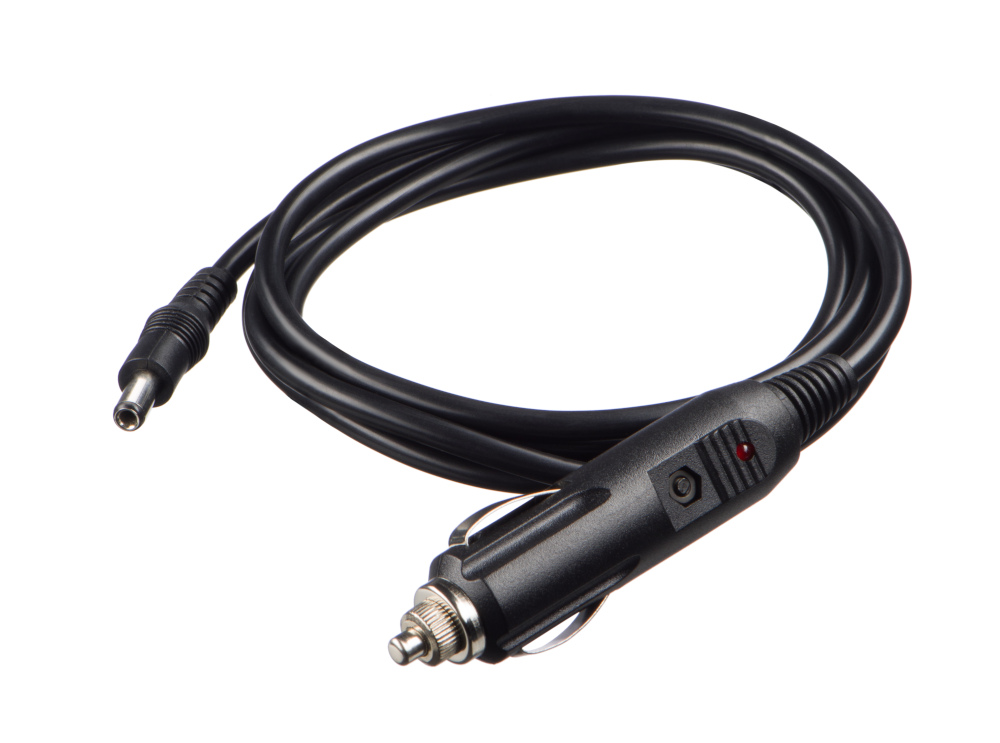

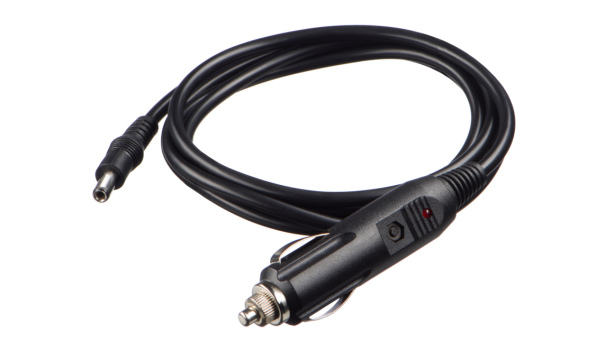

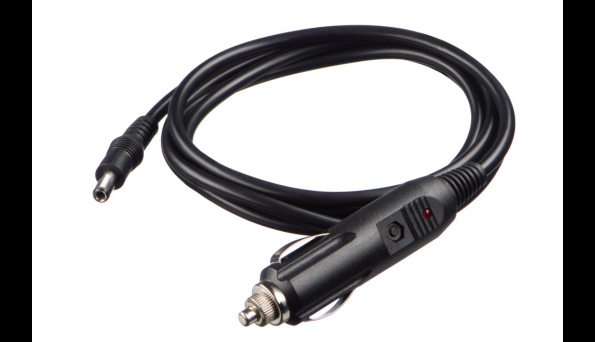

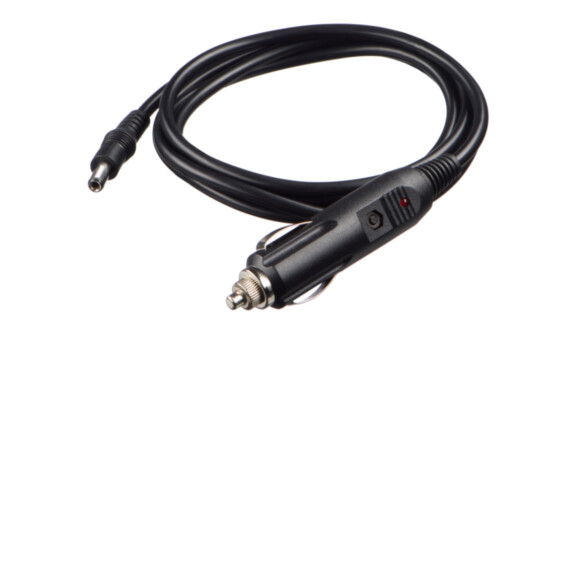

- Power supply cable from the cigarette lighter

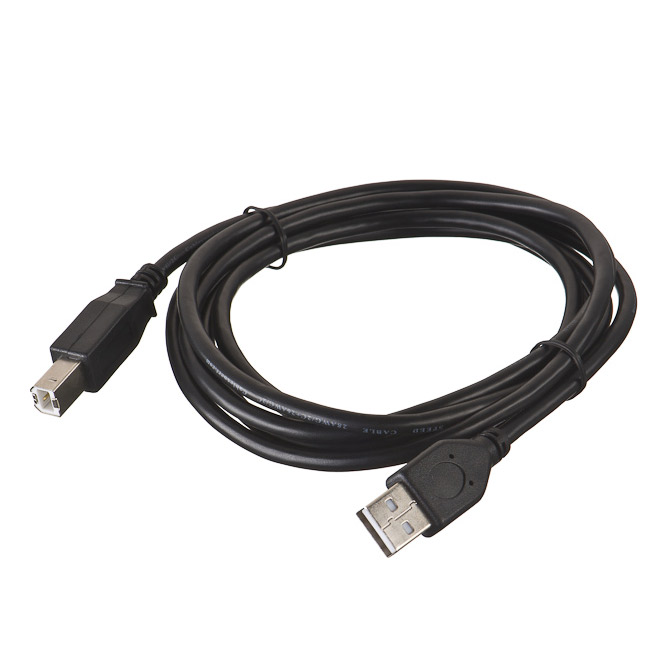

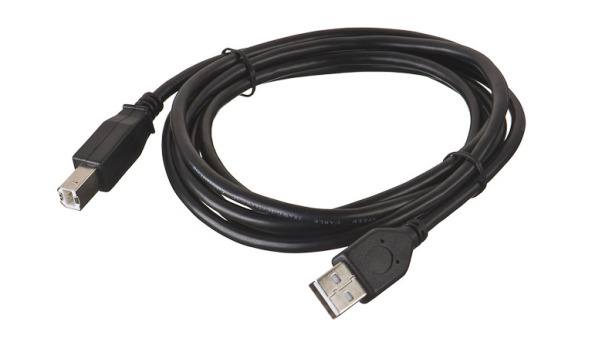

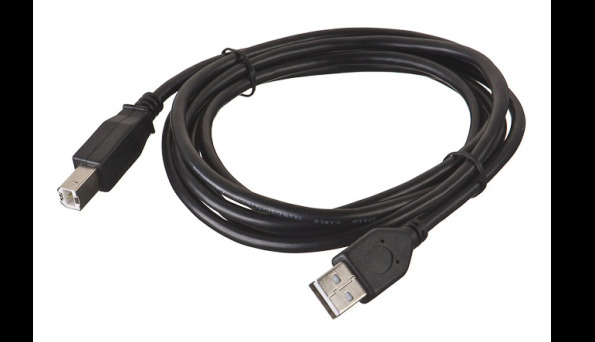

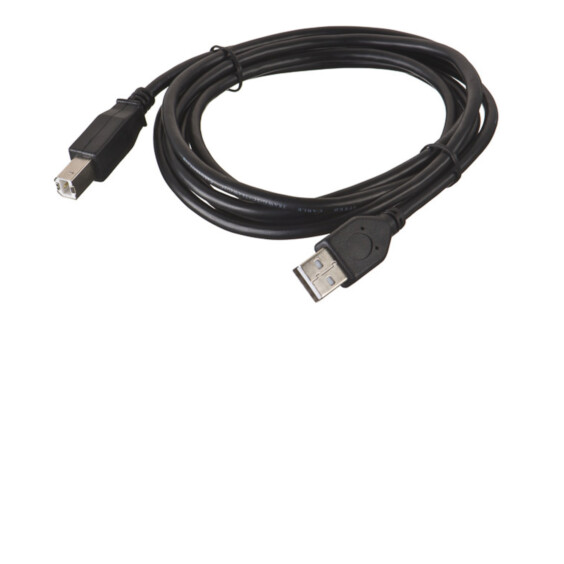

- USB cable

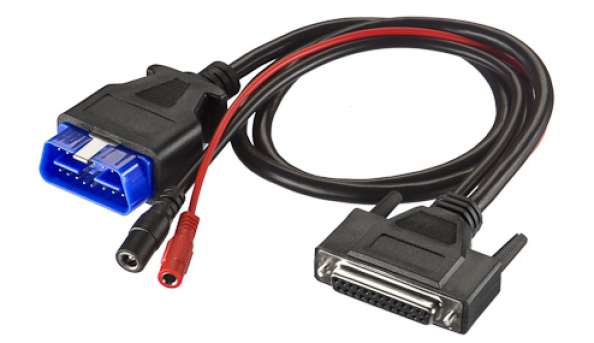

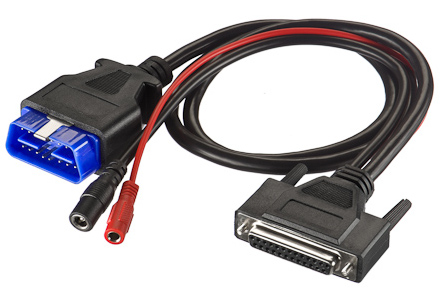

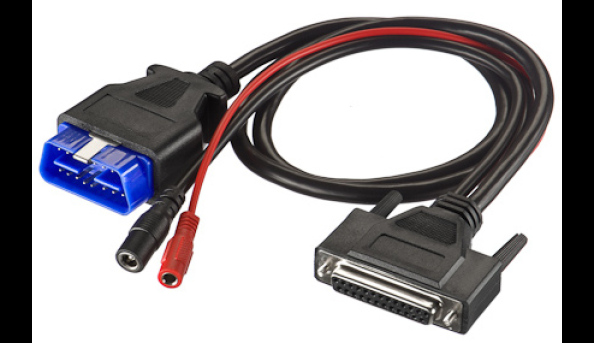

- OBD II cable + Aux blue

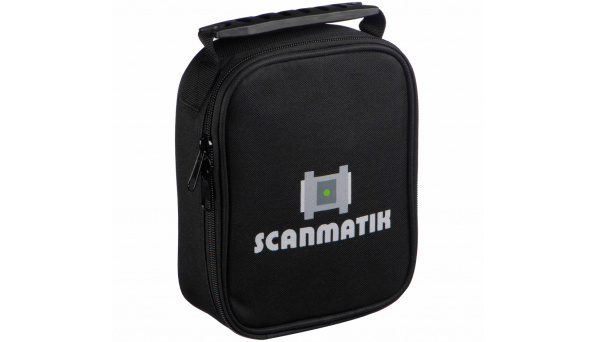

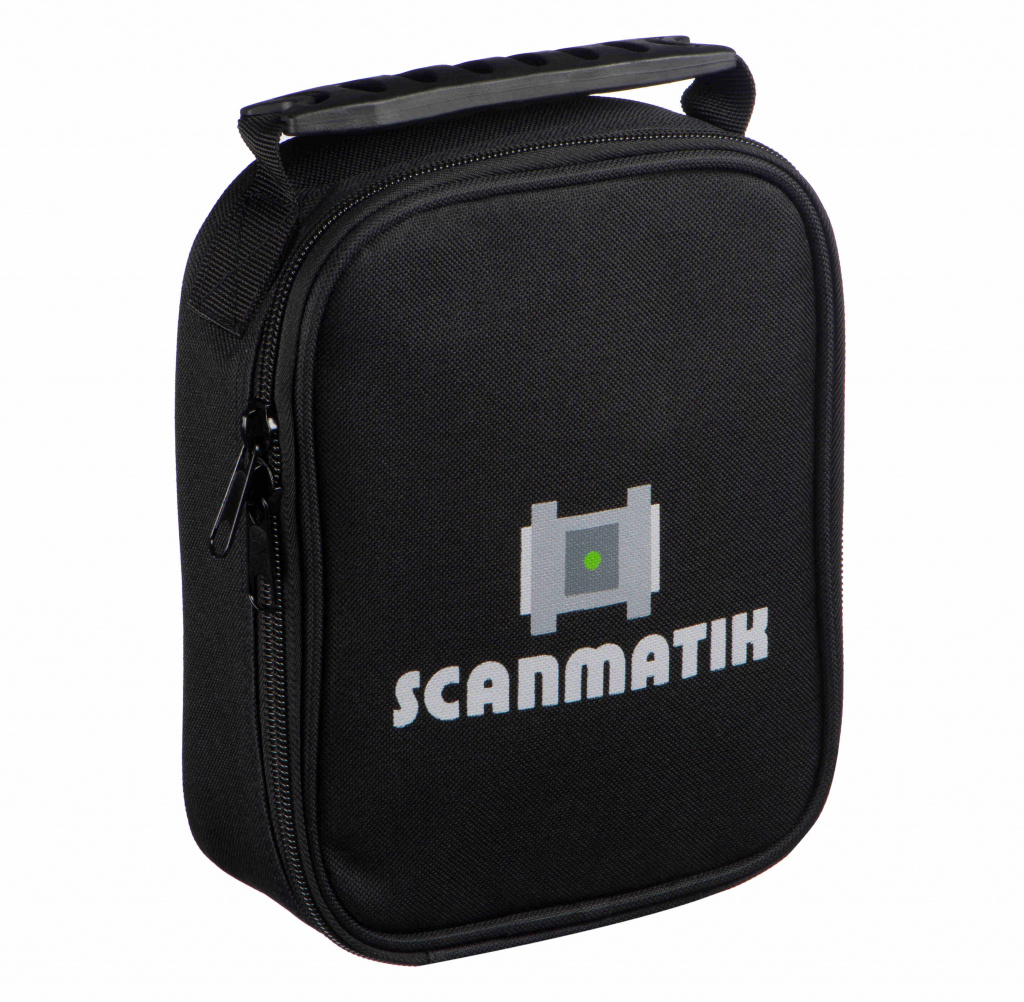

- Case
Professional multi-brand auto scanner is designed for diagnostics of electronic control systems of modern cars. Works with a PC, tablet or smartphone, programs for Windows and Android included. When installing the driver (included in the kit), it works with third-party diagnostic software made for SAE J2534 and RP1210 standards, as well as with bootloaders, supplying programming permission voltages to various contacts of the diagnostic connector.
To connect to the adapter, you can use either USB or Wi-Fi interfaces (built into the SM3 adapter)
All kits include the full current version of the program (all currently available software modules):
VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.
Works with a large number of diagnostic programs and loaders made for standard SAE J2534 and RP1210 interfaces.
Technical characteristics of the SM3 adapter
-
Interfaces for communication with a PC (Tablet, Smartphone) — USB or Wi-Fi
- Supply voltage: 5…35V from the vehicle’s on-board network or USB (galvanic isolation with power supply)
- Current consumption, no more than 350mA
- Internal pulse power supplies of our own design (no heating + wide range of input voltages from 5 to 55V)
- Wi-Fi transceiver standard: IEEE 802.11b/g/n
- Supported data buses:
- 13 x ISO-9141/ISO-14230 (K-LINE)
- 1 x J1850VPW
- 1 x J1850PWM
- 4 x CAN 2.0/CAN-FD
- 1 x Single Wire CAN
- 1 x Ethernet 10/100BASE-TX
- Built-in multiplexer for switching diagnostic lines
- The widest support for J2534-½ standards
- Programming voltage supply (5-20V) — to OBD2 connector pins: 6, 8, 9, 11, 12, 13, 14
- AUX programming voltage output
- Adapter dimensions (L x W x H), no more than: 97×75×22mm
- Weight of the device in the basic configuration, no more than: 0.7 kg
Adapter (boot/bench cable) for bench working with PCMFlash together with Scanmatik 2 or Scanmatik 2 PRO and external power supply (12V or 24V for trucks).
- Power connector is Jack 2.0 mm;
- Has a built-in short circuit protection;
- The maximum allowable current is up to 5 A;
- Automatic power management and Boot and CNF1 signals;
Works with ALL PCMFlash modules that require Bench work and automatic power management, such as 53 , 71 ,77 and others.
Ver. 2, short-circuit protection.
New version pinouts:
Red 4pcs +12v
Black 2pcs GND ground
Brown 2pcs GPT1,GPT2
Yellow CAN H
Blue CAN L
Green K-LINE
Blue (alligator) CNF1
Gray (alligator) Boot
Purple Vpp
Boot-bench connection cable with automatic and manual power control. Compatible with Scanmatik 3 and Scanmatik 2-Pro.
- a unique GPT signals automatic adjustment scheme: there is no need to use external capacitors or resistors to work with EDC ECUs, such as EDC7C32, EDC16CP33, EDC17C49, etc.
- tested with all EDC/Simos ECUs supported in PCMflash, BitBox, Combiloader
- a switch for ECU forced power supply (VECU line) with the state indication
- a powerful CAN bus resistor does not burn and does not lose its functionality in case of incorrect connection to the ECU pins
- short circuit, overvoltage (up to 36V) and inverse polarity protection of all signal and power lines
- a power key allows smooth working with the ECUs requiring high starter current
- BOOT/CNF crocodile clips are comfortable to use
- wire colour code designation according to the PCMflash documentation
- clamps are made of hard heat shrink tube, do not bend when connected to the ECU pins
- BOOT/CNF, Vpp state indication
- supporting leg provides stable positioning on the bench
- adapters for the ECUs with big flat or round clamps are included in the package
Specifications:
- Power voltage: 12...36V
- Wire length: 0,6 m
- Weight: 0.1 kg
Packaging:
- TunerWire cable
- flat contact adapter set (Lyra 2.1mm) 7 pcs
- round contact adapter set (2mm) 7 pcs
