Tango Key Programmer
Item no.: 41T1000
- TANGO Hardware
- TANGO Basic Software
The device is intended for programming of transponders, that are a part of automobile immobilizing systems.
The product is in working out stages, therefore the list of the supported transponders will be developed later. For the present moment Tango has the following built in makers and functions

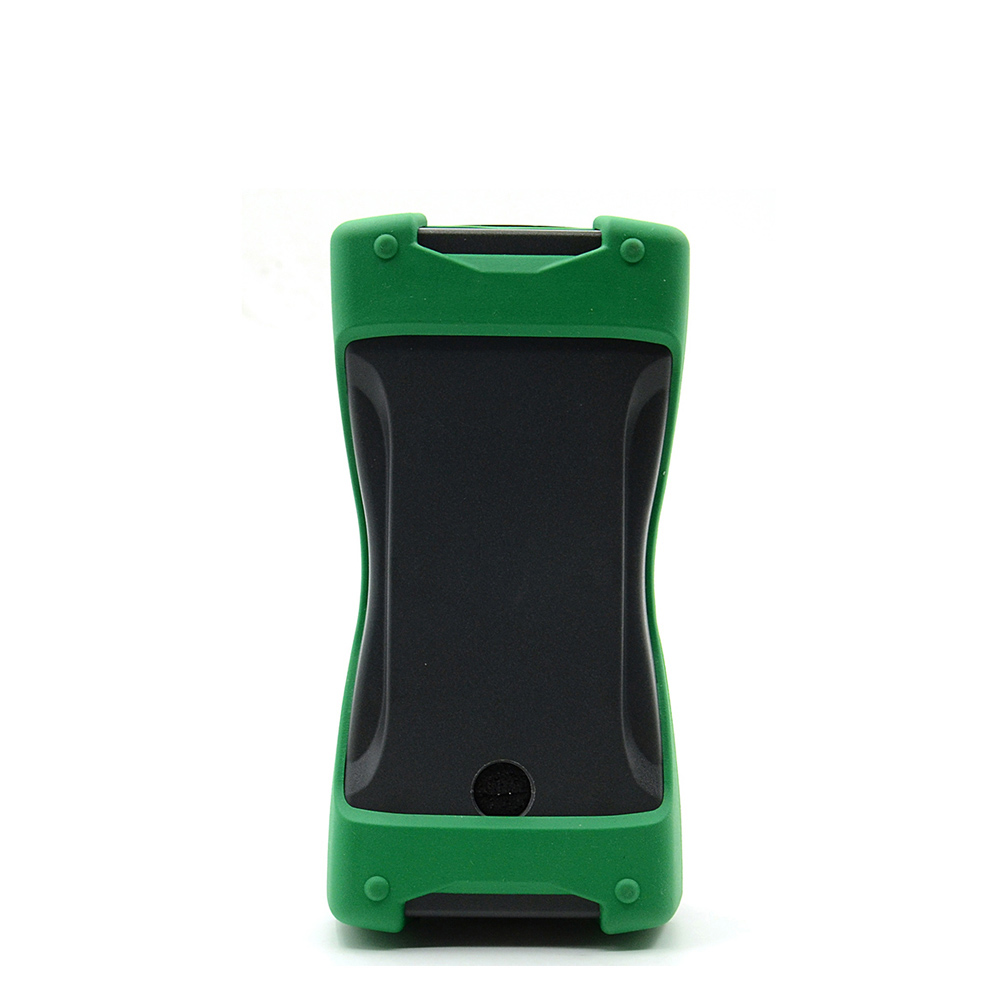

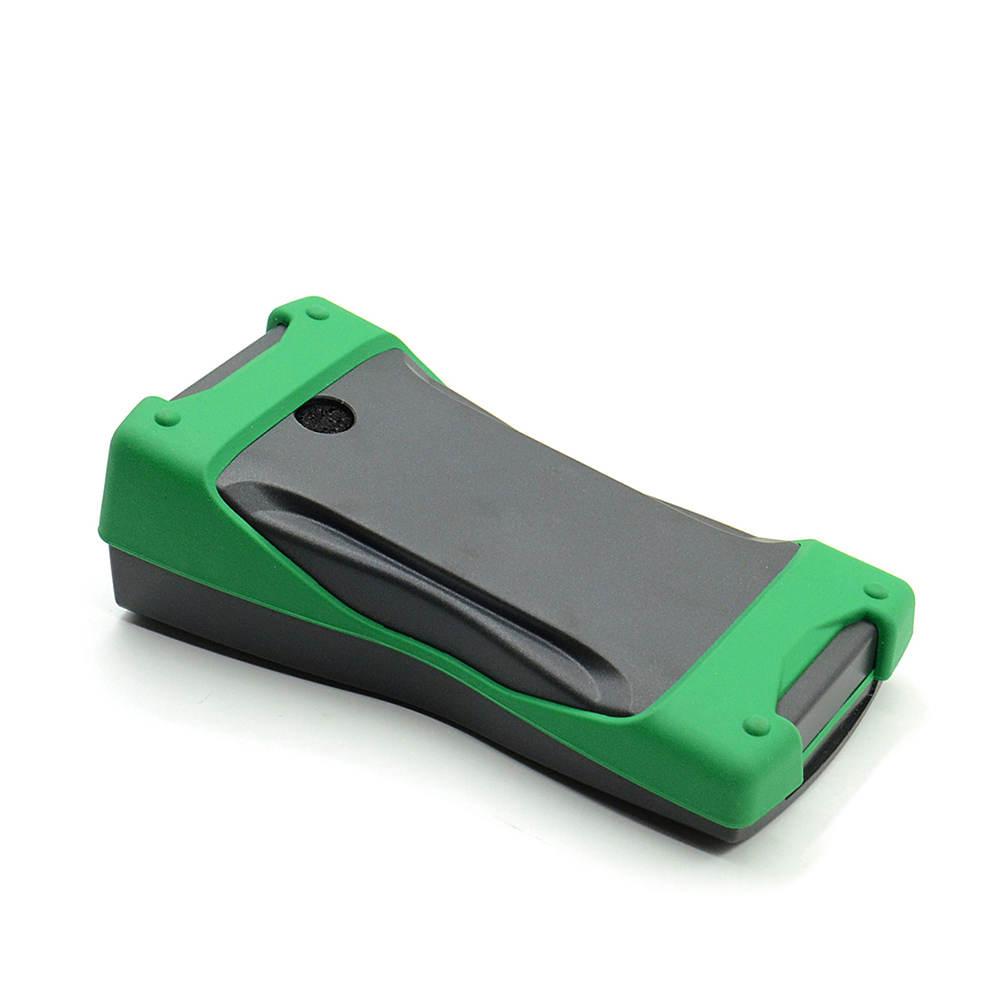

The device has ergonomic design with high mechanical characteristics of IP65 class according to the DIN EN 60529 standard. The device has following dimensions:
- Length:160 mm
- Width: 80 mm
- Height: 50 / 30 mm
The device enclosure is made of 3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element. The seal also prevents the device sliding on a work table surface.
The device derives the power from USB and does not demand connection of an external power source. Difference is use of drivers of other type that allows to avoid conflicts to other devices working through virtual ports.
- USB 2.0/3.0

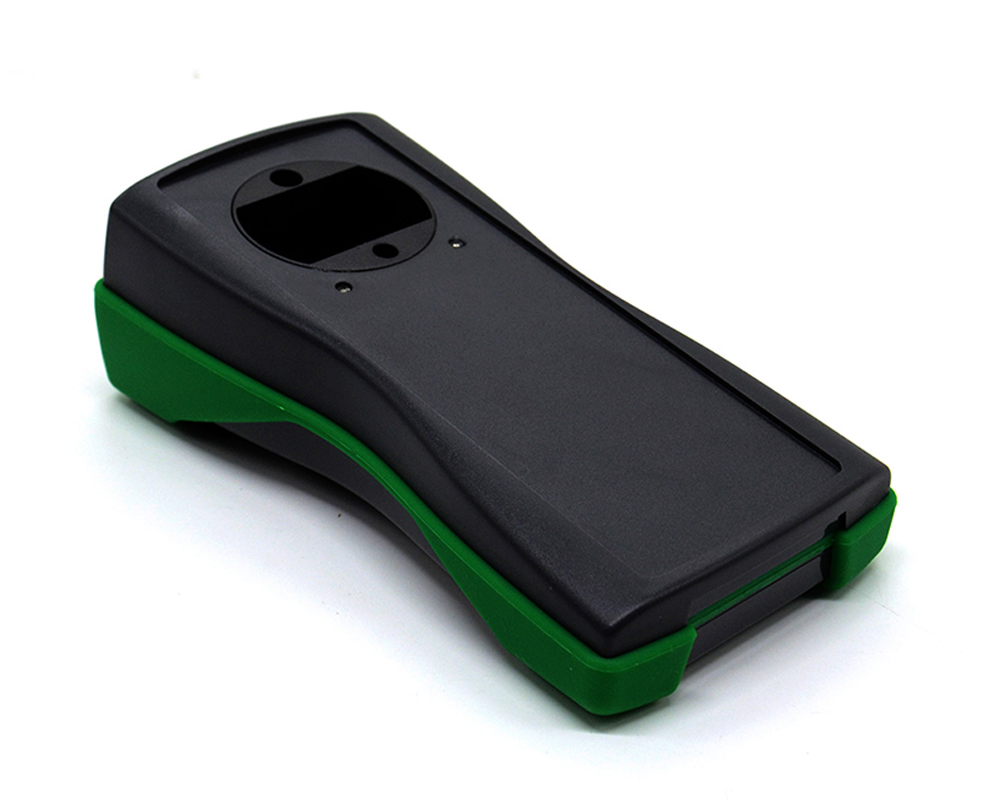

- The device has wide slot for keys of any size and two small holes of various depth for transponders of any sizes.
- LED indication is taken out on the upper cover of the case that is solution more convenient in using.
- The program interface has the modern intuitive design.
Meeting modern requirements, Tango supports OS Vista. Supported versions of Windows:
- Win 98
- XP
- Vista
- Win 7
- Win 8/8.1
- Win 10
Features:
- Cloning of Toyota / Lexus Smart keys on SLK-01, SLK-02, SLK-03/03E, SLK-04/04E, SLK-05/05E, SLK-07E emulators
- Subaru Image Generation Page1 14, 17
- TangoPlus Subaru Smart Key (Page1 F1, F3) Systems OBD framework
- Toyota-H Immobilizer All Keys Lost solution (Gen1 MCU 11910) — SLK-06 (all markets)
- Clonning of Toyota H-key [Blade](128bit) on LKP-04
- Toyota/Lexus Smart Key Systems OBD Framework
- Toyota G Immobilizers OBD Reset & Add Key (including EU type)
- Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99, 3A, 7A on TRPWS21 transponder
- Toyota/Lexus G Keys Image Generation and Clonning Page1 19,36,56,96,37,57 on LKP-02,CN5
- Toyota/Lexus/Subaru SmartKey Reset (40/80/128bit)
- FREE Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2,EH2,CN2,CN5,LKP-02
- FREE Image generator ID70 on ID4D
- Image generator ID67/68 on ID4D
- Full FREE production of TP22, TP23, TP24, TP25
- Free write Component Security 7 bytes Tool (Megamos48)
- Over 1142 Key Makers, 793 included with basic software
- In-depth Manual and Technical Support Provided
- Searching of the 7th byte by existing car’s key(Megamos48)
Attention! Tango Driver V4 OS specific requirements:
Win7 requires Microsoft security update KB3033929,
WinVista requires Microsoft security update KB2763674
Vehicles included in the basic software:
ALFA ROMEO:
- 145 1995–2001 (93C46, ID33)
- 146 1995–2001 (93C46, ID33)
- 155 1995–1998 (93C46, ID33)
- 156 1998–2001 (93C56, ID44)
- 164 1995–1998 (93C46, ID33)
- 166 1998–2003 (93C56, ID44)
- GTV 1995–1998 (93C46, ID33)
- Spider 1995–1998 (93C46, ID33)
Vehicles included in the payable module:
ALFA ROMEO:
- 147 ID48
- 159 ID48
- GT ID48
Vehicles included in the basic software:
Cadillac:
- Catera 1997–1999
- CTS 2003- (68HC908,ID48)
- CTS 2005- (95040,HITAG)
- DTC 2006…
- Escalade 2006…
- SRX 68HC908 2004…
- SRX 95040
Vehicles included in the payable module:
Cadillac:
- Catera 1997–1999
- CTS 2003- (68HC908,ID48)
- CTS 2005- (95040,HITAG)
- DTC 2006…
- Escalade 2006…
- SRX 68HC908 2004…
- SRX 95040
Vehicles included in the basic software:
CHEVROLET:
- Aveo
- Aveo 2006- (93C76, HITAG)
- Camaro 1997 (68HC08,ID13)
- Captiva 2011- (9S08,HITAG)
- Cavalier 1997 (68HC08, ID13)
- Corvette 1997 (68HC08, ID13)
- Cruze 2008- (24C16,HITAG)
- Epica 2003–2009 (68HC705, ID60)
- Equinox 2011- (24C16,HITAG)
- Evanda 2003–2006 (68HC705, ID60)
- Impala 1997 (68HC08, ID13)
- Kalos 2006 (93C56, ID48)
- Lacetti 2005- (ST7,ID4D)
- Malibu 1997–04 (68HC08, ID13)
- Matiz 2006- (93C56,ID48)
- Montecarlo 2000–05 (68HC08, ID13)
- Silverado 2011- (9S08,HITAG)
- Spark 2008- (93C56, ID48)
- Tacuma (93C56, ID48)
- Venture 1999–05 (68HC08, ID13)
Vehicles included in the payable module:
CHEVROLET:
- Caprice 2006-
- Captiva
- Cobalt 2004-
- HHR 2007- (95040,HITAG)
Vehicles included in the basic software:
CHRYSLER:
- 300 °C 2005–2007 (9S12, HITAG)
- 300 °C 2008… (93C86, HITAG)
- 300M 2002- (24C02, ID64)
- Aspen 2005- (9S12, HITAG)
- Intrepid 2001- (68HC08, ID4E)
- Neon 2001 (24C02, ID4E)
- PT Cruiser 2001- (68HC08, ID64)
- Sebring 2001- (68HC08, ID64)
- Voyager 2001- (24C02, ID4E)
- Voyager Limited 2008- (93C86, HITAG)
Vehicles included in the payable module:
CHRYSLER:
- Crossfire 2004–2007
- Pacifica 2004- (95040, HITAG)
- Pacifica 2005- (95080, HITAG)
- Sebring 2007- (24C16, HITAG)
- Town & Country 2004-(95080, HITAG)
- Voyager 2004- (95040, HITAG)
- Voyager 2004- (95080, HITAG)
Vehicles included in the basic software:
CITROEN:
- Berlingo 1998 (93C46, ID33)
- Berlingo 2000–2002 (NEC, HITAG)
- DS3 2009- (24C128, HITAG)
- Elysee 2002- (93C46, ID33)
- Jumper 1996 (93C46, ID13)
- Jumpy Siemens (68HC705, ID33)
- Xantia 1998–1999 (93C66, ID33)
- Xantia 1999- (93C66, ID48)
- Xantia 2001- (95040, ID48)
- Xsara Texton 1998–2001 (93C66, ID33)
- Xsara 2000–2002 (NEC, HITAG)
Vehicles included in the payable module:
CITROEN:
- C1 2004 (24C04, ID70)
- C4 2010 (95128, HITAG)
- Jumper 1999 (93C56, ID48)
- Jumper 2006 (95160, ID48)
- Jumper 2011 (95160, HITAG)
- Jumper 2012- (95640, HITAG)
- Nemo 2007 (93C86, HITAG)
- Relay 2006 (95160, ID48)
Vehicles included in the basic software:
DACIA:
- Solenza 2003–2005 (93C46, ID33)
- Super Nova 1999–2004 (93C46, ID33)
Vehicles included in the payable module:
DACIA:
- Duster 2010-(95040,HITAG)
- Logan 2004… (Hitag2) Siemens
- Logan 2010-(95040,HITAG)
- Sandero 2008- (93C66,HITAG)
- Sandero 2008- (95040, HITAG)
Vehicles included in the basic software:
DAIHATSU:
- Charade 1998- (93C66,ID4C)
- Cuore 1998–2002 (93C66, ID4C)
- Domino 1999- (93C66,ID4C)
- Handivan 1999- (93C66,ID4C)
- Move 1998–2002 (93C66, ID4C)
- Sirion 1998 (93C66, ID4C)
- Storia 1998 (93C66, ID4C)
- Terios 1997–2004 (93C66, ID4C)
Vehicles included in the payable module:
DAIHATSU:
- Cuore 2004- (93C66,ID4D)
- Materia 2004- (93C66,ID4D)
- Move 2010- (93C66,DST80)
- Sirion 2004- (93C66,ID4D)
- Terios 2004- (93C66,ID4D)
- Terios 2006-
- YRV 2002-
Vehicles included in the basic software:
DODGE:
- Dakota 2005- (9S12, HITAG)
- Durango 2005- (9S12, HITAG)
- Journey 2009 (93C86, HITAG)
- Neon 1999- (HC08, ID64)
- Neon 2001 (24C02, ID64)
- Ram 2002–2005 (24C02, ID64)
- Ram 2004- (68HC08, ID64)
- Ram Van 2002- (68HC08, ID4E)
- Stratus 2001- (68HC08, ID64)
Vehicles included in the payable module:
DODGE:
Avenge 2007- (24C16)
Caravan 2004
Caliber 2007-
Charger 2007- (93C86, HITAG)
Charger 2008- (uPD70F, HITAG)
Nitro 2007-
Ram 2007 (24C16)
Ram 2008- (uPD70F, HITAG)
Sprinter 2006-(9S12, HITAG)
Vehicles included in the basic software:
DUCATI:
- 696
- 748
- 749
- 848
- 999
- 1000
- 1098
- 1198
- 1199 Scaglieti (9S12, ID4D)
- Monster
- Monster 796
- Sporttouring ST3
- Multistrada620 (24C16,ID11)
Vehicles included in the basic software:
FIAT:
- Barchetta (93C46, ID13)
- Brava (68HC05, ID11)
- Brava (93C46, ID13)
- Brava (68HC908, ID11)
- Bravo (93C46, ID13)
- Bravo Siemens (68HC05, ID11)
- Bravo Delphi (68HC705, ID11)
- Bravo Magneti Marelli (68HC08, ID11)
- Cinquecento (93C46, ID13)
- Coupe 1996- (93C46,ID33)
- Croma 1996- (93C46,ID33)
- Doblo (95040, ID33)
- Ducato 1996–2001 (93C46, ID13)
- Marengo 1996- (93C46, ID13)
- Multipla 1996–1998 (93C46, ID13)
- Multipla 1997- (68HC05, ID11)
- Multipla 1997- (68HC908, ID11)
- Palio 1996–2002 (68HC705, ID11)
- Panda 1995- (93C46, ID13)
- Panda 2002- (9S12,HITAG)
- Punto 1995- (93C46, ID13)
- Scudo 1996–1999 (68HC705, ID33)
- Scudo 1999- (95040, ID33)
- Sedici 2006- (93C56,HITAG)
- Seicento 1998- (93C46,ID13)
- Seicento (68HC908, ID11)
- Temra 1995- (93C46, ID13)
Vehicles included in the payable module:
FIAT:
- Albea ID48
- Bravo 2009- (95160,HITAG)
- Burstner Viseo 2011 (95640,HITAG)
- Doblo 2000–2005 Delphi ID48
- Doblo 2000–2005 Magneti Marelli ID48
- Ducato 2001- ID48
- Ducato 2006
- Ducato 2010- (95160,HITAG)
- Ducato 2012- (95640,HITAG)
- Grande Punto 2005-
- Idea 1999-(MC68HC08, ID48)
- Idea 2003-(HC912,ID48)
- Immobox IMM 009.10 (9S08,ID48)
- Linea 2007-
- Multipla ID48
- Palio 1999- (93C66, ID48)
- Palio 2002- ID48
- Punto 1999…2005 Delphi ID48
- Punto 1999–2005 Magneti Marelli ID48
- Punto 2007
- Seicento 2000 ID48
- Seicento 2000 Magneti Marelli ID48
- Siena ID48
- Stilo 2000–2005 Delphi ID48
- Stilo 2000–2005 Magneti Marelli ID48
- Stilo 2007
- Strada 1999- (93C66,ID48)
- 500
Vehicles included in the payable module:
FERRARI:
- 612 Scaglietti 2004- (ID48)
- California 2004- (9S12,ID48)
Vehicles included in the basic software:
FORD:
- Bantam 2004- (24C02,ID4C)
- Cougar 1999
- Courier
- Edge 2007-(93C66,ID4D)
- Escape 2001- (77014,ID4D)
- Escape 2005
- Escort 1995
- Everest 2006-(95320,ID8C)
- Expedition 1997
- Expedition 2001
- Explorer LTD 2007…
- Explorer 1998 Motorola-based
- Explorer 1998 TMS-based
- Explorer 2004- (77014,ID63)
- F-100
- Fiesta
- Fiesta 93C56
- Fiesta 93C86
- Fiesta 95P04
- Fiesta (77014, ID4C)
- Fiesta 2007-(95160,ID4D)
- Fiesta 2009- (9S12,ID4D)
- Focus 1998…2005
- Focus 95P04
- Focus 2000 (77012,ID4D)
- Fiesta 2001- (93C86, ID4C)
- Focus 2007- (93C56)
- Fusion 93C86
- Fusion 2007- (93C56,ID4D)
- Fusion 2007- (95160,ID4D)
- Galaxy 1995 gasoline (ID44)
- Galaxy immobox 1995…1998
- Galaxy immobox 7M5 953 257 (24C04,ID44)
- Galaxy immobox 7M0 953 257K (TMS,ID42)
- Ka 1996–2001
- Ka 1999
- Ka 2007 (93C86,ID4C)
- Maverick -2004(ID60)
- Mondeo 1993- (TMS, ID4C)
- Mondeo 1995
- Mondeo 2000–2002 (77014,ID4D)
- Mondeo 2001
- Mondeo 95P04
- Mustang 1997–2004
- Probe Motorola-based
- Probe TMS-based
- Puma 1996- (TMS,ID4C)
- Puma 1997…2001 (77014,ID4C)
- Ranger 2001-
- Ranger 2006-(95320,ID8C)
- Scorpio
- Taurus 1996
- Taurus 2000…2003
- Transit 1995–98
- Transit 2000…
- Transit 2003…
- Transit 95P04
- Transit Connect (95040,ID4D)
- Transit 2017- (NEC,DST80)
- Windstar 1996–99(TMS,ID4C)
Vehicles included in the payable module:
FORD
- C-Max 2003…2009
- EcoSport 2015-(9S12,DST80)
- Fiesta 2015- (9S12,DST80)
- Focus 2002- (95080,160,320,ID4D)
- Focus 2004…2009
- Focus 2008- (95320, ID60)
- Focus3 2012- (9S12, DST80)
- Focus 2014-(95320,DST80)
- Escape 2012- (9S12, DST80)
- Galaxy 2007 (95320, ID60)
- Mondeo 2008- (95320, ID60)
- S-Max 2008- (25320)
- Tourneo Connect 2007- (9S12,ID4D)
- Transit (BSI HC9S12)
- Transit 2004 (95080, 95160, 95320)
- Explorer 2015- (9S12,DST80)
Vehicles included in the module:
HONDA:
- Motorcycles all models
- ECU 38770_MFG-D02 (93C66, HITAG)
- ECU 38770-KTW-901 (93C66, HITAG)
- ECU 38770-MCZ-003 (93C56, HITAG)
- ECU 38770-MFN-D01 (93C56, HITAG)
- ECU 38770-MEE-702 (93C56, HITAG)
etc. There are 26 types and the list is updated frequently.
Vehicles included in the basic software:
ISUZU:
- Ascender
- Rodeo 1998- (ID48)
Vehicles included in the basic software:
IVECO:
- Daily 1996–1999 (93C46, ID33)
Vehicles included in the payable module:
IVECO:
- Daily 1999…(Hitag2)
- Daily 2007 (95160,ID48)
- Daily 2007 (95320,ID48)
- Daily 2012-(95640,HITAG)
- Stralis 2002- (Hitag2)
- Stralis 2008- (25C640, DST+)
Vehicles included in the basic software:
JEEP:
- Gr. Cherokee 1999- (24C02, ID4E)
- Gr. Cherokee 1999- (68HC08, ID4E)
- Gr. Cherokee 2005- (9S12,HITAG)
- Commander 2006 (9S12, HITAG)
- Commander 2007- (93C86,HITAG)
- Liberty 2004- (95080, HITAG)
- Wrangler 2001- (24C02,ID4E)
Vehicles included in the payable module:
JEEP:
- Compass 2007- (24C16,HITAG)
- Gr. Cherokee 2008- (uPD70F,HITAG)
- Laredo 2008- (uPD70F,HITAG)
- Patriot 2007- (24C16,HITAG)
- Wrangler 2007- (24C16,HITAG)
Vehicles included in the basic software:
LANCIA:
- Dedra HC05 ID11
- Delta HC908 ID11
- Delta eeprom
- Kappa 1995…2001
- Ypsilon HC05 ID11
- Ypsilon HC908 ID11
- Ypsilon 1997 (68HC705)
Vehicles included in the payable module:
- LANCIA:
- Lybra ID48
- Ypsilon 2007
Vehicles included in the payable module:
MERCEDES:
- ML-seria (AAM)
- ML-seria (EAM)
Supported vehicles: All ML-seria cars
UNIVERSAL MAKER (by motorola mcu maskset) supported masksets:
- 0D53J
- 0D66J
- 0D69J v. 1
- 0D69J v. 2
- 1D69J v. 1
- 1D69J v. 2
VITO
- Supported vehicles: All Vito
SPRINTER
- Supported vehicles: All Sprinter
Vehicles included in the payable module:
All passenger cars with transponder keys
ACTROS
Supported trucks: All Actros
ATEGO
Supported trucks: All Atego
AXOR
Supported trucks: All Axor
ECONIC
658
Actros 2011- (95640, ID13)
Vehicles included in the basic software:
NISSAN:
- 350Z 2004- (93C56, 93C66, HITAG)
- Almera Classic (Samsung)
- Almera Classic (Johnson Controls)
- Altima 2004- (93C56, 93C66, HITAG)
- Altima 2005- (93C56,HITAG)
- Altima 2005- (93C66,HITAG)
- Altima 2008-(9S12,HITAG)
- Armada 2004- (93C56, 93C66, HITAG)
- Frontier 2004- (93C56, 93C66, HITAG)
- Interstar
- Juke 2010- (93C66,HITAG)
- Juke 2011- (93C76,HITAG)
- Livina 2006-
- March 2010 (93C76, HITAG)
- March 2011 (93C66, HITAG)
- Maxima 2004- (93C56, 93C66, HITAG)
- Micra2002-
- Nissan Micra 2005–2011 (93C66,HITAG)
- Murano 2003- (93C56, 93C66, HITAG)
- Murano 2008-(9S12,HITAG)
- Note -2005(95080, HITAG)
- Note 2005- (93C56, 93C66, HITAG)
- Pathfinder 2004- (93C56, 93C66, HITAG)
- Quest 2005- (93C56, 93C66, HITAG)
- Sentra 2005- (93C56, 93C66, HITAG)
- Skyline 2005- (93C56, 93C66, HITAG)
- Skyline 2008- (9S12,HITAG)
- Sunny 2006–2010 Korea
- Sunny 2011 (93C76,HITAG)
- Teana 2004- (93C56, 93C66, HITAG)
- Teana 2008-(9S12,HITAG)
- Tiida 2005- (93C56, 93C66, HITAG)
- Tiida 2005–2010(95080,HITAG)
- Titan 2004- (93C56, 93C66, HITAG)
- Versa 2006- (93C66,HITAG)
- Xterra 2005- (93C56, 93C66, HITAG)
- X-Trail 2004- (93C56, 93C66, HITAG)
- NATS-2 (68HC05, ID33)
- NATS-4 (TMS, ID41)
- NATS-5 (TMS, ID4D)
Vehicles included in the payable module:
NISSAN:
- Almera 2003-(93C66,HITAG)
- Aprio 2008- (93C66,HITAG)
- Cabstar 2009- (9S12,HITAG)
- Kubistar 2005-(93C66,HITAG)
- Navara 2005-(93C66,HITAG)
- Navara 2009- (9S12,HITAG)
- Pathfinder 2005-(93C66,HITAG)
- Pathfinder 2007- (9S12,HITAG)
- Primera 2003-(93C66,HITAG)
- Qashqai 2010-(9S12,HITAG)
- X-Trail 2010-(9S12,HITAG)
Vehicles included in the basic software:
OLDSMOBILE:
- Aurora 2001–03 (HC08,ID13)
- Silhouette 1999–04 (HC08,ID13)
Vehicles included in the payable module:
OLDSMOBILE:
- Bravada
Vehicles included in the basic software:
OPEL:
- Agila 2008-(93C66,HITAG)
- Astra J 2008- (95160,HITAG)
- Frontera 1995
- Mokka 2008- (24C16,HITAG)
- Monterey 1996…99
- Monterey (ID4E)
- Movano
Vehicles included in the payable module:
OPEL:
- IMMO-1 (Motorola MC68HC05B based)
- IMMO-2 (TMS based)
- Antara
- Astra-H 2004–2006
- Astra-H (HITAG2)
- Combo 2001–2005
- Corsa 2001–2005
- Frontera 1999 (Megamos 48)
- Meriva 2002–2004
- Movano 2003…2007 (Hitag2)
- Signum 2002- (93C76,HITAG)
- Vectra-C 2002–2004
- Vectra 2002- (93C76,HITAG)
- Vectra-C (HITAG2)
- Vivaro 2002… (Hitag2)
- Zafira (HITAG2)
Vehicles included in the basic software:
PEUGEOT:
- 103
- 106 1997
- 206 1998–2001
- 206 cabrio 2000–2002
- 206 2001- (95160,HITAG)
- 207 2008-(95128,HITAG)
- 306 1997 (ID33)
- 306 1999 (ID33)
- 306 Siemens
- 406
- 4007 2008- (24C16,HITAG)
- 607 2001- (93C66,MEG48)
- Boxer (ID13)
- Elystar
- Elystar
- Expert 1996–2004
- Expert 1999
- JetForce
- Partner 2000–2002
- Spedfight 2
- Squab
Vehicles included in the payable module:
PEUGEOT:
- 107 2005- (24C04,ID70)
- Bipper 2007 (93C86,HITAG)
- Boxer 2002 (93C56,ID48)
- Boxer 2006 (95160,ID48)
- Boxer 2010 (95160,HITAG)
- Boxer 2012 (95640,HITAG)
- Expert 2010 (95128,HITAG)
- Manager 2013 (95160,HITAG)
- Partner 2010 (95128,HITAG)
Vehicles included in the basic software:
RENAULT:
- Avantime (Valeo, ID33)
- Avantime 2001- (HC912,ID60)
- Clio-1
- Clio-2
- Clio-3
- Clio Sport 2009- (9S12,HITAG)
- Espace-III
- Kangoo
- Laguna 1998
- Mascott
- Master
- Megane 1996–1999
- Megane 2000–2003 (ID60)
- Megane-2 (9S12, HITAG)
- Renault Scala 2010- (93C66,HITAG)
- Symbol
- Thalia
- Trafic 1998
- Twingo 1995…1998
- Twingo 1998…2001
Vehicles included in the payable module:
RENAULT:
- Clio II 2003- (93C66, HITAG)
- Duster 2010- (93C66, HITAG)
- Duster 2010- (95040, HITAG)
- Espace-IV (Hitag2)
- Fluence 2012- (NEC850, HITAG)
- Master 2002… (Hitag2)
- Midlum 2002… (Hitag2)
- Kangoo 2002… (Hitag2)
- Kangoo 2007- (95080,HITAG)
- Kangoo 2008… (Hitag2)
- Koleos 2008- (9S12, HITAG)
- Laguna-2 (eeprom 95160, Hitag2)v. 1
- Laguna-2 (eeprom 95160, Hitag2)v. 2
- Laguna-2 (HC912, HITAG)
- Laguna-3 2008- (9S12, HITAG)
- Latitude 2010- (9S12, HITAG)
- Logan 2003
- Logan 2010- (95040, HITAG)
- Logan 2010- (93C66, HITAG)
- Mascott 2002- (93C66, HITAG)
- Mascott 2007- (95080, HITAG)
- Master 2013- (NEC, HITAG)
- Megane 2012- (NEC850, HITAG)
- Modus 2004… (Hitag2)
- Safrane 2010- (9S12, HITAG)
- Samsung SM5 2010- (9S12, HITAG)
- Sandero 2008- (95040, HITAG)
- Sandero 2008- (93C66)
- Sandero 2010- (93C66, HITAG)
- Symbol Siemens v1 (Hitag2)
- Symbol 2010- (95040, HITAG)
- Twingo 2002… Siemens v1 (Hitag2)
- Twingo 2002… Siemens v2 (Hitag2)
- Twingo 2002… Sagem
- Twingo-II 2007- (9S12, HITAG)
- Trafic 2002… (Hitag2)
- Vel Satis (Hitag2)
- Vel Satis 2002- (68HC912, HITAG)
Vehicles included in the payable module:
RENAULT TRUCKS:
- Premium 2001…2006
- Premium 2007… (Hitag2)
- Magnum 2000–2004
- Magnum 2004–2008
- Midlum 2006-(25040,HITAG)
- Trafic 2007-(95080,HITAG)
Vehicles included in the basic software:
ROVER:
- Rover 75
- Rover 600
- Rover 618
- Rover 620
- Rover 800
Vehicles included in the payable module:
LAND ROVER:
- Land Rover 2006… (HITAG2)
- Land Rover Freelander (25320, HITAG2)
- Land Rover Freelander (PIC18F252, HITAG)
- Range Rover Vogue (HITAG2)
- Range Rover Sport (HITAG2)
- Range Rover Supercharged (HITAG2)
Vehicles included in the basic software:
SUZUKI:
- Alto 1996–2001
- Alto 2002-
- Alto 2006- (93C56, HITAG)
- Baleno
- Burgman
- Grand Vitara
- Grand Vitara 2003- (24C01, HITAG)
- Ignis 2000-
- Jimny 1998–2003 (24C01, ID4C)
- Jimny 2002-
- Maruti Swift 2012- (93C86, HITAG)
- Splash 2009- (93C66, HITAG)
- Swift 1996–2004 93LC66
- Swift 2012- (93C86, HITAG)
- SX4 2006- (93C56,HITAG)
- SX4 2012- (TC1762, HITAG)
- Wagon R 1998–2003 (24C01, ID4C)
Vehicles included in the payable module:
SUZUKI:
- LX7 2006-
- Wagon R 2000- (TMS, ID40)
- Grand Vitara 2002- (93C66, ID4D)
- Liana 2002- (93C66, ID4D)
- SX4 2006- (HC08, ID40)
Serves to emulate a smart key for the SLK02 emulator, which allows you to turn on the ignition as a Master key. It is used alongside the main Toyota Key Maker.
Serves to emulate a smart key for the SLK03 emulator, which allows you to turn on the ignition as a Master key. It is used alongside the main Toyota Key Maker.
Serves to emulate a smart key for the SLK04 emulator, which allows you to turn on the ignition as a Master key. It is used with Toyota Key Maker.
It has a fixed memory, even if you remove the battery — the data is not erased, but can be overwritten.
Serves to emulate a smart key for the SLK05E emulator, which allows you to turn on the ignition as a Master key. It is used with Toyota Key Maker.
It has a fixed memory, even if you remove the battery — the data is not erased, but can be overwritten.
Serves to intercept cryptokey, works with an active maker SLK06.
It is used alongside the main Toyota Key Maker.
Features:
1. Cloning existing Toyota / Lexus 128-bit smart keys with page 1 AA
2. Allows you to add used (reset) or otherwise unauthorized Toyota / Lexus 128bit smart keys with AA to be added to the vehicle using the SLK-07 service function.
System requirements for cloning:
• Tango Programmer
• Emulator SLK-07E
• Maker Toyota
• Maker SLK-07
System requirements for SLK-07 Utility:
• Tango Programmer
• Emulator SLK-07E
• Maker Toyota
• Maker SLK-07
• Toyota Techstream online service (third party service)
Reset of Toyota SmartKeys
Designed to restore Smart Keys to a dealer state. Restores used smart cards to the state of a new key, for binding it in the future, via the OBD connector of the cvehicle.
Works with cards: 40 bit, 80 bit and 128 bit
This maker will work if the main Toyota Key Maker is active!
The maker is used to emulate a smart key for the SLK02 emulator, which allows you to turn on the ignition as a Master key.
Used together with the main Toyota Key Maker and Toyota +: OBD Reset
This maker will work if the main Toyota Key Maker is active!
The maker is used to emulate a smart key for the SLK03 emulator, which allows you to turn on the ignition as a Master key.
Used together with the main maker Toyota key and Toyota +: OBD Reset
This maker will work if the main Toyota Key Maker is active!
The maker is used to emulate a smart key for the SLK04 emulator, which allows you to turn on the ignition as a Master key.
Used together with the main Toyota Key Maker and Toyota +: OBD Reset
This maker will work if the main Toyota Key Maker is active!
The maker is used to emulate a smart key for the SLK05 emulator, which allows you to turn on the ignition as a Master key.
Used together with the main maker Toyota key and Toyota +: OBD Reset
This maker will work if the main Toyota Key Maker is active!
The function allows you to resolve the situation with the loss of all keys (AKL) on Toyota vehicles equipped with a 128-bit immobilization system H (Page: 39,59,3A, 5A), regardless of the market (EU / Asia / US) by creating a master key on LKP-04 using SLK-06, which additionally serves for diagnostic authorization to add a key without having to replace or reset the immobilizer. During the process, the vehicle data is not changed in any way.
This maker will work if the main Toyota Key Maker is active!
SLK-07E – Toyota & Lexus 128bit smart keys with Page 1 AA
I. Getting Started
Introduction
This Help relates to Tango software version 1.117 (September 2020) and up.
SLK-07 serves two purposes:
1. Cloning existing Toyota/Lexus 128bit smart Keys with Page 1 AA
2. Allows addition of used (reset) or otherwise unauthorized Toyota/Lexus 128bit smart Keys with Page 1 AA to be added to vehicle through SLK-07 utility function.
System requirements for cloning:
- Tango programmer
- SLK-07E emulator
- Toyota maker
- SLK-07 maker
System requirements for SLK-07 Utility:
- Tango programmer
- SLK-07E emulator
- Toyota maker
- SLK-07 maker
- Toyota Techstream online service (3rd party service)
- Internet connection
SLK -07E
SLK-07E is battery powered. Note that a battery is not included with an emulator and has to be obtained locally. Three standard types of battery are compatible for our emulators:CR1616, CR1620, CR1632. SLK-07E retains programmed data if it is not powered.
II. Cloning existing P1 AA smart key
Cloning existing Toyota/Lexus 128bit smart Keys with Page 1 AA is straight forward and similar to all existing in Tango cloning functions.
- Insert in coil the key which is to be cloned.
- Press Read
- Press Decode Transponder
- Once decoded remove the key and place a battery powered SLK-07E emulator
- Press Write
III. SLK-07 Utility
SLK-07 Utility interface is self explanatory and requires internet connection. Note that Step3 requires Toyota Techstream online service, which is a 3rd party service which we don’t provide and access to it may vary on external factors.
IV. FAQ and Remarks
Q: Does SLK-07 allow for all keys lost situation?
A: No.
Q: Does removing battery erase data in SLK-07?
A: No, but the emulator still requires power in order to operate.
This maker will work if the main Toyota Key Maker is active!
This maker will work if the main Toyota Key Maker is active!
Purchase this together with the tool to have access to all thre Key Makers
