Keymaster Poldiag MB is a tool for working with keys, EIS/EZS, ELV/ESL in Mercedes vehicles.

Poldiag Functions:

• Reading passwords or data is done via OBD or IR;
• Adding or/and fixing a used EZS, ELV, gearbox controler, engine ECU, or key;
• All key lost at no extra cost! No TOKENS;
• Generate as many passwords and keys as you want;
• No soldering is required;
• There is no need to open EZS housing. This applies to ALL TYPES OF EZS, from W202, W203, W208, 210 to 207, 204, 166,176, 212, 221, and many more;
• Everything is done via OBD/IR in the car or after connecting the adapter to the EZS plug, ELV, ECU, TCU, ISM, EWM controller.

Reading, renew and saving functions

• EIS/EZS, ELV/ESL, Engine ECU, Gearbox TCU, ISM/DSM selection, ESM/EWM selection;
• Reading, writing, renewing ALL types of FBS3. No soldering required;
• Personalization, activation of renewed elements on the bench or in car;
• The fastest password finding from the EZS without additional charges. No limits;
• Renewing, modification of data stored in the ELV;
• Unlocking / renewing the engine controllers of ALL TYPES;
• Virginizing / renewing of ISM / DSM, and also EWM/ESM W220, W215, W230;
• Copying / cloning of all types of EZS without soldering or opening it;
• The function of the so-called green key or gray key — the program generates a key which replaces the service key and allows you to modify the data at the dealer level! For free!

Keys

• Emergency Start all keys lost allows the emergency start-up in case you lose all keys and need to get to the workshop;
• Fastest servers for password collection;
• Support all types of the original keys: MOTOROLA, NEC, BGA, BE, Chinese, VVDI types, CGDI types;
• Read, renews used NEC, BE and Orginal KeyLess Go keys;
• BE keys include the option to change the frequency from the program level (315, 433Mhz) and MULTIPLE saving, deleting, erasing — everything is done over IR in a few seconds;
• Emulation function — checking the path of the key, checking the correctness of the password, resetting the key use counter.

ELV / ESL — steering lock control

• Reading ESL by OBD (K-line);
• Renewing ESL Lock. Included BGA W246;
• ESL exchange;
• VIN programming;
• TP erasing;
• Automatic personalization of ESL;
• Checking the functioning of ESL;
• Programming and erasing the emulator (renewal);
• ESL emulation — allows checking if the ignition functions correctly by simulating the connected ESL / ELV lock;
• W246, W176 ELV with BGA CPU — Reading / Renewing / Writing via OBD.

PolDiag OBD tool is sold ONLY with one of three license options. The tool cannot be purchased without a license. Please inform us which one would you like to have,

License "Instrument panels RB4 RB8"

License for instrument panels RB4, RB8 crypto/non-crypto.
Functions:

• reading and writing immo data via OBD
• fixing "DEF" error via OBD
• odometer correction via OBD (true mileage restoration)
• key learning
• instrument panel cloning

License "instrument panels A6, C7, A7, A8 D4, TOUAREG 2010+"

License for instrument panels.
Functions:

• reading and writing EEPROM via OBD
• fixing "DEF" error via OBD
• odometer correction via OBD
• component protection transfer

Old instrument panels with black/white screen may not be supported

License "PCR 2.1" VAG 1.6 TDI

License for VAG 1.6 TDI engine control units.
Functions:

• Reading, writing, and decoding immo data from PCR 2.1 units
• Reading, writing EEPROM and FLASH
• Cloning SIMOS PCR2.1
• Online unit updates
• Unlocking for programming via OBD2
• Power class change
• Decoding immo data without original flash (additional payment of 10 euros at the exchange rate)

PolDiag is a tool that has solutions no other tool has!

Features:

• Reading/writing of all MQB RH850 clusters
• Decrypting, editing, adjusting mileage (true mileage restoration)
• Writing the modified dump to Renesas MCU

Supported clusters: All MQB VDO RH850 clusters IMMO 5A or IMMO 5C
Supported clusters types: Analog, LCD / virtual clusters
Supported Reneasa MCUs: R7F701401, R7F701402, R7F701404, R7F701407 (BGA), R7F701414 / AUDI, SKODA, SEAT, VW, CUPRA

For clusters with IMMO 5A:

• Data reading when All Keys Lost (MQB RH850 All Keys Lost)
• IMMO data file generating (for VVDI2)
• IMMO data decrypting (FAZIT, VIN, component security, MAC, PIN, keys, config, power class…)
• Dealer key preparing (IMMO data file generating)
• Milage adjust
• Clusters reqwriting
• Clusters cloning (1:1)
• Transferring IMMO data / FAZIT to a different HW (both clusters must be with the 5A IMMO system)
• Retrofit / swapping analog ⇒ LCD / virtual (both clusters must be with the 5A IMMO system)

Supported clusters: IMMO 5A MQB CLUSTERS
Supported clusters types: ANALOG, LCD/ VIRTUAL CLUSTERS
Supported Reneasa MCUs: R7F701401, R7F701402, R7F701404, R7F701407 (BGA), R7F701414

NOTE: WhatApp is required.
Each person who purchases the RH850 solution will be assigned to a group and ONLY then will they be able to run and use the license.
IF YOU DO NOT AGREE TO PARTICIPATE IN THE WhatsApp GROUP DO NOT BUY THIS DEVICE!

PolDiag MQB Locked NEC 35XX – Full Set is a powerful and comprehensive kit designed to support all key lost MQB situations, allowing you to read IMMO data and work with mileage for virtual, JCI, VDO, and Visteon clusters, all with NEC35xx. With its direct sync data ordering and key learning capabilities, this tool is the perfect solution for any automotive professionals.

With this kit, you can read IMMO data MQB without a working key, including IMMO 5a and IMMO 4c.

Features:

• Reading IMMO data MQB without working key (All Keys Lost MQB) IMMO 5A and IMMO 4C
• Mileage Editing (VIRTUAL, JCI, VDO, VISTEON) (true mileage restoration)
• IMMO data editing
• Sync data All Keys Lost  – Automatic sync data downloading
• IMMO data file generating – for VVDI2 to prepare “dealer key”
• Key Learning (PolDiag OBD Interface is required)

Joining WhatsApp support group is required.

Read/extract/Decode IMMO data from BCM2

• Bench reading, extracting IMMO data from BCM2 with Encrypted/Locked NEC (2012-2018) No Need working key! (Lifetime valid – no subscription required)
• All AUDI, Lamborghini, VW with BCM2 IMMO5 system + TOUAREG 2010+
• Reading/Extracting/Decoding IMMO data from BCM2  2008-2018 via OBD (with working key) or on the bench.
• Decode IMMO data component security, MAC, PIN, VIN, KEYS, ELV status.
• Repair BCM2 with 02811 error for free!
• ELV off via OBD for free
• Dealer key preparing keys status checking
• Key learning
• All Keys Lost AUDI A6 C7 all years.
• AAll Keys Lost AUDI A8 D4 all years.
• All Keys Lost A4 ,A5, Q5 2008-2017
• Clone BCM2 by OBD or BENCH
• Support of BCM2 withSW 822, 825, 827

Additional functions with working key:

• Clone BCM2 via OBD. (2008-2018) – No other tool supports this function!
• Clone / Transfer BCM2 IMMO data – example by retrofiting
• Clone BCM2 on the bench ( 2008-up)
• Restore parametization ODX
• Add key via OBD all models 2008-2018 (except bcm2 sw711 that need be on bench)
• ELV off via OBD! A4, A5, A6, A7, Q5, (only cars with automatic transmission)
• Repair BCM2 errors via OBD (errors like "steering defective do not drive", no ignition, BCM2 fault)
• Check BCM2 – ELV syncronization status
• Alarm OFF/ON
• Full memory reading (PFLASH and DFLASH) with programmer section
• Reading/writing BCM2 with SW 800+ ( 1 MB PFLASH+ DFLASH)
• IMMO 5 OBD parts adaptation! Support ELV, engine ECU, TCM OBD IMMO syncronization/adaptation
• Some functions like IMMO part adaptations, Locked BCM2 cloning, ELV OFF, fixing errors BCM2, active subscription required

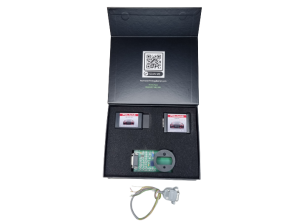

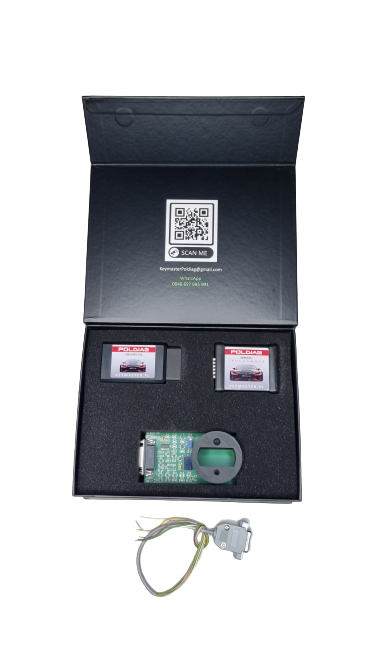

PolDiag Special VAG Set is an advanced and comprehensive toolkit designed for automotive professionals. This set is more than just a tool – it’s a gateway to advanced  programming for VAG group vehicles (Volkswagen AG), encompassing brands like Audi, Skoda, Seat, VW, and Cupra.

PolDiag Special VAG Set components:

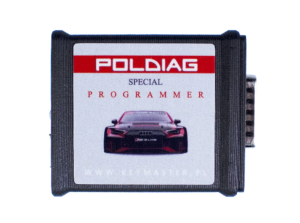

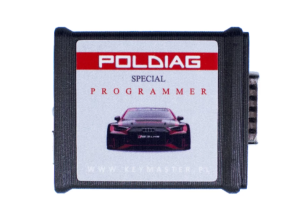

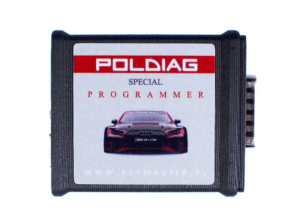

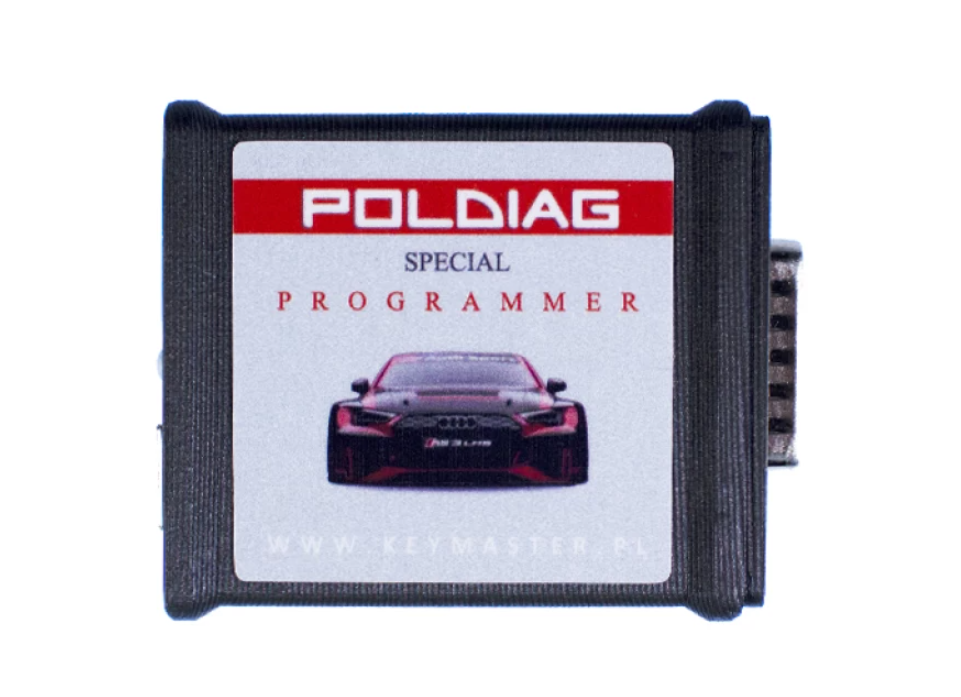

1. PolDiag Programmer: The foundation of the set, enabling efficient and precise work.

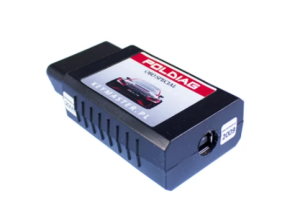

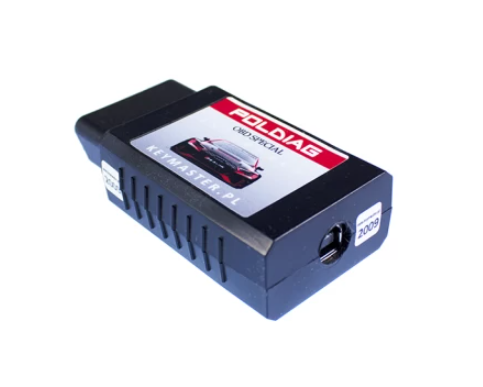

2. PolDiag OBD Interface: An OBD interface providing fast and stable connectivity to the vehicle.
3. MQB Power Adapter: A specialized power adapter for MQB vehicles.
4. MQB RH850 + 35xx Adapter Cable: An adapter cable for MQB RH850 and 35xx processors, crucial for precise operations.
5. BCM2 “in circuit” Adapter Cable: A special adapter cable for BCM2 operations.
6. VAG Key Adapter: An adapter essential for key-related operations.

PolDiag SPECIAL VAG SET Advanced Licenses:

1. MQB RH850 FULL License: Full license for MQB RH850 processor support. WITH RH5D EXTENSION
2. MQB 35xx FULL LICENSE: License for MQB 35xx processor support, with functionalities for mileage change, transfer, upgrade, and cloning of instrument clusters.
3. BCM2 FULL LICENSE: A comprehensive license for BCM2 module operations.
4. OBD IMMO 5 PARTS ADAPTATION: License for adapting immo parts via OBD in IMMO 5 systems.
5. PCR2.1: License for support, cloning, and decoding of Simos PCR2.1.
6. CLUSTERS A6 C7, A7, A8 D4, Touareg 2010+: License for handling clusters of these models, with mileage correction, error repair functions, and more.
7. RB4 RB8 Clusters: License for handling RB4 and RB8 clusters, with mileage correction, key learning functions, and more.
8. VAG OLD ECU IMMO: License for handling older VAG ECUs, with capabilities for reading, writing, and transferring immo data.

Additional Features:

• Reading MQB RH850 Clusters, with the ability to decrypt and edit mileage data (true mileage restoration) in all MQB RH850 clusters. Golf 8, Octavia IV
• Support for Various Types of Clusters:  Inc. RETROFIT Analog, LCD/Virtual. (IMMO 5A type)
• Support for Various Renesas MCUs: Including R7F701401, R7F701402, among others.
• MQB RH850 IMMO Support: Reading data in case of all keys lost, generating immo data files ( IMMO 5A)

NOTE: WhatApp is required.
Each person who purchases the RH850 solution will be assigned to a group and ONLY then will they be able to run and use the license.
IF YOU DO NOT AGREE TO PARTICIPATE IN THE WhatsApp GROUP DO NOT BUY THIS DEVICE!
