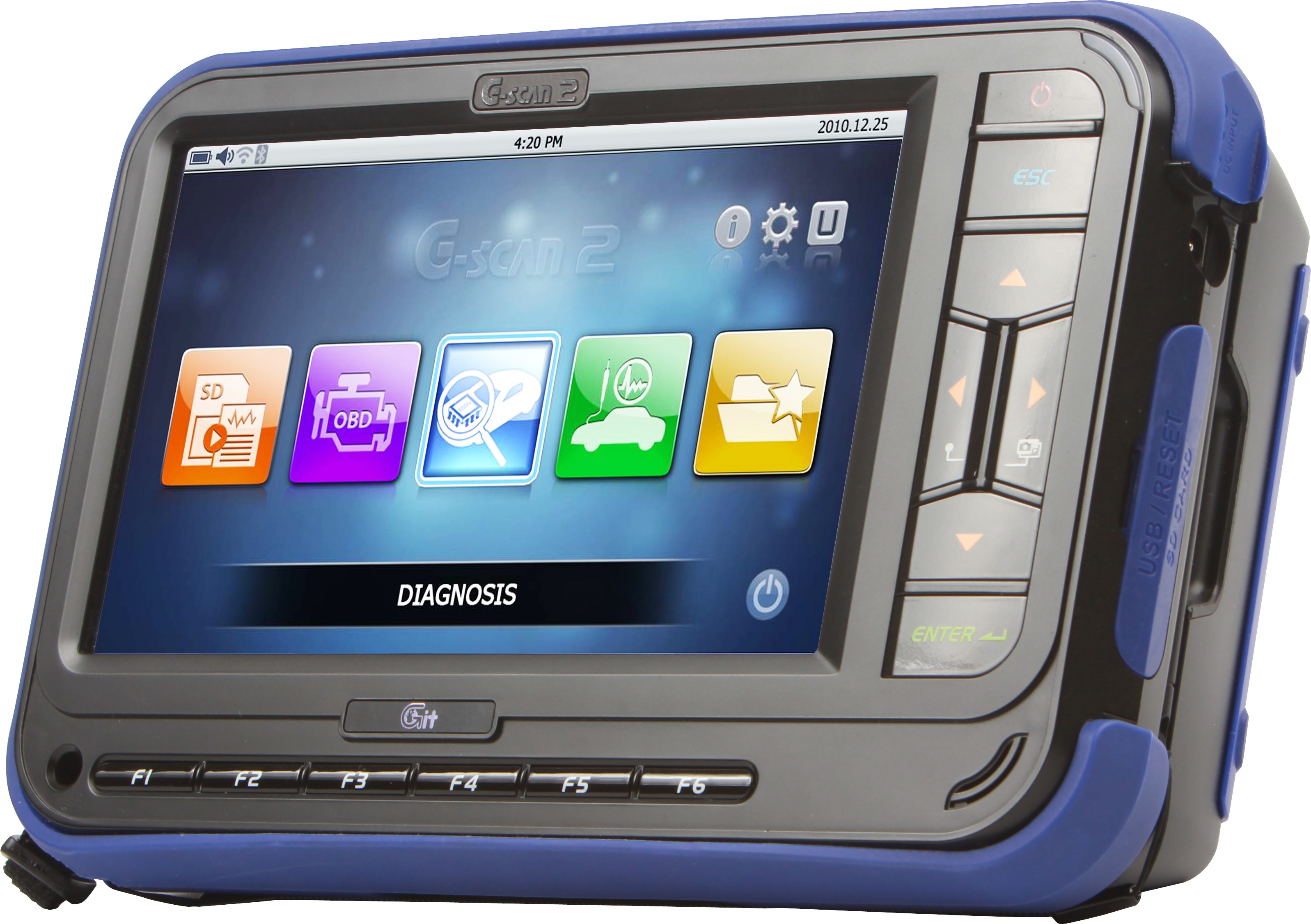

G-Scan 2 Full

Manufacturer
Contents of delivery
  • G-scan Base Unit
  • DLC Main Cable
  • SD Card containing the software
  • Self Test Cable
  • LCD Cleaner
  • SD Card Reader
  • G-scan User Manual
  • Stylus Pen
  • AC/DC Adapter
  • Cigarette Lighter Cable
  • Battery Cable
  • Honda / Acura 3 pin OBD Adapter
  • Mazda 17 pin OBD Adapter
  • Nissan 14 pin OBD Adapter
  • Subaru 9 pin OBD Adapter
  • Toyota 17 pin Round OBD Adapter
  • Toyota 17+1 pin Square OBD Adapter
  • Kia 20 pin A type Connector (blue) for ‘99 ~ ‘02 MY cars
  • Kia 20 pin B type Connector (yellow) for ‘03 ~ ‘05 MY cars
  • Daewoo 12 pin Connector
  • Ssangyong 14 pin Connector
  • Ssangyong 20 pin Connector
  • Hyundai & Kia Keyless Connector
  • BMW 20 pin OBD Adapter
  • Mersedes Benz 38 pin OBD Adapter
  • VAG 2+2 pin OBD Adapter
  • Oscilloscope probe, red, (pin) (2 pcs)
  • Oscilloscope probe, black, (pin) (2 pcs)
  • Oscilloscope probe, grey, (spring) (2 pcs)
  • Oscilloscope clip (red) (2 pcs)
  • Oscilloscope clip (black) (2 pcs)
  • Carrying case
  • Case keys (2 pcs)
Basic equipment
G-Scan 2 Full — 4 500 $
 + Add
Status: Pre-order

The multifunctional hardware and software complex G-scan is equipped with a 4-channel oscilloscope, multimeter and signal simulator. The scanner speed has been optimized, the volume of RAM and external SD memory has been increased by 2 times — up to 256 MB and 4 GB respectively. The size of the scanner touchscreen is 25% larger and is 7″. The advantage of the scanner is the high level of software adaptability for cars manufactured in Japan, including vehicles for the domestic market. For Huyndai and KIA vehicles it provides full-featured fault diagnostics and service functions at the dealer level. The scanner covers a wide range of vehicles: European, Japanese and Asian.

Functionality

  • Identification of ECUs and display of vehicle data;
  • Support of OBDII and EOBD diagnostic protocols and modes;
  • Reading and decrypting DTCs;
  • Resetting DTCs;
  • Display of the test results in the digital and graphic form;
  • Customization (encoding, training);
  • Activation, control of the vehicle actuators;
  • Immobilizer programming - key encoding (Hyundai, Kia), reading/erasing error codes, displaying data flow;
  • Resetting service intervals — oil change indicators, mileage, service intervals;
  • Automatic scanning of all electronic systems: ENG, ENG-2, ATA, BM/GM, EA, CCS, TCS, ISC, ESCM, IFI/ERE, ELR, EDS, ABS/ETS/ASR, AIRBAG/ETR (SRS), A/T, BAS, ADS, ASD, SPS, 4WD, RB, RST, A/C, IMMO, EPS, ECS, AHLS, AAC, FWDS FFH, KCS;
  • High-impact housing in a rubber-coated case;
  • Warranty service for 1 year.

Specifications of the main scanner unit

  • Screen: 7″ TFT LCD color touch screen with 1024×600 resolution;
  • Interface Connectors: — USB — 1 pc. — mini-USB (class 1.1) — 2 pcs;
  • Power supply voltage: 7-35 V DC from the built-in battery, or diagnostic connector, car cigarette lighter or 220 V network;
  • SD card: 4 GB SD card (included);
  • Battery: Built-in Li-ion 2100 mAh battery (1 cell);
  • Dimensions: 230×146×72 mm;
  • Weight: 1.3 kg.

Oscilloscope specofications

Sampling speed of the oscilloscope in the 2-channel mode:

  • 100 us
  • 200 us
  • 500 us
  • 1 ms
  • 2 ms
  • 5 ms
  • 10 ms
  • 20 ms
  • 50 ms
  • 100 ms
  • 200 ms
  • 500 ms
  • 1s
  • 2 s
  • 5 s

Sampling speed of the oscilloscope in the 4 channel mode:

  • 200 us
  • 400 us
  • 1 ms
  • 2 ms
  • 4 ms
  • 10 ms
  • 20 ms
  • 40 ms
  • 100 ms
  • 200 ms
  • 400 ms
  • 1s
  • 2 s
  • 4 s

Multimeter Specifications

  • DC voltage: -/+ 400mV; -/+ 4V; -/+ 40V; -/+ 400V; Auto Mode support
  • Resistance: 1ohm - 10MΩ; Auto Mode Support;
  •  Frequency: 1 Hz -10 kHz;
  • Pulse ratio: 0,1 % - 99,9%;
  • Pulse width: 10 us - 1000 ms.

Signal Simulator specifications

  • Output voltage: 0 Volts - 5 Volts
  • Output current frequency: 1 Hz - 999 Hz@50%;
  • Activation Control: 1 Hz - 999 Hz@1% - 99%;

Supported Cars

Korea:

  • Hyundai/Kia (dealer functions)
  • GM/Daewoo/Chevrolet
  • SsangYong
  • Proton
  • Perodua
  • Naza

Japan:

  • Toyota/Lexus
  • Nissan/Infinity
  • Honda/Acura
  • Mitsubishi
  • Subaru
  • Mazda
  • Isuzu
  • Suzuki
  • Daihatsu
  • Support of right-hand drive cars of the Japanese domestic market.

Europe:

  • VW/Audi/Seat/Skoda
  • Mercedes
  • BMW/Mini
  • Volvo
  • Renault
  • Peugeot
  • Citroen
  • Ford EUR
  • Opel
  • LADA

Trucks and buses:

  • Isuzu Truck
  • Hino Trucks
  • FUSO
  • Nissan Truck (UD)
  • Hyundai/Kia

India:

  • Mahindra
  • Maruti
  • Tata

China:

  • Chery
  • Great Wall

Lifan America:

  • Ford-USA (new models only)
  • Dodge
  • JEEP
  • Chrysler
