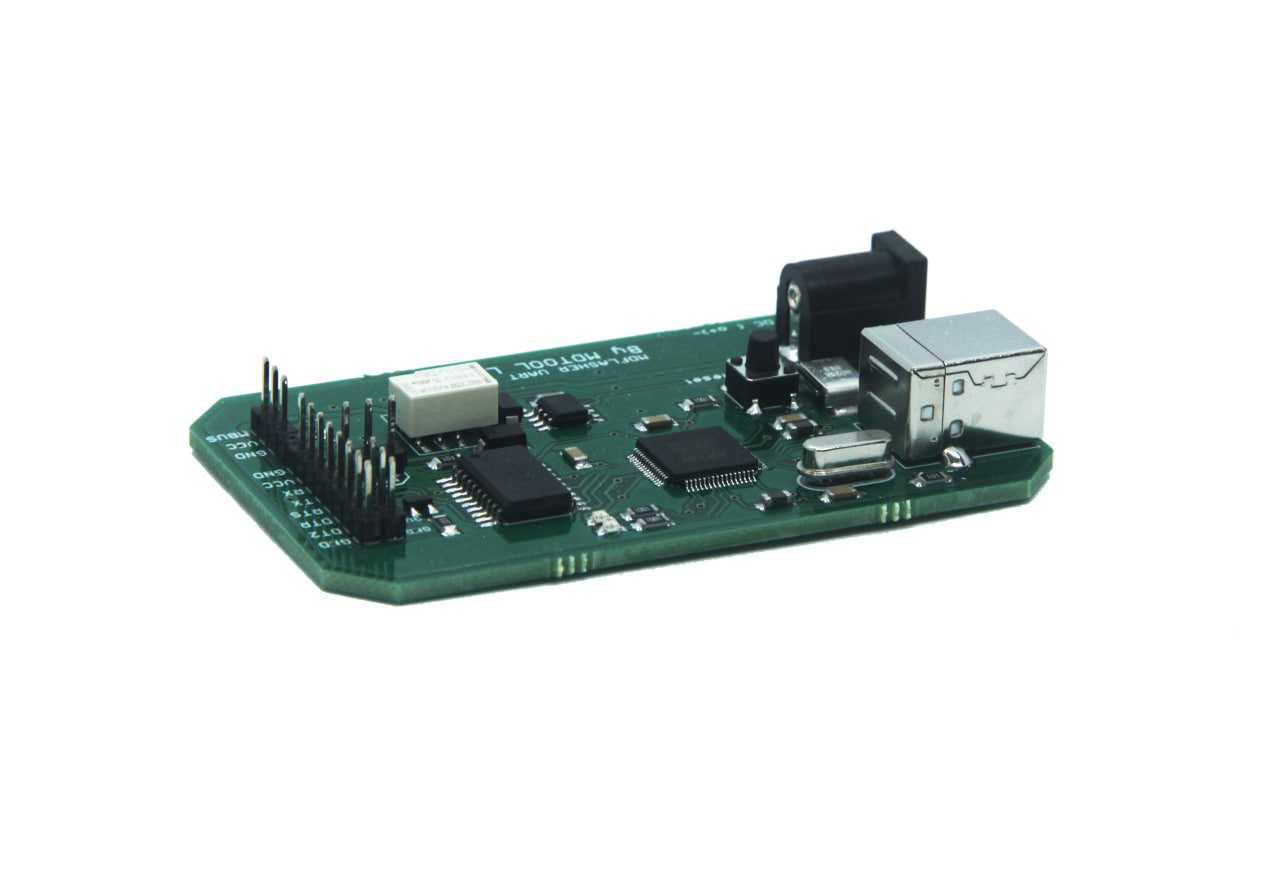

Universal adapter for working with microcontrollers via UART, MBUS.

The board has the following outputs: DTR, DTS, DT2,TX, RX, VCC (the adapter allows you to supply this output with any voltage up to 36 volts applied to the DC 2 mm input), GND, 3.3V (voltage from the USB port through the stabilizer) , 5V (voltage from the USB port), MBUS (switched on by a jumper on the board). Jumper to switch MBUS mode. The Reset button is used to reset the FTDI2232H microcontroller to its original state.

Currently supported with:
1. License 22 Cypress/Fujitsu/Spansion MB91F0xx/S6J3xx MCU UART
2. License 48 Cypress/Fujitsu/Spansion 96Fxx MCU UART
3. License 55 Renesas RH850 R7F701xxx MCU UART
4. License 59 - MCU Renesas V850
