Chiploader 2Item no.: 11C1000
- Software (downloaded from the manufacturer's website)

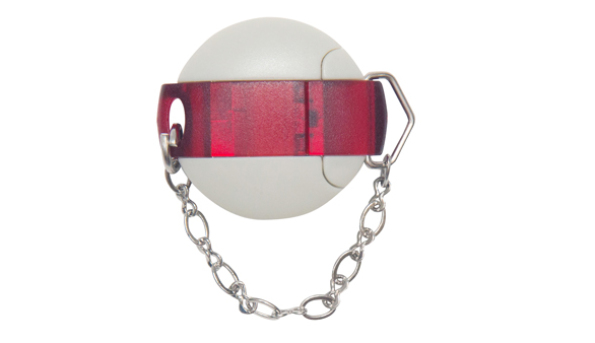

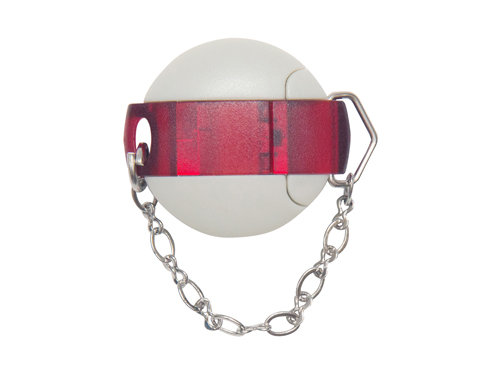

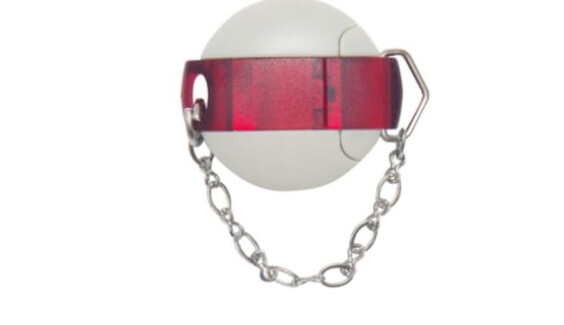

- USB dongle (Senselock)
The chip-tuning software ChipLoader is designed to program a great number of ECUs, both Russian (Itelma, Avtel) and foreign (Bosch M(P,E,D,G) 7.x.x, Siemens SIMK 31/41/43, SIM2K 47/140/141/341/D160/34VR, Sirius D3/D4/D32/D42, Simtec 7x/8x, Simos 7.1, MS43, EMS3132; Delphi MT20x/22/38/80, MR140/HW240; ACDelco IEFI6/ITMS-6F; Keihin with SH7058 processors, etc.). TriCore TC1762/TC1766/TC1796 processors are supported in BSL mode.
Chiploader is one of the oldest solutions for chip-tuning in Russia.
Standard configuration includes support of the following ECUs:
- Bosch M7.9.7, M7.9.7+;
- Mikas-10.3+ (Mikas −11) Mikas −11 (GAZ vehicles);
- Kefico M 7.9.7;
- Bosch MP-7.0;
- Bosch ME 7.9.9;
- Bosch M 7.9.8;
- Bosch MG 7.9.8;
- Bosch ME 7.1;
- Bosch ME 7.5;
- Bosch ME 7.5.10;
- Bosch ME 7.9.7.
Other ECUs support is available through additional modules. It means that a user’s requirements determine optimum configuration at a reasonable price.
Chiploader is a good solution for various brands — VAZ, GAZ, UAZ, ZAZ, Daewoo, Chevrolet, Opel, Hyundai, Kia, Chery, Geely, Renault, Dacia, Volkswagen, Audi, Skoda, Seat, BMW, Honda.
- CAN bus support through J2534 devices;
- Conversion into/from various formats (Simos, Peugeot307, Bosch EDC16, Bosch ME9);
- Enigma and Enigma 2 (SMS-Software) support;
- Readout protection (only for Yanvar-5.x, VS-5.1);
- Reading/flashing of dual-mode software (for ECUs with this function);
- Immobilizer removal (only for Yanvar-5.x, VS-5.1);
- Switch to diagnostic mode with automatic launch of the diagnosis program;\
- User files processing ChipExplorer integration;
- Increased functionality due to plug-in use;
- Various firmware formats support;
- K-Line adapter testing;
- Netbook use;
Increased functionality due to external plug-ins:
- EEPROM dump file recovery of Mikas-7.6 memoryж
- Immobilizer information copying (Siemens 5WY, Sirius, Siemens EMS 3132);
- Software version definition (for Yanvar-5.x, VS-1, Mikas-7.x families).
The program uses a USB-dongle which is included into the delivery package. The ECU programming is conducted through an ordinary K-Line adapter (both COM and USB) or a J2534 device. The majority of ECUs allow programming through a diagnostic link connector, some support BSL mode and EEPROM programming.
Minimum system requirements:
- Windows XP/Vista/7;
- Processor: Pentium III, 800 MHz;
- 256Mb System RAM;
- not less than 1Gb free HDD Space.
Reading, writing of ME7.9.9 in Chevrolet Captiva 2.4L.
Reading, writing of Sirius D3/D4/D32/D42/D52 (Chevrolet Aveo, Lacetti, Spark, Daewoo Matiz)
Writing of the following ECUs:
Bosch Kefico M7.9.7, Bosch M7.9.7(+) (VAZ);
Bosch M7.9.7+ (Geely, Amulet);
Bosch M184.108.40.206 (Chevrolet Aveo);
Bosch ME7.9.7 (Chery).
Reading, writing of Delphi HV240/MR140 ECUs in Chevrolet Aveo, Lacetti.
Chery, BYD, Hoover, Lifan, Kia, Hyundai
Reading, writing of ECUs with Tricore TC1762 processors.
TPROT 1-7, TPROT12, VAG TPROT 8-10, read password ECU SIM2K-24x (Kia, Hyundai).
GPT password reading.
Writing of FLASH memory in Bosch ME17.9.11, Bosch ME17.9.12, Bosch ME17.9.13 via J2534 device. Attention! The module allows to write only factory files.
Writing of ME17.9.7 via OBD2 (VAZ, UAZ); Bosch ME17.9.71 (UAZ).
Reading, writing of factory and modified files via OBD. Digital signature imitation of ME17.9.11/12/13 for OBD writing. Checksum and digital signature correction for ME17.9.21 is not possible at the moment!
Reading of the map area, full flash in ACDelco E83, E39, E39A, E78, E37, E38. Only map area writing is possible. Checksum correction.
Reading, writing (reading only for Avtel M73) of FLASH memory via OBD. OBD connection is not possible for all ECUs. Some ECUs require dismantling.
K-Line adapter or J2534 device required (only for Yanvar-7.2+, Itelma M73).
At the moment Avtel M73 ECUs with identifiers ending in DB04 are not supported.
OBD writing of Bosch M78, ME797+, Ukranian and Chinese vehicles.
M78 (ZAZ Forza, Geely CK2, Geely MK2, Geely Emgrand, Great Wall Wingle);
M788 (JAC, Geely GC6, Chery Tiggo, Lifan X50, Changan, Haima, Great Wall, Chery M11, Brilliance V5).
Removal of the protection for full flash reading in boot.
Reading, writing of IEFI6/ITMS-6F-GM12 (for ROM ECUs - only reading) via OBD.
Reading, writing of FLASH and EEPROM in M74 (VAZ) in boot mode. Possible writing of the map area only.
Reading, writing. Chevrolet
Reading, writing of Siemens 5WY (5 connectors, KIA, Hyundai), Siemens 5WY SIMK31 (2 connectors, Chery QQ), Siemens MS43.
Reading, writing of Siemens 5WY SIMK41, SIMK43 (2 connectors, KIA, Hyundai), Siemens EMS 3132 (Renault, Dacia), Sirius (Daewoo, Chevrolet)
Reading, writing of Mikas-11.4/12.3 (ZAZ, GAZ)
Reading, writing of Siemens SIMK31, SIMK41, SIMK43, SIM2K-47 via OBDII, including CAN bus. K-Line adapter or J2534 device needed.
Reading, writing of Simtec-71.5, Simtec-71.6, Simtec-75.1, Simtec 75.5, Simtec 81.1, Delphi MT35E, Bosch ME9.1 / ACDelco E77 (FLASH memory reading/wrting). CAN bus only.
Writing of Bosch M 7.9.8, MG 7.9.8 via OBDII. J2534 device needed.
Reading, writing of Siemens SIM2K140/141/241/245 (Kia, Hyundai), Siemens SIM2K-D160 (Chevrolet Epica)
Reading, writing of FLASH memory in Keihin ECUs with SH7058 / SH72543 / MPC via OBD.
Honda Accord (8th generation);
Honda Civic (8, 9th generation);
Honda Jazz/Fit (2nd generation);
Honda CRV (3rd generation);
Acura TSX (2nd generation);
Acura CSX (1st generation);
Acura MDX (2nd generation);
Acura RDX (1st generation);
Honda Pilot (2nd generation).
MY 2008 - 2013.
If you are using a CHIPSOFT J2534, it should be improved for correct voltage supply.
If you are using Tactrix OpenPort2, it is recommended to use version 1.15.4340 and J2534 driver 1.01.4247.
Reading, writing of FLASH memory in Bosch EDC17C08, Bosch EDC17CP14, Bosch MED(G)17.9.8 via J2534 device.
The module supports writing of prepared factory and modified files!
Reading, writing of FLASH memory in Siemens SIM28, SIM29, SIM210, SIM22, EMS2204, SID206, Visteon ESU-131/411/412/415/418 (Ford).
J2534 device required.
Reading, writing of FLASH memory in Valeo V40/V42 (Renault).
Reading, writing of FLASH memory in Magnetti Marelli 7GV, 7GVE (VW) via J2534. Checksum correction.
Reading, writing of FLASH memory in Denso ECUs with SH7058 (Suzuki, Mitsubishi, Volvo, etc, MY 2007 - 2010). Checksum correction.
SH7058S is not supported! You can brick the ECU using this module with SH7058S.
J2534 device required.
Reading, writing of FLASH memory in SIM2K-243 (GM vehicles) via J2534. Checksum correction.
Reading, writing of FLASH in MT86 ECUs (KIA/Hyundai) via 2534 protocol.
Only map area reading is supported for MT86 ECUs.
Writing is possible for the following formats:
- previously read with Chiploader;
- dealer update files;
- FullFlash files read in the boot mode.
Reading, writing of FLASH memory in unboxed ECU sets (Mazda (2003-2013) via J2534. Checksum correction.
Reading, writing of FLASH memory in MT80 ECUs (Chinese vehicles) via J2534 and K-Line.
OBD reading/writing of FLASH memory in Siemens EMS3120 ECUs in VAZ, Logan vehicles via J2534. Checksum correction.
Full flash reading, writing of MT60/MT80 ECUs by GM. Cloning is possible. Checksum correction.
